0x00 Preface

---

This article documents the details of building a vRealize Log Insight vulnerability debugging environment from scratch.

0x01 Introduction

---

This article will cover the following topics:

  • vRealize Log Insight Installation
  • vRealize Log Insight Vulnerability Debugging Environment Configuration
  • Database Operations

0x02 vRealize Log Insight Installation

---

Reference: https://docs.vmware.com/en/vRealize-Log-Insight/index.html

1. Download OVA File

Download page: https://customerconnect.vmware.com/evalcenter?p=vr-li

Download requires user registration first, then select the desired version for download

2. Installation

(1) Import the OVA file in VMware Workstation

(2) Configuration

Access the configuration page at https:///

Select Starting New Deployment, set the admin user password

3. Enable remote debugging function

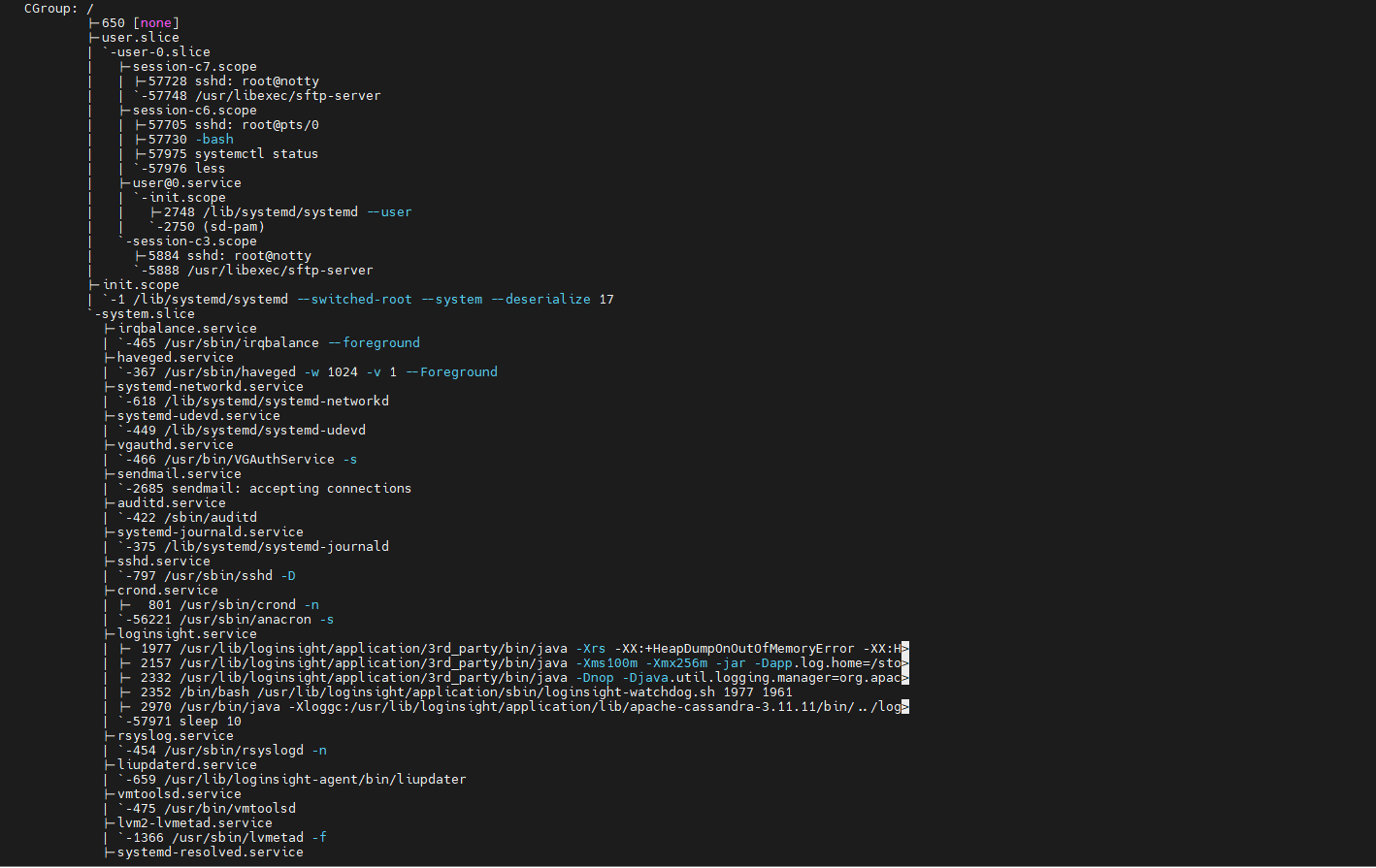

(1) Check the status of all services

systemctl status

Result as shown in the figure below

(1) Check the status of all services — technical illustration 1

Locate the web-related service as loginsight.service

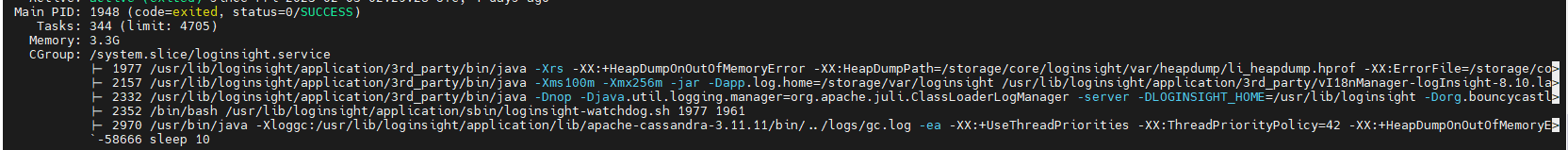

(2) View detailed information of loginsight.service

systemctl status loginsight.service

Result as shown in the figure below

(2) View detailed information of loginsight.service — technical illustration 2

Locate the service startup file: /usr/lib/loginsight/application/bin/loginsight

(3) View process parameters

Execute command: ps aux|grep java

Return result:

root 1977 4.7 34.5 4687676 1396852 ? Sl 00:04 6:55 /usr/lib/loginsight/application/3rd_party/bin/java -Xrs -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/storage/core/loginsight/var/heapdump/li_heapdump.hprof -XX:ErrorFile=/storage/core/loginsight/var/jvm_hs_err_pid.log -Djava.util.logging.config.level=SEVERE -Djdk.tls.ephemeralDHKeySize=2048 -Dorg.bouncycastle.fips.approved_only=false -Djavax.net.ssl.trustStorePassword=changeit -Djdk.http.auth.tunneling.disabledSchemes="" -DLOGINSIGHT_HOME=/usr/lib/loginsight -Dstrata.pgid=1961 -cp /usr/lib/loginsight/application/lib/* -Xmx1972m -Xms1972m -Xss256k -Xmn1024M -XX:+UseConcMarkSweepGC -XX:+UseParNewGC -XX:CMSInitiatingOccupancyFraction=75 -XX:+UseCMSInitiatingOccupancyOnly -XX:+ScavengeBeforeFullGC -XX:TargetSurvivorRatio=80 -XX:SurvivorRatio=8 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:+UseCompressedOops -XX:+OptimizeStringConcat -XX:+AlwaysPreTouch com.vmware.loginsight.daemon.LogInsightDaemon --wait=120
root 2157 0.1 2.0 2685308 84276 ? Sl 00:04 0:17 /usr/lib/loginsight/application/3rd_party/bin/java -Xms100m -Xmx256m -jar -Dapp.log.home=/storage/var/loginsight /usr/lib/loginsight/application/3rd_party/vI18nManager-logInsight-8.10.latest.jar --server.scheme=https -c --swagger-ui.enable=false
root 2327 0.6 15.1 3577064 612048 ? Sl 00:04 0:57 /usr/lib/loginsight/application/3rd_party/bin/java -Dnop -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager -server -DLOGINSIGHT_HOME=/usr/lib/loginsight -Dorg.bouncycastle.fips.approved_only=false -Dorg.apache.jasper.runtime.BodyContentImpl.LIMIT_BUFFER=true -Djava.awt.headless=true -Dorg.apache.jasper.runtime.JspFactoryImpl.USE_POOL=false -Djdk.tls.rejectClientInitiatedRenegotiation=true -Dorg.apache.el.parser.SKIP_IDENTIFIER_CHECK=true -Djavax.net.ssl.trustStorePassword=changeit -Djava.endorsed.dirs= -classpath /usr/lib/loginsight/application/3rd_party/apache-tomcat-8.5.82/log4j2/lib/*:/usr/lib/loginsight/application/3rd_party/apache-tomcat-8.5.82/log4j2/conf:/usr/lib/loginsight/application/3rd_party/apache-tomcat-8.5.82/bin/bootstrap.jar:/usr/lib/loginsight/application/3rd_party/apache-tomcat-8.5.82/bin/tomcat-juli.jar -Dcatalina.base=/usr/lib/loginsight/application/3rd_party/apache-tomcat-8.5.82 -Dcatalina.home=/usr/lib/loginsight/application/3rd_party/apache-tomcat-8.5.82 -Djava.io.tmpdir=/usr/lib/loginsight/application/3rd_party/apache-tomcat-8.5.82/temp org.apache.catalina.startup.Bootstrap start
root 3097 1.7 33.0 2860656 1336624 ? SLl 00:06 2:31 /usr/bin/java -Xloggc:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../logs/gc.log -ea -XX:+UseThreadPriorities -XX:ThreadPriorityPolicy=42 -XX:+HeapDumpOnOutOfMemoryError -Xss256k -XX:StringTableSize=1000003 -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseTLAB -XX:+ResizeTLAB -XX:+UseNUMA -XX:+PerfDisableSharedMem -Djava.net.preferIPv4Stack=true -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:SurvivorRatio=8 -XX:MaxTenuringThreshold=1 -XX:CMSInitiatingOccupancyFraction=75 -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSWaitDuration=10000 -XX:+CMSParallelInitialMarkEnabled -XX:+CMSEdenChunksRecordAlways -XX:+CMSClassUnloadingEnabled -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintHeapAtGC -XX:+PrintTenuringDistribution -XX:+PrintGCApplicationStoppedTime -XX:+PrintPromotionFailure -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=10M -Xms1024M -Xmx1024M -Xmn200M -XX:+UseCondCardMark -XX:CompileCommandFile=/storage/core/loginsight/cidata/cassandra/config/hotspot_compiler -javaagent:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/jamm-0.3.0.jar -Djava.rmi.server.hostname=192.168.112.156 -Dcassandra.jmx.local.port=7199 -Dcom.sun.management.jmxremote.authenticate=true -Dcom.sun.management.jmxremote.password.file=/storage/core/loginsight/cidata/cassandra/config/jmxremote.password -Djava.library.path=/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/sigar-bin -Dcassandra.consistent.rangemovement=false -XX:OnOutOfMemoryError=kill -9 %p -Dlogback.configurationFile=logback.xml -Dcassandra.logdir=/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../logs -Dcassandra.storagedir=/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../data -Dcassandra-foreground=yes -cp /storage/core/loginsight/cidata/cassandra/config:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../build/classes/main:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../build/classes/thrift:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/airline-0.6.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/antlr-runtime-3.5.2.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/apache-cassandra-3.11.11.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/apache-cassandra-thrift-3.11.11.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/asm-5.0.4.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/caffeine-2.2.6.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/cassandra-driver-core-3.0.1-shaded.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/commons-cli-1.1.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/commons-codec-1.9.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/commons-lang3-3.1.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/commons-math3-3.2.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/compress-lzf-0.8.4.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/concurrentlinkedhashmap-lru-1.4.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/concurrent-trees-2.4.0.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/disruptor-3.0.1.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/ecj-4.4.2.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/guava-18.0.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/HdrHistogram-2.1.9.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/high-scale-lib-1.0.6.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/hppc-0.5.4.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/jackson-annotations-2.9.10.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/jackson-core-2.9.10.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/jackson-databind-2.9.10.8.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/jamm-0.3.0.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/javax.inject-1.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/jbcrypt-0.3m.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/jcl-over-slf4j-1.7.7.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/jctools-core-1.2.1.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/jflex-1.6.0.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/jna-4.2.2.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/joda-time-2.4.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/json-simple-1.1.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/libthrift-0.9.2.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/log4j-api-2.17.1.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/log4j-core-2.17.1.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/log4j-over-slf4j-1.7.7.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/log4j-slf4j-impl-2.17.1.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/logback-classic-1.1.3.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/logback-core-1.1.3.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/lz4-1.3.0.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/metrics-core-3.1.5.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/metrics-jvm-3.1.5.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/metrics-logback-3.1.5.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/netty-all-4.0.44.Final.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/ohc-core-0.4.4.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/ohc-core-j8-0.4.4.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/reporter-config3-3.0.3.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/reporter-config-base-3.0.3.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/sigar-1.6.4.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/slf4j-api-1.7.30.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/slf4j-api-1.7.7.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/snakeyaml-1.11.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/snappy-java-1.1.1.7.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/snowball-stemmer-1.3.0.581.1.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/ST4-4.0.8.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/stream-2.5.2.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/thrift-server-0.3.7.jar:/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/../lib/jsr223/*/*.jar: org.apache.cassandra.service.CassandraDaemon

Result analysis is as follows:

Process 1977:

Process parameters correspond to file: /usr/lib/loginsight/application/sbin/loginsight-daemon.sh

Corresponding lib folder: /usr/lib/loginsight/application/lib/

Process 2157:

Process parameters correspond to file: /usr/lib/loginsight/application/sbin/vI18nManager

Corresponding lib file: /usr/lib/loginsight/application/3rd_party/vI18nManager-logInsight-8.10.latest.jar

Process 2327:

Process parameter corresponding file: /usr/lib/loginsight/application/3rd_party/apache-tomcat-8.5.82/bin/catalina.sh

Corresponding lib folder: /usr/lib/loginsight/application/3rd_party/apache-tomcat-8.5.82/

Process 3097:

Process parameter corresponding file: /usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/conf/jvm.options

Corresponding lib folder: /usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/lib/

Method to add debug parameters to process 3097:

Modify file /usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/conf/jvm.options

Add content: -agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=1414

Restart service: service loginsight restart

Add firewall rule: iptables -I INPUT -p tcp --dport 1414 -j ACCEPT

0x03 Database Operations

---

1. Reset web login user admin password

Implementation file: /usr/lib/loginsight/application/sbin/li-reset-admin-passwd.sh

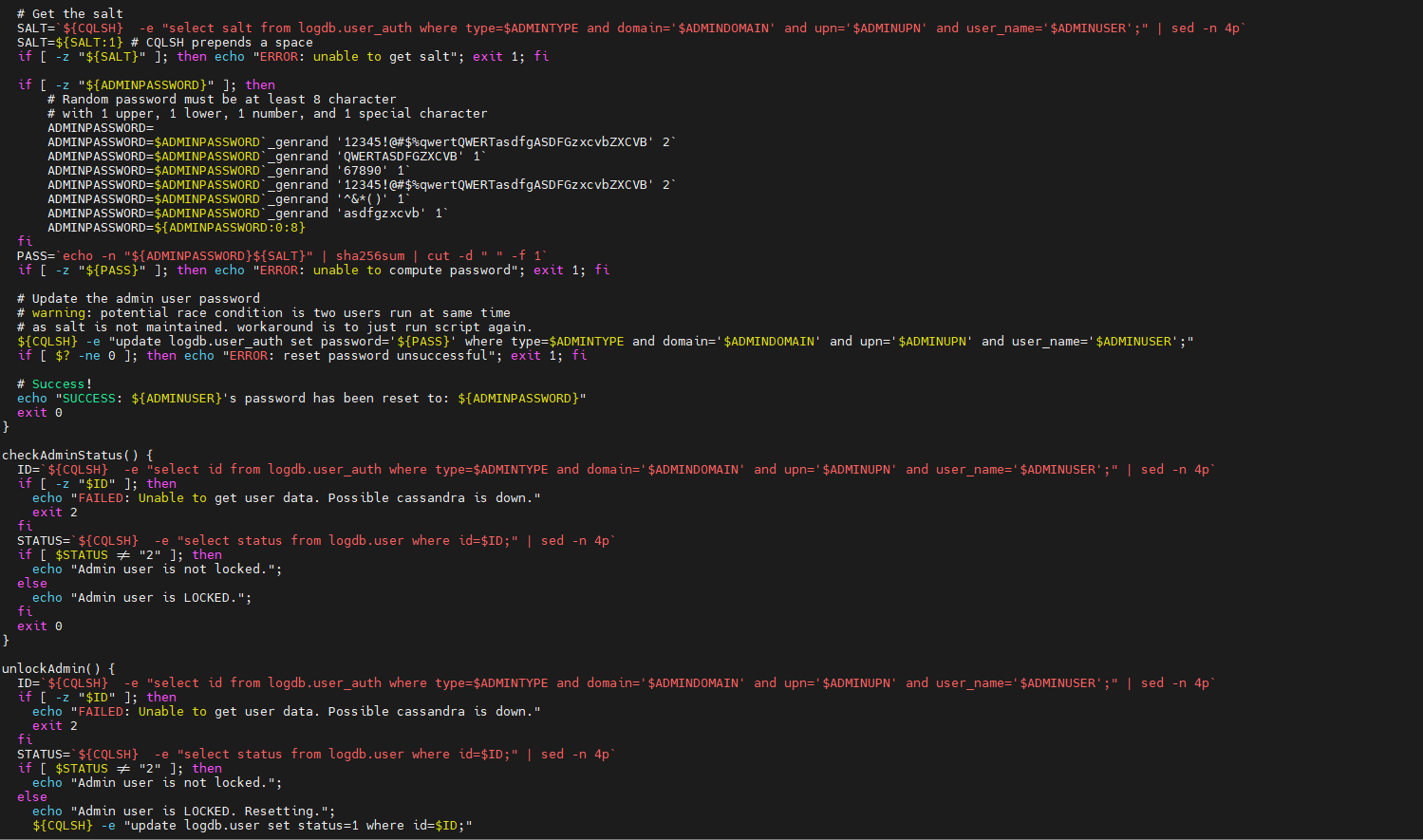

Database operation-related information can be obtained from the file, as shown in the figure below

1. Reset web login user admin password — technical illustration 3

2. Command parameters for connecting to the database

Implementation file: /usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/cqlsh-no-pass

The file content is as follows:

_bin() {
local CASSANDRA_BIN=$(find $BASE -name nodetool | sort | tail -n 1)
if [ ! -e "$CASSANDRA_BIN" ]; then
echo "ERROR: Unable to locate Cassandra's bin directory!"
exit 255
else
# Echo the bin directory
echo ${CASSANDRA_BIN%/*}
fi
return 0
}

BASE="$(dirname $(readlink -f $0 2>/dev/null) 2>/dev/null)/"
if [ $? != 0 ]; then
# If mac then no need to worry about symlink
BASE="$(dirname $0)"
BASE="${BASE%.*}"
if [ ! -z "$BASE" ]; then
BASE="$BASE/";
fi
elif [ "$BASE" == "/opt/vmware/bin/" ]; then
BASE="/usr/lib/loginsight/application/lib/apache-cassandra-*"
fi

CASSANDRA_BIN=$(_bin)
if [ $? != 0 ]; then
echo $CASSANDRA_BIN
exit 255
fi

user_password=`$CASSANDRA_BIN/credentials-look-up | tr "\n" " " | sed 's/.*"\(.*\)".*"\(.*\)".*/\1\t\2/g'`
cuser=`echo "${user_password}" | cut -f1`
cpassword=`echo "${user_password}" | cut -f2`

$CASSANDRA_BIN/cqlsh -u $cuser -p $cpassword --cqlshrc=/storage/core/loginsight/cidata/cassandra/config/cqlshrc "$@"r

Specific parameters for database operations can be obtained from the file:

  • Obtain username and password from $CASSANDRA_BIN/credentials-look-up
  • Configuration file is /storage/core/loginsight/cidata/cassandra/config/cqlshrc

3. Username and password for database connection

Implementation file: /usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/credentials-look-up

Returns username and password after execution:


The implementation principle involves reading the file /storage/core/loginsight/config/loginsight-config.xml* and extracting plaintext username and password credentials from the XML file

4. Database connection configuration information

Implementation file: /storage/core/loginsight/cidata/cassandra/config/cqlshrc

File contents are as follows:

[connection]
hostname = 127.0.0.1
port = 9042
client_timeout = 120
ssl = true

;[authentication]
;username = cassandra
;password = cassandra

[ssl]
certfile = /storage/core/loginsight/cidata/cassandra/config/cacert.pem
;usercert = cert.pem
;userkey = cert_key.pem

Based on the above content, two methods for connecting to the database can be summarized:

(1) Using a file with pre-packaged parameters

/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/cqlsh-no-pass

(2) Connecting using parameters

/usr/lib/loginsight/application/lib/apache-cassandra-3.11.11/bin/cqlsh -u lisuper -p slshitn2@S --cqlshrc=/storage/core/loginsight/cidata/cassandra/config/cqlshrc

From the returned results, it can be seen that the database uses CQL (Cassandra Query Language)

Commands for querying user configuration:

select * from logdb.user;
select * from logdb.user_auth;

5. Graphical interface for database operations

Here, the software TablePlus is used

Firewall configuration needs to be modified to open port 9042: iptables -I INPUT -p tcp --dport 9042 -j ACCEPT

Certificate file to use: /storage/core/loginsight/cidata/cassandra/config/cacert.pem

Successful connection is shown in the figure below

5. Graphical interface for database operations — technical illustration 4

0x04 Summary

---

After setting up the vRealize Log Insight vulnerability debugging environment, we can proceed to study the vulnerability.
