VMware Workspace ONE Access Vulnerability Debugging Environment Setup

Onedaysec
5 min read
0 views
docx image 1770017291780 0 a1ffbd9eed

0x00 Preface

---

This article details the process of setting up a VMware Workspace ONE Access vulnerability debugging environment from scratch.

0x01 Introduction

---

This article will cover the following topics:

  • VMware Workspace ONE Access Installation
  • VMware Workspace ONE Access Vulnerability Debugging Environment Configuration
  • Common Knowledge

0x02 VMware Workspace ONE Access Installation

---

Reference Materials:

https://docs.vmware.com/en/VMware-Workspace-ONE-Access/20.01/workspace_one_access_install.pdf

1. Download the OVA File

Download page:

https://customerconnect.vmware.com/downloads/search?query=workspace%20one%20access

Registration is required before downloading, then select the desired version to download

Download page for VMware Workspace ONE Access 21.08.0.1: https://customerconnect.vmware.com/downloads/details?downloadGroup=WS1A_ONPREM_210801&productId=1269

Download file identity-manager-21.08.0.1-19010796_OVF10.ova

2. Installation

(1) Import the OVA file in VMware Workstation

Note:

VMware Workstation version must be greater than 14, otherwise an error will occur indicating inability to import

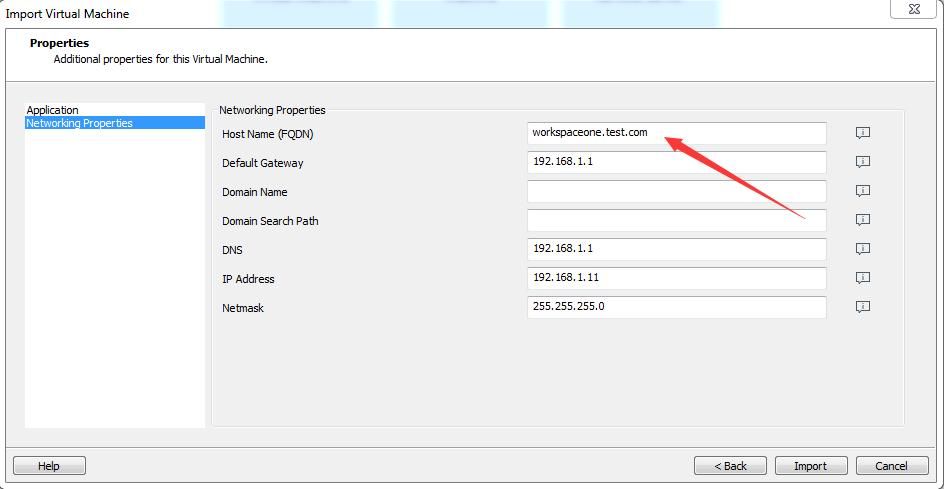

Set the Host Name on the installation page. If DHCP is configured, other options do not need to be set. My configuration uses a static IP, configured as shown in the image below

(1) Import the OVA file in VMware Workstation — technical illustration 1

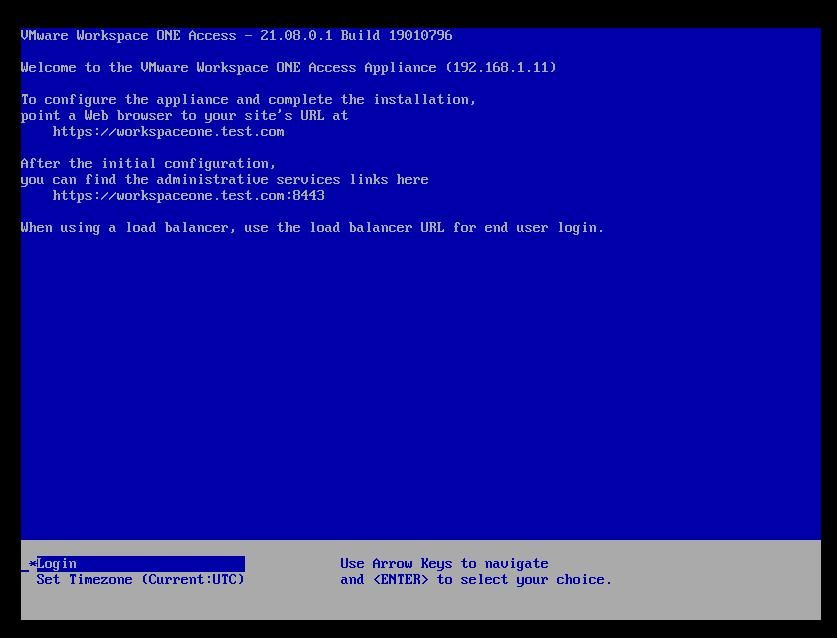

After the OVA file import is complete, it will automatically power on for initialization. After initialization is complete, it will appear as shown below

(1) Import the OVA file in VMware Workstation — technical illustration 2

(2) Configuration

Modify the local hosts file to point 192.168.1.11 to workspaceone.test.com

Access the configuration page at https://workspaceone.test.com:8443

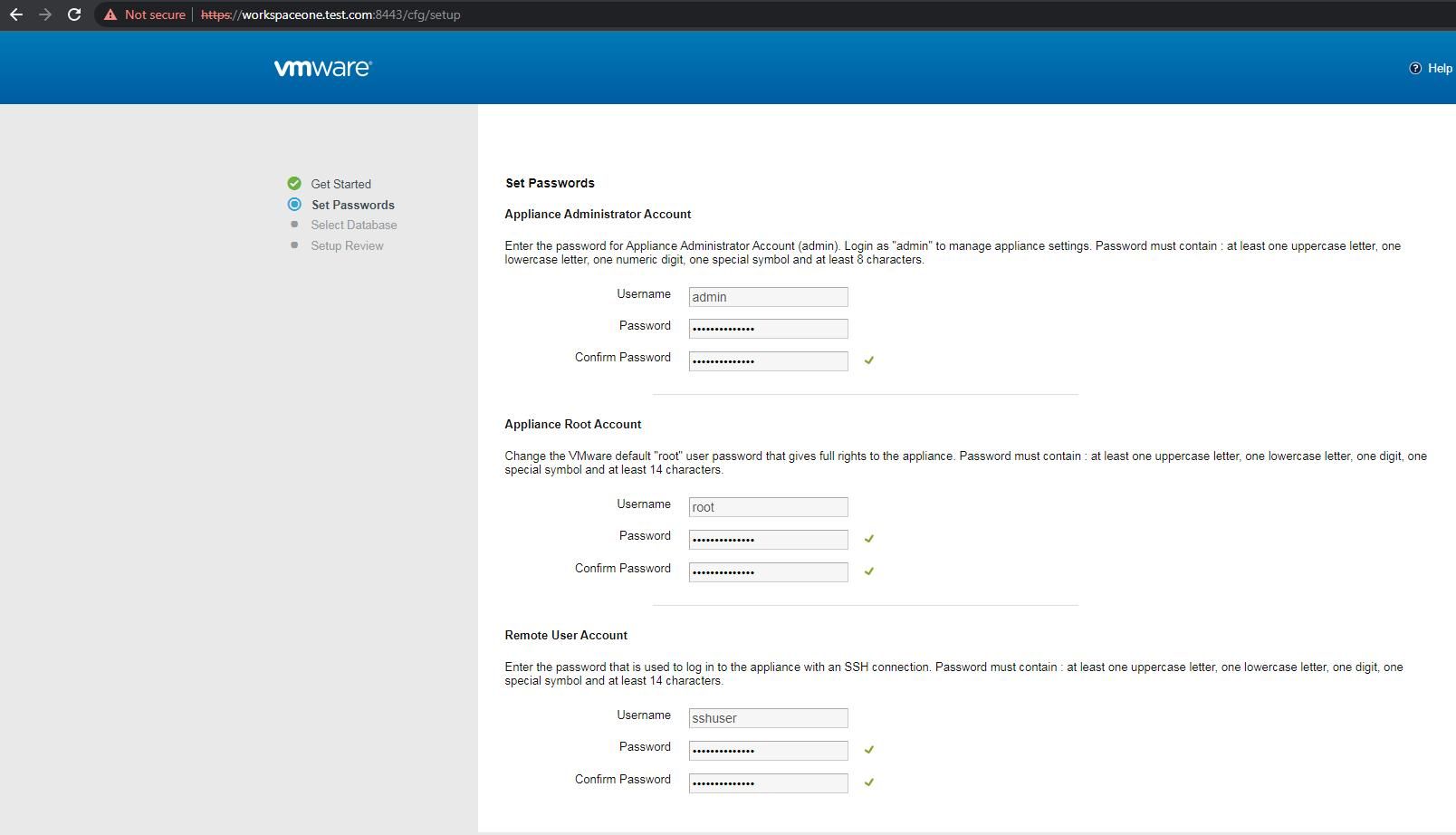

Set passwords for admin, root, and sshuser users; passwords must include uppercase letters, lowercase letters, numbers, and special characters

Note:

My test results show that the password length must be set to 14, otherwise root and sshuser users cannot log in

In my test environment, the password is set to Password@12345, as shown below

(2) Configuration — technical illustration 3

Set up the database; for ease of environment setup, select Internal Database here

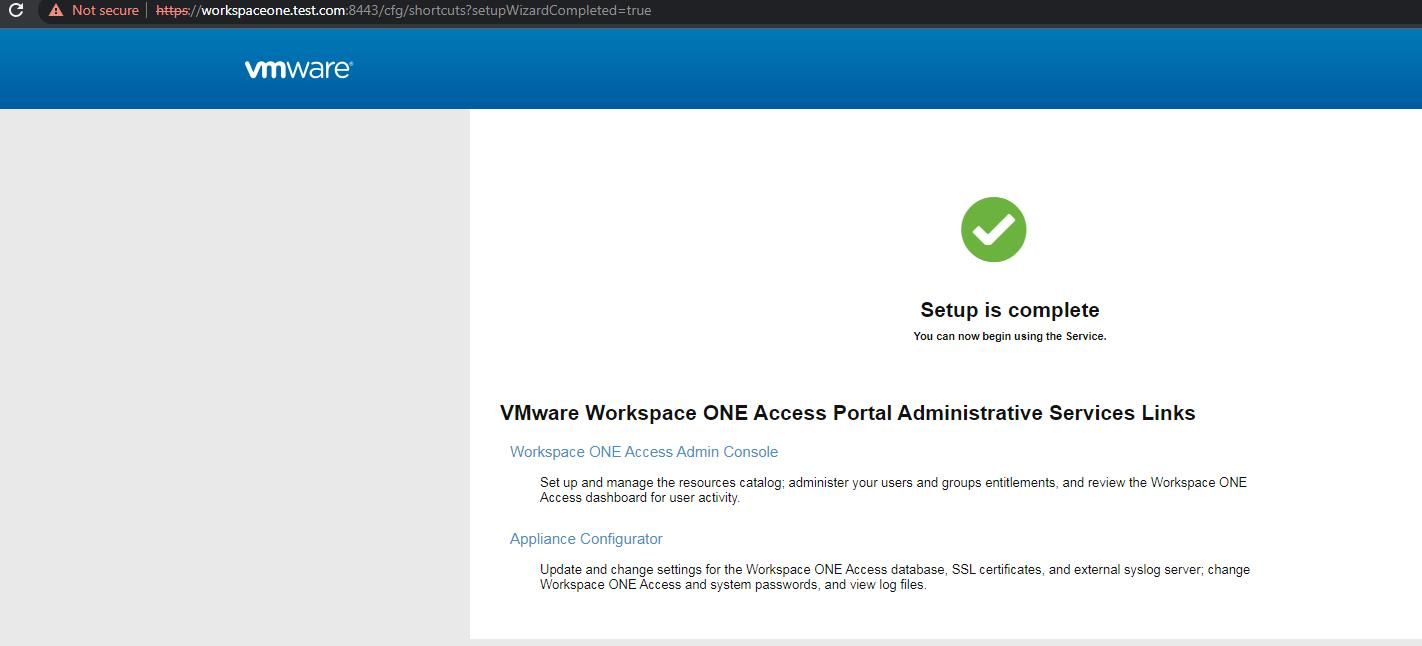

Wait for the installation to complete, as shown below

(2) Configuration — technical illustration 4

3. Enable remote SSH login for the root user

To log in to VMware Workspace ONE Access and modify the system configuration file, there are two login methods:

(1) Log in directly as the root user in the virtual machine

Select Login, enter root and the password Password@12345

(2) Log in via SSH as the sshuser user

After logging in, switch to the root user

After switching to the root user, execute the following commands in sequence:

  • vi /etc/ssh/sshd_config
  • Change PermitRootLogin from no to yes
  • systemctl restart sshd

4. Enable remote debugging function

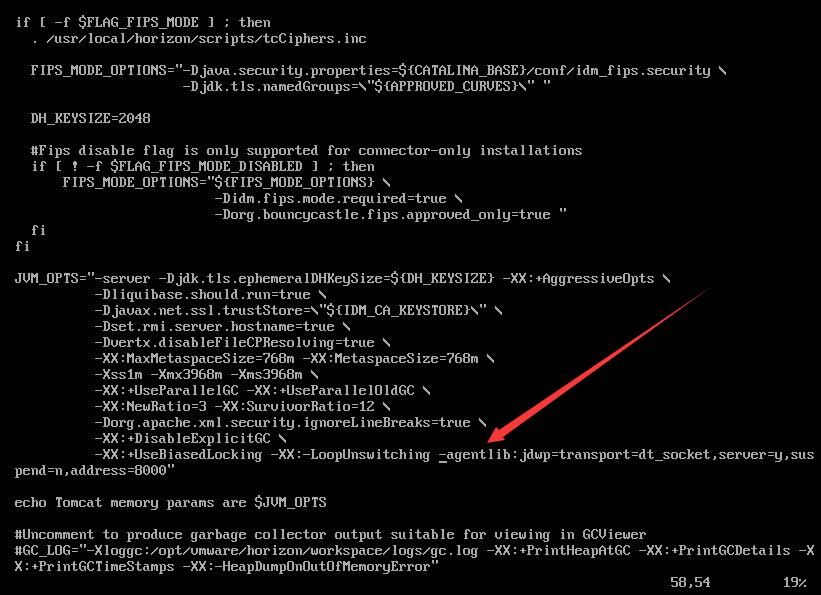

Modify the file: /opt/vmware/horizon/workspace/bin/setenv.sh

Modify the JVM_OPTS parameter, add: -agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=8000

As shown in the figure below

4. Enable remote debugging function — technical illustration 5

Restart the system

Open the firewall: iptables -P INPUT ACCEPT && iptables -P OUTPUT ACCEPT

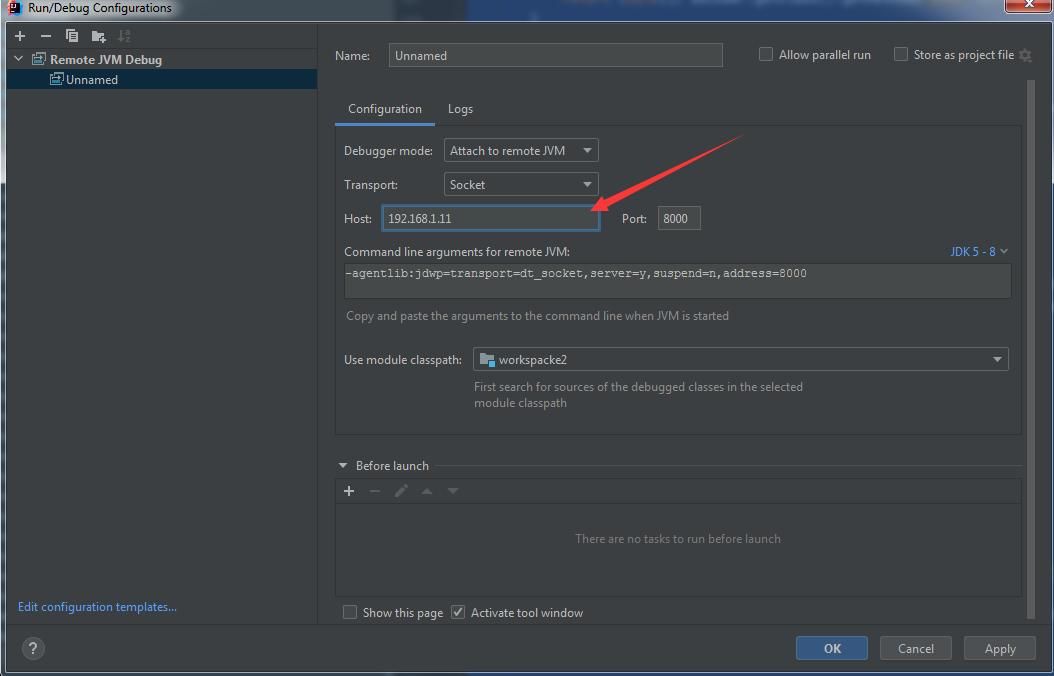

Set remote debugging parameters in IDEA, as shown in the figure below

4. Enable remote debugging function — technical illustration 6

Note:

For the complete configuration method of IDEA, please refer to the previous article 'Setting Up Zimbra Vulnerability Debugging Environment'

0x03 Common Knowledge

---

1. Common Commands

Check system service status: chkconfig --list

Check all service status: systemctl status

Check IP address: ip addr show

Check Host Name: hostname

Log path: /opt/vmware/horizon/workspace/logs/

2. Check System Version

Requires root privileges to execute command: vamicli version --appliance

Implementation details for checking system version:

#!/usr/bin/env python2
import sys
sys.path.append("/opt/vmware/lib/python/site-packages/")
import pywbem
def getCIMConnection (url, namespace):
cred = {}
cred ['cert_file'] = '/opt/vmware/etc/sfcb/client.pem'
cred ['key_file'] = '/opt/vmware/etc/sfcb/file.pem'
cliconn = pywbem.WBEMConnection (url, None, namespace, cred)
return cliconn

def showVersion():
try:
cliconn = getCIMConnection ('https://localhost:5489', 'root/cimv2')
esis = cliconn.EnumerateInstances ('VAMI_ElementSoftwareIdentity')
except:
print('error')
return
for esi in esis:
ess = esi ['ElementSoftwareStatus']
if (ess == [2, 6]):
inst = cliconn.GetInstance (esi['Antecedent'])
print ('Version - ' + inst ['VersionString'])
print ('Description - ' + inst ['Description'])
showVersion()

Root privileges are required because accessing the files /opt/vmware/etc/sfcb/client.pem and /opt/vmware/etc/sfcb/file.pem requires root permissions.

3. Database Connection Password

The plaintext password for connecting to the database is located at: /usr/local/horizon/conf/db.pwd

The encrypted password for connecting to the database is stored in the file /usr/local/horizon/conf/runtime-config.properties. Example file content:

datastore.jdbc.url=jdbc:postgresql://localhost/saas?stringtype=unspecified
datastore.jdbc.userName=horizon
secure.datastore.jdbc.password=BAACs8MW1xyMe7/8ONd2QwtG3mw37wF1/1pQ6D09xXqf56ncfRtCun6y8A1XFtjajhU60V1QNYnCOxk3t1m0dV0JvA==

Here, BAACs8MW1xyMe7/8ONd2QwtG3mw37wF1/1pQ6D09xXqf56ncfRtCun6y8A1XFtjajhU60V1QNYnCOxk3t1m0dV0JvA== is the encrypted password.

The following files are required as decryption keys:

  • /usr/local/horizon/conf/configkeystore.pass
  • /usr/local/horizon/conf/configkeystore.bcfks

4. Encrypted information in the database

The password of the admin user is encrypted and stored in the database

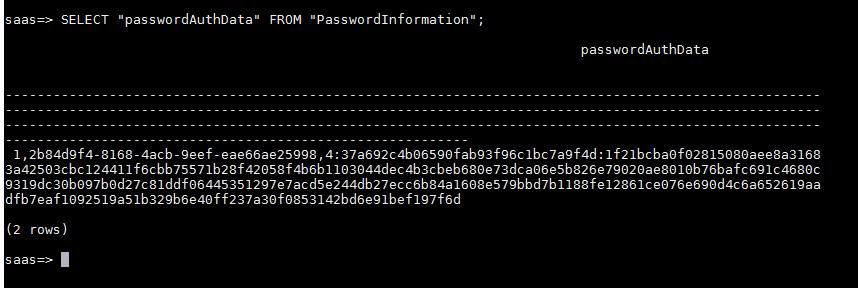

Query command: saas=> SELECT "passwordAuthData" FROM "PasswordInformation";

Query result as shown in the figure below

4. Encrypted information in the database — technical illustration 7

Main implementation code for encryption 1:

private String AES_encrypt(@Nonnull byte[] clearData, @Nonnull byte[] key, @Nonnull EncryptionAlgorithms encAlg) throws EncryptionServiceException {
Preconditions.checkNotNull(clearData);
Preconditions.checkNotNull(key);
Preconditions.checkNotNull(encAlg);
Preconditions.checkArgument(clearData.length != 0);

try {
String cipherName = encAlg.getCipherName();
Cipher cipher = Cipher.getInstance(cipherName, provider);
int nonceSize = encAlg.getNonceSize(cipher.getBlockSize());
IvParameterSpec ivSpec = null;
String encodedIv;
if (nonceSize > 0) {
byte[] iv = new byte[nonceSize];
srand.nextBytes(iv);
ivSpec = new IvParameterSpec(iv);
encodedIv = new String(Hex.encode(iv), StandardCharsets.US_ASCII);
} else {
encodedIv = "";
}

if (encAlg.forcePadding()) {
clearData = ArrayUtils.add(clearData, (byte)1);
}

SecretKey secret = new SecretKeySpec(key, cipherName);
cipher.init(1, secret, ivSpec, srand);
byte[] data = cipher.doFinal(clearData);
String output = Integer.toString(4) + ":" + encodedIv + ":" + new String(Hex.encode(data), StandardCharsets.US_ASCII);
return output;
} catch (InvalidKeyException | BadPaddingException | IllegalBlockSizeException | InvalidAlgorithmParameterException | NoSuchPaddingException | NoSuchAlgorithmException | FipsUnapprovedOperationError var12) {
log.error("Failed to encrypt with AES: " + var12.getMessage());
throw new EncryptionServiceException(var12);
}
}

Main implementation code for encryption 2:

String encryptedData = Integer.toString(1) + "," + encKey.getSafeUuid().toString() + "," + this.AES_encrypt(clearData, aesKey, encAlg);

Port 5.8443 login password

Login password is encrypted and saved in the file /usr/local/horizon/conf/config-admin.json

Main implementation code for encryption:

private void setPassword(String newPassword, boolean isSet) throws AdminAuthException {
int ic = this.passwordAuthenticationUtil.getIc(iterationCountBase, iterationCountRange);

try {
String newEncryptedPassword = this.passwordAuthenticationUtil.createPWInfo("admin", "admin", ic, newPassword);
PasswordInfo newPasswordInfo = new PasswordInfo(newEncryptedPassword, isSet);
if (this.passwordInfo != null) {
newPasswordInfo.setAttemptDelay(this.passwordInfo.getAttemptDelay());
newPasswordInfo.setMaxAttemptCount(this.passwordInfo.getMaxAttemptCount());
}

objectMapper.writeValue(this.passwordInfoFile, newPasswordInfo);
} catch (IOException | EncryptionServiceException var7) {
throw new AdminAuthException("Failed to set password" + var7.getMessage(), var7);
}

try {
this.loadEncryptedPasswordFromFile();
} catch (IOException var6) {
throw new AdminAuthException("Failed to load stored password" + var6.getMessage(), var6);
}
}

0x04 Summary

---

After setting up the VMware Workspace ONE Access vulnerability debugging environment, we can proceed to study the vulnerability and the method for decrypting database credentials.
