0x00 Preface

This article takes CVE-2023-27532 as an example to introduce the setup method of the Veeam Backup & Replication vulnerability debugging environment.

0x01 Introduction

This article will cover the following content:

Environment Setup

Debugging Environment Setup

Database Credential Extraction

Brief Analysis of CVE-2023-27532

0x02 Environment Setup

1. Software Installation

Installation Document: https://helpcenter.veeam.com/archive/backup/110/vsphere/install_vbr.html

Software Download Link: https://www.veeam.com/download-version.html

License Application Link: https://www.veeam.com/smb-vmware-hyper-v-essentials-download.html

Download the ISO file; the License file obtained via email is required during installation.

2. Default Directory

Installation Directory：C:\\Program Files\\Veeam\\

Log Path：C:\\ProgramData\\Veeam\\Backup

3. Default Ports

Veeam.Backup.Service ports: 9392,9401(SSL)

Veeam.Backup.ConfigurationService port: 9380

Veeam.Backup.CatalogDataService port:9393

Veeam.Backup.EnterpriseService port：9394

Web UI ports:9080,9443(SSL)

RESTful API ports:9399,9398(SSL)

0x03 Debug Environment Setup

1. Locate Process

Execute Command：netstat -ano |findstr 9401

Return Result：

Located process with pid 7132, process name is Veeam.Backup.Service.exe

Use dnSpy to attach to the process Veeam.Backup.Service.exe

2. Debug Settings

To view variable contents during the Debug process, the following files need to be created:

C:\Program Files\Veeam\Backup and Replication\Backup\Veeam.Backup.Service.ini

C:\Program Files\Veeam\Backup and Replication\Backup\Veeam.Backup.DBManager.ini

C:\Program Files\Veeam\Backup and Replication\Backup\Veeam.Backup.ServiceLib.ini

C:\Program Files\Veeam\Backup and Replication\Backup\Veeam.Backup.Interaction.MountService.ini

Content is:

0x04 Database Credential Extraction

1. Obtain Database Connection Configuration

(1) Obtain Database Connection Port

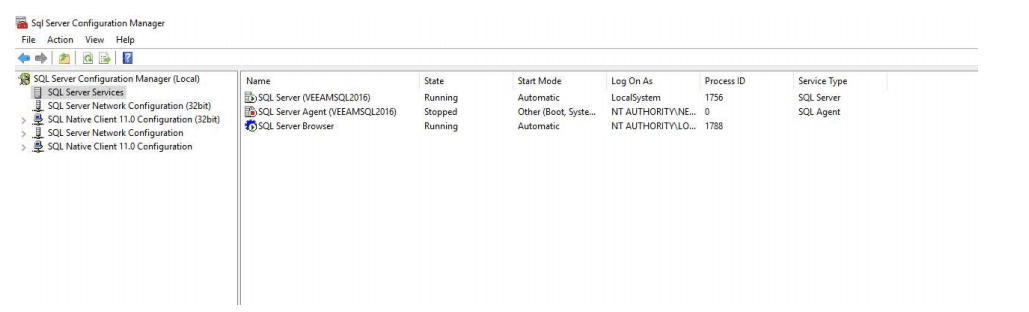

Open SQL Server 2016 Configuration Manager, select SQL Server Services, and you can see that the Process ID corresponding to SQL Server (VEEAMSQL2016) is 1756, as shown in the following figure

Check the port corresponding to the process: netstat -ano|findstr 1756

Return result:

Obtain the connection port 49720

(2) Get the database name

Method 1:

Go to Configuration Database Connection Settings, on the page you can see the Database name is VeeamBackup and the authentication method is Windows Authentication, as shown in the following figure

Method 2:

Read the registry key value: REG QUERY "HKEY_LOCAL_MACHINE\SOFTWARE\Veeam\Veeam Backup and Replication" /v SqlDatabaseName

2. Database connection

(1) Use a GUI program

Use DbSchema here

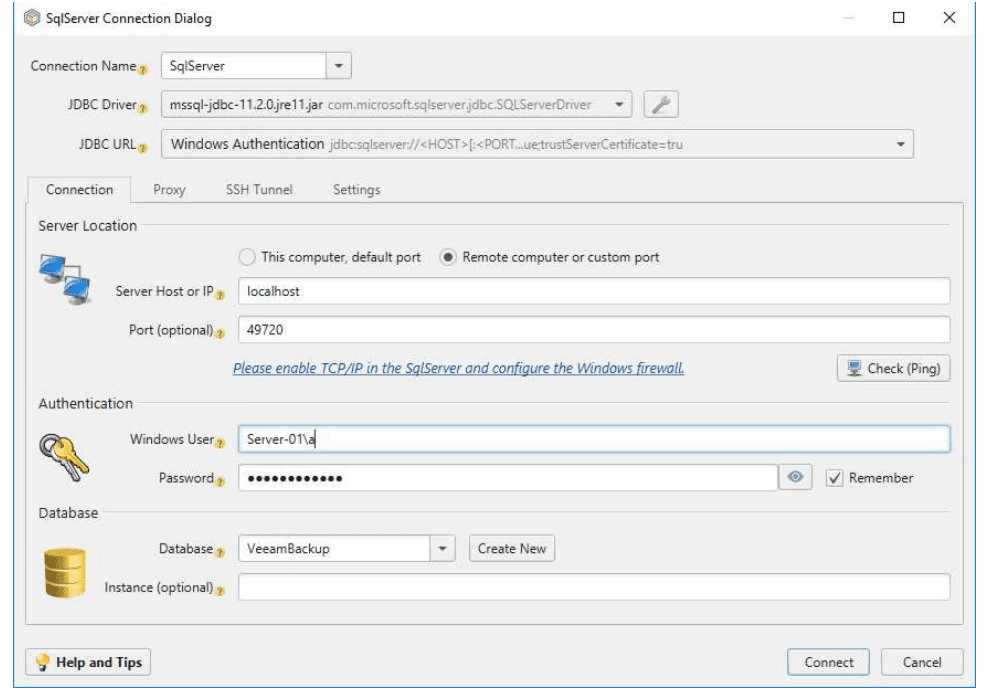

Select SqlServer, configure as shown in the following figure

Successful connection as shown in the following figure

Select the database VeeamBackup.dbo, enter the database page, search for the keyword 'password' globally, and get the relevant query statement:

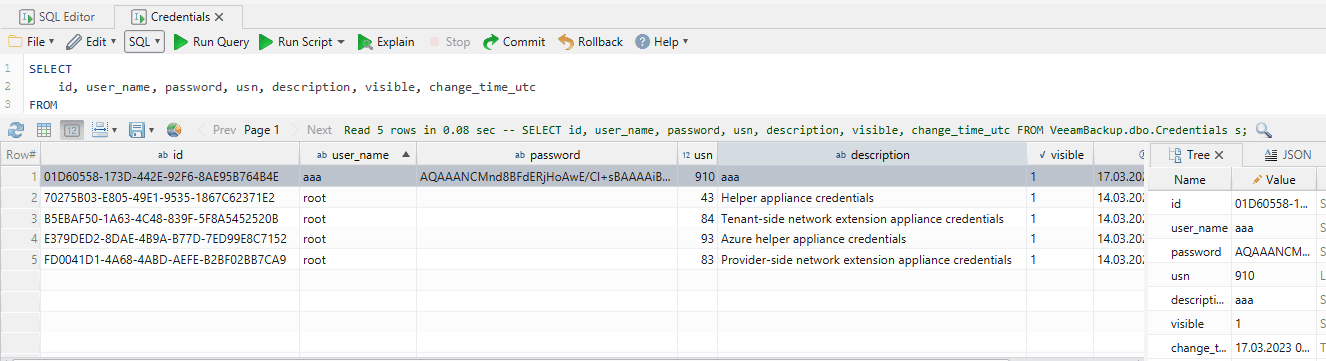

After execution, obtain the credential information stored in the database, as shown in the following figure

(2) Use Powershell

Reference: https://github.com/sadshade/veeam-creds

When veeam-creds is tested on Veeam Backup and Replication 11 and higher versions, it will report an error with the prompt:

This is because sqloledb is used at https://github.com/sadshade/veeam-creds/blob/main/Veeam-Get-Creds.ps1#L32, and the sqloledb on the current system has expired

Here, you can choose to use MSOLEDBSQL or MSOLEDBSQL19 to resolve this issue

PowerShell command to check if MSOLEDBSQL or MSOLEDBSQL19 is installed on the current system: (New-Object System.Data.OleDb.OleDbEnumerator).GetElements() | select SOURCES_NAME, SOURCES_DESCRIPTION

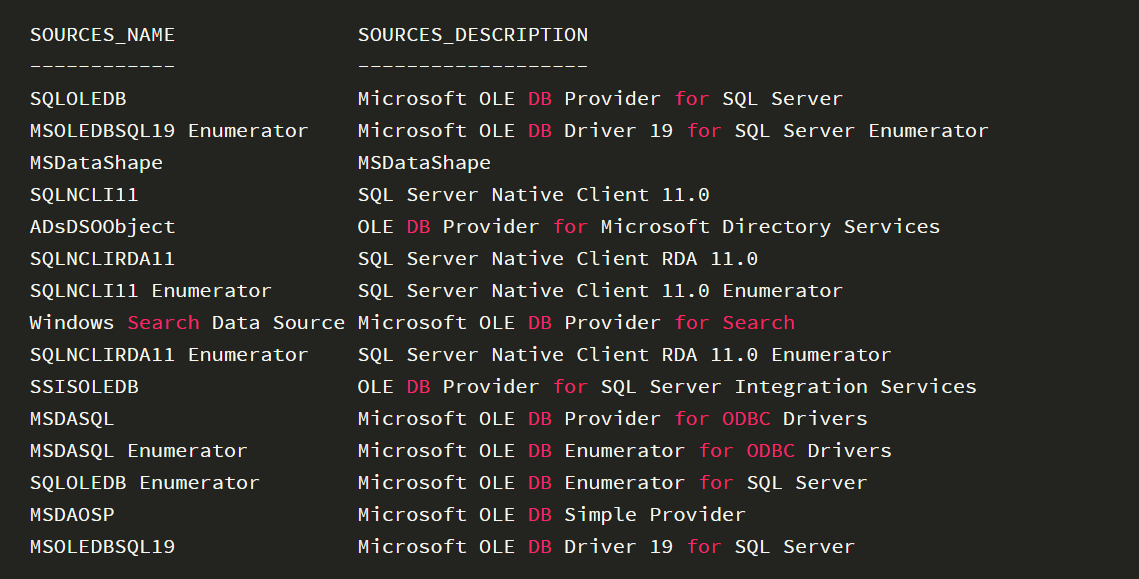

Example of return result:

The above result shows that MSOLEDBSQL19 is installed on the current system, so you only need to replace sqloledb with MSOLEDBSQL19

Supplement: Method to install MSOLEDBSQL or MSOLEDBSQL19

Download link: https://learn.microsoft.com/en-us/sql/connect/oledb/download-oledb-driver-for-sql-server?source=recommendations&view=sql-server-ver16

Command line installation method: msiexec /i msoledbsql.msi /qn IACCEPTMSOLEDBSQLLICENSETERMS=YES

Before installation, the minimum required version of Microsoft Visual C++ Redistributable is 14.34

Simple method to check the version of Microsoft Visual C++ Redistributable:

Obtained via folder name: dir /o:-d \"C:\\ProgramData\\Package Cache\"

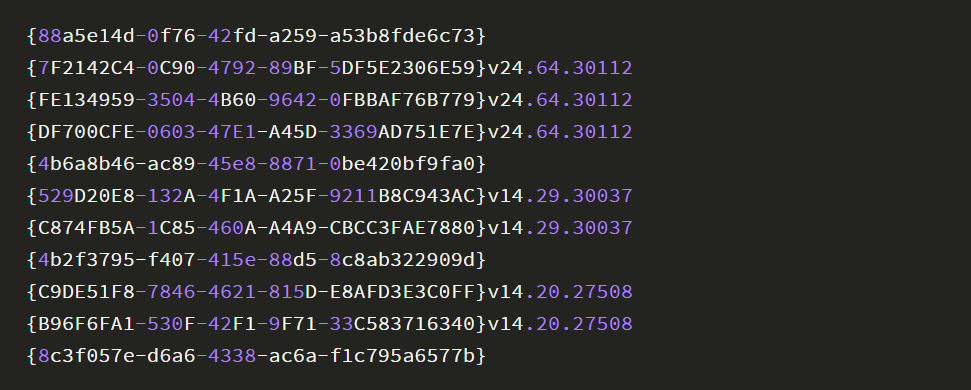

Example of return result:

From this, we can see that the version of Microsoft Visual C++ Redistributable is 14.29.30037, so a higher version of Microsoft Visual C++ Redistributable needs to be installed. Download link: https://learn.microsoft.com/en-us/cpp/windows/latest-supported-vc-redist?view=msvc-170

Both x86 and x64 versions need to be installed. The successful operation of veeam-creds is shown in the following figure

0x05 Brief Analysis of CVE-2023-27532

Y4er published a POC for obtaining plaintext credentials by calling CredentialsDbScopeGetAllCreds: https://y4er.com/posts/cve-2023-27532-veeam-backup-replication-leaked-credentials/

1. Credential Location

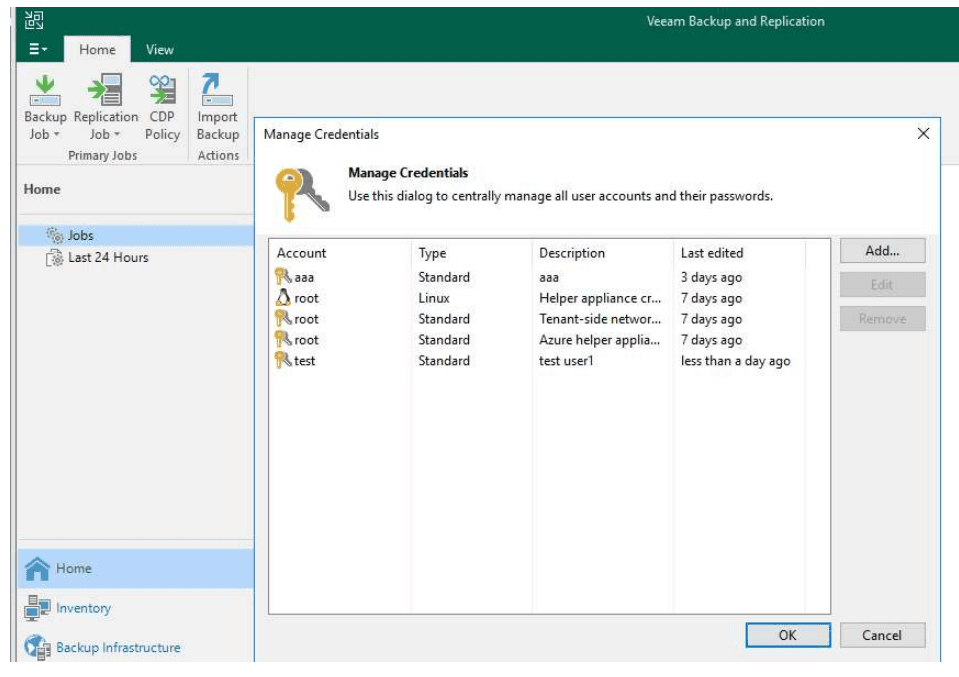

The location corresponding to the plaintext credentials here is: Veeam Backup & Replication Console -> Manage Credentials. The default plaintext password is empty, as shown in the following figure

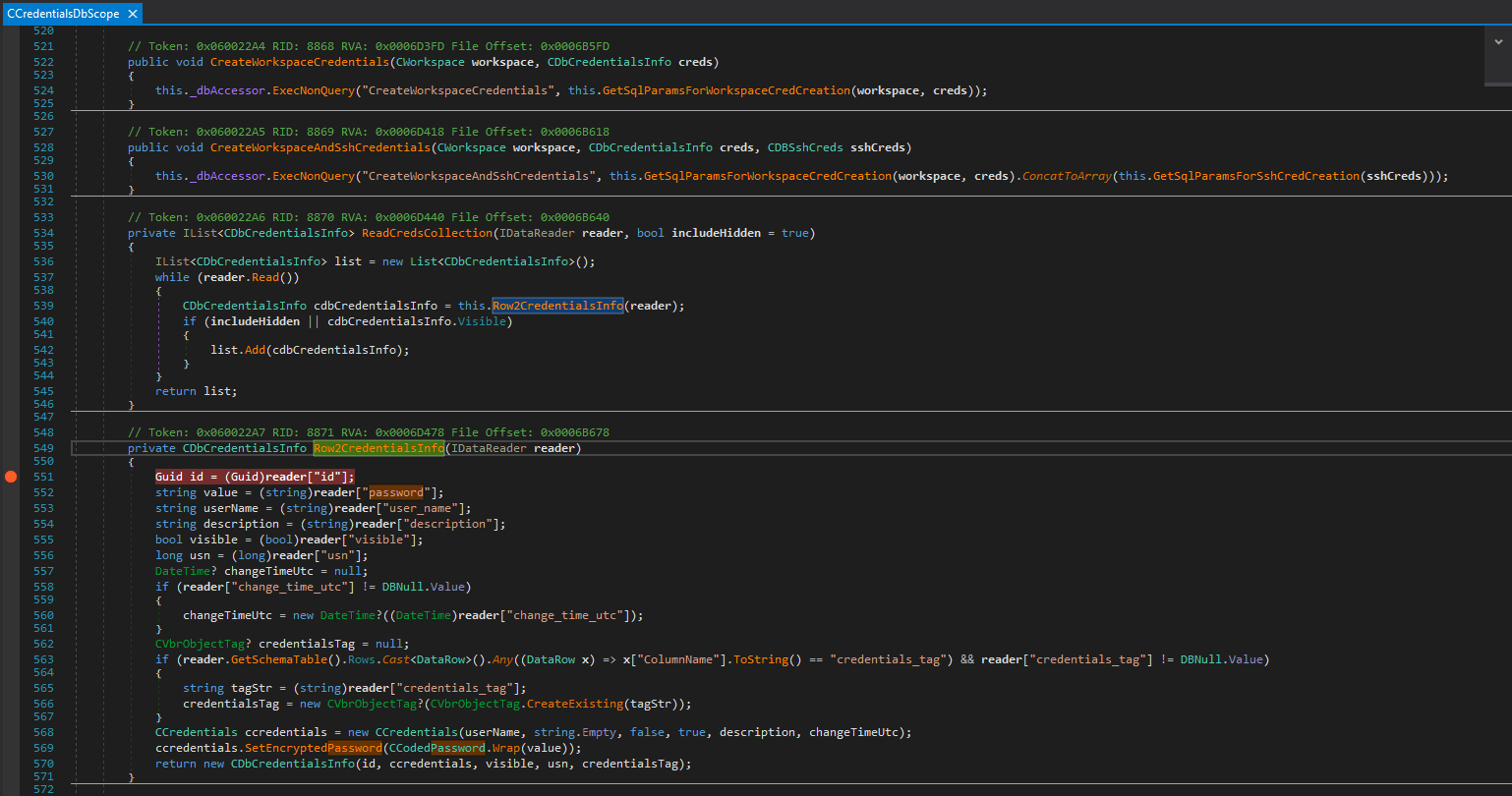

The debug breakpoint location is Veeam.Backup.DBManager.dll -> CCredentialsDbScope, as shown in the following figure

2. Data Parsing

The final return result of the POC is serialized XML. After decrypting ParamValue with Base64, plaintext data can be seen, but the format is incorrect and there are garbled characters

Here, you can call Veeam's built-in DLLs to deserialize the data and get the correct format

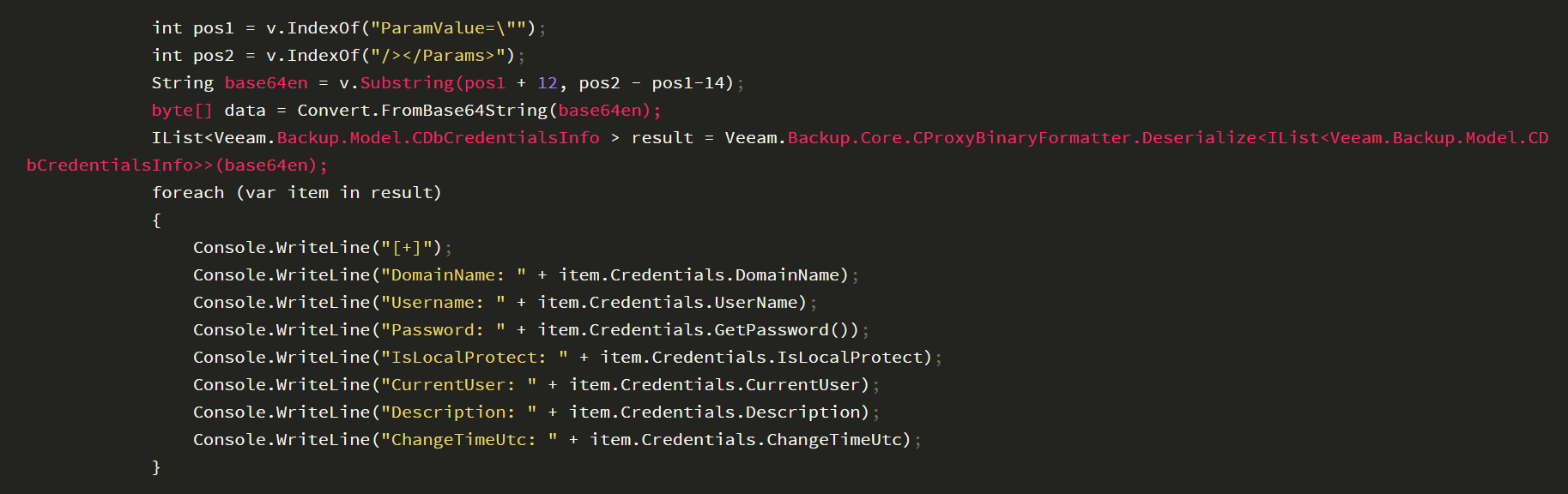

Code example for formatted output string:

Need to reference DLL files:

Veeam.Backup.Common.dll

Veeam.Backup.Configuration.dll

Veeam.Backup.Interaction.MountService.dll

Veeam.Backup.Logging.dll

Veeam.Backup.Model.dll

Veeam.Backup.Serialization.dll

Veeam.TimeMachine.Tool.dll

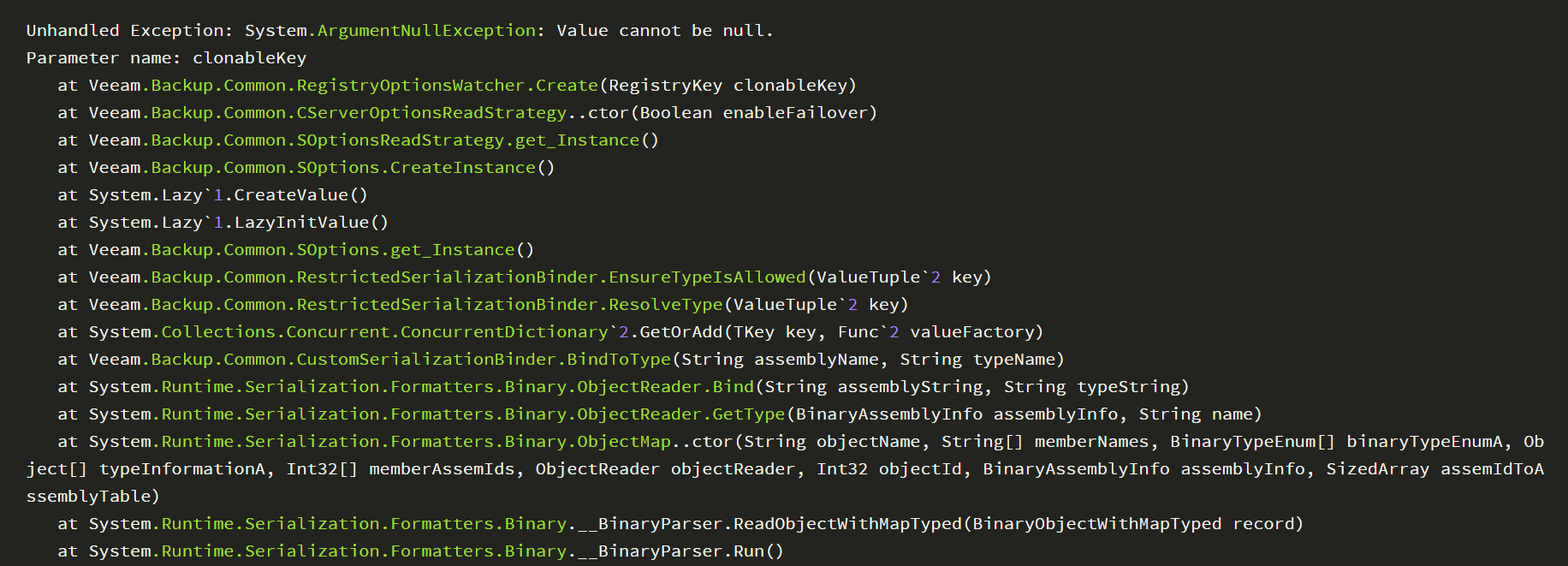

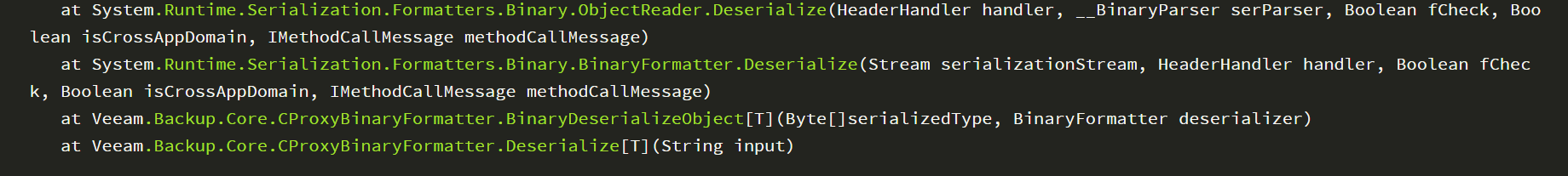

Compiled files need to be used in a local environment with Veeam installed; otherwise, an error message will be displayed:

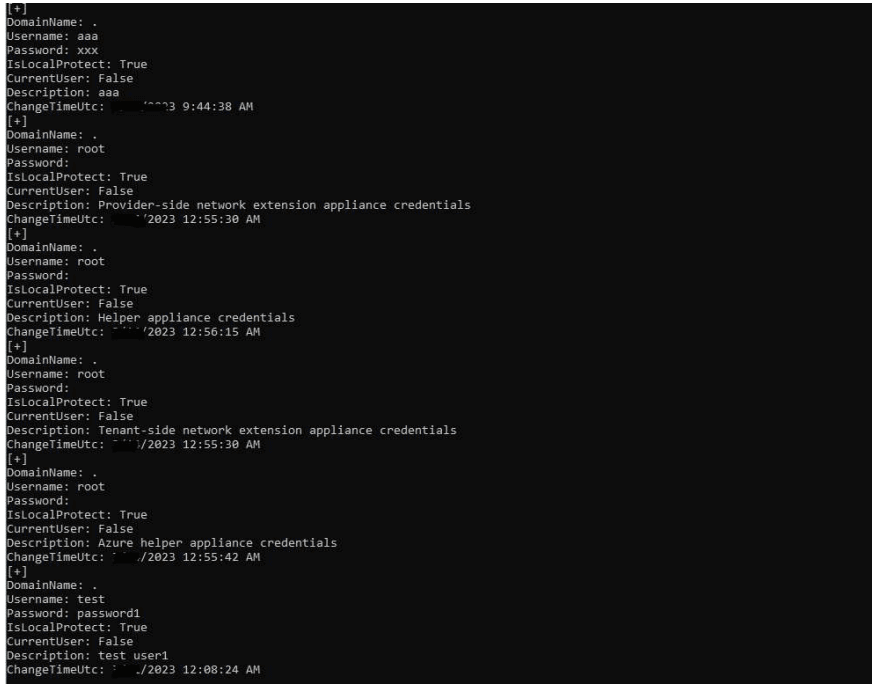

An example of the program's successful execution result is shown in the figure below

0x06 Summary

This article takes CVE-2023-27532 as an example to introduce the relevant issues and solutions for setting up a Veeam Backup & Replication vulnerability debugging environment.
