Using global API hooks to hide processes on Windows 7 systems

0x00 Preface

---

In the previous article 'Powershell tricks::Hide Process by kd.exe', the technique of hiding processes via kd.exe was introduced, with the main drawback being the need to enable Local kernel debugging mode and wait for a system restart to take effect.

This time, another method for hiding processes is introduced—using global API hooks.

The advantage is that it takes effect immediately without waiting for a system restart.

0x01 Introduction

---

This article will refer to Sergey Podobry's work to introduce this method, analyze the details to note in practical testing, and supplement the specific parameter settings for 64-bit systems.

Reference links:

https://www.codeproject.com/articles/49319/easy-way-to-set-up-global-api-hooks?display=print

https://github.com/subTee/AppInitGlobalHooks-Mimikatz

0x02 Principle

---

At the user level, the test DLL is injected into all system processes via global API hooks to achieve the hiding of specified processes.

hook method

modify registry key AppInit_DLLs

location:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Windows

parameter description:

LoadAppInit_DLLs:

(REG_DWORD) Value that globally enables or disables AppInit_DLLs.

• 0x0 – AppInit_DLLs are disabled.
• 0x1 – AppInit_DLLs are enabled.

AppInit_DLLs:

(REG_SZ)

Space - or comma -separated list of DLLs to load. The complete path to the DLL should be specified using short file names. C:\PROGRA~1\Test\Test.dll

RequireSignedAppInit_DLLs:

(REG_DWORD) Require code-signed DLLs.

• 0x0 – Load any DLLs.
• 0x1 – Load only code-signed DLLs.

Code Implementation

Implement API hooking via Mhook library

Advantages:

• Open source
• Supports x86 and x64
• Easy to use

Reference URL:

http://codefromthe70s.org/mhook22.aspx

0x03 Practical Testing

---

Testing Environment:

Win7x86

1. Set registry key AppInit_DLLs

Reference code:

https://github.com/subTee/AppInitGlobalHooks-Mimikatz/blob/master/AppInit.reg

The .reg file is as follows:

Indicates

• AppInit_DLLs are enabled
• Load any DLLs, do not need code-signed DLLs
• DLL path: C:\\Tools\\AppInitHookx64.dll,C:\\Tools\\AppInitHook.dll

Note:

The set path must not contain spaces, otherwise it will be invalid

2. Compile and generate AppInitHook.dll and place it under C:\Tools

Reference project:

https://github.com/subTee/AppInitGlobalHooks-Mimikatz

3. Run mimikatz.exe

Task Manager process list does not contain mimikatz.exe

Process Explorer does not show mimikatz.exe

Tasklist.exe does not display mimikatz.exe

Note:

The process is not completely hidden here; the process name is set to conhost.exe because mimikatz is a console application

If replaced with a Win32 project like putty.exe or calc.exe, this issue does not exist, and the process can be completely hidden

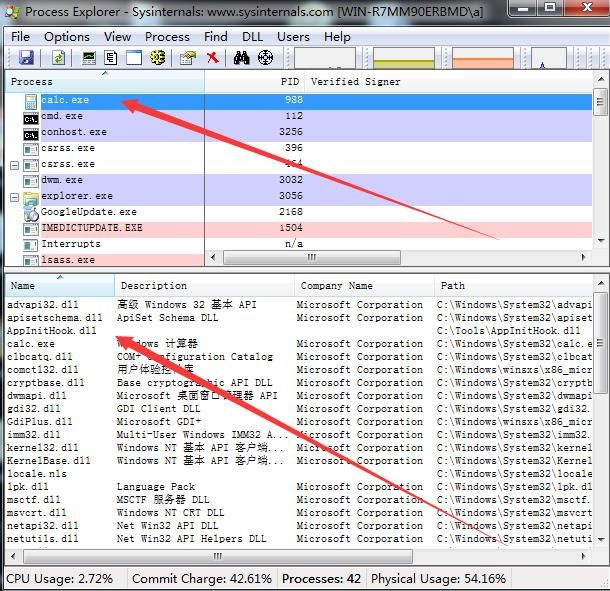

Using Process Explorer to view the newly created processes, all have loaded AppInitHook.dll, as shown in the figure

Note:

Run Process Explorer with administrator privileges to view DLLs loaded by high-privilege processes

4. Win7x64 Testing

The difference between 64-bit and 32-bit systems is also reflected in the registry

Note:

For details, please refer to the previous article 'Notes on Redirection Issues When Running 32-bit Programs on 64-bit Systems'.

Registry location for 64-bit programs:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\

Registry location for 32-bit programs:

HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\

Therefore, to hook all processes (both 32-bit and 64-bit) on a 64-bit system, two registry key values need to be modified.

Registry key location for 64-bit:

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Windows]

Registry key location for 32-bit:

[HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\Windows NT\CurrentVersion\Windows]

The specific modification code has been uploaded to GitHub at the following address:

An open-source project

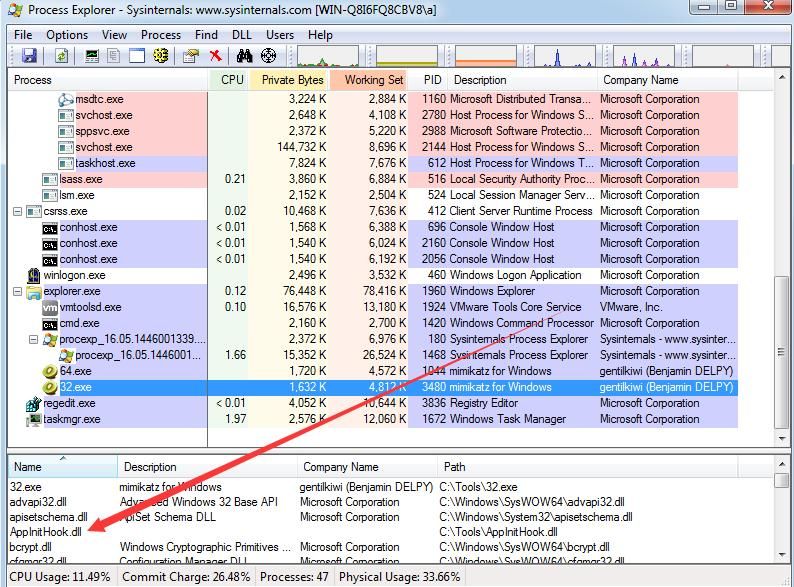

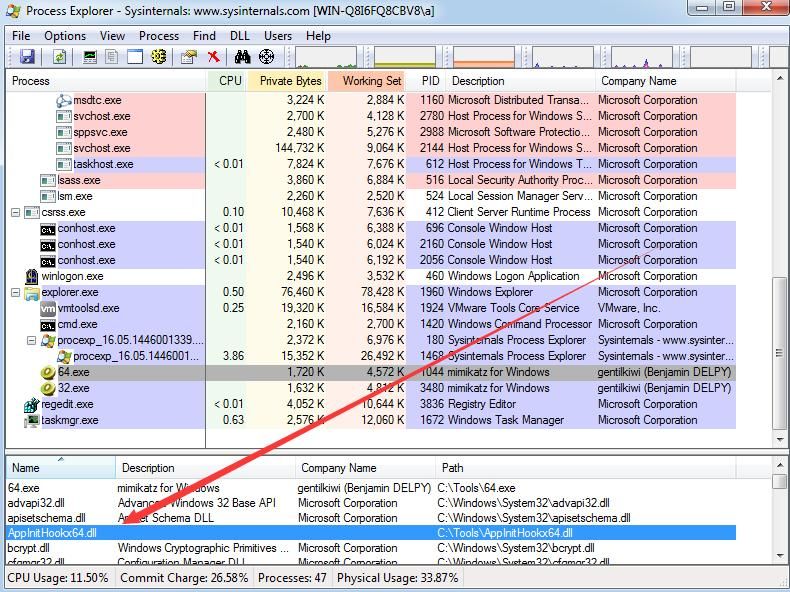

After modification, view using Process Explorer as shown in the figure.

Successfully injected into 32-bit and 64-bit processes

0x04 Supplement

---

This method only supports Windows 7 and Windows Server 2008 R2, and does not support higher versions such as Windows 8 or Server 2012

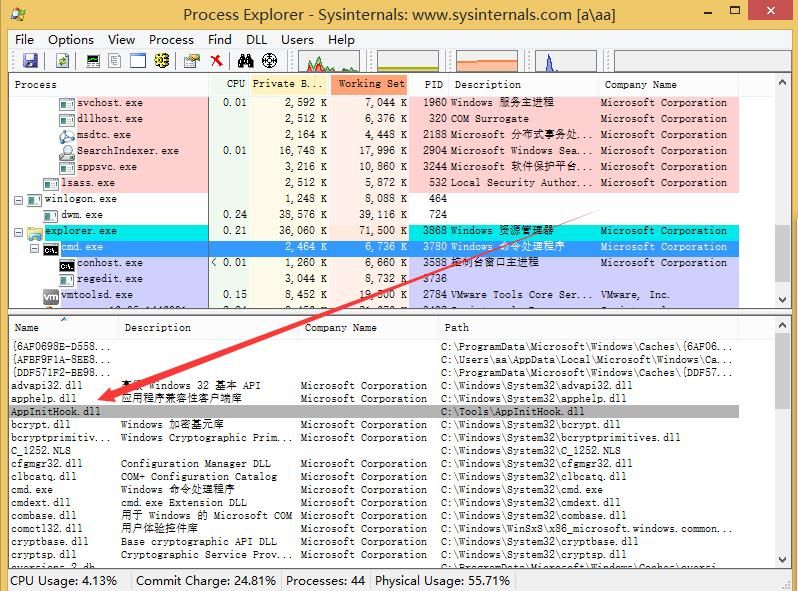

As shown in the figure above, on Windows 8 systems, although AppInitHook.dll is successfully loaded, the process cannot be hidden

Reasons are as follows:

Starting from Windows 8, Microsoft imposed restrictions on AppInit_DLLs: the secure boot enabled by default in the BIOS will disable AppInit_DLLs, rendering it ineffective

For details, refer to:

https://msdn.microsoft.com/en-us/library/windows/desktop/dn280412(v=vs.85).aspx

0x05 Defense

---

Only applicable to Windows 7, Windows Server 2008 R2, and earlier systems

1. Check the registry key value

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\WindowsNT\CurrentVersion\Windows]

[HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\Windows NT\CurrentVersion\Windows]

Check AppInit_DLLs for suspicious DLL paths

2. Use Process Explorer to check if processes have loaded suspicious DLLs

0x06 Summary

---

This article introduces the method of hiding processes using global API hooks in Windows 7 systems. Combined with exploitation concepts, it helps everyone better defend against this type of attack.

Of course, global API hooks can be used for much more than this.
