0x00 Preface

---

Recently, Casey Smith @subTee updated a series of research progress on "MSBuild", which greatly inspired me.

Based on his publicly available POC and combined with my research insights, this article will introduce the following MSBuild application techniques:

  • Execute PowerShell Commands
  • Execute PE file
  • Execute Shellcode
  • VisualStudio Persistence

0x01 Introduction

---

MSBuild is an abbreviation for Microsoft Build Engine, representing Microsoft and Visual Studio's new build platform.

MSBuild can compile .NET project files in environments without Visual Studio installed.

MSBuild can compile XML files of specific formats.

For more basic knowledge, please refer to the following links:

https://msdn.microsoft.com/en-us/library/dd393574.aspx

0x02 Common Usage

---

1. Compile XML file and execute code






Save as test.csproj

Execute in cmd:

C:\Windows\Microsoft.Net\Framework\v4.0.30319\msbuild.exe test.csproj

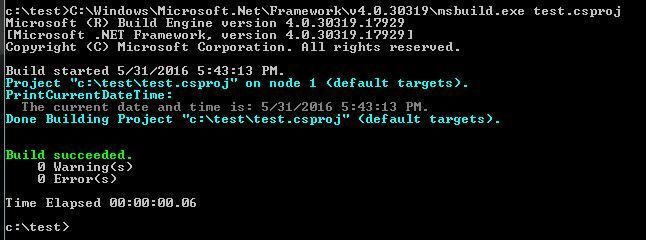

The current time will be displayed in the cmd output, as shown in the figure

Alt text

2. Compile XML file to generate exe

using System;
class Test
{
static void Main()
{
Console.WriteLine("Hello world");
}
}

Save as hello.cs





Save as hello.csproj

Place hello.cs and hello.csproj in the same directory

Execute in cmd:

C:\Windows\Microsoft.Net\Framework\v4.0.30319\msbuild.exe hello.csproj

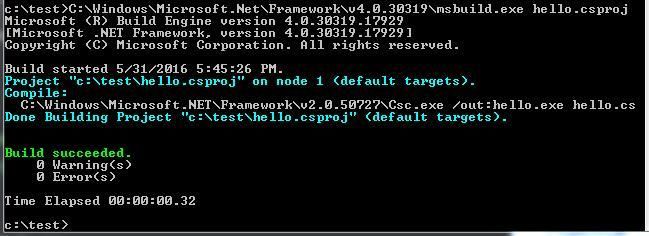

Can compile and generate hello.exe

As shown in the figure

Alt text

Note:

The compilation file only needs to satisfy the XML file format, the file extension can be arbitrary

0x03 Extended Usage

---

In .NET Framework 4.0, a new feature "Inline Tasks" is supported, included in the UsingTask element, which can be used to execute C# code within XML files

For detailed introduction, refer to the following link:

https://msdn.microsoft.com/en-us/library/dd722601.aspx?f=255&MSPPError=-2147217396

1. HelloWorld Example

Save the following code as helloworld:





TaskName="HelloWorld"
TaskFactory="CodeTaskFactory"
AssemblyFile="C:\Windows\Microsoft.Net\Framework\v4.0.30319\Microsoft.Build.Tasks.v4.0.dll" >




Console.WriteLine("Hello World");
]]>



Note:

The filename can be arbitrary

Execute in cmd:

C:\Windows\Microsoft.NET\Framework\v4.0.30319\msbuild.exe helloworld

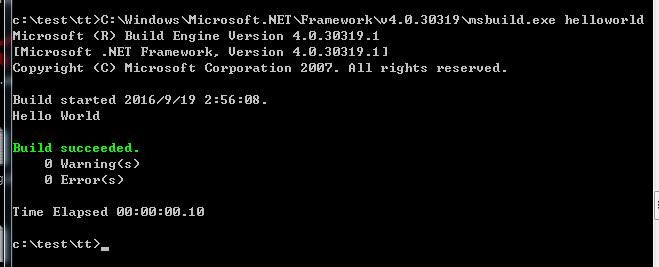

cmd outputs helloworld

As shown in the figure

Alt text

2. Execute PowerShell command

Refer to the POC shared by Casey, address as follows:

https://gist.github.com/subTee/6b236083da2fd6ddff216e434f257614

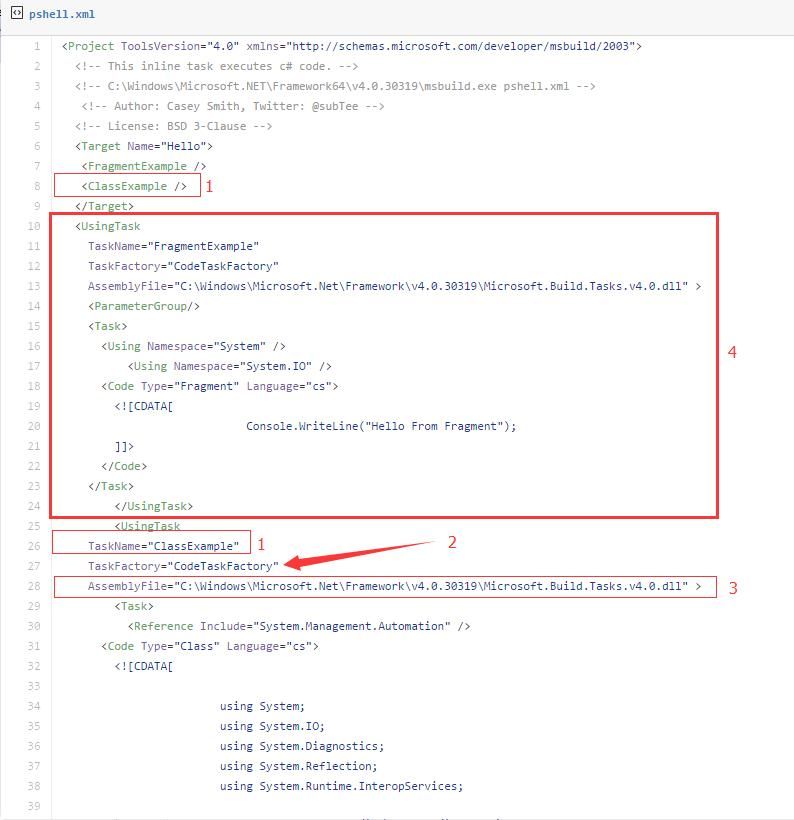

The POC has converted C# code into XML file format, with the following points requiring attention during writing:

As shown in the figure

Alt text

Marker 1 TaskName can be modified, but the names in both positions must correspond

Marker 2 is a fixed format: TaskFactory="CodeTaskFactory"

The path for Marker 3 may vary across different systems, the accurate one is:

"$(MSBuildToolsPath)\Microsoft.Build.Tasks.v4.0.dll"

The default system installation path is:

"C:\Windows\Microsoft.Net\Framework\v4.0.30319\Microsoft.Build.Tasks.v4.0.dll"

Marker 4 is a simple HelloWorld output example

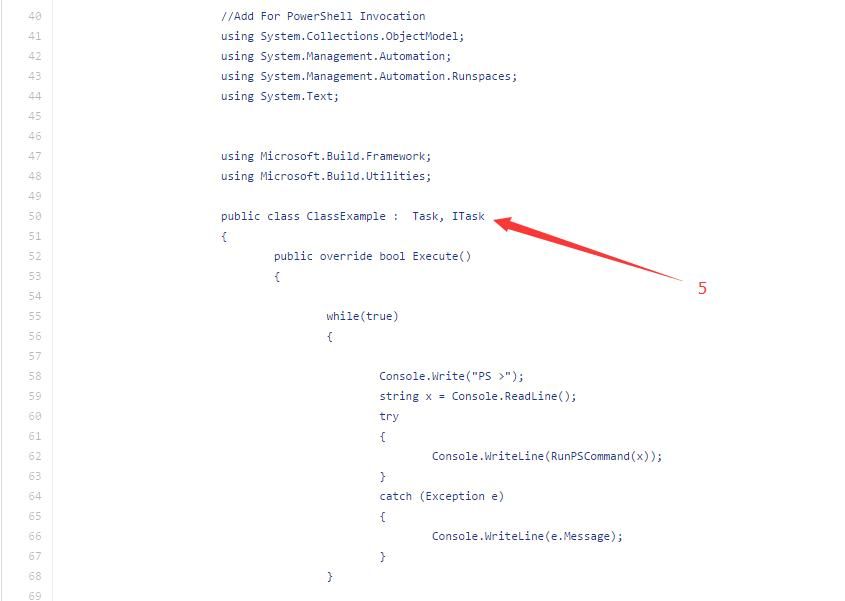

As shown in the figure

Alt text

Marker 5 is a fixed format, defined as public class ClassExample : Task, ITask

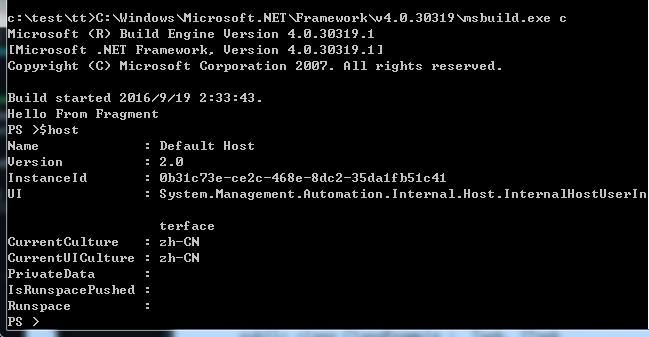

The actual POC test is shown in the figure, successfully executing PowerShell commands

Alt text

3. Execute PE file

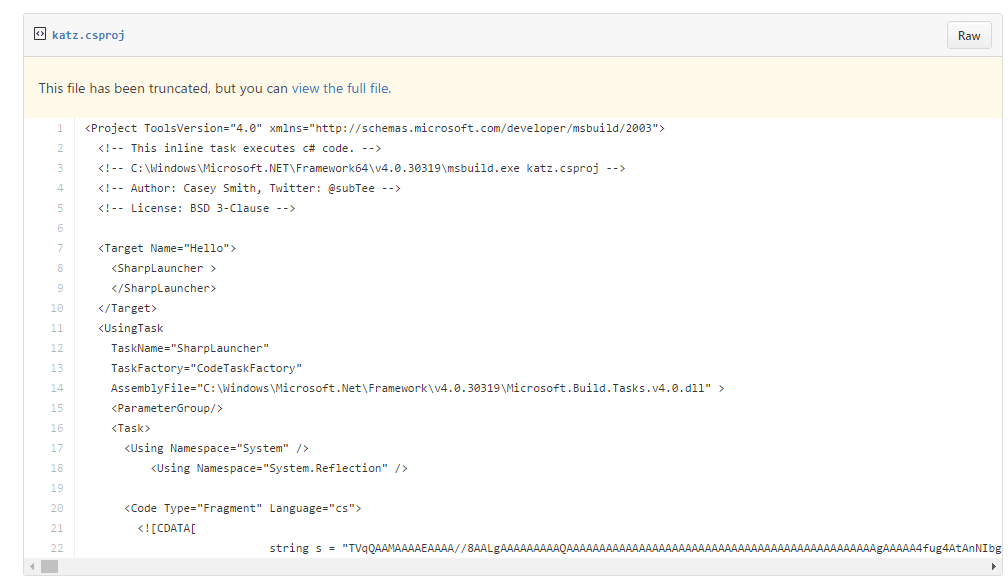

The POC address shared by Casey is as follows:

https://gist.github.com/subTee/ca477b4d19c885bec05ce238cbad6371

Alt text

However, the uploaded file was truncated, causing some code to be unviewable, so I attempted to implement it myself

Combining previously researched code, the address is as follows:

https://gist.github.com/subTee/00cdac8990584bd2c2fe

Referring to the XML format mentioned above, I wrote code to load the 64-bit mimikatz.exe in memory within Inline Tasks. The download address for the implementation code is:

An open-source project

Execute in cmd:

C:\Windows\Microsoft.NET\Framework\v4.0.30319\msbuild.exe aa

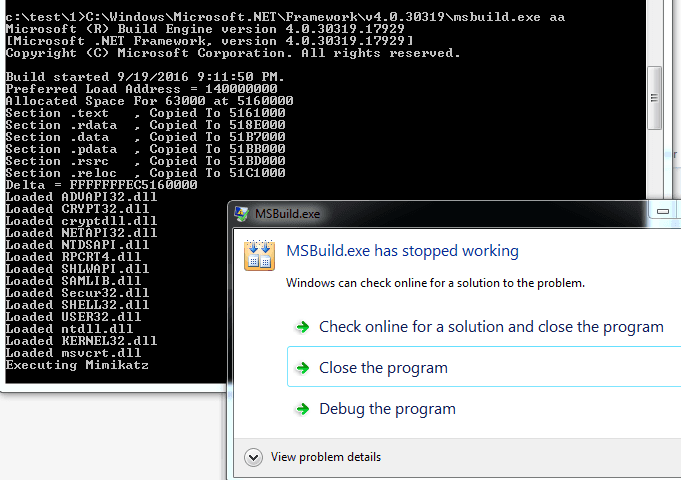

Error reported, as shown in the figure

Alt text

Solution:

Need to switch to the 64-bit .NET Framework. The original code does not require modification, just needs to be loaded using the 64-bit .NET Framework

Execute in cmd:

C:\Windows\Microsoft.NET\Framework64\v4.0.30319\msbuild.exe aa

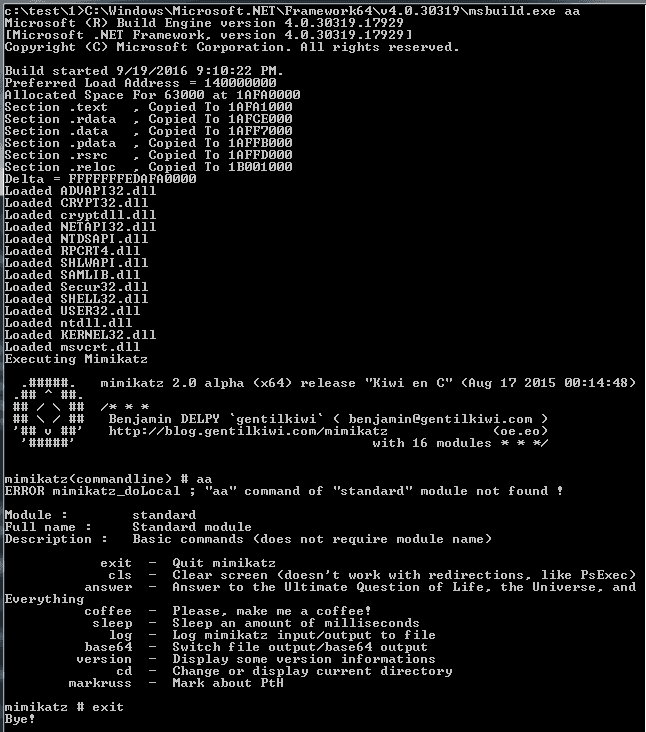

Loaded successfully, as shown in the figure

Alt text

4. Execute shellcode

Reference from https://gist.github.com/subTee/a06d4ae23e2517566c52

Generate 32-bit shellcode using msf:

use windows/exec
set CMD calc.exe
set EXITFUNC thread
generate -t csharp

Similarly, combined with the xml format mentioned above, write code to execute shellcode in Inline Tasks. The implementation code download address is:

An open-source project

Save as SimpleTasks.csproj, execute in cmd:

C:\Windows\Microsoft.NET\Framework\v4.0.30319\msbuild.exe SimpleTasks.csproj

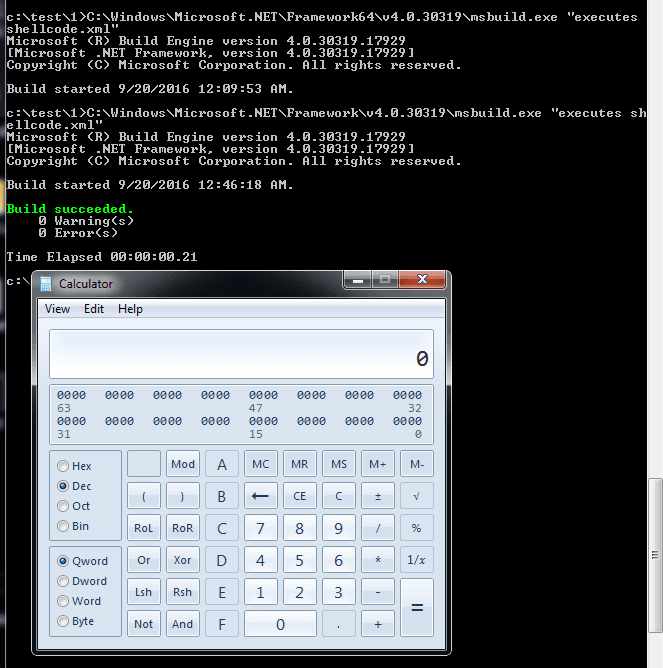

As shown, successfully executed shellcode to launch calculator

Alt text

On 64-bit systems, first replace the shellcode with 64-bit version, then execute using 64-bit .NET Framework. Code download link:

An open-source project

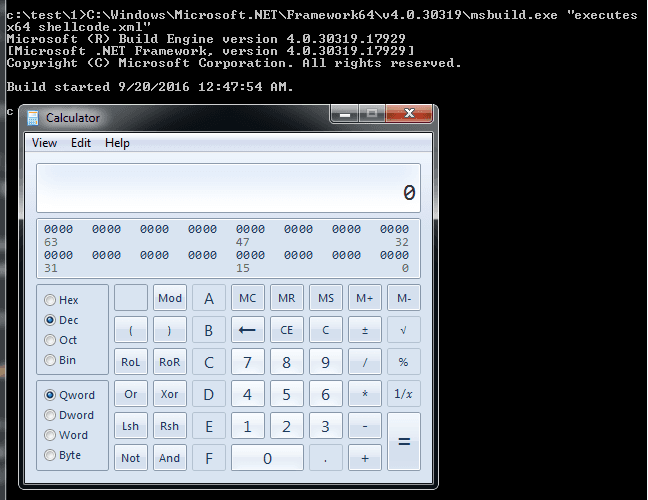

As shown, successfully executed 64-bit shellcode

Alt text

5. VisualStudio Persistence

In 'Pay close attention to your download code——Visual Studio trick to run code when building', code execution via Visual Studio's .csproj file was introduced. Similarly, Inline Tasks can be applied here. The implementation code has been uploaded, address:

An open-source project

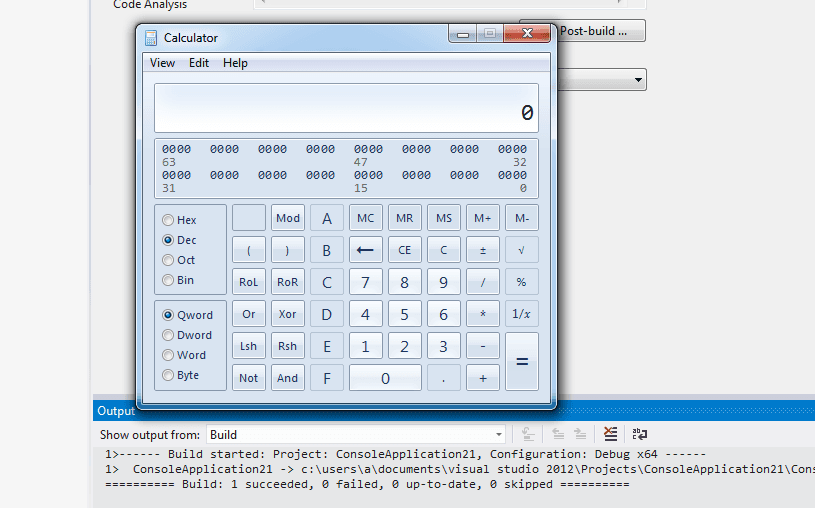

Modify the .csproj file in the VS project by adding the above code to achieve shellcode execution during VS project compilation

As shown

Alt text

0x04 Summary

---

Code execution achieved via MSBuild has the following characteristics:

  • Can bypass application whitelist
  • Provides a method to directly execute shellcode
  • Executes PE files in memory
  • Combines phishing and backdoor implementation with Visual Studio

Therefore, it is recommended to enhance monitoring and restrictions on msbuild.exe in the system.

Note:

The relevant POC code mentioned in the article has been uploaded to GitHub at:

An open-source project
