Sophos UTM Exploitation Analysis - Exporting Configuration Files

Onedaysec
6 min read
0 views
docx image 1770017323383 0 1e9ef25fa2

0x00 Preface

---

There is limited documentation on exploitation methods for Sophos UTM devices. This article will introduce the process of researching configuration file export from scratch, record details, and open-source exploitation scripts.

0x01 Introduction

---

This article will cover the following:

  • Sophos UTM test environment setup
  • Research process for exporting configuration files
  • Open-source scripts

0x02 Sophos UTM Test Environment Setup

---

1. Download the image

Download page: https://www.sophos.com/en-us/support/downloads/utm-downloads

Here, version 9.711-5.1 is selected, with the following two image files:

  • ssi-9.711-5.1.iso, must be installed on Sophos hardware appliances. If installed directly in a VM, it will prompt "No appliance hardware has been detected" on appliance hardware
  • asg-9.711-5.1.iso, can be installed in a VM

The test environment is built using VMware, so download asg-9.711-5.1.iso

2. Install the image

After configuration, wait for the system to reboot, then access the configuration page: https://:4444/

Set the admin account password, which will be used as the username and password to log into the configuration page

3. Configuration

License needs to be entered

4. Enable SSH login

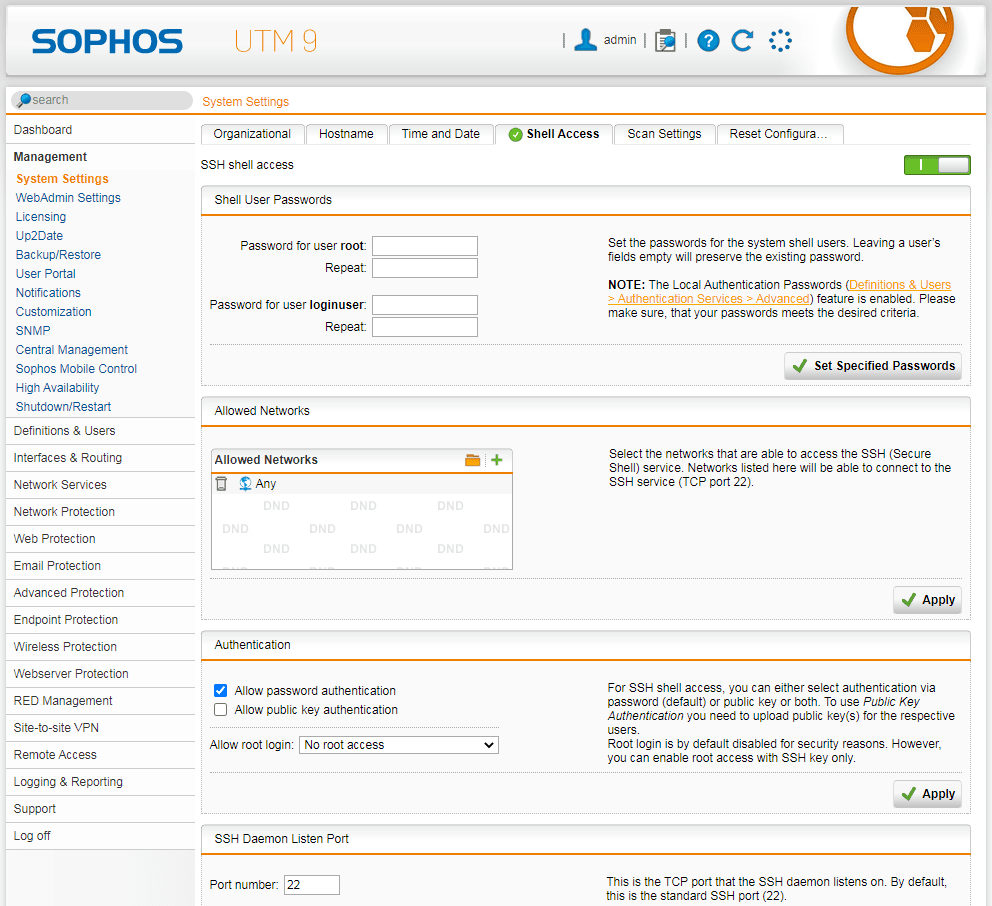

After entering the configuration page, navigate to Management->System Settings->Shell Access, and set passwords for the root user and loginuser user respectively

As shown in the figure below

4. Enable SSH login — technical illustration 1

5. Allow root user password login via SSH

sed -i "s/PermitRootLogin no/PermitRootLogin yes /g" /etc/ssh/sshd_config
/var/mdw/scripts/sshd restart

0x03 Research process of exporting configuration files

---

1. Query the PostgreSQL database

Location of configuration file: /var/storage/pgsql92/data/postgresql.conf

Under default configuration, no password is required to connect to the database

Connection command:

psql -h localhost -U postgres

Database content as shown in the figure below

1. Query the PostgreSQL database — technical illustration 2

But I did not find configuration information in the database

2. Obtain ideas for viewing configuration by querying documentation

Execute the following commands in sequence:

cc
webadmin
port$

Obtained the port information for webadmin, as shown in the figure below

2. Obtain ideas for viewing configuration by querying documentation — technical illustration 3

From the output content, it was found that the cc command connected to port 4472 of 127.0.0.1. Next, we plan to proceed from the port.

3. Locate processes related to port 4472

Obtain the process pid corresponding to port 4472:

netstat -ltp | grep 4472

The returned content is as shown in the figure below

3. Locate processes related to port 4472 — technical illustration 4

From the returned content, it can be seen that the corresponding process pid is 4407

4. View process information for pid 4407

Execute the following commands in sequence:

cd /proc/4407/cwd
ls

The returned content is as shown in the figure below

4. View process information for pid 4407 — technical illustration 5

From the returned content, the following information is obtained:

  • The directory is /var/confd
  • The configuration file is config.pm
  • The main program is confd.plx, and the source code cannot be viewed directly

5. Decompile confd.plx

After searching, a hint was obtained from 'Network Device Analysis Practice: Decompiling Perl Source Code in Sophos UTM Firmware': .plx files are compiled by the PerlAPP tool and can be decompiled into source code using IDA through dynamic debugging methods

After searching, a simpler decompilation method was obtained from 'Sophos UTM Preauth RCE: A Deep Dive into CVE-2020-25223': static decompilation implemented via Python

Following the method in 'Sophos UTM Preauth RCE: A Deep Dive into CVE-2020-25223', bugs are encountered during the decompilation of confd.plx. We need to modify bfs_extract.py mentioned in 'Sophos UTM Preauth RCE: A Deep Dive into CVE-2020-25223'

Integrate yank.py and bfs.py, fix the bug in bfs_extract.py. The complete code has been uploaded to GitHub, with the address as follows:

An open-source project

Using SophosUTM_plxDecrypter.py, the decompiled code of confd.plx can be obtained

6. Code Analysis

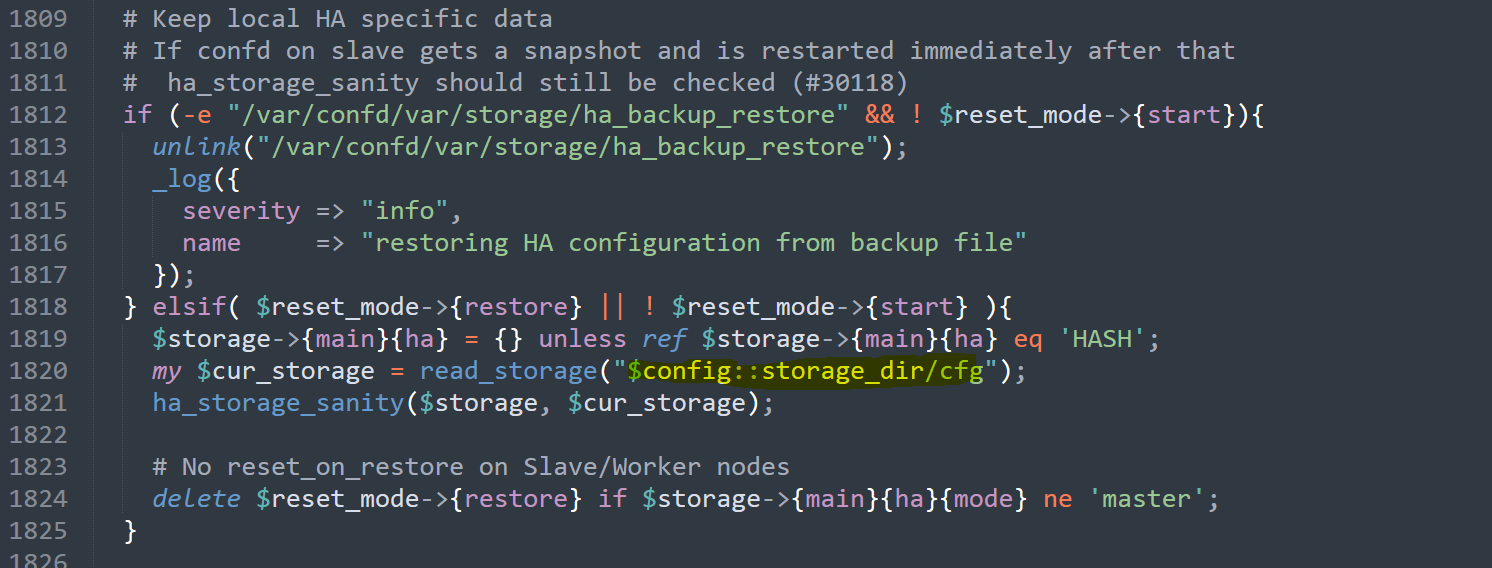

After analysis, it is learned that Export-confd.plx\confd.pl is the main functionality. In the code, the location of the configuration file is found to be $config::storage_dir/cfg

As shown in the figure below

6. Code Analysis — technical illustration 6

The corresponding absolute path is /var/confd/var/storage/cfg

7. File Format Analysis

Check the file format of cfg:

file /var/confd/var/storage/cfg

Return result:

/var/confd/var/storage/cfg: perl Storable (v0.7) data (major 2) (minor 7)

The format is identified as perl Storable data, which is binary data generated through serialization (referred to as freezing in Perl) in Perl

8. File Format Parsing

(1) File Extraction

Here, the storable module in Python can be used to extract the data

Install the storable module:

pip install storable

Simple usage:

from storable import retrieve
data = retrieve('cfg')
print(data)

The output result is JSON data

(2) File Analysis

To facilitate the analysis of JSON data, the Pretty JSON plugin for Sublime Text is used here. The installation method is as follows:

In Sublime Text, select Tools -> Command Palette... to open the panel, enter pci, select Package Control: Install Package, and then enter pretty json in the pop-up output box.

Set the shortcut key for calling the Pretty JSON plugin to ctrl+alt+j:

In Sublime Text, select Preferences -> Key Bindings, and add the following content in the pop-up right window:

[
{ "keys": ["ctrl+alt+j"], "command": "pretty_json" },
]

When using Pretty JSON to parse JSON, format errors may be prompted. Fix them one by one according to the prompts.

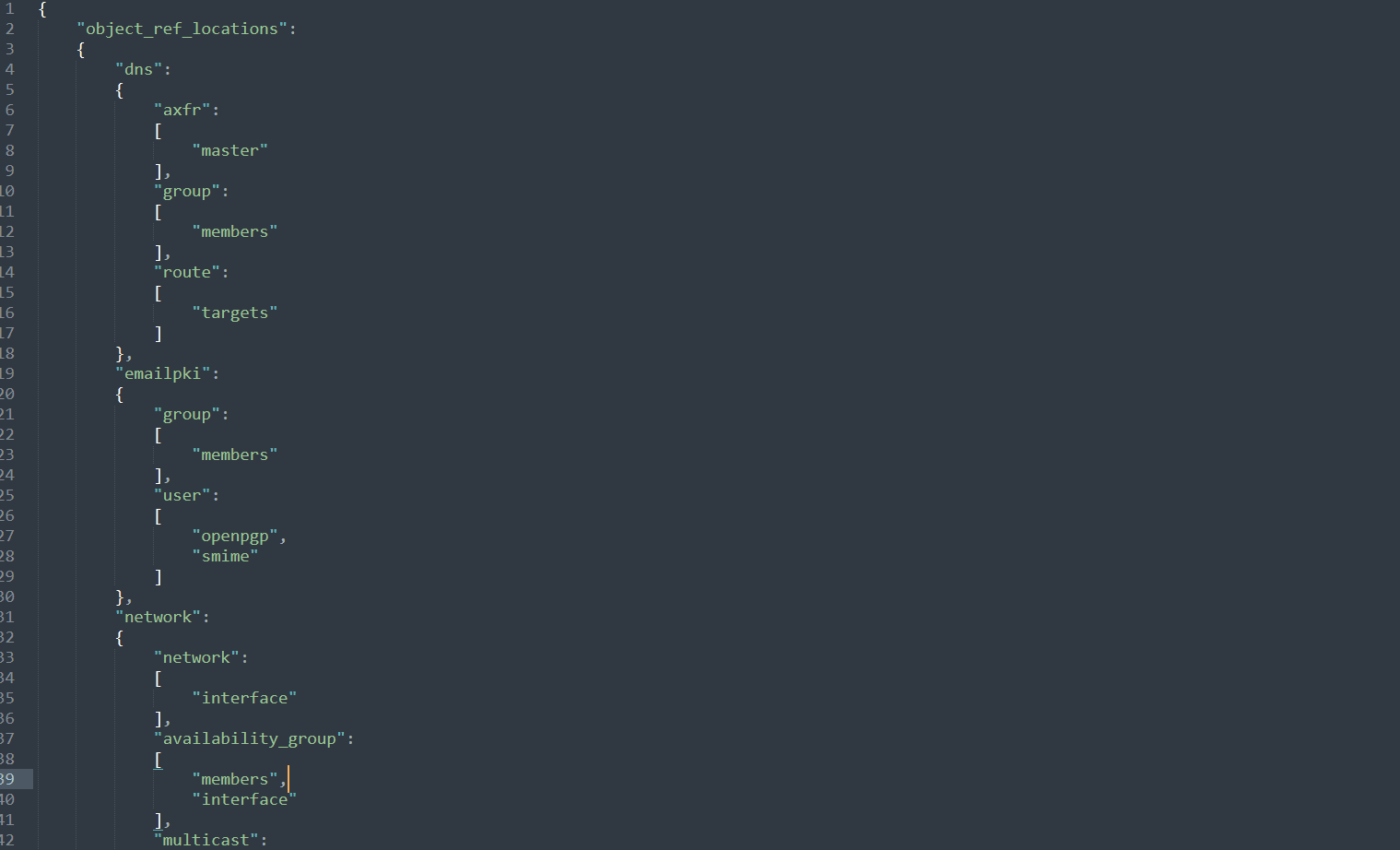

The final displayed format is shown in the figure below.

(2) File Analysis — technical illustration 7

9. Data Extraction

To improve efficiency, Python can be used here to extract key data. The development details are as follows:

(1) Extract user information

By analyzing the json file, it is found that the key in data['exclusive'][b'email_user']['u2v'] serves as the identifier for each user's information, e.g., user: REF_AaaUseVpn1

Then, the complete user information can be obtained through the key-value at the corresponding identifier position, located at data['objects'][]['data']. For the example, the position is data['objects']['REF_AaaUseVpn1']['data']

Implementation code:

def GetUserDataFull(file):
data = retrieve(file)
print("[*] Try to get the full data of user")
for key, value in data['exclusive'][b'email_user']['u2v'].items():
index = key.rfind(":")
indexobject = data['objects'][key[index+1:]]['data']
print("[+] " + data['objects'][key[index+1:]]['data']['name'])
for key1, value1 in indexobject.items():
print(" " + str(key1) + ": " + str(value1))

(2) Extract network configuration information

By analyzing the json file, it is found that the value in data['index']['network'] serves as the identifier for each network configuration, e.g., REF_DefaultInternalNetwork

Then read the complete information through the key value corresponding to the flag position, which is data['objects'][]['data']. The corresponding example position is data['objects']['REF_DefaultInternalNetwork']['data']

Implementation code:

def GetNetworkConfig(file):
data = retrieve(file)
print("[*] Try to get the config of network")
for key, value in data['index']['network'].items():
print("[+] " + str(key))
for objectvalue in value:
print(" - " + objectvalue)
for key1, value1 in data['objects'][objectvalue]['data'].items():
print(" " + str(key1) + ": " + str(value1))

(3) Extract LastChange information

Location: data['lastchange']

Note the time format, which defaults to numeric form, e.g., 1652930086, and needs to be converted

Implementation code:

def GetLastChange(file):
data = retrieve(file)
print("[*] Try to get the data of LastChange")
print("")
for key, value in data['lastchange'].items():
print("[+] " + str(key))
for key1, value1 in value.items():
if str(key1) == "time":
print(" time: "+str(datetime.fromtimestamp(value['time'])))
else:
print(" " + str(key1) + ": " + str(value1))

The complete code has been uploaded to GitHub, the address is as follows:

An open-source project

The code supports the following features:

  • GetAdminDataFull, extracts complete information of administrator users
  • GetAdminHash, extract the md4 hash of the administrator user
  • GetLastChange, extract the LastChange information
  • GetNetworkConfig, extract the network configuration information
  • GetRemoteAccess, extract the VPN configuration information
  • GetSSHConfig, extract the SSH connection information
  • GetUserDataFull, extract the user's complete information
  • GetUserHash, extract the user's md4 hash
  • Parsefile, extract the complete information

0x04 Summary

---

This article introduces the research process of exporting Sophos UTM configuration files and open-sources the exploitation script to improve analysis efficiency.
