Penetration Techniques - User Enumeration and Password Brute-forcing via Kerberos Pre-Authentication

Onedaysec
6 min read
0 views
docx image 1770016723063 0 df77a6ea57

0x00 Introduction

---

In the previous article 'Penetration Basics - Brute-forcing Domain User Passwords via LDAP Protocol', methods for brute-forcing domain user passwords through the LDAP protocol were introduced, with the key characteristic being that it generates logs (4625 - An account failed to log on).

However, when using kerbrute for brute-forcing via Kerberos pre-authentication, no logs (4625 - An account failed to log on) are generated. Therefore, I conducted further research on kerbrute, implemented the same functionality using Python, and added support for TCP protocol and NTLM hash verification. This article documents my research process and learning insights.

0x01 Overview

---

  • Introduction to kerbrute
  • Principles of kerbrute
  • Details of implementing kerbrute in Python
  • Open-source code pyKerbrute
  • Detection of Kerberos pre-authentication brute-forcing

0x02 Applicable Scenarios for kerbrute

---

Applicable scenarios: User enumeration and password brute-forcing against domain users from outside the domain

Since there is no domain user password, it is not possible to enumerate all domain users via the LDAP protocol, and using the LDAP protocol for brute-force attacks will generate logs (4625 - An account failed to log on).

Using kerbrute has the following advantages:

  • Kerberos pre-auth bruteforcing is faster.
  • It does not generate logs (4625 - An account failed to log on).

Note:

The default port for Kerberos pre-auth is 88.

0x03 kerbrute testing

---

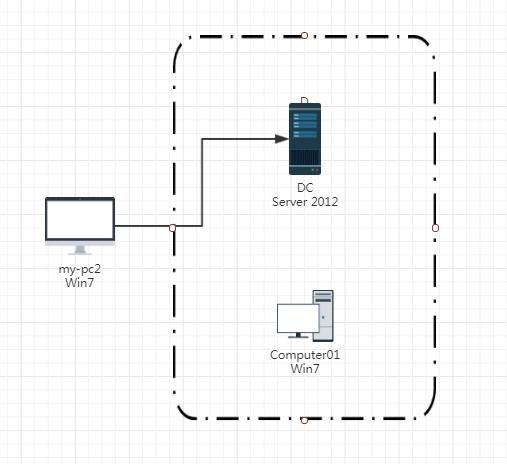

The test environment is shown in the figure below.

0x03 kerbrute testing — technical illustration 1

kerbrute is developed in Go, and GitHub provides compiled files at the following address:

https://github.com/ropnop/kerbrute/releases

kerbrute mainly includes the following two functions:

1. User enumeration

Used to verify whether a user exists, with the command as follows:

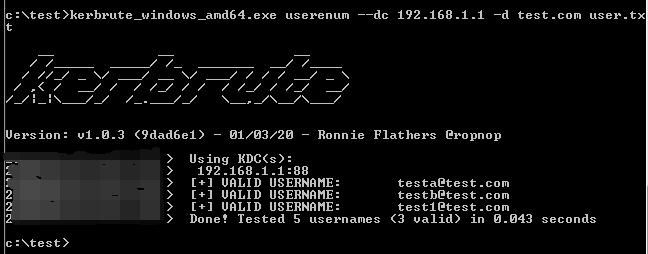

kerbrute_windows_amd64.exe userenum --dc 192.168.1.1 -d test.com user.txt

The test results are shown in the figure below

1. User enumeration — technical illustration 2

Applicable scenario:

Without knowing the domain user passwords, it is impossible to enumerate all domain users via the LDAP protocol. This method can be used to verify whether a user exists.

2. Password verification

After confirming the existence of a user, this function can be used to verify if the password is correct. The command is as follows:

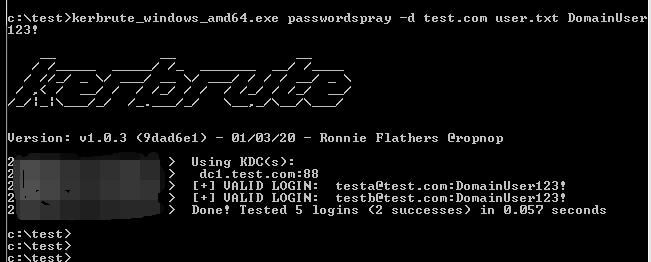

kerbrute_windows_amd64.exe passwordspray -d test.com user.txt DomainUser123!

The test results are shown in the figure below

2. Password verification — technical illustration 3

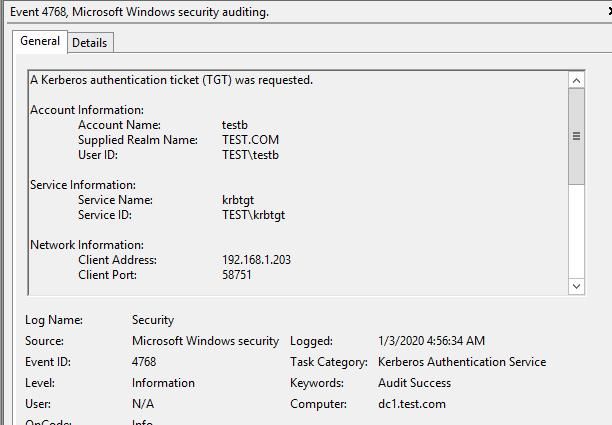

If login is successful, a log will be generated (4768 - A Kerberos authentication ticket (TGT) was requested), as shown in the figure below

2. Password verification — technical illustration 4

0x04 Details of implementing kerbrute using Python

---

My idea is to implement the two main functions of kerbrute: user enumeration and password verification

I referenced pykek for the part implementing the Kerberos protocol via Python.

Next, I captured the packet content of kerbrute by packet sniffing, then constructed identical packets using Python.

kerbrute uses the UDP protocol to implement Kerberos pre-authentication for validating plaintext passwords.

During my research, I discovered that the same functionality can be achieved via the TCP protocol, and it can also validate NTLM hashes.

1. Implementing user enumeration with Python

Using Wireshark to capture packets generated by kerbrute's user enumeration feature.

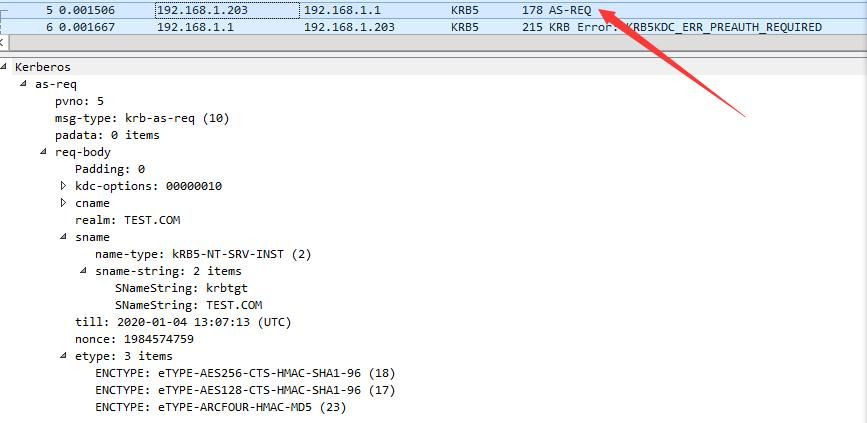

Using the UDP protocol, the content of packets sent during user enumeration is as shown in the figure below.

1. Implementing user enumeration with Python — technical illustration 5

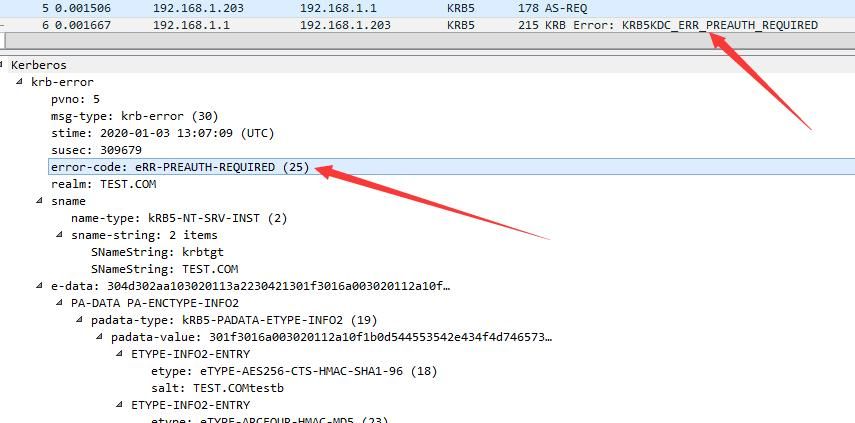

If the user exists, the returned packet content is as shown in the figure below.

1. Implementing user enumeration with Python — technical illustration 6

Determination flag: error-code: eRR-PREAUTH-REQUIRED (25)

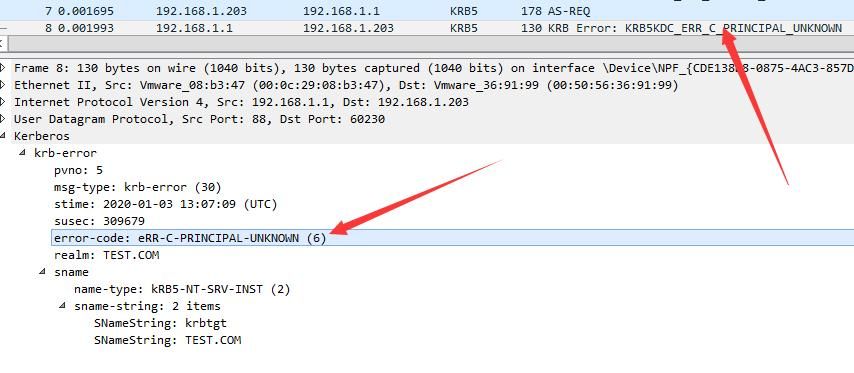

If the user does not exist, the returned packet content is as shown in the figure.

1. Implementing user enumeration with Python — technical illustration 7

Determination flag: error-code: eRR-C-PRINCIPAL-UNKNOWN (6)

Next, I used Python to send UDP data, with the content identical to the packets during kerbrute user enumeration; receiving the response and determining user existence via the flag bits.

The same functionality can also be achieved through the TCP protocol, only the packet format is different

A string pack('>I', len(data)) needs to be added in front of the TCP packet

The specific code is as follows:

TCP:

def send_req_tcp(req, kdc, port=88):
data = encode(req)
data = pack('>I', len(data)) + data
sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
sock.connect((kdc, port))
sock.send(data)
return sock

def recv_rep_tcp(sock):
data = ''
datalen = None
while True:
rep = sock.recv(8192)
if not rep:
sock.close()
raise IOError('Connection error')
data += rep
if len(rep) >= 4:
if datalen is None:
datalen = unpack('>I', rep[:4])[0]
if len(data) >= 4 + datalen:
sock.close()
return data[4:4 + datalen]

UDP:

def send_req_udp(req, kdc, port=88):
data = encode(req)
sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
sock.connect((kdc, port))
sock.send(data)
return sock

def recv_rep_udp(sock):
data = ''
datalen = None
while True:
rep = sock.recv(8192)
if not rep:
sock.close()
raise IOError('Connection error')
data += rep
if len(rep) >= 4:
sock.close()
return data

2. Implement password verification using Python

Capture packets generated by kerbrute password verification function using Wireshark

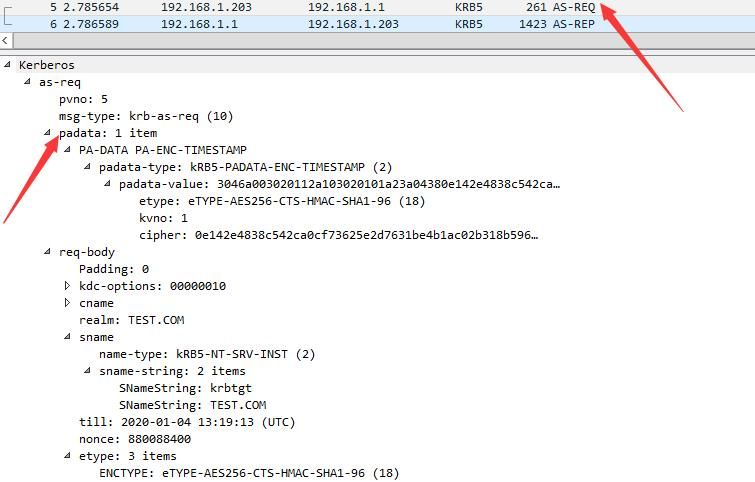

Using UDP protocol, the content of packets sent during password verification is shown in the figure

2. Implement password verification using Python — technical illustration 8

Compared to user enumeration, password verification includes additional content (padata)

The specific differences are as follows:

The packet format sent during user enumeration is shown in the figure below

2. Implement password verification using Python — technical illustration 9

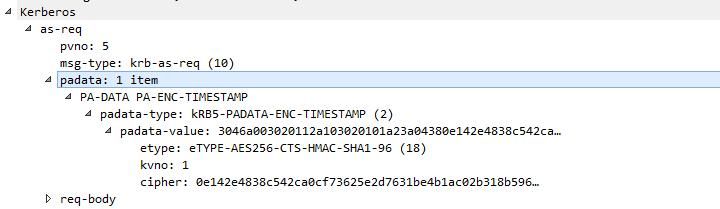

The packet format sent during password verification is shown in the figure below

2. Implement password verification using Python — technical illustration 10

Therefore, the padata section content needs to be added in implementation

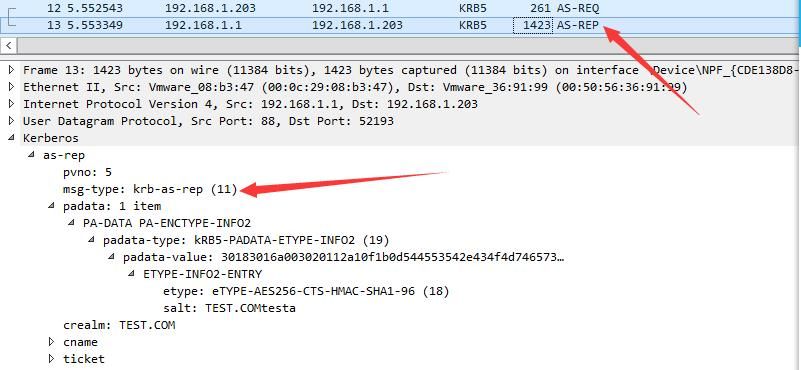

If the password is correct, the returned packet content is shown in the figure below

2. Implement password verification using Python — technical illustration 11

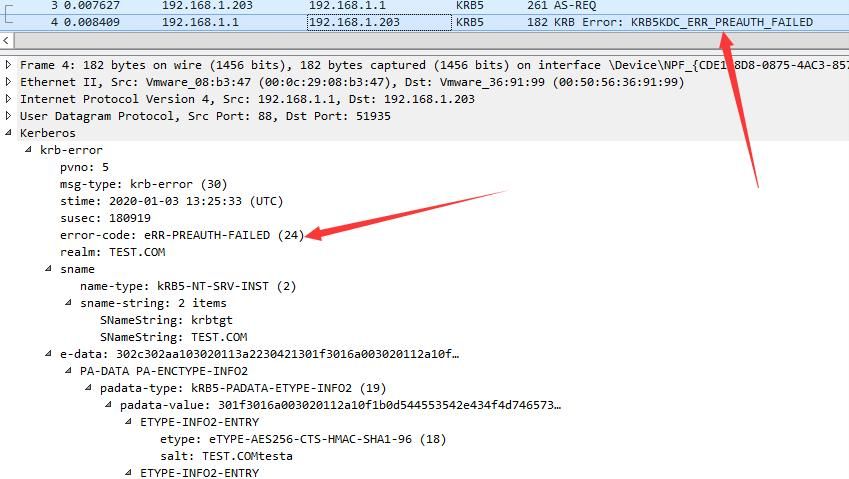

If the password is incorrect, the returned packet content is shown in the figure below

2. Implement password verification using Python — technical illustration 12

For the specific packet structure, please refer to the RFC document at the following address:

https://tools.ietf.org/html/rfc1510#page-50

To compute the padata-value, first convert the plaintext password into an NTLM hash before calculation.

Therefore, this position can use not only plaintext passwords but also NTLM hashes.

Part of the encrypted Python code is as follows:

Using plaintext password:

clearpassword = DomainUser123!
user_key = (RC4_HMAC, ntlm_hash(clearpassword).digest())
pa_ts = build_pa_enc_timestamp(current_time, user_key)
as_req['padata'][0]['padata-value'] = encode(pa_ts)

Using NTLM hash:

ntlmhash = e00045bd566a1b74386f5c1e3612921b
user_key = (RC4_HMAC, ntlmhash.decode('hex'))
pa_ts = build_pa_enc_timestamp(current_time, user_key)
as_req['padata'][0]['padata-value'] = encode(pa_ts)

0x05 Open-source code pyKerbrute

---

The complete implementation code has been uploaded to GitHub, with the address as follows:

An open-source project

pyKerbrute is a Python implementation of kerbrute, offering the following two additional features compared to kerbrute:

  • Added support for TCP protocol
  • Added verification for NTLM hash

pyKerbrute is divided into two functions: user enumeration and password verification

1. EnumADUser.py

User enumeration function, supporting both TCP and UDP protocols

Command example:

EnumADUser.py 192.168.1.1 test.com user.txt tcp

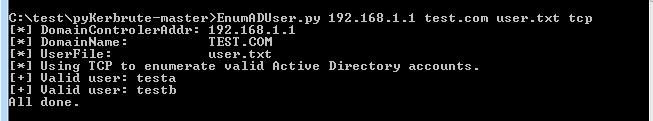

The output result is shown in the figure below

1. EnumADUser.py — technical illustration 13

2. ADPwdSpray.py

Password verification function, supports TCP and UDP protocols, supports plaintext passwords and NTLM hash

Command example 1:

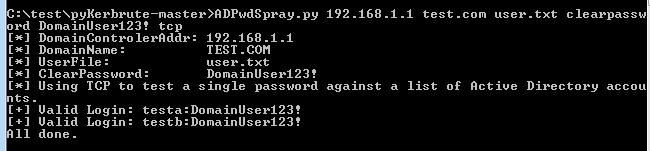

ADPwdSpray.py 192.168.1.1 test.com user.txt clearpassword DomainUser123! tcp

Result output as shown below

2. ADPwdSpray.py — technical illustration 14

Command example 2:

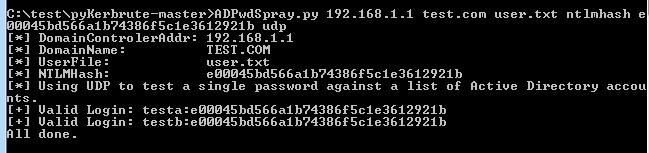

ADPwdSpray.py 192.168.1.1 test.com user.txt ntlmhash e00045bd566a1b74386f5c1e3612921b udp

Result output as shown below

2. ADPwdSpray.py — technical illustration 15

0x06 Detection of Kerberos pre-auth bruteforcing

---

Kerbrute uses the Kerberos pre-auth protocol and does not generate logs (4625 - An account failed to log on)

However, it generates the following logs:

  • Log generated when password verification is successful (4768 - A Kerberos authentication ticket (TGT) was requested)
  • Log generated when password verification fails (4771 - Kerberos pre-authentication failed)

0x07 Summary

---

This article conducts testing and analysis of kerbrute, implements identical functionality using Python with added support for TCP protocol and NTLM hash verification, releases the source code, details script development specifics, and provides detection methods for Kerberos pre-authentication brute-forcing.

Related Questions & Answers

What is the difference in packet structure between user enumeration and password verification in Kerberos pre-authentication?

User enumeration sends a simple AS-REQ without padata, while password verification includes a padata section containing an encrypted timestamp (PA-ENC-TIMESTAMP) derived from the password or NTLM hash. The padata-value is computed by encrypting the current time with the user's key, which is derived from the plaintext password or NTLM hash. This addition confirms the password validity.

Which event logs are generated during Kerberos pre-authentication brute-forcing, and how can they be detected?

Successful password verification generates event log '4768 - A Kerberos authentication ticket (TGT) was requested', while failed attempts generate '4771 - Kerberos pre-authentication failed'. Unlike LDAP brute-forcing, no '4625' log is produced. Analysts should monitor for multiple 4771 events in a short timeframe as an indicator of brute-force activity. The article discusses detection methods in detail.

What additional capabilities does the Python implementation pyKerbrute have compared to the original kerbrute?

PyKerbrute adds support for TCP protocol in addition to UDP, and it allows validation of NTLM hashes instead of only plaintext passwords. These enhancements provide more flexibility in network environments and attack scenarios. The password verification function uses the NTLM hash directly in the padata encryption, similar to how plaintext passwords are processed. For a deeper understanding of password brute-forcing via other protocols, see [Penetration Basics - Brute-Forcing Domain User Passwords via LDAP Protocol](/news/penetration-basics-brute-forcing-domain-user-paswords-via-ldap-protocol).

How does kerbrute determine whether a domain user exists during enumeration?

Kerbrute sends an AS-REQ packet to the KDC and checks the error code in the response. If the user exists, it receives 'eRR-PREAUTH-REQUIRED (25)'; if the user does not exist, it receives 'eRR-C-PRINCIPAL-UNKNOWN (6)'. This is done without any prior credentials, allowing attackers to validate usernames from outside the domain.

Why is Kerberos pre-authentication brute-forcing preferred over LDAP brute-forcing for domain user enumeration?

Kerberos pre-authentication brute-forcing does not generate the '4625 - An account failed to log on' event log that LDAP brute-forcing produces, making it stealthier. Additionally, it can enumerate users from outside the domain without needing any valid credentials, whereas LDAP enumeration typically requires authentication. For more details, see [Penetration Techniques - User Enumeration and Password Brute-forcing via Kerberos Pre-Authentication](/news/penetration-techniques-user-enumeration-and-password-brute-forcing-via-kerberos-pre-authentication).
