Penetration Techniques - Pass the Hash with Remote Desktop (Restricted Admin Mode)

0x00 Preface

---

In penetration testing, if we obtain a user's NTLM hash, we can attempt to use the Pass the Hash method to log into WMI and SMB services, and similarly exploit remote desktop services.

This article will introduce the method of using Pass the Hash to log into remote desktop when Restricted Admin Mode is enabled.

For reference on Pass the Hash exploitation, see the previous article:

Domain Penetration - Implementation of Pass The Hash

0x01 Introduction

---

This article will cover the following:

• Introduction to Restricted Admin Mode
• Implementation method of Pass the Hash with Remote Desktop (Restricted Admin Mode)

0x02 Introduction to Restricted Admin Mode

---

Official description:

https://blogs.technet.microsoft.com/kfalde/2013/08/14/restricted-admin-mode-for-rdp-in-windows-8-1-2012-r2/

This section references official documentation and includes personal interpretation. Corrections are welcome if any inaccuracies are found.

Restricted Admin mode, literally translated as restricted management mode, primarily functions to prevent credentials from being exposed on the target system.

Applicable Systems

• Windows 8.1 and Windows Server 2012 R2 natively support this feature.
• Windows 7 and Windows Server 2008 R2 do not support it by default; patches 2871997 and 2973351 must be installed.

Note:

Relevant references include:

https://docs.microsoft.com/en-us/security-updates/SecurityAdvisories/2016/2871997

https://support.microsoft.com/en-us/help/2973351/microsoft-security-advisory-registry-update-to-improve-credentials-pro

Methods to enable Restricted Admin mode

Method 1: Install patch 3126593

The implementation principle is the same as Method 2 below (modifying the registry).

Reference link:

https://support.microsoft.com/en-us/help/2973351/microsoft-security-advisory-registry-update-to-improve-credentials-pro

Method 2: Modify the Registry

Location:

HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Lsa

Create a new DWORD value named DisableRestrictedAdmin. A value of 0 enables it; a value of 1 disables it.

The corresponding command to enable via command line is as follows:

Using Restricted Admin mode

Client command line:

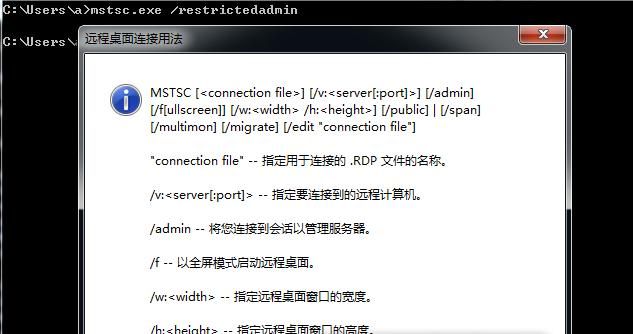

If the current system does not support Restricted Admin mode, executing the command will display the Remote Desktop parameter description, as shown in the figure below

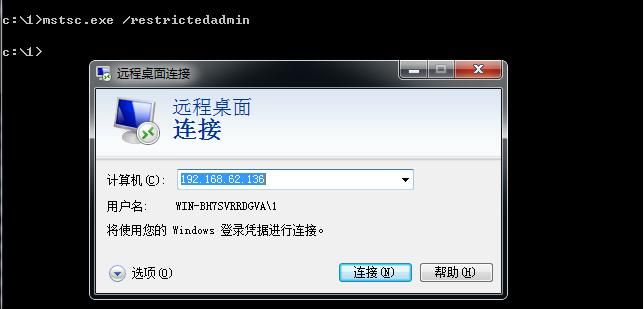

If the current system supports Restricted Admin mode, executing the command will bring up the Remote Desktop login interface, as shown in the figure below

It is worth noting that Restricted Admin mode uses the current Windows login credentials, requiring no password input; you can log in directly.

Note:

When the server enables Restricted Admin mode, the client must also support Restricted Admin mode.

Some materials mention that Pass the Hash with Remote Desktop (Restricted Admin mode) applies to Windows 8.1 and Windows Server 2012 R2. This conclusion is not entirely accurate; more precisely, it also applies to Windows 7 and Windows Server 2008 R2 after installing the relevant patches.

0x03 Implementation Method of Pass the Hash with Remote Desktop (Restricted Admin mode)

---

Test Environment:

Server:

• OS: Server 2012 R2
• IP: 192.168.62.136
• Computer Name: remoteserver
• User Name: administrator
• NTLM hash: d25ecd13fddbb542d2e16da4f9e0333d
• Restricted Admin mode enabled

Client:

• Supports Restricted Admin mode

Method 1: mimikatz

Actually Overpass-the-hash

Requires administrator privileges

mimikatz command is as follows:

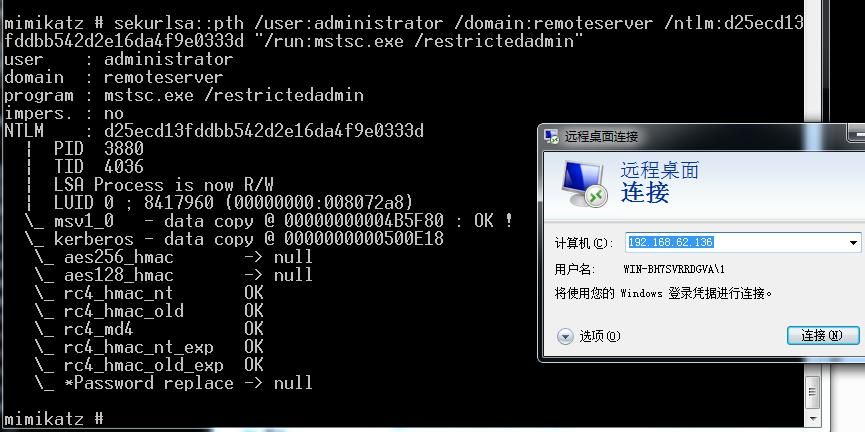

After execution, the remote login interface pops up, as shown in the figure below

Select connect, successfully achieve remote login

Method 2: FreeRDP

Download address:

https://github.com/FreeRDP

Reference articles:

https://labs.portcullis.co.uk/blog/new-restricted-admin-feature-of-rdp-8-1-allows-pass-the-hash/

https://www.kali.org/penetration-testing/passing-hash-remote-desktop/

FreeRDP implements the Remote Desktop Protocol, supports passing hash

Supports Linux, Windows, and MAC. Download links are as follows:

https://github.com/FreeRDP/FreeRDP/wiki/PreBuilds

Actual testing:

(1) Parameters for remote login using plaintext on Linux:

Test successful

(2) Parameters for remote login using hash on Linux:

Test failed

Same test results on Windows

Suspect that FreeRDP removed this feature; others have similar test results. Links are as follows:

https://nullsec.us/rdp-sessions-with-xfreerdp-using-pth/

https://twitter.com/egyp7/status/776053410231558148

Solution:

Download link for the older version of FreeRDP that includes the pth feature:

https://labs.portcullis.co.uk/download/FreeRDP-pth.tar.gz

Requires recompilation to support the pth parameter

0x04 Defense Detection

---

Restricted Admin mode was originally designed to enhance system security, but it inadvertently supports Pass the Hash exploitation

Therefore, for defense, focus on preventing Pass the Hash exploitation; enabling Restricted Admin mode helps improve system security

Refer to the official Microsoft documentation at the following address:

http://www.microsoft.com/en-us/download/details.aspx?id=36036

0x05 Summary

---

This article introduces the method of Pass the Hash with Remote Desktop under specific conditions (Server must have Restricted Admin mode enabled, Client must support Restricted Admin mode), and explains key aspects of Restricted Admin mode.

The general method for Pass the Hash with Remote Desktop will be covered in a subsequent article.
