Penetration Techniques - Acquisition and Clearing of Windows System File Execution Records

0x00 Preface

---

From a penetration perspective, after gaining access to a Windows host, it is necessary to fully understand the information of this Windows host, and file execution records are an important part.

From a defense perspective, file execution records contain important system information, and it is necessary to specifically clear them.

Therefore, this article will attempt to organize the common locations of file execution records on Windows hosts (Win7 and above systems), try to acquire and clear individual records, analyze exploitation ideas, and summarize defense methods.

Reference links:

https://blog.1234n6.com/2018/10/available-artifacts-evidence-of.html?m=1

https://xz.aliyun.com/t/3067#toc-5

0x01 Introduction

---

This article will cover the following:

• Obtaining file execution records from logs
• Obtaining file execution records from the registry
• Obtaining file execution records from files
• Instance Testing
• Exploitation and Defense Strategies

0x02 Obtaining File Execution Records from Logs

---

1. Process Creation (ID: 4688)

Usage Conditions:

This feature is disabled by default in the system and requires manual configuration to enable

Policy location: Computer Configuration -> Policies -> Windows Settings -> Security Settings -> Advanced Audit Configuration -> Detailed Tracking

Policy Name: Audit Process Creation

Command line to retrieve log information:

Methods to clear records:

For clearing individual log entries, refer to the previous article:

"Penetration Techniques – Deleting Single Windows Log Entries"

2. Microsoft-Windows-Application-Experience Program-Inventory

References:

http://journeyintoir.blogspot.com/2014/03/exploring-program-inventory-event-log.html

• 800 (summary of software activities)
• 903 & 904 (new application installation)
• 905 & 906 (updated application)
• 907 & 908 (removed application).

Command line to obtain log information:

3、Microsoft-Windows-Application-Experience Program-Telemetry

Command line to obtain log information:

0x03 Obtain file execution records from the registry

---

1、ShimCache

References:

https://www.fireeye.com/blog/threat-research/2015/06/caching_out_the_val.html

Used to record compatibility issues generated during the execution of Windows system programs

Location:

XP stores up to 96 records, Windows 7 and above store up to 1024 records

Records the following content:

• File path
• Last modified time
• Whether it was executed

Note:

ShimCache not only records the execution of exe files but also records files in the same directory as the exe file (if the file was not executed, the Executed attribute is no)

Data is saved in a fixed format, storage structure can be referenced at:

https://www.fireeye.com/content/dam/fireeye-www/services/freeware/shimcache-whitepaper.pdf

Parsing tools

(1)

Open source code (C#)

https://github.com/EricZimmerman/AppCompatCacheParser/

Usage example:

Read the current system's registry and output the results to a specified path:

Output results sorted by last modified time:

Read a specified System file and output the results to a specified path:

(2)

Open source code (Python)

If you want to first export the registry file and then obtain parsing results in another system, you can use a Python-implemented script:

https://github.com/mandiant/ShimCacheParser

Usage example:

Export results via System file:

Methods to clear records

ShimCache only updates after system reboot (logging off current user does not update it)

That is to say, there are two methods to clear ShimCache records from the current system startup to shutdown:

(1) Modify the registry

Backup current registry:

After system reboot, restore registry:

(2) Abnormal shutdown

Skip the registry write operation, preventing recording of this system's startup-to-shutdown activity

(3) Modify memory

(Theoretically feasible)

2、UserAssist

Reference:

https://www.4n6k.com/2013/05/userassist-forensics-timelines.html

Can be used to record the number of executions and the last execution time of Windows system programs

Location:

Current User:

All Users:

Subkey names are encrypted using ROT-13 (decryption is relatively simple)

Records update in real-time

Parsing Tools

(1)

Command-line parsing

https://www.nirsoft.net/utils/userassist_view.html

Usage example:

(2)

Open source code (C#)

https://blog.didierstevens.com/programs/userassist/

Method to clear records

Clear corresponding registry key values

3. MUICache

Reference materials:

http://what-when-how.com/windows-forensic-analysis/registry-analysis-windows-forensic-analysis-part-8/

Used to record the file names of exe files, storing the absolute path of exe files and the corresponding exe file names in the registry

Location:

Current user:

All users:

Data not encrypted

Records updated in real-time

Parsing tool

(1)

Command-line parsing

http://www.nirsoft.net/utils/muicache_view.html

Usage example:

(2) Direct registry query

Method to clear records

Clear corresponding registry key values

4、RunMRU

Reference materials:

http://www.forensicfocus.com/a-forensic-analysis-of-the-windows-registry

Stores the history of programs launched via Win+U

Location:

Current User:

All Users:

Data is not encrypted

Records update in real-time

Parsing tools

(1) Directly query the registry

Methods to clear records

Delete the corresponding registry key values

5. AppCompatFlags Registry Keys

References:

https://journeyintoir.blogspot.com/2013/12/revealing-program-compatibility.html

Save program execution records

Location:

Parsing tools

(1) Direct registry query

Methods to clear records

Clear the corresponding registry key values

0x04 Obtain file execution records from files

---

1、Prefetch

Reference materials:

https://www.forensicmag.com/article/2010/12/decoding-prefetch-files-forensic-purposes-part-1

Prefetch folder, used to store prefetch information for files that the system has accessed, which can speed up system startup

Records the number of times a file has been run, last execution time, Hash, etc.

Check if this feature is enabled:

• 0 = Disabled
• 1 = Only Application launch prefetching enabled
• 2 = Only Boot prefetching enabled
• 3 = Both Application launch and Boot prefetching enabled

Location:

Data is saved in a fixed format with the extension .pf

Parsing tool

(1)

Command-line parsing

Open-source code (C#)

https://github.com/EricZimmerman/PECmd

Usage example:

Generates two files: "time"_PECmd_Output.csv and "time"_PECmd_Output_Timeline.csv

"time"_PECmd_Output.csv stores detailed information

"time"_PECmd_Output_Timeline.csv only stores a list of file names

Generates multiple JSON files, each corresponding to one .pf file

Method to clear records

Delete the corresponding .pf file by filename

2. Amcache

References:

https://journeyintoir.blogspot.com/2013/12/revealing-recentfilecachebcf-file.html

http://www.swiftforensics.com/2013/12/amcachehve-in-windows-8-goldmine-for.html

Used to track application compatibility issues with different executable files

Data is saved in a fixed format

Location:

Windows 7:

Only records file names

Windows 8 and above:

Records creation time, last modification time, SHA1, and some PE file header information

Note:

After installing KB2952664 on Win7 systems, Amcache.hve will also be supported, meaning both RecentFileCache.bcf and Amcache.hve contain file execution records

Parsing tool (RecentFileCache.bcf)

(1)

Open source code (C#)

https://github.com/jwhwan9/dumpBCF

(2)

Open source code (Python)

https://github.com/prolsen/recentfilecache-parser

Usage example:

Parsing tool (Amcache.hve)

(1)

Command-line parsing

Open source code (C#)

https://github.com/EricZimmerman/AmcacheParser

Usage example:

Note:

In some cases, export may fail with a prompt that the system is occupying the file Amcache.hve

(2)

Open source code (python)

https://github.com/williballenthin/python-registry/blob/master/samples/amcache.py

(3)

Open source code (powershell)

https://github.com/yoda66/GetAmCache/blob/master/Get-Amcache.ps1

Method to clear records (RecentFileCache.bcf)

Modify file

Detailed method will be introduced in the next article 'Penetration Techniques – Clearing Single Records in RecentFileCache.bcf and Amcache.hve'

Method to clear records (Amcache.hve)

Modify file

The detailed method will be introduced in the next article 'Penetration Techniques – Clearing Single Records in RecentFileCache.bcf and Amcache.hve'

3. JumpLists

References:

https://articles.forensicfocus.com/2012/10/30/forensic-analysis-of-windows-7-jump-lists/

Used to record recently used documents and applications by the user, typically displayed in the taskbar

Location:

Data is not encrypted

Records update in real-time

Parsing tools

(1)

Directly query the folder

Methods to clear records

Clear files under the path

4. SRUM

Supported by Windows 8 and above systems

Reference materials:

https://www.sans.org/cyber-security-summit/archives/file/summit-archive-1492184583.pdf

Includes various information, including program execution time

Data encryption

Real-time update records

Parsing tools

(1)

Command-line parsing

Open-source code (Python)

https://github.com/MarkBaggett/srum-dump

Usage example:

Requires template file SRUM_TEMPLATE.xlsx

Note:

During my testing, I found an issue with the command above; execution failed with the error: ESE File Not found: C:\Windows\System32\sru\SRUDB.dat

It is necessary to copy SRUDB.dat to another directory before parsing

Method to clear records

(To be introduced later)

0x05 Defense Recommendations

---

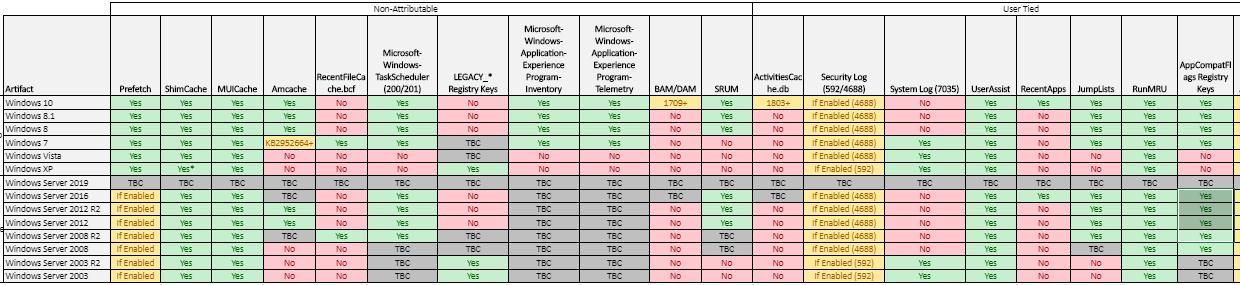

Different systems support different methods, as shown in the figure below:

Image captured from https://1234n6-my.sharepoint.com/:x:/p/adam/EU3Fk3ec6NdPsSQx1eA1sfwB_R_fRa4tJ4c1FR6WJlWIEA?e=GRyu7r

From a defense perspective, you can choose to regularly clean up file execution records in the system

From a forensics perspective, attackers can modify and delete file execution records, so these records should not be blindly trusted

0x06 Summary

---

This article compiles the common locations of file execution records on Windows hosts (Windows 7 and above systems), verifies the content that Windows systems can record through practical testing, and analyzes methods for clearing some of these records.
