Penetration Technique - Extracting User Plaintext Passwords via CredSSP

0x00 Preface

---

In penetration testing, to obtain user passwords within Windows systems, the common approach is to read the memory of the lsass process. This method not only requires obtaining administrator privileges on the system but also, in many cases, necessitates bypassing the system's protection mechanisms for the lsass process.

In my previous article 'Windows Password Hashes - Introduction to Net-NTLMv1', I introduced a method using InternalMonologue to obtain current user credentials (by making local procedure calls to the NTLM authentication package (MSV1_0) via SSPI to compute NetNTLM responses), which does not require manipulating the lsass process.

This article will introduce another method to obtain the current user's password, which also does not require manipulating the lsass process.

This is a feature added to the open-source tool kekeo by Benjamin @gentilkiwi Delpy in 2018. By simply modifying the Windows system's Group Policy, it is possible to obtain a user's plaintext password with standard user privileges.

This article will briefly introduce its underlying principles, analyze exploitation approaches in different environments, and provide defense recommendations.

0x01 Introduction

---

This article will cover the following:

• Implementation Principles
• Implementation Methods
• Exploitation Analysis
• Defense and Detection

0x02 Implementation Principle

---

1. Basic Knowledge

CredSSP

Full name: Credential Security Support Provider protocol

The purpose of the CredSSP protocol is to delegate the user's plaintext password from the CredSSP client to the CredSSP server

CredSSP is commonly used in Remote Desktop Services (Remote Desktop Protocol) and Windows Remote Management (e.g., PowerShell Remoting)

CredSSP provides an encrypted Transport Layer Security protocol channel. The negotiation protocol uses Kerberos and NTLM

Reference:

https://docs.microsoft.com/en-us/windows/win32/secauthn/credential-security-support-provider

2. Configuring CredSSP Credential Delegation via Group Policy

Group Policy can specify whether applications using the CredSSP component send default credentials

Group Policy location: Computer Configuration->Administrative Templates->System->Credentials Delegation

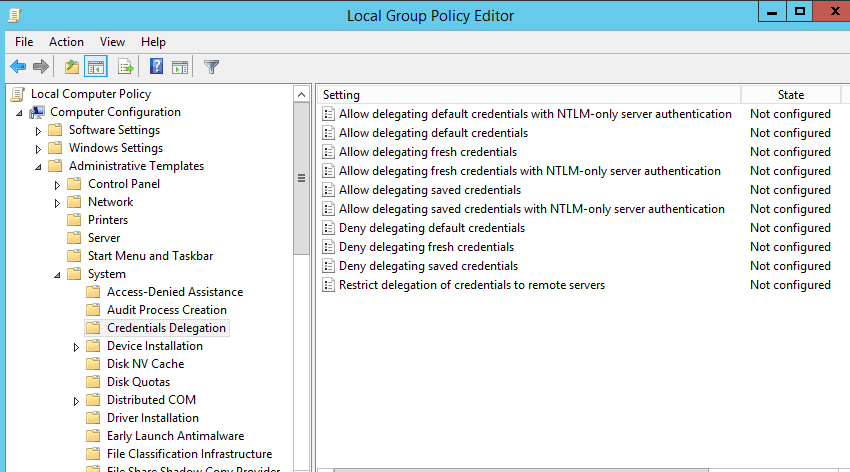

As shown in the figure below

Allow delegating default credentials indicates automatically sending the current user's credentials when server authentication is achieved using a trusted X509 certificate or Kerberos.

Allow delegating default credentials with NTLM-only server authentication indicates automatically sending the current user's credentials when server authentication is achieved using NTLM.

Group Policy corresponding registry location: HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\CredentialsDelegation

3. Application of CredSSP credential delegation on Remote Desktop Services

For workgroup environments, enable Allow delegating default credentials with NTLM-only server authentication.

For domain environments, enable Allow delegating default credentials.

After enabling the corresponding Group Policy, when using Remote Desktop Connection, the current user's credentials will be automatically sent (in plaintext format, not hash).

Data structure is as follows:

References:

https://docs.microsoft.com/en-us/openspecs/windows_protocols/ms-cssp/17773cc4-21e9-4a75-a0dd-72706b174fe5

4. Implementation Principle

In summary, if we implement the following operations:

• Modify the Group Policy on Host A to automatically send the current user's credentials
• Implement server functionality on Host B to receive requests sent from Host A

Then when we control Host A to connect to Host B, Host B can obtain the plaintext password of Host A's user

For details on the CredSSP protocol, refer to:

https://docs.microsoft.com/en-us/openspecs/windows_protocols/ms-cssp/85f57821-40bb-46aa-bfcb-ba9590b8fc30

Furthermore, if we implement the following operations:

• Modify the Group Policy on Host A to automatically send the current user's credentials
• Implement server functionality on Host A to receive requests sent by Host A itself

We can also obtain the user's plaintext password

Note:

Keko's implementation method is by creating a named pipe via the SMB protocol, not the RDP protocol

As shown in the figure below

0x03 Implementation Method

---

Add group policy by modifying the registry, commands are as follows:

After adding group policy, it will take effect only after the user logs in again and enters credentials, such as locking the screen, logging off, or restarting.

Implementation methods vary for different network environments.

1. Workgroup Network

Authentication method is NTLM

(1) Capture local passwords

The command to establish a server using kekeo is as follows (with regular user permissions):

The command to connect to the server is as follows (with regular user privileges):

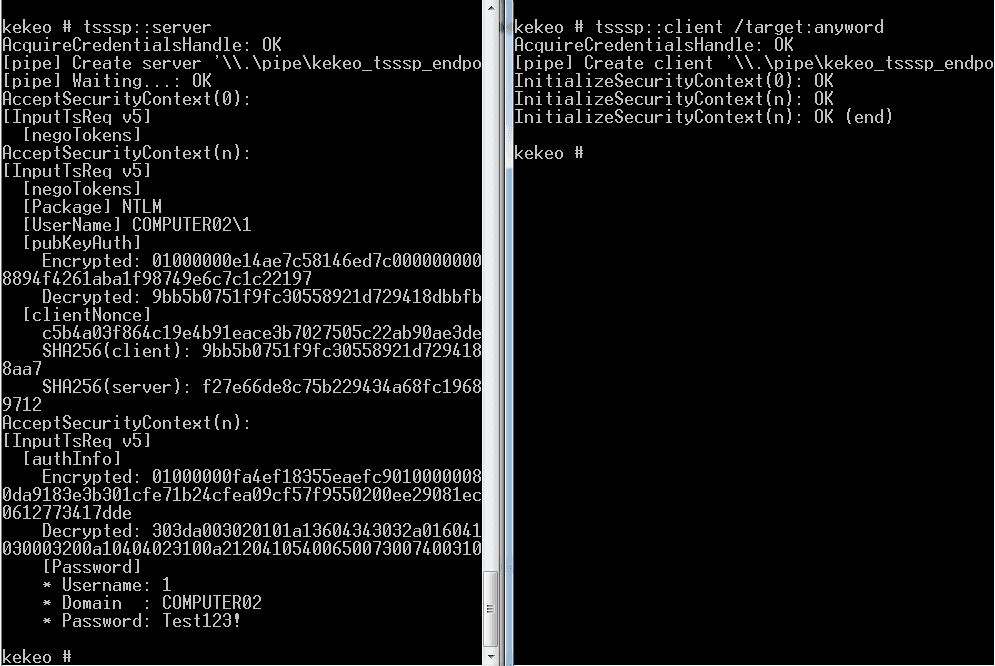

As shown in the figure below

Note:

When capturing local passwords, the target parameter can be set to any character

2. Domain Network

The authentication method is Kerberos

(1) Capturing Local Passwords

The command to establish the server is as follows (with regular user privileges):

The command to connect to the server is as follows (with regular user privileges):

Note:

When capturing local machine passwords, the target parameter can be set to any character

(2) Capturing remote host passwords

The kekeo command to establish a server is as follows (System privileges):

The kekeo command to connect to the server is as follows (regular user privileges):

The result is shown in the following figure

The parameter used here corresponds to the SPN of the domain computer account

To view all SPNs in the current domain, use the setspn command:

To view all SPNs in the test domain:

0x04 Exploitation Analysis

---

1. Advantages

Does not require interaction with the lsass process, thus bypassing protections on the lsass process

After modifying group policies, only standard user privileges are needed to achieve this

Note:

After adding group policies, it requires waiting for the user to log back in and enter credentials to take effect, such as locking the screen, logging off, or restarting

2. Other exploitation ideas

(1) Code extraction

I extracted the tsssp::client functionality from kekeo separately, the address is as follows:

An open-source project

The code supports connecting to local and remote servers

Only the pipi parameter needs to be filled in; my code will automatically complete the target parameter as TERMSRV/

Example command for connecting locally:

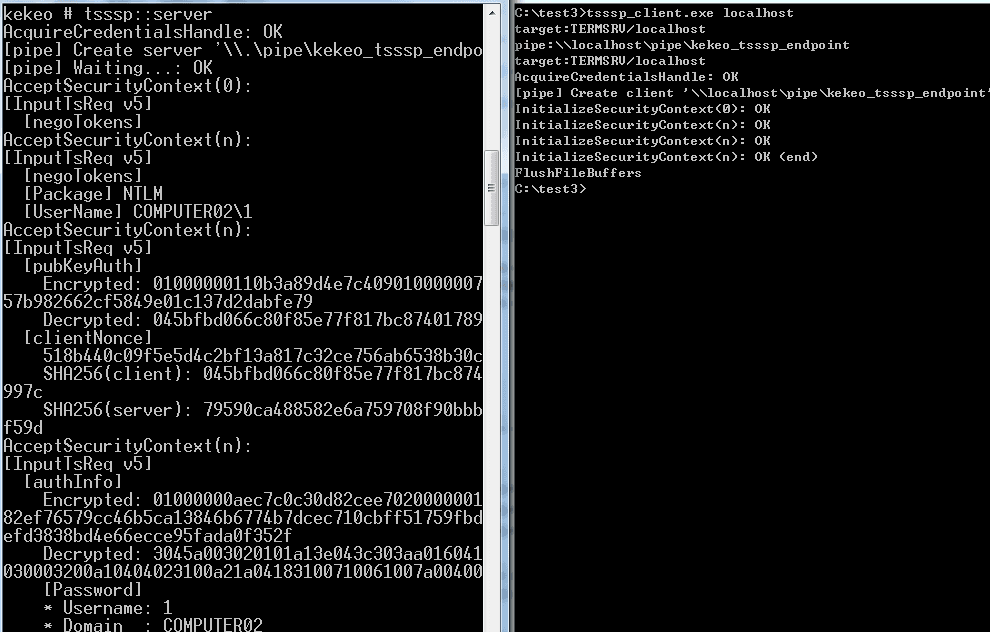

Test as shown in the figure below

Example command to connect to a remote server:

Test as shown in the figure below

The tsssp::server feature of kekeo requires installation of OSS ASN.1/C

Note:

Executable files compiled with the trial version of OSS ASN.1/C cannot be used on systems without OSS ASN.1/C installed

(2) Capturing other users' passwords

Start kekeo.exe or tsssp_client.exe using another user's token

For token exploitation methods, refer to 'Penetration Techniques – Token Theft and Exploitation'

0x05 Defense and Detection

---

1. Query Group Policy configuration

The cmd command to query the registry is as follows:

2. Delete Group Policy Configuration

The cmd command to delete registry entries is as follows:

0x06 Summary

---

This article introduces the exploitation methods of kekeo's tsssp module in different environments, providing defense recommendations based on the exploitation approach.
