Penetration Basics - Windows Defender

0x00 Preface

---

Windows Defender is an antivirus software program built into the Windows operating system. This article introduces penetration methods related to Windows Defender solely from a technical research perspective, analyzes exploitation approaches, and provides defense recommendations.

0x01 Introduction

---

This article will cover the following topics:

• Check Windows Defender Version
• View Existing Exclusion List
• Disable Windows Defender Real-time Protection
• Add Exclusion List
• Remove Token to Disable Windows Defender
• Restore Quarantined Files

0x02 Check Windows Defender Version

---

1. View via Panel

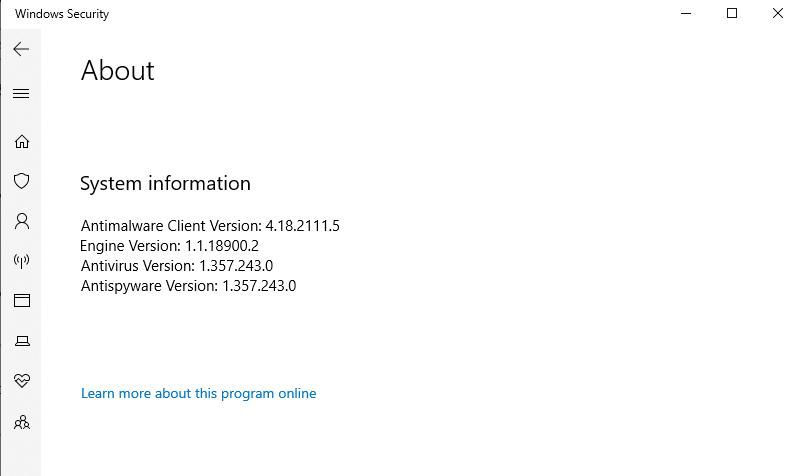

Navigate to Windows Security -> Settings -> About, where Antimalware Client Version indicates the Windows Defender version, as shown below

2. View via Command Line

The larger number indicates the latest version

0x03 View Existing Exclusion List

---

1. View via Panel

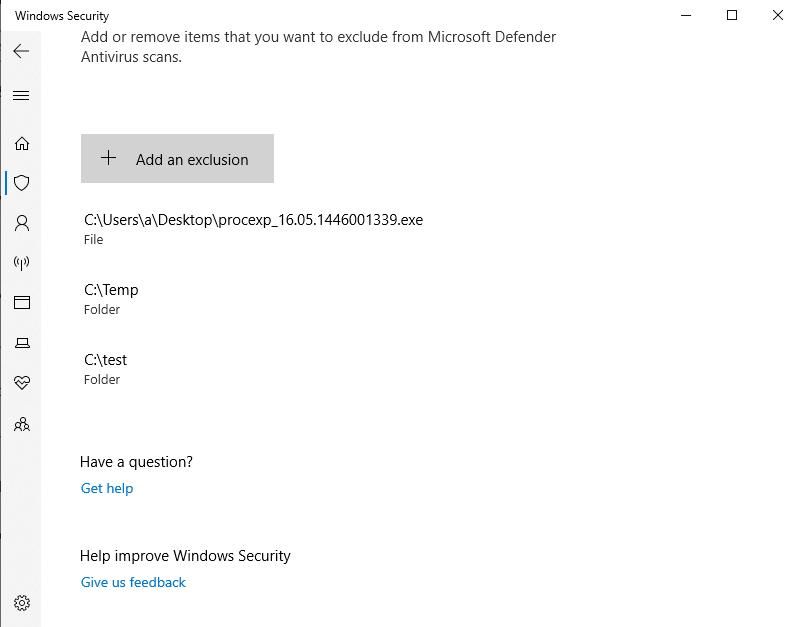

Navigate to Windows Security -> Virus & threat protection settings -> Add or remove exclusions, as shown below

2. View via Command Line

3. View via PowerShell

0x04 Disable Windows Defender Real-time Protection

---

1. Disable via Control Panel

Navigate to Windows Security -> Virus & threat protection settings, turn off Real-time protection

2. Disable via Command Line

Prerequisites:

• Requires TrustedInstaller privileges
• Tamper Protection must be disabled

Note:

When successful, a notification will pop up in the bottom-right corner indicating Windows Defender has been disabled

Supplement 1: Enable Windows Defender Real-time Protection

Prerequisites:

• Requires TrustedInstaller privileges
• Tamper Protection must be disabled

Supplement 2: Obtain TrustedInstaller privileges

Refer to the previous article "Penetration Techniques - Token Theft and Exploitation"

You can also use AdvancedRun, command example:

Supplement 3: Tamper Protection

Reference materials:

https://docs.microsoft.com/en-us/microsoft-365/security/defender-endpoint/prevent-changes-to-security-settings-with-tamper-protection?view=o365-worldwide

When Tamper Protection is enabled, users cannot modify Windows Defender configurations via registry, PowerShell, or group policy

Method to enable Tamper Protection:

Select Windows Security -> Virus & threat protection settings in sequence, then enable Tamper Protection

Corresponding cmd command for this operation: reg add "HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows Defender\Features" /v "TamperProtection" /d 5 /t REG_DWORD /f

Method to disable Tamper Protection:

Select Windows Security -> Virus & threat protection settings in sequence, then disable Tamper Protection

Corresponding cmd command for this operation: reg add "HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows Defender\Features" /v "TamperProtection" /d 4 /t REG_DWORD /f. However, we cannot set Tamper Protection by modifying the registry; it can only be changed through the panel

Check the status of Tamper Protection:

In the returned result, a value of 5 indicates enabled, and a value of 4 indicates disabled

Supplement 4: Disable Windows Defender's Real-time protection via PowerShell

Note: This is no longer applicable in newer versions of Windows

Supplement 5: Disable Windows Defender's Real-time protection via Group Policy

Open gpedit.msc in sequence -> Computer Configuration -> Administrative Templates -> Windows Components -> Microsoft Defender Antivirus -> Real-time Protection, select Turn off real-time protection, and configure it as Enable

Note: This is no longer applicable in newer versions of Windows

0x05 Add Scan Exclusion List

---

1. Add via Panel

Select Windows Security -> Virus & threat protection settings -> Add or remove exclusions in sequence, choose Add an exclusion, and specify the type

This operation is equivalent to modifying the registry key values at HKLM\SOFTWARE\Microsoft\Windows Defender\Exclusions\, with specific locations as follows:

• Type File corresponds to the registry entry Paths
• The type Folder corresponds to the registry key Paths
• The type File type corresponds to the registry key Extensions
• The type Process corresponds to the registry key Processes

2. Adding via command line

Prerequisites:

• Requires TrustedInstaller permissions

Example cmd command:

3. Adding via PowerShell

Prerequisites:

• Requires administrator permissions

Reference materials:

https://docs.microsoft.com/en-us/powershell/module/defender/add-mppreference?view=windowsserver2022-ps

Example PowerShell command:

Note: Delete exclusion list

0x06 Removing Token Causes Windows Defender to Fail

---

Learning address:

https://elastic.github.io/security-research/whitepapers/2022/02/02.sandboxing-antimalware-products-for-fun-and-profit/article/

Simple understanding:

• The Windows Defender process is MsMpEng.exe
• MsMpEng.exe is a protected process (Protected Process Light, abbreviated as PPL)
• Non-PPL processes cannot obtain handles to PPL processes, preventing us from directly terminating the PPL process MsMpEng.exe
• However, we can modify the token of the process MsMpEng.exe using threads running with SYSTEM privileges
• After removing all tokens from the process MsMpEng.exe, the process cannot access resources of other processes, thus unable to detect whether other processes are malicious, ultimately causing Windows Defender to fail

POC address: https://github.com/pwn1sher/KillDefender

Exploitation conditions:

• Requires System privileges

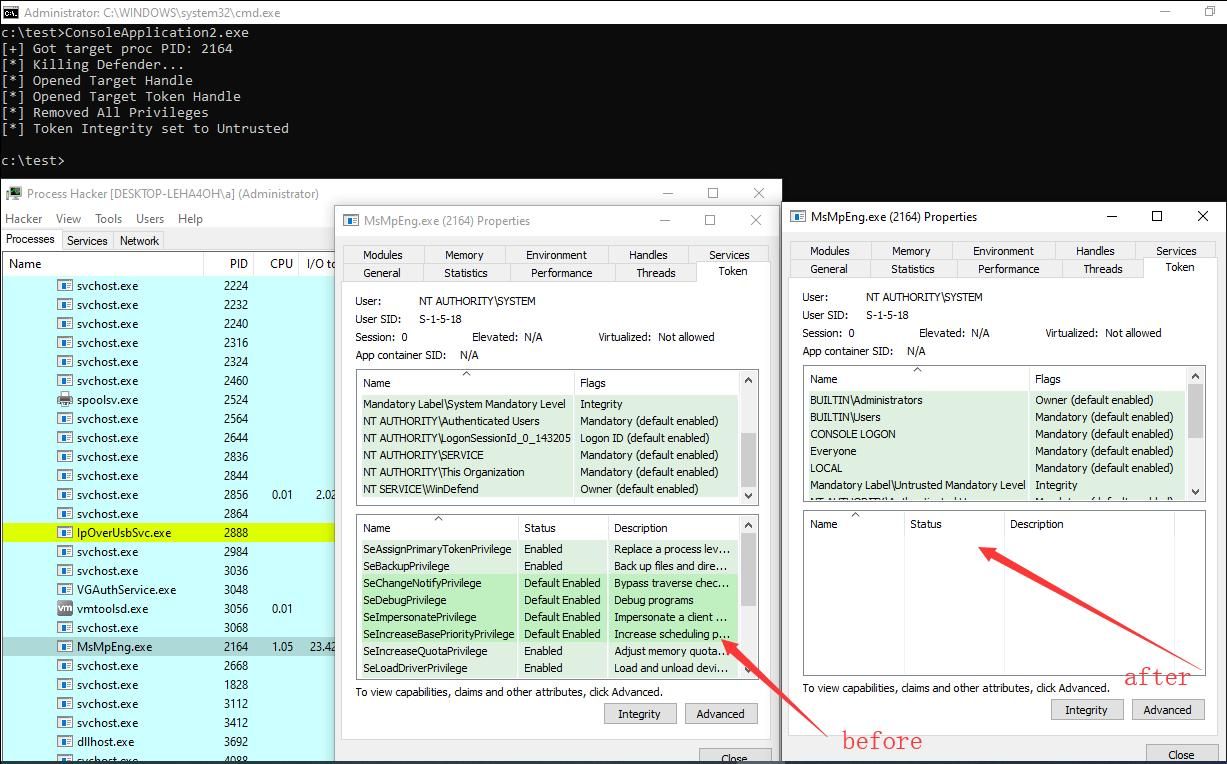

Test as shown in the figure below

0x07 Restore Quarantined Files

---

References:

https://docs.microsoft.com/en-us/microsoft-365/security/defender-endpoint/command-line-arguments-microsoft-defender-antivirus?view=o365-worldwide

1. Locate MpCmdRun

Obtain

Location of MpCmdRun: C:\ProgramData\Microsoft\Windows Defender\Platform\

2. Common Commands

View list of quarantined files:

Restore file with specified name to original directory:

Restore all files to original directory:

Check if specified path is in exclusion list:

0x08 Defense Recommendations

---

Prevent command-line shutdown of Windows Defender: Enable Tamper Protection

Prevent Windows Defender failure via token removal: Block non-PPL processes from modifying token of PPL process MsMpEng.exe. Tool reference: https://github.com/elastic/PPLGuard

0x09 Summary

---

This article introduces Windows Defender-related penetration methods solely from a technical research perspective, analyzes exploitation approaches, and provides defense recommendations. The exploitation method causing Windows Defender failure via token removal may be resolved by default in future Windows versions.
