Penetration Basics - Searching and Exporting Emails from Exchange Servers

0x00 Preface

---

In penetration testing, if we obtain administrative privileges on an Exchange server, the next step is to search and export emails from it. This article will introduce two common methods, open-source four PowerShell scripts, and share details on script development.

0x01 Introduction

---

This article will cover the following:

• Two methods for managing emails on an Exchange server
• Two methods for exporting emails
• Two methods for searching emails

Note:

The methods introduced in this article are all PowerShell commands

0x02 Two Methods for Managing Emails on an Exchange Server

---

1. First, connect to the Exchange server using PSSession, then remotely manage emails

Command to connect to an Exchange server using PSSession:

Additional notes:

View PSSession:

Disconnect PSSession:

Test command (get all mailbox users):

2. Commands to manage mail directly on the Exchange server

Test command (get names of all mailbox users):

Note:

The management snap-in names vary across different Exchange versions:

• Exchange 2007:

Add-PSSnapin Microsoft.Exchange.Management.PowerShell.Admin;

• Exchange 2010:

Add-PSSnapin Microsoft.Exchange.Management.PowerShell.E2010;

• Exchange 2013 & 2016:

Add-PSSnapin Microsoft.Exchange.Management.PowerShell.SnapIn;

Supplement: Common commands for managing Exchange mailboxes

Reference:

https://docs.microsoft.com/en-us/powershell/module/exchange/?view=exchange-ps

(1) Retrieve all mailbox user names:

By default, 1000 users are displayed. Adding -ResultSize unlimited retrieves all users.

(2) Retrieve information for all mailboxes, including message count and last mailbox access time

(3) Retrieve all OUs

(4) Obtain send/receive email information through message tracking logs

Reference:

https://docs.microsoft.com/en-us/powershell/module/exchange/mail-flow/get-messagetrackinglog?view=exchange-ps

Default message tracking log location: %ExchangeInstallPath%TransportRoles\Logs\MessageTracking

View all email information (including sender, recipient, and subject) sent by [email protected] from 9:00 on January 1, 2019 to present:

The returned results are messy, containing multiple events:

• DSN
• Defer
• Deliver
• Send
• Receive

Filter only sent events to make the returned results more concise:

Script to count the number of emails sent and received daily:

https://gallery.technet.microsoft.com/office/f2af711e-defd-476d-896e-8053aa964bc5/view/Discussions

Need to modify the start time and add the command to load the Exchange PowerShell management snap-in

0x03 Two Methods for Exporting Emails

---

1. Using PSSession to establish a connection and export emails

Reference materials:

https://docs.microsoft.com/en-us/powershell/module/exchange/mailboxes/new-mailboxexportrequest?view=exchange-ps

(1) Add the user to the role group "Mailbox Import Export"

Here, using the user administrator as an example:

Supplement: Removed command

Verify after addition:

(2) Restart PowerShell

Otherwise, the New-MailboxExportRequest command cannot be used

(3) Export emails and save

Three examples are provided here

1. Export all emails of a specified user and save to c:\test on the Exchange server

2. Filter emails containing the word 'pass' in the body for a specified user and save to c:\test on the Exchange server

3. Export all emails and save to c:\test on the Exchange server

After export, the export request records are automatically saved, with a default retention of 30 days

If you do not want to save export requests, you can add the parameter -CompletedRequestAgeLimit 0

Supplement: Regarding operations related to export requests

View email export requests:

Delete a specific export request:

Note:

Matching parameters are obtained from the results of Get-MailboxExportRequest|fl

Delete all export requests:

In summary, the implementation code for exporting specific emails (containing the word 'pass' in the body) of user test1 to the Exchange server's c:\test has been uploaded to GitHub, with the address as follows:

An open-source project

The parameters are as follows:

The process is as follows:

1. Use PSSession to connect to the Exchange server

2. Determine whether the user used has been added to the role group "Mailbox Import Export"

If not added, the user needs to be added

3. Export emails and save them to c:\test on the Exchange server in PST format

4. If a user was newly added, they will be removed from the role group "Mailbox Import Export"

5. Clear the PSSession

The exported PST file can be opened using Outlook

2. Directly export emails on the Exchange server

(1) Add the management snap-in

The names of the management snap-ins vary by Exchange version:

• Exchange 2007:

Add-PSSnapin Microsoft.Exchange.Management.PowerShell.Admin;

• Exchange 2010:

Add-PSSnapin Microsoft.Exchange.Management.PowerShell.E2010;

• Exchange 2013 & 2016:

Add-PSSnapin Microsoft.Exchange.Management.PowerShell.SnapIn;

No need to consider role groups, emails can be exported directly

(2) Export emails

Export emails for user test1, save to c:\test on the Exchange server:

Referring to the functionality in 1, the implementation code for exporting specific emails (containing the word 'pass' in the body) for user test1 to c:\test on the Exchange server has been uploaded to GitHub, address as follows:

An open-source project

Parameters as follows:

Note:

Specify the Exchange version required

The process is as follows:

1. Add the management snap-in

2. Export emails and save them to c:\test on the Exchange server in PST format

The exported PST file can be opened with Outlook

0x04 Two Methods for Searching Emails

---

1. Use PSSession to establish a connection and search for emails

The basic process is similar to exporting emails, with the difference being that the role group "Mailbox Import Export" needs to be replaced with "Mailbox Search"

The implementation code has been uploaded to GitHub at the following address:

An open-source project

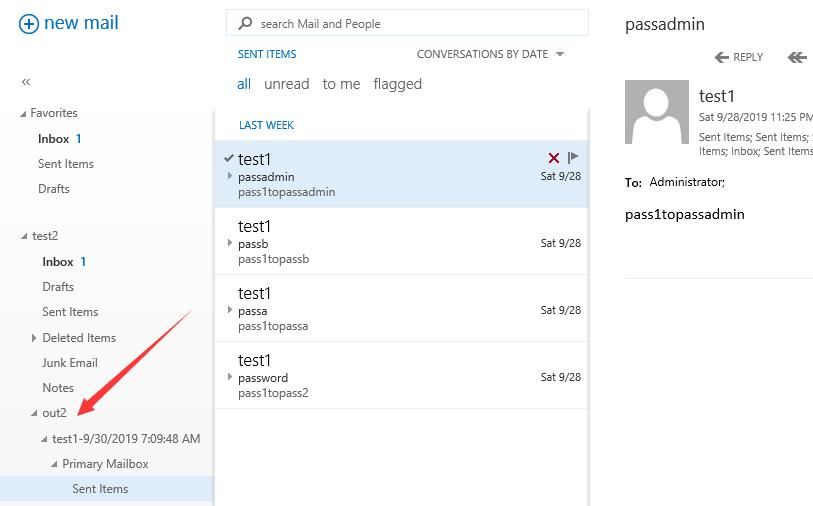

Search for emails containing the word 'pass' from user test1 and save them to the out2 folder of user test2 with the following parameters:

The exported results are shown in the figure below

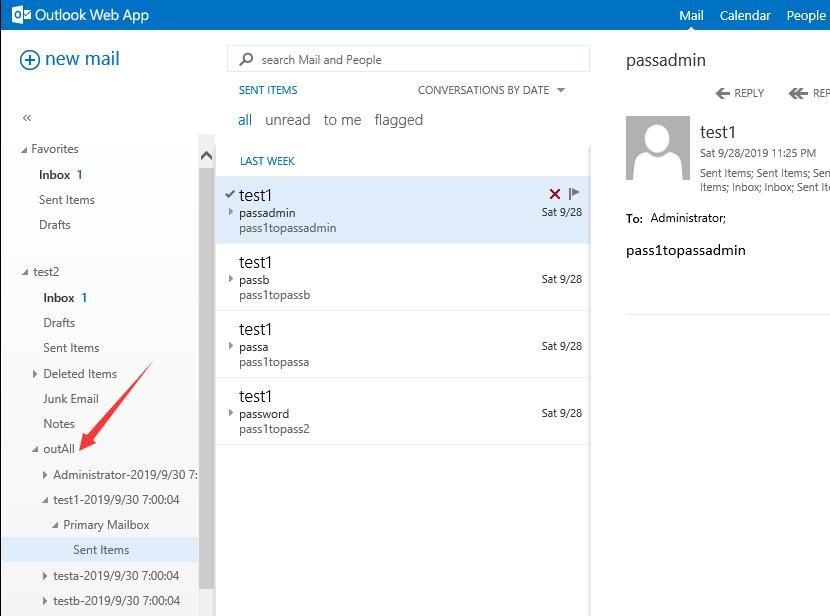

Search for all emails containing the word 'pass' and save them to the outAll folder of user test2, with the following parameters:

The exported results are shown in the figure below

2. Directly search for emails on the Exchange server

The basic process is similar to exporting emails, with some differences in specific commands

The implementation code has been uploaded to GitHub at the following address:

An open-source project

Search for emails containing the word 'pass' from user test1 and save them to the out2 folder of user test2, with the following parameters:

Search for all emails containing the word 'pass' and save them to the outAll folder of user test2, with the following parameters:

Supplement 1: Common commands for searching emails

(1) Enumerate all mailbox users and display the count of emails containing the keyword 'pass'

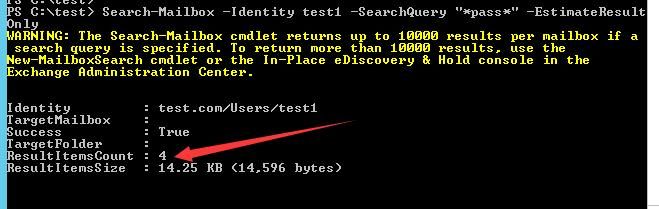

(2) Search mailbox user test1, display the number of emails containing the keyword pass

As shown in the example below, the count is 4

(3) Enumerate all mailbox users, export emails containing the keyword pass to user test2's folder out (without saving logs):

(4) Search mailbox user test1, export emails containing the keyword pass to user test2's folder out (without saving logs):

Supplement 2: Search emails via ECP

Log in to ECP, add the current user to the Discovery Management group

Refresh the page

Select compliance management -> in-place eDiscovery & hold

For specific operation details, refer to: https://docs.microsoft.com/en-us/exchange/security-and-compliance/in-place-ediscovery/in-place-ediscovery?redirectedfrom=MSDN#roles

Supplement 3: Add an administrator user via command line

0x05 Summary

---

This article introduces two methods for managing Exchange emails: directly invoking management units on the Exchange server and using PSSession to establish connections for remote email management. It details corresponding methods for exporting and searching emails, shares four open-source PowerShell scripts, and discusses script development specifics.
