0x00 Preface

---

In penetration testing, port forwarding and proxying are frequently utilized.

Port forwarding refers to the act of forwarding a network port from one network node to another.

In practical applications, two scenarios need to be considered:

  • Client->Transit server->Server: The client can connect directly to the transit server. The transit server simply forwards the traffic.
  • Client<-Transit server->Server: The client cannot connect directly to the transit server, but the transit server can connect back to the client.

If the client needs to scan multiple ports on a server (or multiple ports on multiple servers), configuring forwarding rules one by one is impractical.

To improve efficiency, a proxy can be used here, requiring only a single rule configuration.

This article will organize and summarize common methods and tools, categorize them, distinguish between direct and reverse connections, differentiate between forwarding and proxying, analyze their connections and differences, and provide application scenarios for reference.

0x01 Introduction

---

This article will cover the following:

  • Methods for Windows systems and Linux systems (Ubuntu and CentOS)
  • Port Forwarding - Forward Connection Method
  • Port Forwarding - Reverse Connection Method
  • Forward Proxy Method
  • Reverse Proxy Method
  • Application Scenarios of the Above Methods

Note:

Go language supports cross-platform compilation, so this article focuses more on introducing tools implemented in Go language

0x02 Port Forwarding - Forward Connection

---

0. Application Scenarios

1. Traffic Forwarding Springboard

Used to hide the real server address

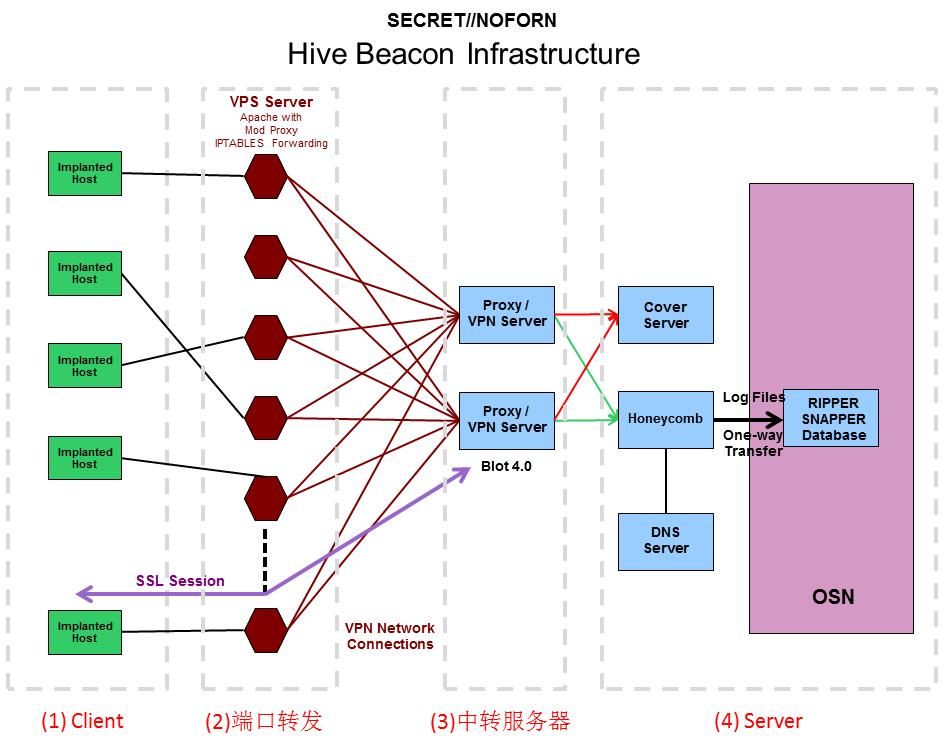

Port forwarding in CIA Hive Beacon Infrastructure uses Linux iptables

As shown in (2) in the figure below

Alt text

Note:

For setting up a transit server, you can refer to the previous articles 'CIA Hive Beacon Infrastructure Replication 1 – Using Apache mod_rewrite for HTTP Traffic Distribution' and 'CIA Hive Beacon Infrastructure Replication 2 – Using Apache mod_rewrite for HTTPS Traffic Distribution'.

2. Establish a tunnel

Connect to the specified port of the internal network server

The client can connect directly to the transit server

1. Test environment

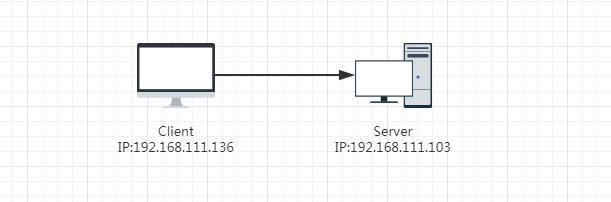

Client: 192.168.111.136

Server: 192.168.111.103

Network connection as shown in the figure below

Alt text

Test network connection using nc

Server:

nc -lvp 4444

Client:

nc -vv 192.168.111.103 4444

Client connection successful, as shown in the figure below

Alt text

2. Port forwarding method on Windows systems

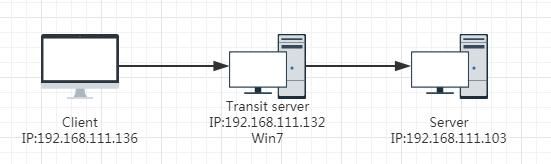

Transit server: 192.168.111.132

Network connection as shown in the figure below

Alt text

1. Using netsh for port forwarding (requires administrator privileges)

(1) Add forwarding rule

netsh interface portproxy add v4tov4 listenaddress=192.168.111.132 listenport=7777 connectaddress=192.168.111.103 connectport=4444

(2) Add firewall inbound rule

netsh advfirewall firewall add rule name="transit test" protocol=TCP dir=in localport=7777 action=allow

Note:

Default configuration allows outbound and blocks inbound communication, so only inbound rules need to be added here

Test network connection:

Server:

nc -lvp 4444

Client:

nc -vv 192.168.111.132 7777

Client connection successful

(3) View port forwarding rules

netsh interface portproxy show all

(4) Clear port forwarding rules

netsh interface portproxy delete v4tov4 listenaddress=192.168.111.132 listenport=7777

(5) Clear firewall rules

netsh advfirewall firewall delete rule name="transit test"

2. Using rinetd to implement port forwarding

Download address:

https://boutell.com/rinetd/http/rinetd.zip

Only the rinetd.exe from the compressed package is needed

(1) Add firewall rule for rinetd.exe (administrator privileges)

netsh advfirewall firewall add rule name="transit test2" dir=in program="c:\test\rinetd.exe" action=allow

(2) Write forwarding rules

echo 0.0.0.0 7777 192.168.111.103 4444 > conf.txt

(3) Start

rinetd.exe -c c:\test\conf.txt

(4) Clear firewall rules (administrator privileges)

netsh advfirewall firewall delete rule name="transit test2" dir=in program="c:\test\rinetd.exe"

3、Implement port forwarding using HTran

Note:

lcx has similar functionality

Source code originates from the internet, I have made a backup on GitHub, backup address:

https://raw.githubusercontent.某开源项目.cpp

(1) Add firewall rules for HTran.exe (administrator privileges)

netsh advfirewall firewall add rule name="transit test3" dir=in program="c:\test\HTran.exe" action=allow

(2) Enable forwarding function

HTran.exe -tran 7777 192.168.111.103 4444

(3) Clear firewall rules (administrator privileges)

netsh advfirewall firewall delete rule name="transit test3" dir=in program="c:\test\HTran.exe"

4. Using EarthWorm to achieve port forwarding

Download address:

https://github.com/rootkiter/EarthWorm

(1) Add firewall rule for ew_for_win_32.exe (administrator privileges)

netsh advfirewall firewall add rule name="transit test4" dir=in program="c:\test\ew_for_win_32.exe" action=allow

(2) Enable forwarding function

ew_for_win_32.exe -s lcx_tran -l 7777 -f 192.168.111.103 -g 4444

(3) Clear firewall rules (administrator privileges)

netsh advfirewall firewall delete rule name="transit test4" dir=in program="c:\test\ew_for_win_32.exe"

3. Common port forwarding methods in Linux (Ubuntu) systems

Transit server: 192.168.111.102

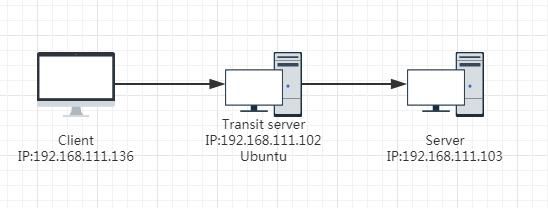

Network connection as shown in the figure below

Alt text

1. Implementing Port Forwarding with iptables

(1) Enable forwarding functionality

echo 1 >/proc/sys/net/ipv4/ip_forward

Note:

This command takes effect immediately but does not persist after reboot

(2) Add forwarding rules

iptables -t nat -A PREROUTING -p tcp -d 192.168.111.102 --dport 8888 -j DNAT --to-destination 192.168.111.103:4444
iptables -t nat -A POSTROUTING -p tcp -d 192.168.111.103 --dport 4444 -j SNAT --to-source 192.168.111.102

(3) View forwarding rules

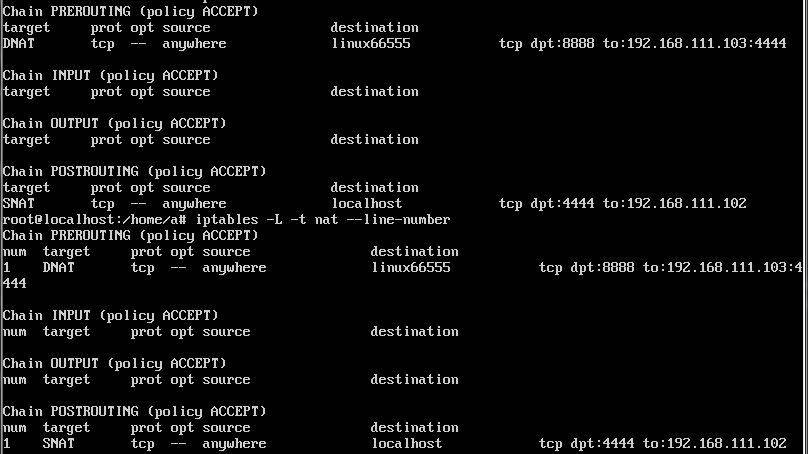

iptables -L -t nat --line-number

As shown in the figure below

Alt text

Test network connectivity:

Server:

nc -lvp 4444

Client:

nc -vv 192.168.111.102 8888

Client connection successful

(4) Clear rules

iptables -F -t nat

(5) Save rules

iptables-save > /etc/iptables.up.rules

(6) Restore rules

iptables-restore < /etc/iptables.up.rules

2. Using rinetd for port forwarding

(1) Compile and install

wget http://www.boutell.com/rinetd/http/rinetd.tar.gz
tar zxvf rinetd.tar.gz
cd rinetd
make

(2) Write forwarding rules

echo 0.0.0.0 8888 192.168.111.103 4444 > /etc/rinetd.conf

(3) Start

./rinetd.exe

(4) Terminate process

pkill -9 rinetd

3、Using HTran for port forwarding

Source code reference for Linux version HTran(lcx):

https://github.com/windworst/LCX

Requires recompilation with gcc

(1) Enable forwarding function

./lcx -tran 8888 192.168.111.103 4444

Note:

HTran(lcx) written in Go language, advantage is cross-platform, supporting Windows and Linux

Download address:

https://github.com/cw1997/NATBypass

4. Using EarthWorm to achieve port forwarding

Download address:

https://github.com/rootkiter/EarthWorm

Not open source

(1) Enable forwarding function

./ew_for_linux -s lcx_tran -l 8888 -f 192.168.111.103 -g 4444

4. Common port forwarding methods under Linux system (CentOS)

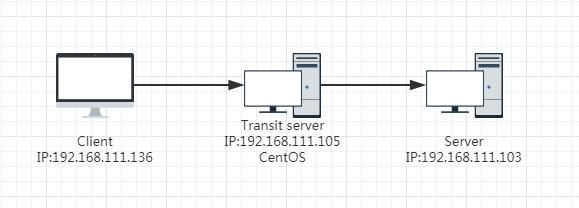

Transit server: 192.168.111.105

Network connection as shown in the figure

Alt text

1. Using iptables to achieve port forwarding

(1) Enable forwarding function

echo 1 >/proc/sys/net/ipv4/ip_forward

Note:

This command takes effect immediately and will be lost after system reboot

(2) Install iptables

systemctl stop firewalld
systemctl mask firewalld
yum install iptables-services
systemctl enable iptables

(3) Add forwarding rules

iptables -t nat -A PREROUTING -p tcp -d 192.168.111.105 --dport 8888 -j DNAT --to-destination 192.168.111.103:4444
iptables -t nat -A POSTROUTING -p tcp -d 192.168.111.103 --dport 4444 -j SNAT --to-source 192.168.111.105
service iptables save
service iptables restart
service iptables status

(4) View forwarding rules

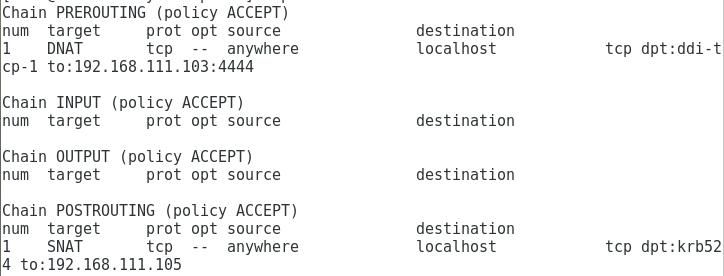

iptables -L -t nat --line-number

As shown in the figure below

Alt text

Test network connection:

Server:

nc -lvp 4444

Client:

nc -vv 192.168.111.105 8888

Client connection successful

(4) Clear rules

iptables -F -t nat

2. Use rinetd to implement port forwarding

Same as Ubuntu, omitted here

3. Use HTran to implement port forwarding

Same as Ubuntu, omitted here

4. Use EarthWorm to implement port forwarding

Same as Ubuntu, omitted here

0x03 Port Forwarding - Reverse Connection

---

0. Application Scenario

1. Establish a Tunnel

Connect to the specified port of the internal network server

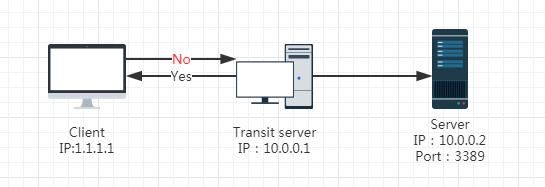

Test environment as shown below

Alt text

Already have Transit server permissions, want to access Server's port 3389

Client cannot connect to Transit server directly, but Transit server can connect to Client in reverse

iptables and rinetd are no longer applicable

1. Using HTran

Supports Windows and Linux

Client:

HTran -listen 1111 2222

Transit server:

HTran -slave 1.1.1.1 1111 10.0.0.2 3389

Client:

nc -vv 127.0.0.1 2222

2、Using EarthWorm

Supports Windows and Linux

Client:

ew -s lcx_listen -l 2222 -e 1111

Transit server:

ew -s lcx_slave -d 1.1.1.1 -e 1111 -f 10.0.0.2 -g 3389

Client:

nc -vv 127.0.0.1 2222

0x04 Forward Proxy

---

0、Application Scenario

1. Internal network scanning

Scanning multiple ports on the internal network

Client can forward connect to Transit server

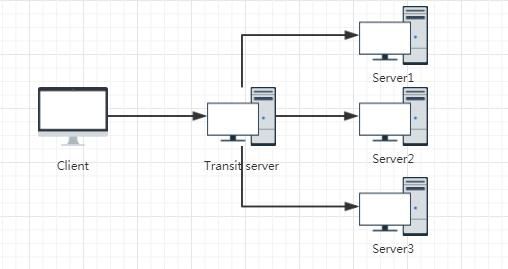

The test environment is shown in the figure below

Alt text

Scan the ports of Server1, Server2, and Server3

Socks4 proxy only supports TCP protocol, while Socks5 proxy supports both TCP and UDP protocols, making it more comprehensive. Therefore, this article only introduces the method of implementing Socks5 proxy.

1. Using HTran

It is rumored online that HTran2.4 supports Socks5 proxy, but I have not found the open-source code. This is noted here.

2. Using EarthWorm

Transit server:

ew –s ssocksd –l 8888

Client uses a proxy tool to connect to port 8888 of the Transit server

3. Using goproxy

A high-performance HTTP, HTTPS, WebSocket, TCP, UDP, Socks5, and SS proxy server implemented in Go, supporting forward proxy, reverse proxy, transparent proxy, intranet penetration, TCP/UDP port mapping, and SSH relay.

Download address:

https://github.com/snail007/goproxy/

Transit server:

proxy socks -t tcp -p "0.0.0.0:8888"

Client connects to Transit server port 8888 using proxy tool

4. Implement using Go yourself

Install Go on Windows system:

https://golang.org/dl/

Install git:

http://git-scm.com/downloads

Install go-socks5:

go get github.com/armon/go-socks5
go build

test.go:

package main
import socks5 "github.com/armon/go-socks5"
func main() {
conf := &socks5.Config{}
server, err := socks5.New(conf)
if err != nil {
panic(err)
}
if err := server.ListenAndServe("tcp", "0.0.0.0:8888"); err != nil {
panic(err)
}
}

Compile

go build test.go

Client connects to Transit server's port 8888 using a proxy tool

5. Use reGeorg

Download address:

https://github.com/NoneNotNull/reGeorg

For web servers, supports (aspx|ashx|jsp|php)

Note:

On Windows, tools like sockscap64 can be used to connect to SOCKS proxies

On Linux, tools like proxychains can be used to connect to SOCKS proxies

0x05 Reverse Proxy

---

0. Application Scenarios

1. Internal Network Scanning

Scan multiple ports within the internal network

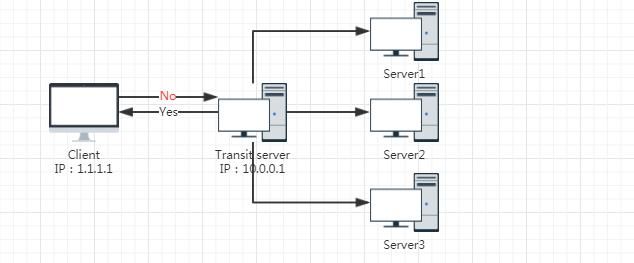

Test environment as shown below

Alt text

Client cannot connect directly to Transit server, but Transit server can connect reversely to Client

Scan ports on Server1, Server2, and Server3

1. Using EarthWorm

Client:

ew -s rcsocks -l 2222 -e 1111

Transit server:

ew -s rssocks -d 1.1.1.1 -e 1111

Connect to Client's port 2222 using proxy tools

2. Using rsocks

Download address:

https://github.com/brimstone/rsocks

Written in Go, supports Windows and Linux

Client:

rsocks -listen :1111 -socks 127.0.0.1:2222

Transit server:

rsocks -connect 1.1.1.1:1111

Connect to Client's port 2222 using proxy tools

0x06 Summary

---

This article organizes and summarizes common tools and methods for port forwarding and proxying, dividing them into two categories: forward and reverse connections. It introduces application scenarios and common tools for each category, serving as a reference for practical applications.
