Domain Penetration - Obtaining the NTDS.dit File from Domain Controller Servers

0x00 Preface

---

In the previous article 'Technical Summary of Exporting All User Hashes in the Current Domain', we introduced copying the ntds.dit file via Volume Shadow Copy to export all user hashes within the domain. This article will attempt to systematically summarize various different methods.

0x01 Introduction

---

This article will cover the following:

• Multiple implementation methods
• Comparison of advantages and disadvantages

0x02 Obtaining the Domain Controller NTDS.dit File via Volume Shadow Copy

---

Test systems:

• Server 2008 R2 x64
• Server 2012 R2 x64

Volume Shadow Copy Service:

• For data backup
• Supports Windows Server 2003 and above operating systems
• The system automatically creates data backups under specific conditions by default, such as after patch installation. On Win7 systems, backups are automatically created approximately every week, but this timing is not guaranteed
• Disabling VSS will affect normal system functions, such as System Restore and Windows Server Backup

1. ntdsutil

Installed by default in domain environments

Supported systems:

• Server 2003
• Server 2008
• Server 2012
• ...

Common commands:

(1) Query current snapshot list

(2) Query mounted snapshot list

(3) Create snapshot

(4) Mount snapshot

(5) Unmount snapshot:

(6) Delete snapshot

Actual test:

(1) Query current system snapshots

(2) Create snapshot

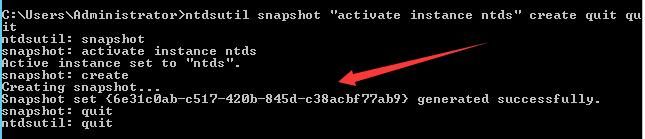

guid is {6e31c0ab-c517-420b-845d-c38acbf77ab9}

as shown in the figure below

(3) Mount snapshot

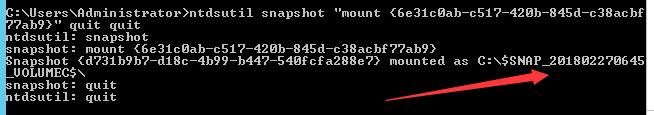

Snapshot mounted as C:\$SNAP_201802270645_VOLUMEC$\, as shown in the figure below

(4) Copy ntds.dit

(5) Unmount snapshot:

(6) Delete snapshot

2、vssadmin

Installed by default in domain environment

Supported Systems:

• Server 2008
• Server 2012
• ...

Common Commands:

(1) Query current system snapshots

(2) Create a snapshot

(3) Delete a snapshot

Actual Testing:

(1) Query current system snapshots

(2) Create a snapshot

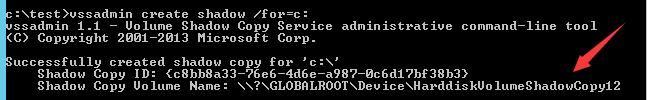

Obtain Shadow Copy Volume Name as \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy12

As shown in the figure below

(3) Copy ntds.dit

(4) Delete snapshot

3. vshadow.exe

Not supported by default in the system, this tool can be obtained from the Microsoft Windows Software Development Kit (SDK)

Note:

64-bit systems require the 64-bit version of vshadow.exe

Download links for vshadow.exe versions available for different systems:

http://edgylogic.com/blog/vshadow-exe-versions/

Common commands:

(1) Query current system snapshots

(2) Create a snapshot

Parameter description:

-p persistent, not deleted by backup operations or system restart

-nw no writers, used to improve creation speed

C: corresponds to drive C

(3) Delete snapshot

Actual testing:

(1) Query current system snapshots

(2) Create a snapshot

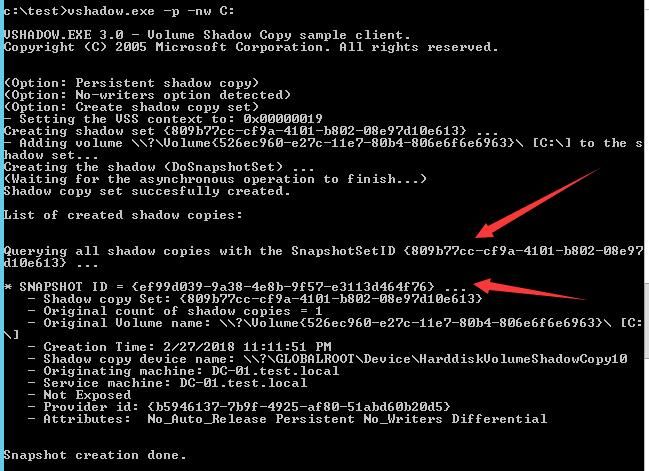

Obtained SnapshotSetID as {809b77cc-cf9a-4101-b802-08e97d10e613}

Obtained SnapshotID as {ef99d039-9a38-4e8b-9f57-e3113d464f76}

Obtained shadow copy device name as \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy10

As shown in the figure below

(3) Copy ntds.dit

(4) Delete snapshot

or

4. vssown.vbs

Reference download address:

https://raw.githubusercontent.com/borigue/ptscripts/master/windows/vssown.vbs

Essentially operates on ShadowCopy through WMI

Query snapshot information via WMI:

PowerShell implementation:

https://github.com/samratashok/nishang/blob/master/Gather/Copy-VSS.ps1

Extensions

1. Log files

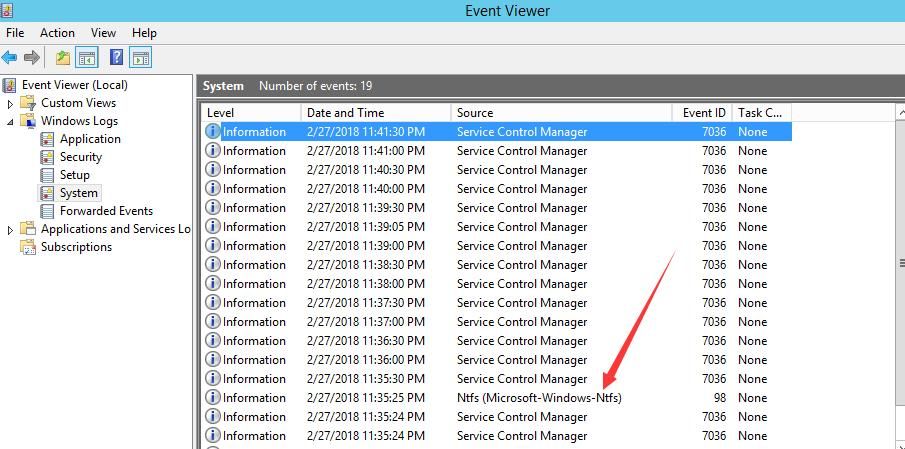

Invoking Volume Shadow Copy Service generates log files under System, with Event ID 7036

Executing ntdsutil snapshot "activate instance ntds" create quit quit additionally generates log files with Event ID 98

As shown below

2. Accessing files in snapshots

View snapshot list:

Cannot directly access files in \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy12

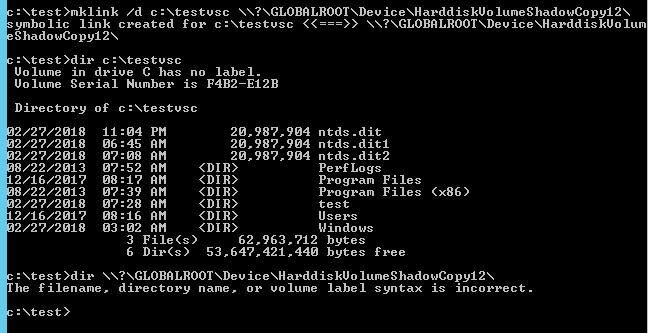

Files in the snapshot can be accessed by creating symbolic links:

As shown in the figure below

Delete symbolic link:

Exploitation idea:

If snapshot files exist in the current system, historical files of the system can be accessed

3. Executing commands using vshadow

Reference materials:

https://bohops.com/2018/02/10/vshadow-abusing-the-volume-shadow-service-for-evasion-persistence-and-active-directory-database-extraction/

Execute command:

After execution, the background process VSSVC.exe exists, and the Volume Shadow Copy service is shown as running, requiring manual termination of the VSSVC.exe process

Note:

Manually terminating the VSSVC.exe process generates log 7034

Exploitation approach:

vshadow.exe contains Microsoft signatures, allowing it to bypass certain whitelist restrictions. If set as a startup item, it does not appear in Autoruns' default startup list

0x03 Obtaining the domain controller's NTDS.dit file via NinjaCopy

---

Download link:

https://github.com/PowerShellMafia/PowerSploit/blob/master/Exfiltration/Invoke-NinjaCopy.ps1

Does not invoke the Volume Shadow Copy service, thus no log file 7036 is generated

0x04 Summary

---

This article compiles various methods for obtaining the domain controller's NTDS.dit file, tests their usage environments, and compares their advantages and disadvantages.
