0x00 Preface

---

To perform remote injection into a specified process, the Windows API CreateRemoteThread is typically used to create a remote thread, thereby injecting a DLL or executing shellcode.

Sysmon can be used to monitor and log system activities, including CreateRemoteThread operations.

CreateRemoteThread is not the only injection method; can other injection techniques bypass Sysmon monitoring?

Casey Smith @subTee provided the answer in his article:

Shellcode Injection via QueueUserAPC - Hiding From Sysmon

The address is as follows:

http://subt0x10.blogspot.com/2017/01/shellcode-injection-via-queueuserapc.html

0x01 Introduction

---

This article will cover the following topics:

  • Sysmon configuration testing to monitor CreateRemoteThread operations
  • C++ implementation of DLL injection via APC
  • Bypassing Sysmon Testing
  • C# implementation code and usage shared by Casey Smith@subTee

Sysmon:

Can be used to monitor and record system activities, logging to Windows event logs, including the following events:

  • Event ID 1: Process creation
  • Event ID 2: A process changed a file creation time
  • Event ID 3: Network connection
  • Event ID 4: Sysmon service state changed
  • Event ID 5: Process terminated
  • Event ID 6: Driver loaded
  • Event ID 7: Image loaded
  • Event ID 8: CreateRemoteThread
  • Event ID 9: RawAccessRead
  • Event ID 10: ProcessAccess
  • Event ID 11: FileCreate
  • Event ID 12: RegistryEvent (Object create and delete)
  • Event ID 13: RegistryEvent (Value Set)
  • Event ID 14: RegistryEvent (Key and Value Rename)
  • Event ID 15: FileCreateStreamHash
  • Event ID 255: Error

For details, see https://technet.microsoft.com/en-us/sysinternals/sysmon

Note:

CreateRemoteThread is Event ID 8

DLL injection

Common methods:

  • Create a new thread
  • Set thread context, modify registers
  • Insert into APC queue
  • Modify registry
  • Hook window messages
  • Remote Manual Implementation of LoadLibrary

Cited from http://www.cnblogs.com/uAreKongqi/p/6012353.html

Shellcode Injection via QueueUserAPC - Hiding From Sysmon:

C# implementation, executing shellcode by calling QueueUserAPC, applicable to InstallUtil.exe and Msbuild.exe, capable of bypassing Sysmon's monitoring of Event ID 8: CreateRemoteThread

Article URL:

http://subt0x10.blogspot.com/2017/01/shellcode-injection-via-queueuserapc.html

0x02 Introduction to Sysmon

---

Download URL:

https://technet.microsoft.com/en-us/sysinternals/sysmon

Installed on the system as a system service and driver

Used to monitor and log system activities, recording them into Windows event logs

Provides detailed information on operations such as process creation, network connections, and file creation time changes

Through event logs, abnormal activities can be identified to understand attackers' operations on the network

Note:

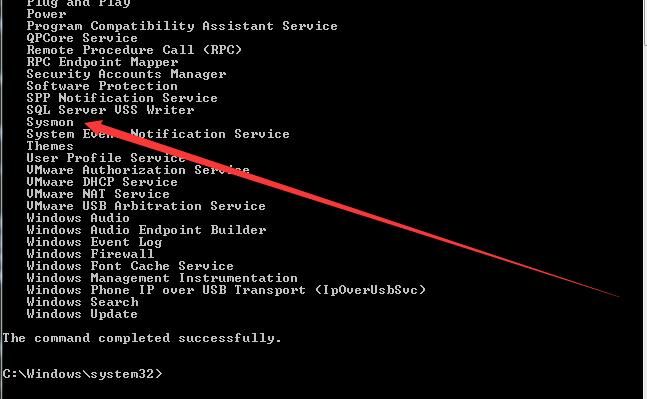

After installing Sysmon on the system, a new service named Sysmon is added

As shown in the figure

Alt text

That is to say, if an attacker gains host privileges, they can see the installation of Sysmon by viewing the installed services

Installation

Install with default configuration:

sysmon -accepteula –i -n

Install with configuration file:

sysmon -c config.xml

Example format of the configuration file config.xml is as follows:

Note:

XML is case-sensitive



*




microsoft
windows






443
80


iexplore.exe


Note:

This example is referenced from http://www.freebuf.com/sectool/122779.html

View Configuration

sysmon -c

Note:

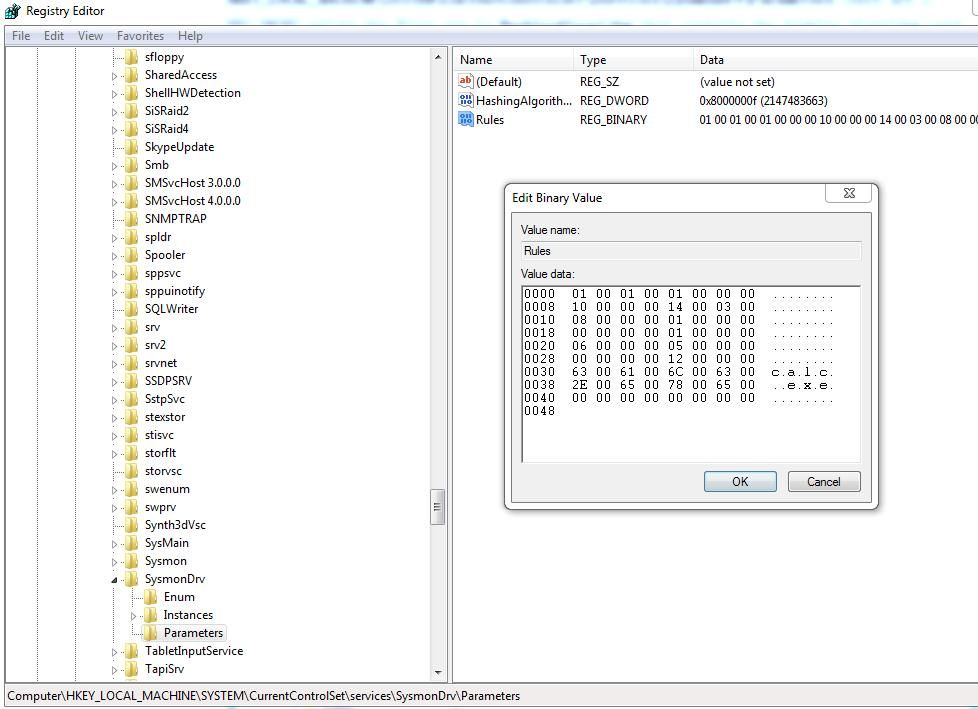

Configuration properties are saved in the registry at the following location:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\SysmonDrv\Parameters

As shown in the figure

Alt text

View Log Records

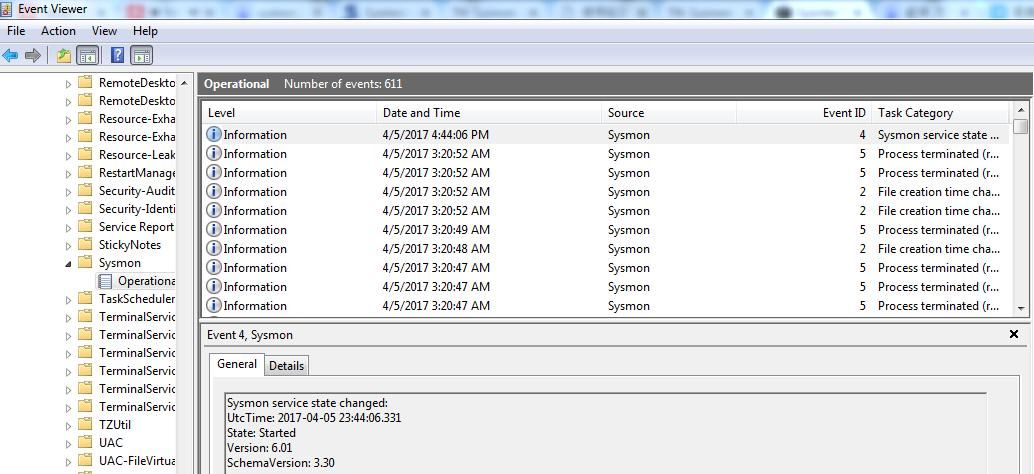

1. Via the panel

Location as follows:

Control Panel\System and Security-View event logs

Applications and Services Logs-Microsoft-Windows-Sysmon-Operational

As shown in the figure

Alt text

2. View via PowerShell, command as follows:

(Administrator privileges)

Get-WinEvent -FilterHashtable @{logname="Microsoft-Windows-Sysmon/Operational";}

Monitor and log CreateRemoteThread

Configuration file as follows:



*




calc.exe


Save as RecordCreateRemoteTh.xml

Note:

This configuration file monitors the calc.exe process and logs events when CreateRemoteThread is captured.

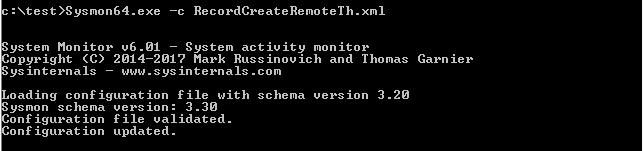

Install configuration file:

Sysmon.exe -c RecordCreateRemoteTh.xml

As shown in the figure

Alt text

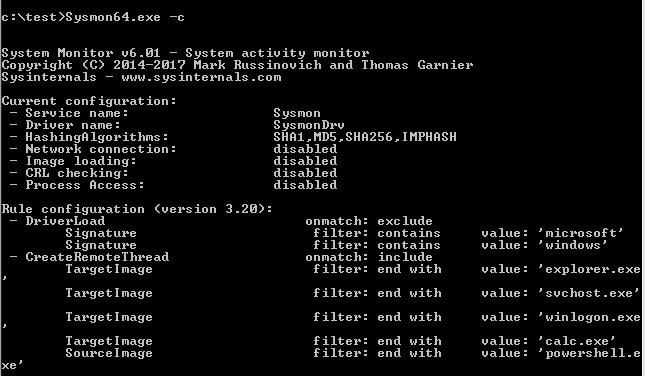

View configuration information

Sysmon.exe -c

As shown in the figure

Alt text

Start calc.exe

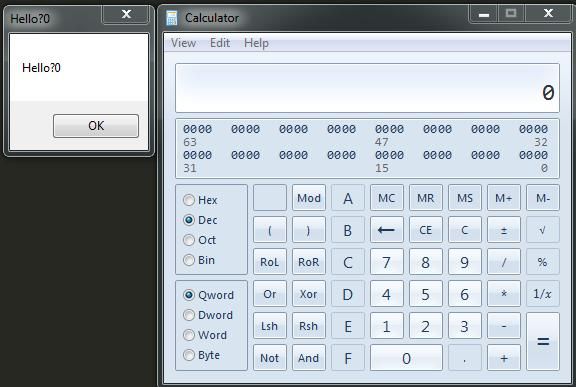

Execute CreateRemoteTh.exe, calc.exe is injected, a pop-up appears, as shown in the figure

Alt text

The source code of CreateRemoteTh.exe can be referenced from:

An open-source project

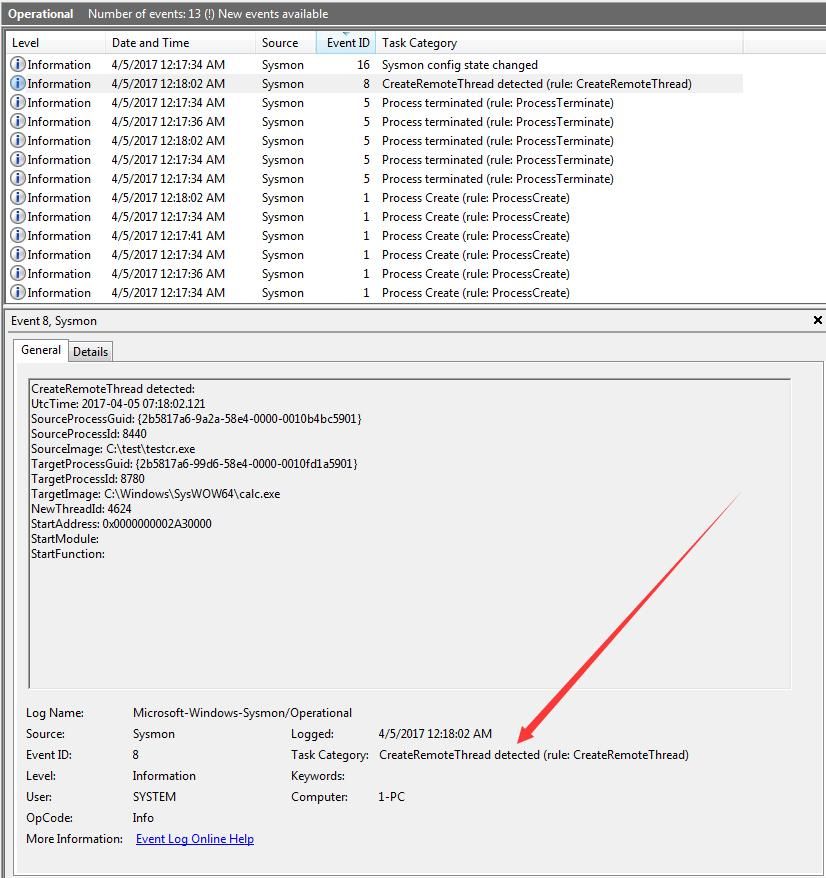

Check the logs, Event ID 8 is found

As shown below, CreateRemoteThread is detected

Alt text

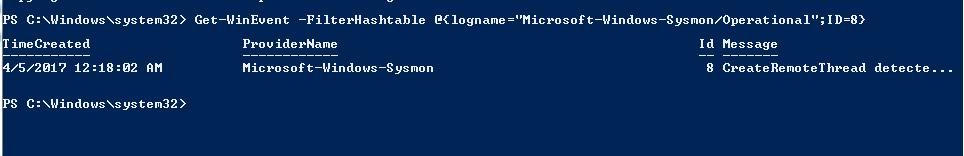

View Event ID 8 via PowerShell

Get-WinEvent -FilterHashtable @{logname="Microsoft-Windows-Sysmon/Operational";ID=8}

As shown below, retrieve log Event ID 8

Alt text

0x03 C++ Implementation of DLL Injection via APC

---

Using APC Injection:

Code as follows:

An open-source project

For detailed explanation of the code, refer to:

http://blogs.microsoft.co.il/pavely/2017/03/14/injecting-a-dll-without-a-remote-thread/

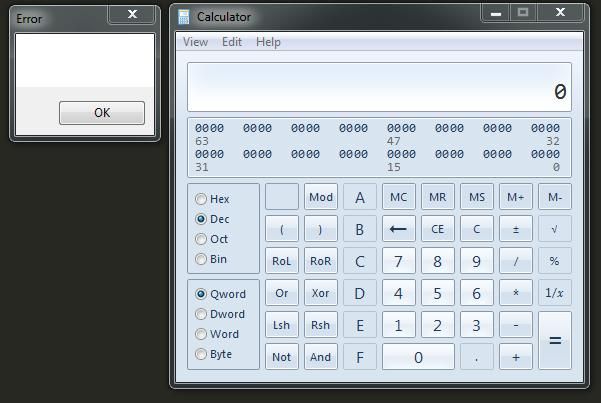

As shown, successfully injected into calc.exe

Alt text

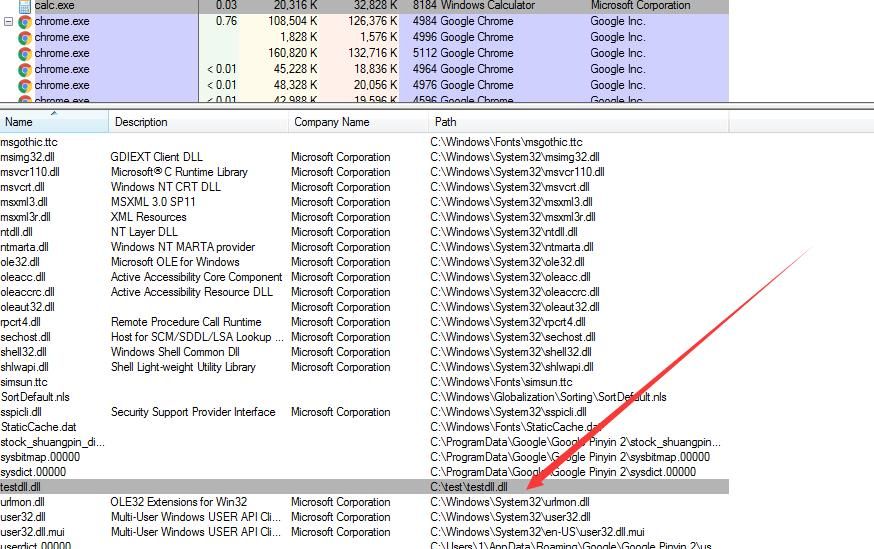

Using ProcessExplorer to view DLLs loaded by calc.exe, as shown below, testdll successfully injected

Alt text

Checking logs, no Event ID 8 generated, successfully bypassed Sysmon monitoring of CreateRemoteThread

0x04 C# Implementation Code and Usage Shared by Casey Smith@subTee

---

Can be applied to exploitation using InstallUtil.exe and Msbuild.exe

InstallUtil.exe:

https://gist.github.com/subTee/7bbd8e995ed8e8b1f8dab1dc926def8a

Msbuild.exe:

https://gist.github.com/subTee/cf3e1b06cf58fcc9e0255190d30c2d38

No Event ID 8 was generated during the call

0x05 Summary

---

This article tests the monitoring capabilities of Sysmon and introduces how to achieve DLL injection via APC to bypass Sysmon's monitoring of CreateRemoteThread

In specific environments, if manually shutting down the Sysmon service is not possible, utilizing APC can to some extent bypass Sysmon's monitoring of CreateRemoteThread

References:

http://subt0x10.blogspot.com/2017/01/shellcode-injection-via-queueuserapc.html

https://www.darkoperator.com/blog/2014/8/8/sysinternals-sysmon

http://www.freebuf.com/sectool/122779.html

http://www.cnblogs.com/uAreKongqi/p/6012353.html

http://blogs.microsoft.co.il/pavely/2017/03/14/injecting-a-dll-without-a-remote-thread/
