Advanced Exploitation Techniques for Hidden Alternative Data Streams

0x00 Preface

---

In penetration testing, ADS (Alternative Data Stream) is commonly used to hide payloads within files. The greatest advantage of this method is that it does not affect the file size, making it difficult for ordinary users to detect.

To address this, Microsoft provides the "dir /r" command to view ADS in files. Additionally, systems after Windows XP prohibit users from directly executing programs from ADS, limiting its exploitation.

However, through some special methods and techniques, we can better hide ADS and even execute programs directly from ADS :)

Note:

The original intention of writing this article was inspired by an interesting piece I came across, authored by lex Inführ, available at the following address:

http://insert-script.blogspot.co.at/2012/11/hidden-alternative-data-streams.html

That article introduces some techniques to bypass ADS detection tools and provides a method to execute ADS via WMI.

This article will expand on the exploitation techniques of ADS based on lex Inführ's work, incorporating my research insights, and share how to clean up these special ADS to help enhance everyone's understanding of ADS.

0x01 Introduction

---

This article will cover the following topics:

• Conventional Exploitation Methods for ADS
• ADS Regular Detection Tools
• Bypassing Detection Tools with Special ADS
• Clearing Special ADS
• Defense Recommendations

0x02 Regular Exploitation

---

ADS:

Applicable to NTFS file system. Basic knowledge can be referenced in the following article:

http://www.freebuf.com/articles/73270.html

Creating ADS:

For files, command line:

echo test1 > test.txt:ThisIsAnADS

After successful creation, the file size of test.txt remains unchanged

For folders, command line:

echo test1 > c:\test\ads\1:ThisIsAnADS

Note:

Absolute path required

View ADS in files:

Command line:

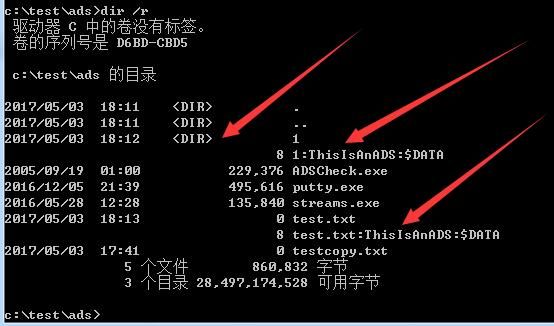

dir /r

As shown in the figure

Can obtain ADS information contained in folders and files

View ADS content:

Command line:

more < test.txt:ThisIsAnADS

As shown in the figure below, obtain the specific content of ADS

Delete ADS:

Command line:

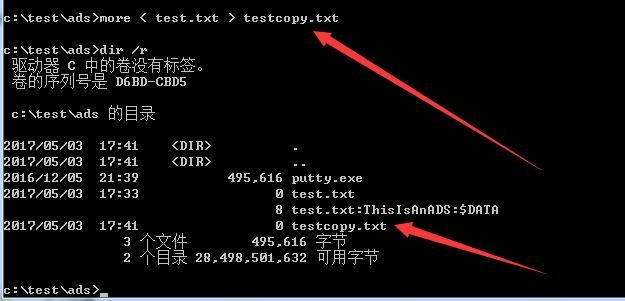

more < test.txt > testcopy.txt

Using the more command to view the main data stream of a file and outputting it can indirectly achieve ADS deletion.

As shown below, testcopy.txt does not contain extra ADS.

Note:

The more command truncates and displays output screen by screen when showing long data, which contains a bug: if the file is too large, causing the more command to require pagination, it can lead to incomplete data display and file generation failure.

0x03 ADS Execution

---

1. Via WMI

Command line:

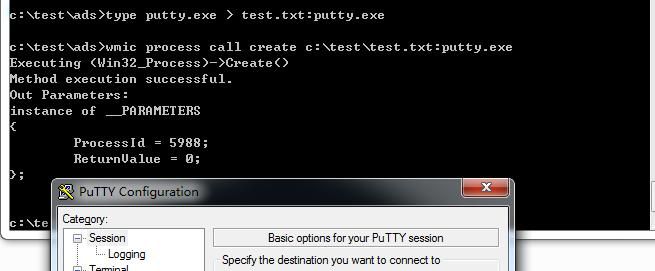

type putty.exe > test.txt:putty.exe

wmic process call create c:\test\test.txt:putty.exe

As shown in the figure

After program execution, the process name is test.txt:putty.exe

2. Via PowerShell

Code as follows:

0x04 Conventional Detection Tools

---

1. ADSCheck.exe

Download link:

https://sourceforge.net/projects/adscheck/

View ADS:

Can view all files under the specified folder

Command:

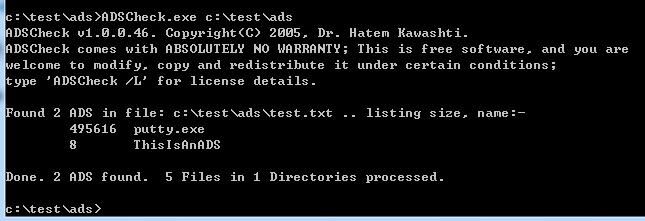

ADSCheck.exe c:\test\ads

As shown in the figure

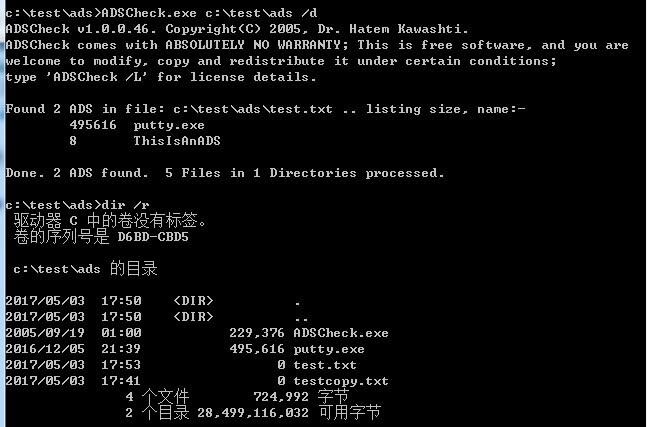

Delete ADS:

All ADS under the specified path can be deleted

Command:

ADSCheck.exe c:\test\ads /d

As shown in the figure

2、Streams.exe

Download address:

https://technet.microsoft.com/en-us/sysinternals/streams.aspx

View ADS:

View a single file

Command:

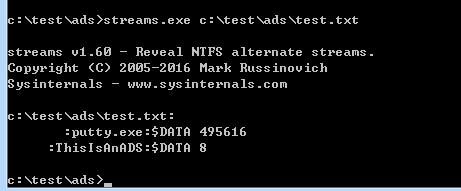

streams.exe c:\test\ads\test.txt

As shown in the figure

Delete ADS:

Delete ADS for a single file

Command:

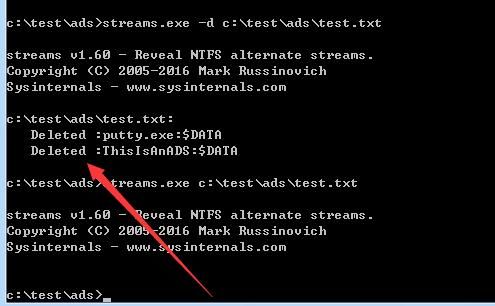

streams.exe -d c:\test\ads\test.txt

As shown in the figure

Example test:

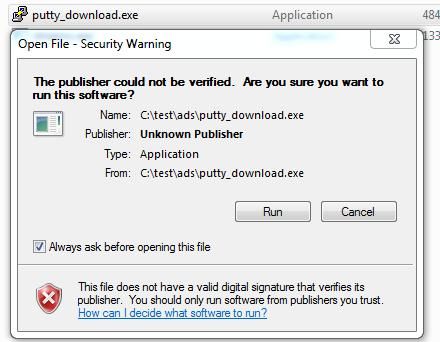

When opening a file downloaded by the browser, a prompt dialog appears

As shown in the figure

Reason:

Downloaded files are automatically added with adsZone.Identifier:$DATA

Verification:

View ADS:

more < putty_download.exe:Zone.Identifier:$DATA

Content obtained as follows:

Remove ADS:

Cannot use the more command because putty_download.exe is too large, requiring paged display, causing file generation to fail

Can use streams.exe

After removing ADS, opening the file no longer prompts with a dialog box

0x05 Special ADS

---

1. ...file

Create special file...

Command as follows:

type putty.exe > ...:putty.exe

wmic process call create c:\test\ads\...:putty.exe

putty.exe executed successfully, process name is ...:putty.exe

Special features:

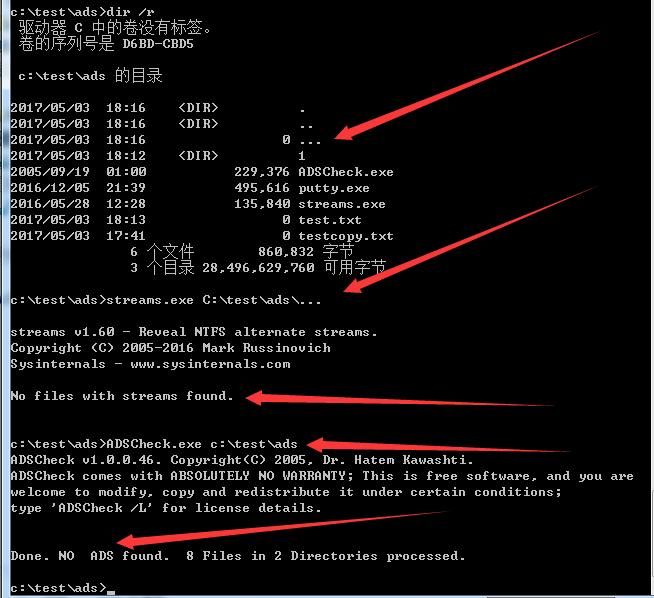

(1) ADS is hidden

• dir /r cannot query it
• Tools ADSCheck.exe and streams.exe show no ADS exists

As shown in the figure

(2) The file cannot be deleted

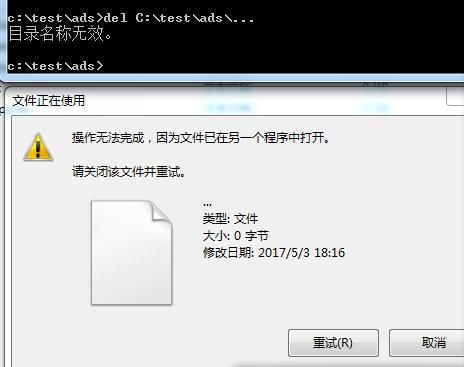

Various methods attempted, unable to delete, as shown in the figure

2. Special COM file

Create a special name file COM1

Note:

After testing, the system currently supports file names from COM1 to COM9

The prefix \\.\ must be included, otherwise the system will prompt that the specified file cannot be found

Supplement 1:

The special name nul has the same effect, this method was tested and confirmed by Evi1cg

Supplement 2:

Other special file formats can also hide ADS, including the following suffix formats:

CON, AUX, PRN, LPT1, LPT2, LPT3, LPT4, LPT5, LPT6, LPT7, LPT8, LPT9

eg:

type putty.exe > \\.\C:\test\ads\LPT4:putty.exe

Note:

For more special file names, refer to:

https://docs.microsoft.com/en-us/windows/desktop/FileIO/naming-a-file#naming-conventions

Supplement 3:

The prefix \\?\ can also be used, with the same effect

Command as follows:

type putty.exe > \\.\C:\test\ads\COM1:putty.exe

wmic process call create \\.\C:\test\ads\COM1:putty.exe

Note:

*Executing wmic process call create c:\test\ads\COM1:putty.exe does not run the program*

putty.exe successfully executed, process name is COM1:putty.exe

Special aspects:

(1) ADS is hidden

• dir /r cannot query it
• Tools ADSCheck.exe and streams.exe show no ADS exists

(2) Cannot be directly deleted

3. Disk root directory

Administrator privileges

type putty.exe >C:\:putty.exe

wmic process call create C:\:putty.exe

putty.exe successfully executed, process name is :putty.exe

Special features:

(1) ADS is hidden

• dir /r cannot find it
• Use streams.exe to view

(2) Cannot be directly deleted

0x06 Clearing special ADS

---

1、...file

Method 1:

Delete all files in the directory:

del *.*

But not practical

Method 2:

Use short filenames

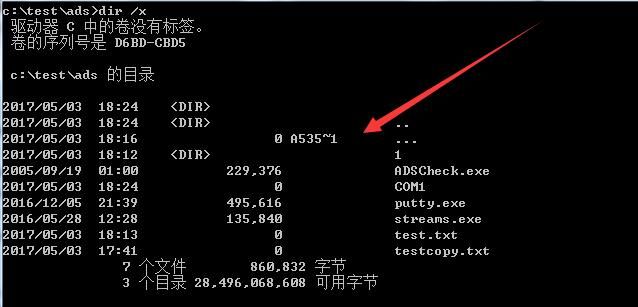

dir /x

As shown in the figure

Find the short file name corresponding to the ... file as A535~1

Command line:

del A535~1

Successfully deleted

2. Special COM file

Command line:

del \\.\C:\test\ads\COM1

3. Disk root directory

Using streams.exe

Administrator privileges:

streams.exe -d C:\

0x07 Defense Recommendations

---

For users, if they discover files with special names in the system that cannot be deleted, they should be vigilant, as these may contain payloads.

Referencing this article, the special files and their removal methods are as follows:

(1) ...

Delete using short filenames.

(2) COM1-COM9

del \\.\C:\test\ads\COM1

(3) Disk root directory

View and delete using streams.exe.

0x08 Summary

---

This article introduces advanced techniques for hiding ADS, shares specific removal methods and defense recommendations in combination with attack methods, hoping to assist everyone.
